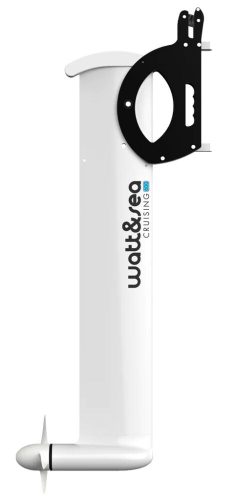

Watt&Sea Pack CRUISING 600W Hydrogenerator (970 mm)

Up to 600W of electrical production, ideal for sailing boats over 35 feet.

For cruises, races and transatlantics, in total energy self-sufficiency. The output power increases in an exponential way over 6 knots.

Delivered in standard with the 240mm diameter propeller (10 Amps at 5.6 kots), the CRUISING 600 accepts a range of 4 propellers for speed range from 3 to 20 knots.

Mobile application : converter equipped with a Bluetooth chip allowing the reading of charge data, various technical informations, as well as the adjustment of voltages if necessary (Lithium battery)

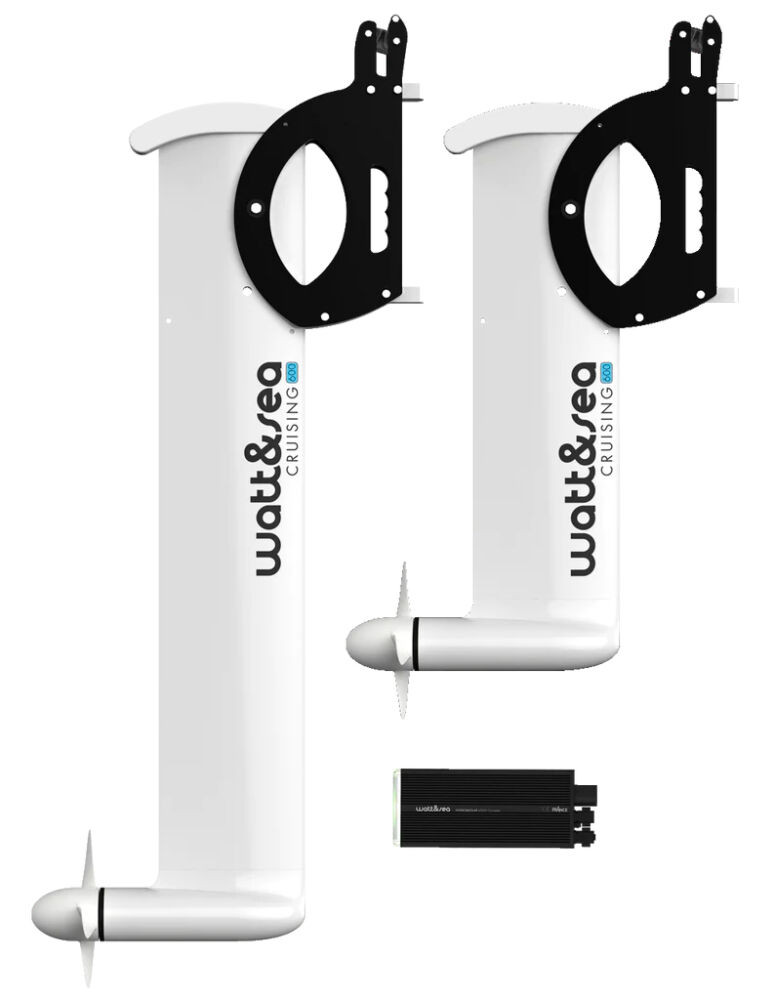

Available in 2 versions :

• Short (Ref. PK-610-600)
• Long (Ref. PK-970-600)



---

Output 120W from 5 knots

Light: 7,4 kg

Quiet

Two-years warranty

Info

Output voltage (DCV):

12/24

Power (W):

600

Usage:

Túra

Length of foot:

97

Website:

https://www.wattandsea.com/en/hydrogenerators/crui...

Weight:

9.05 kg/db

Technical specification

Pack composition

Hydrogenerator	Nominal power 600W
Converter	Max output power 600W 12 Vcc or 24 Vcc autodetected Mobile application 48 Vcc in option Input for solar panel 7,5-50 Vcc / 14 Amps
Holding bracket	With cam cleat Locking pin
Aluminium leg	610 mm or 970 mm
Propeller	240 mm
Other accessories supplied :	1 low friction ring with its splicing rope 2 stainless steel forks to be fastened on the transom 1 bag with connectors 2 pre-assembled plugs and their cables



Technical characteristics

Output at 5 knots	8 Amps in 12 Vcc (100 W) with the 240 mm propeller 10 Amps in 12 Vcc (120 W) with the optional 280 mm propeller
Maximum using speed	15 knots with the 240 mm propeller 20 knots with the optional 200 mm propeller
Compatible batteries	Lead battery Lithium Other : contact us



Dimensions and weight

Hydrogenerator	8,1 kg or 9,05 kg depending on the length
Converter	1,4 kg
Three-phases cable length	4 meters
Pre-assembled plugs with their cable	1 meter
