Watt&Sea Pack CRUISING 300W Hydrogenerator (970 mm)

Csomagajánlatok

• Details
• Info
• Technical specification
• Download User manual

Details

Watt&Sea Pack CRUISING 300W Hydrogenerator (970 mm)

An input of energy up to 300W (24 Amp in 12 V), for more comfort in the respect of the environment !

The CRUISING 300 is usually recommended to boats measuring up to 35 feet :

Available in two lengths in order to optimize the immersion of the propeller depending on the place choosen for the fitting.

Ideal on boats sailing generally from 4 to 6 knots, and consuming around 8 Amps (12 V installation)

Delivered in standard with the 240 mm diameter propeller (output 8 Amps at 5,2 knots), it will produce even more with the 280 mm propeller (8 Amps at 4,5 knots)

Mobile application : converter equipped with a Bluetooth chip allowing the reading of charge data, various technical informations, as well as the adjustment of voltages if necessary (Lithium battery)

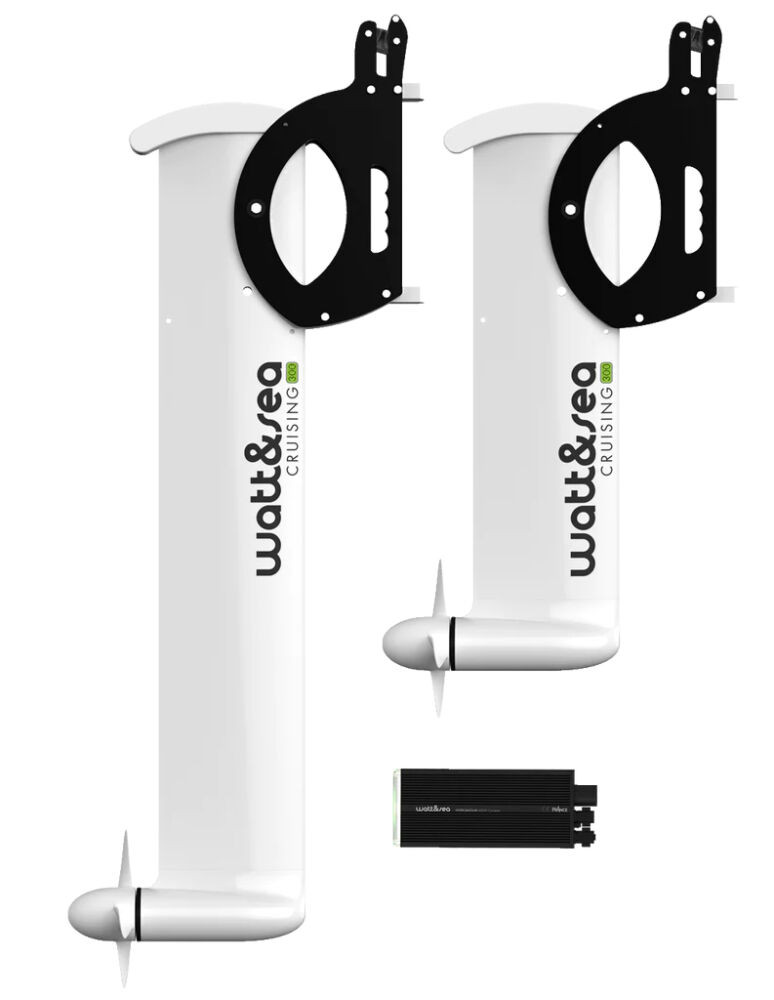

Available in 2 versions :

• short (Ref. PK-610-300)

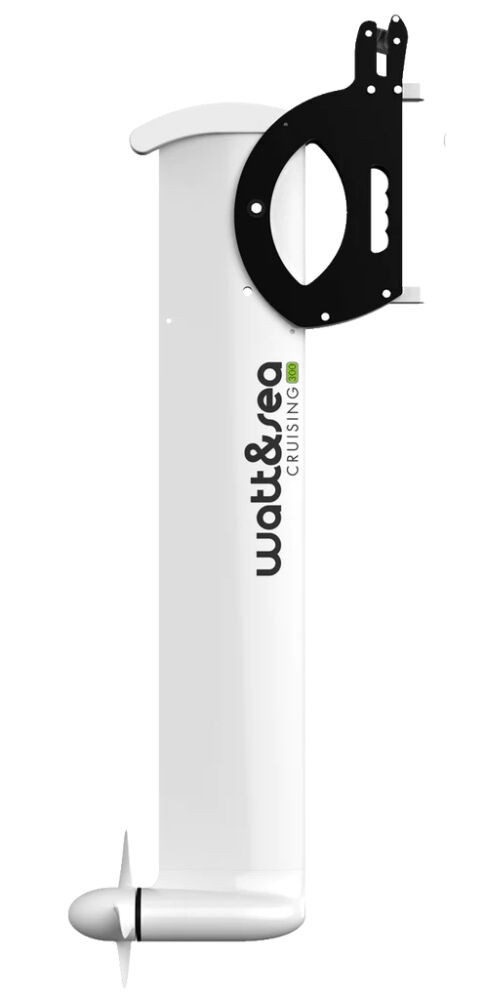

• long (Ref. PK-970-300)

---

Output 100 W from 5 knots

Light : 6,3 kg

Two years waranty

Quiet

Hydrodynamic Design

Info

Output voltage (DCV):

12/24

Power (W):

300

Usage:

Túra

Length of foot:

97

Website:

https://www.wattandsea.com/en/hydrogenerators/crui...

Weight:

8 kg/db

Technical specification

Packs characteristics :

Hydrogenerator	Nominal power 300 W
Converter	Max output power 600 W 12 Vcc or 24 Vcc autodetected Mobile application 48 V in option Input for solar panel 7,5-50 Vcc / 14 Amps
Holding bracket	With cam-cleat Locking pin
Aluminium leg	610 mm or 970 mm
Propeller	240 mm
Other accessories supplied :	1 low friction ring with its splicing rope 2 stainless steel forks to be fastened on the transom 1 bag with connectors 2 pre-assembled plugs and their cables



Technical characteristics

Output at 5 knots	Output at 5 knots 8 Amps in 12 Vcc (100 W) with the 240 mm propeller 10 Amps in 12 Vcc (120 W) with the optional 280 mm propeller
Maximum using speed	15 knots with the 240 mm propeller 20 knots with the optional 200 mm propeller
Compatible batteries	Lead battery Lithium Other : contact us



Dimensions and weight

Hydrogenerator	7,05 kg or 8,0 kg depending on the length
Converter	1,4 kg
Three-phases cable length	4 meters
Pre-assembled plugs with their cable	1 meter of cable
