  1. Watt&Sea Competition
  1. Hydro-Wind Generator
  2. Watt&Sea Competition

Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W

Item number:
WTS-PK-610-600-PV
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W
Manufacturer:
WATT&SEA
Manufacturer Article number:
PK-610-600-PV
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Main warehouse
Out of stock
External warehouse
Out of stock
Delivery time approx: 1-2 Weeks!

The Racing Aluminium hydrogenerator is designed for high or very high speed sailing boats.

Bundle offers
  • Details
  • Data
  • Technical specification
Details

Watt&Sea Pack 1 Racing Aluminium hydrogenerator 600W

The Racing Aluminium hydrogenerator is designed for high or very high speed sailing boats.

It is equipped with a controlled pitch propeller, functionning electronically with an hydraulic pump. The propeller pitch is setting automatically depending on the boat speed, ensuring a minimal drag and an optimal energy output. This model is functional for a speed range from 5 to 30 knots (Multihulls, Class40, Imoca…)

The Racing Aluminium hydrogenerator has satisfied the energy needs for 95 % of the 2020 Vendée Globe fleet.

  • Minimal Drag
  • Automatical adjustment of the blades
  • Optimal energy efficiency
  • Energy source for all range of speeds
  • 2 years warranty
Data
Output voltage (DCV):
12/24
Current (A):
14
Power (W):
600
Usage:
Verseny
Website:
https://www.wattandsea.com/en/hydrogenerators/raci...
Technical specification

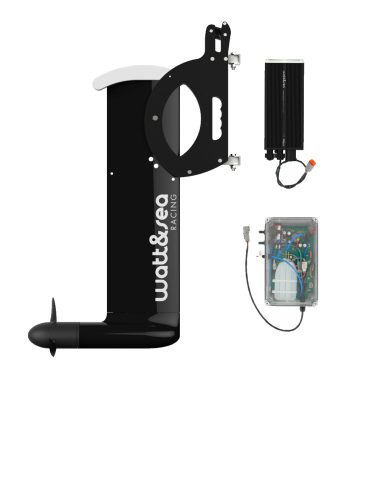

Pack composition

Hydrogenerator

Nominal power 600 W

Converter

Max output power 600 W

12 Vcc or 24 Vcc autodetected

48 Vcc in option

Input for solar panel 7,5-50 Vcc / 14 Amps

Hydraulic box

Led indication for pressure

Pump with brushless engine

Holding bracket

Anodized aluminium black flanges

With cam cleat Locking pin

Thermo-coated aluminium leg 610 mm

Variable pitch composite propeller 200 mm




Other accessories supplied :

1 low friction ring with its splicing rope

2 stainless steel forks to be fastened on the transom

1 bag with connectors

2 pre-assembled plugs and their cables

1 quick couple hydraulic



Technical characteristics

Output at 10 knots

24 Amps in 12 Vcc (3000 W) with the maximum adjustment

3,5 Amps in 12 Vcc (40 W) with the minimum adjustment

Maximum using speed :

30 knots with the minimum adjustment

Compatible batteries

Lead battery

Lithium

Other : contact us



Dimensions and weight

Hydrogenerator

8,6 kg

Converter

1,5 kg

Hydraulic box

1.0 kg

Three-phases cable

4 meters length

Pre-assembled plugs with their cable

1 meter length
