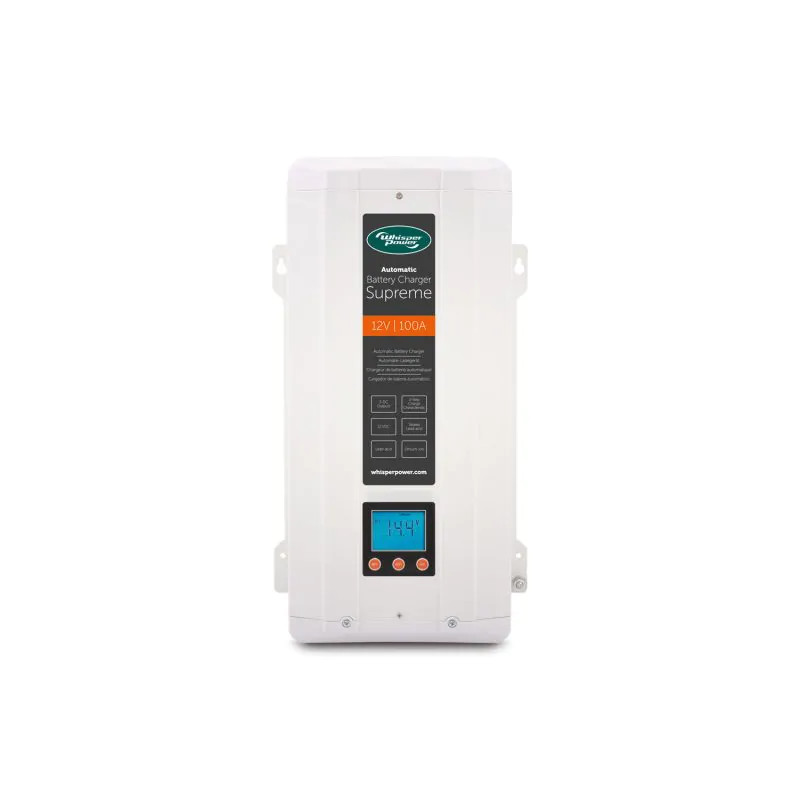

WhisperPower Supreme 12 VDC – 100 A

Meet the automatic battery charger: Supreme 12 VDC – 100 A with multiple outputs. Engineered for integration in automotive and nautical vessels, such as cars and yachts. Capable of charging three independent batteries. This charger offers user-friendly configuration for AGM, GEL, Lead-acid and Lithium battery types. Offering international adaptability, Supreme chargers can manage input voltages from 90 to 265 VAC (50/60 Hz).

• Complies with CE and ABYC standards

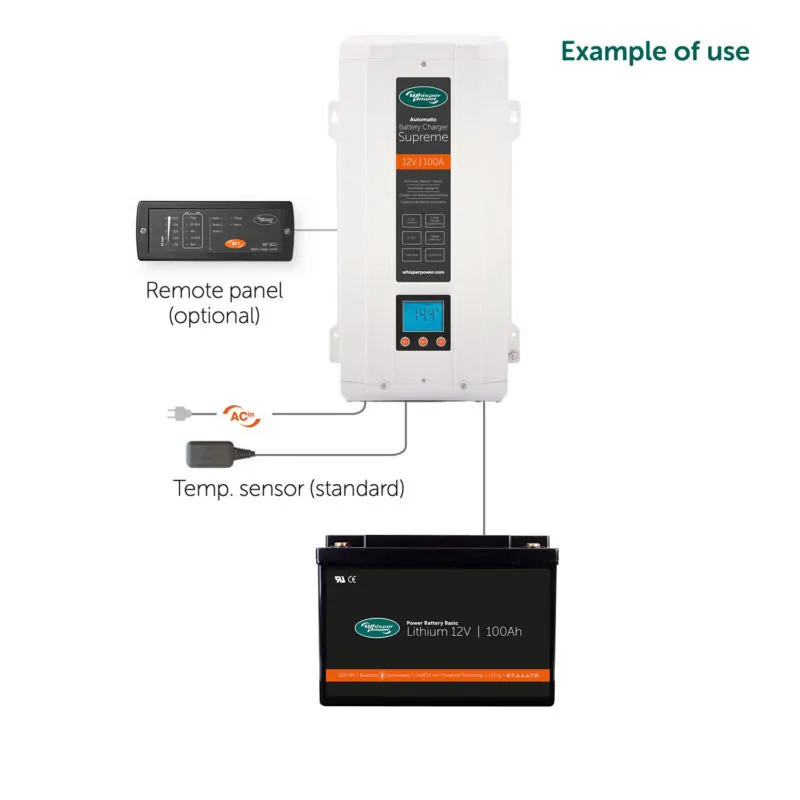

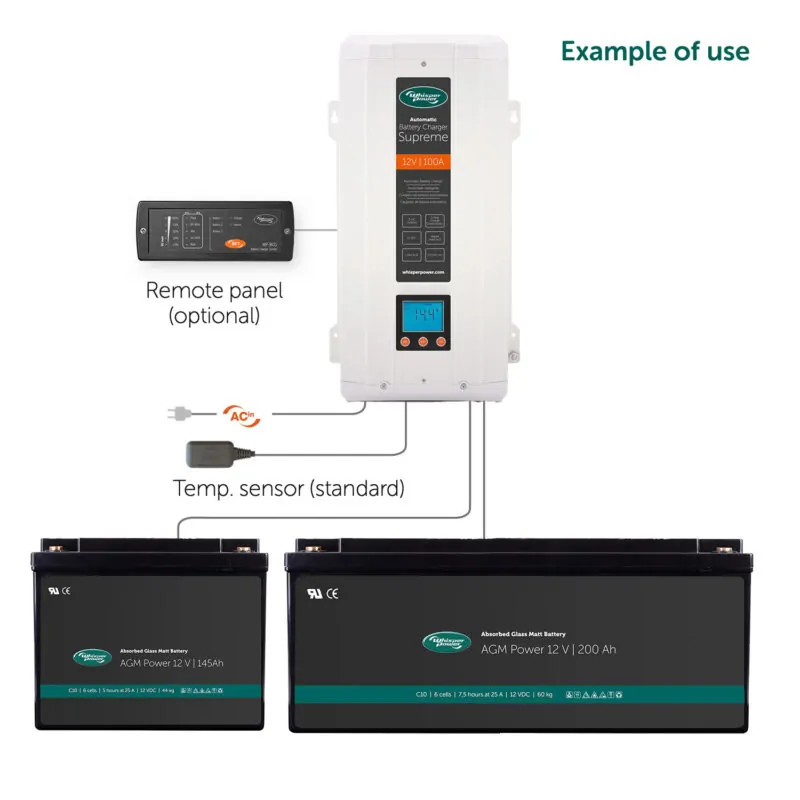

• Designed to charge three independent batteries (suitable for 1 or 2)
• Batteries can differ in capacity (Ah)
• Programmable for AGM, GEL, Lead acid and Lithium batteries
• Temperature sensor protects against risk of gas production
• Automatically adjusts supply voltage for worldwide use (90-265 VAC)
• Works with small gasoline or diesel generators

Benefits of the Supreme 12 VDC – 100 A

• Fast charge even with low input voltage
• Each output can be programmed differently
• Battery connection easily accessible, AC power cord supplied
• Quick install
• Quiet – no hum from transformer
• Maximizes battery lifetime
• Outstanding price – performance ratio

Info

Current (A):

0 - 100

Article number:

WPP- 61112310

Nominal battery voltage :

12 VDC

Battery capacity (recommendation):

GEL, AGM, Lithium and open lead acid

Website:

https://www.whisperpower.com/bc-supreme-12-v-100-a

Weight:

6.4 kg/pcs

Technical specification

ARTICLE NUMBER
61112310	Supreme 12 VDC - 100 A

DIMENSIONS & WEIGHT
Weight	6.4 Kg / 14.1 lb.
Length x width x height, mm (in.)	425 x 236 x 103 (16.7 x 9.3 x 4.1)

TECHNICAL SPECIFICATIONS
Output Current (Maximum)	100 A
Output Voltage Charge	14.2 - 15.5 V
Output Voltage Float	13.4 - 13.8 V
Output Voltage Equalize	16.0 V
Charging Control	3-step (Bulk/Absorption/Float)
DC Output Bank	3
Selectable Battery Type	GEL, AGM, Lithium and open lead acid
Parasitic Current	< 2 mA

CHARGER INPUT
AC Input Voltage (Nominal)	120, 230, 240 VAC
AC Input Operating Range	90 - 265 VAC
AC Input Frequency Range	47 - 63 Hz
Power Consumption (Full Load)	1800 W
Power Factor Correction	Yes
Charger Efficiency	> 84%

PROTECTION AND FEATURES
Reverse Battery	Yes, unit shutdown
Over Charge	Yes, unit shutdown
Over Heating	Yes, unit de-rated and shutdown
Output Short Circuit	Yes, unit shutdown
Cooling	Mechanical
Temperature Setting	Hot, Normal, Cold (no sensor connected)
Battery Temperature Sensor Port	RJ12 (battery temp. sensor use)
Digital Display Port	RJ12 (optional remote display panel)

DISPLAY
LCD Display (with back lighting)	Charging status, Battery Voltage
Warning and Fault Code	A01-02, E01-09

AC INPUT AND DC OUTPUT CONNECTION
AC Input Connection	Hardwire or AC Cord
DC Output Connection	Heavy Duty Studs (3 banks)
DC Output Ground	Single Heavy Duty Common Ground Stud

ENVIRONMENTAL AND OPERATING TEMPERATURE
Storage Range	-40° to 70°C
Operating Range	-20° to 60°C
Humidity	5-95%, non-condensing
Ingress Protection	IP32 (24/20 IP65)
