Meet the Supreme 12 VDC – 40 A battery charger with multiple outputs. Ideal for installation in automotive, marine environments and more. Capability to charge up to three batteries. Easy to configure for AGM, GEL, Lead-acid and Lithium types. Worldwide usability is assured, as Supreme charging stations handle input voltages from 90 to 265 VAC (50/60 Hz).

Details

WhisperPower Supreme 12 VDC – 40 A

Complies with CE and ABYC standards

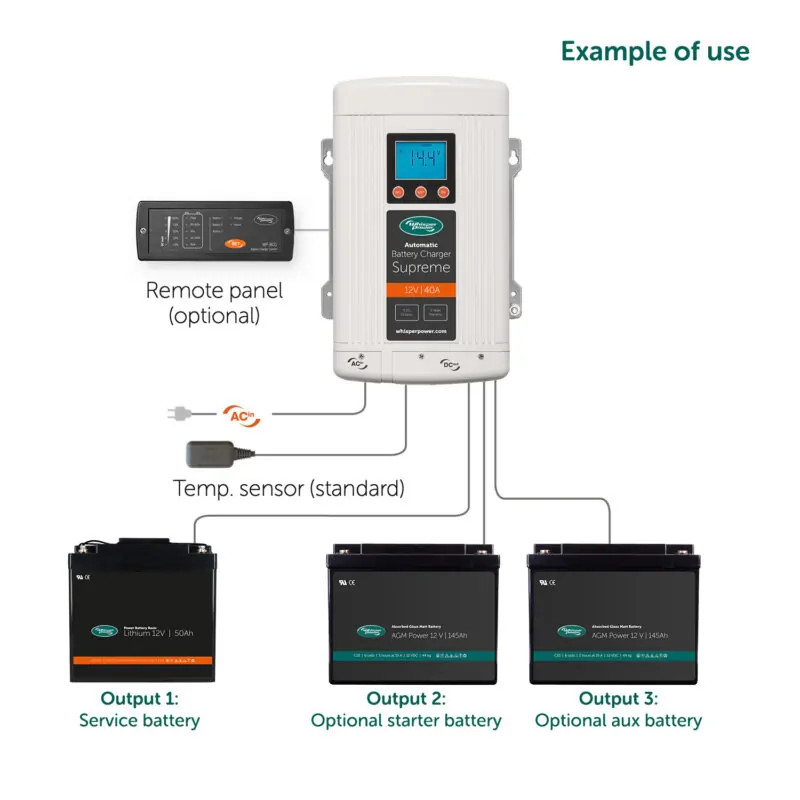

Designed to charge three independent batteries (suitable for 1 or 2)
Batteries can differ in capacity (Ah)
Programmable for AGM, GEL, Lead acid and Lithium batteries
Temperature sensor protects against risk of gas production
Automatically adjusts supply voltage for worldwide use (90-265 VAC)
Works with small gasoline or diesel generators

Benefits of the Supreme 12 VDC – 40 A

Fast charge even with low input voltage
Each output can be programmed differently
Battery connection easily accessible, AC power cord supplied
Quick install
Quiet – no hum from transformer
Maximizes battery lifetime
Outstanding price – performance ratio

Info

Current (A):

0 - 40

Article number:

WPP-61112304

Nominal battery voltage :

12 VDC

Battery capacity (recommendation):

GEL, AGM, WET, Lithium

Website:

https://www.whisperpower.com/bc-supreme-12-v-40-a

Weight:

2.6 kg/db

Technical specification

ARTICLE NUMBER
61112304	Supreme 12 VDC - 40 A

DIMENSIONS & WEIGHT
Weight	2.6 Kg / 5.7 lb.
Length x width x height, mm (in.)	295 x 206 x 86 (11.6 x 8.1 x 3.4)

TECHNICAL SPECIFICATIONS
Output Current (Maximum)	40 A
Output Voltage Charge	14.2 - 15.5 V
Output Voltage Float	13.4 - 13.8 V
Output Voltage Equalize	16.0 V
Charging Control	3-step (Bulk / Absorption / Float)
DC Output Bank	3
Selectable Battery Type	GEL, AGM, WET, Lithium
Parasitic Current	< 2 mA

CHARGER INPUT
AC Input Voltage (Nominal)	100, 120, 220, 230, 240 VAC
AC Input Operating Range	90 - 265 VAC
AC Input Frequency Range	47 - 63 Hz
Power Consumption (Full Load)	700 W
Power Factor Correction	Yes
Charger Efficiency	> 82%

PROTECTION AND FEATURES
Reverse Battery	Yes, unit shutdown
Over Charge	Yes, unit shutdown
Over Heating	Yes, unit de-rated and shutdown
Output Short Circuit	Yes, unit shutdown
Cooling	Forced air ventilation
Temperature Setting	Hot, Normal, Cold (no sensor connected)
Battery Temperature Sensor	Yes included with 1.5 mtr cable
Battery Temperature Sensor Port	RJ12 (battery temp. sensor use)
Digital Display Port	RJ12 (optional display panel use)

DISPLAY
LCD Display (with back lighting)	Charging status, Battery Voltage
Warning and Fault Code	A01-02, E01-09

AC INPUT AND DC OUTPUT CONNECTION
AC Input Connection	Hardwire or AC Cord
DC Output Connection	Heavy Duty Studs (3 banks)
DC Output Ground	Single Heavy Duty Common Ground Stud

ENVIRONMENTAL AND OPERATING TEMPERATURE
Storage Range	-40° to 70°C
Operating Range	-20° to 60°C
Humidity	5-95%, RH non-condensing
Ingress Protection	IP32
