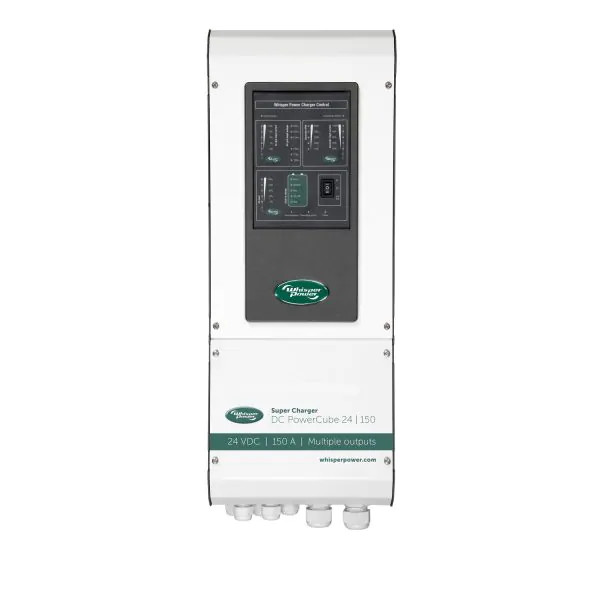

WhisperPower DC PowerCube 24 VDC – 150 A

The DC PowerCube 24 VDC – 150 A offers a capacity of up to 4.3 kW, making it highly efficient for charging batteries and battery banks rapidly while also supplying power to both DC and AC loads, suitable for marine and mobile/off-grid applications. The DC PowerCube 24 VDC – 150 A functions effectively as a standalone power supply without the need for batteries, thanks to its exceptionally stable and ripple-free output voltage.

• DC power up to 150 A
• AC can be adjusted from 4 A to 16 A
• Provides up to 3.5 kW from land power
• Up to 4.3 kW from Genverter©
• Adjustable Genverter© load (as well as rpm)
• 12 VDC / 20 A output, three-step for 12 VDC batteries
• Standard analogue panel supplied
• WhisperConnect CAN-bus connection for central monitoring
• Suitable for worldwide use, 90 to 264 VAC, 50/60 Hz (automatically adjusts)



Robust Battery Charger/Power Supply

The DC PowerCube 24 VDC – 150 A serves as a battery charger and power supply, tailored for large-scale electrical systems with substantial battery banks and significant DC power needs. It efficiently converts power from the grid or generator into DC, suitable for lighting, electronic devices, pumps, and other DC-operated equipment.

Benefits of the DC PowerCube 24 VDC – 150 A

• High powered charger / power supply for entire DC-system
• Ultra-short charging time and therefore saves fuel
• Battery type adjustable from laptop or dipswitch settings: AGM, GEL, Lead acid, Traction, Lithium
• Smooth ripple-free DC output no “flickering” lights
• Can be connected to any mains voltage or capacity
• Dual input: AC supply supplemented with uniform Genverter© input



Info

Current (A):

0 - 150

Article number:

WPP-60202002

Nominal battery voltage :

24 VDC

Battery capacity (recommendation):

300 - 1500 Ah

Website:

https://www.whisperpower.com/dc-powercube-24-v-150...

Weight:

26 kg/pcs

Technical specification

ARTICLE NUMBER
60202002	DC PowerCube 24 V - 150 A

DIMENSIONS & WEIGHT
Weight kg (lb.)	26 (57.3)
Length x width x height, mm (in.)	268 x 316 x 575 (10.6 x 12.4 x 22.6)

GENERAL SYSTEM SPECIFICATIONS
Nominal battery voltage	24 VDC
Output current	0 - 150 A (short circuit protected)
Output voltage	26.5 / 28.5 VDC
Recommended battery capacity:	300 to 1500 Ah
Charge characteristic	3+ step charge characteristic
Slave charger	12 V - 20 A (3+ step charge characteristic) short circuit protected

INPUT SPECIFICATIONS
Grid input voltage range	90 - 264 VAC (45 - 65 Hz), (3 wire connection)
Grid input current	Adjustable, from 2 A to 16 A
PM generator input range	80 - 300 VAC (30 - 500 Hz), (3 wire connection)
PM input current	Adjustable, from 2 A to 14.5 A
Power factor (cos phi)	> 0.85
Power Factor Correction (PFC)	EN 61000-3-2
Temperature compensation	-30 mV / °C

TECHNICAL SPECIFICATIONS
Supported battery types	Open and sealed lead acid: Gel / Traction / AGM / Spiral and Lithium-ion
Battery leakage current	<5 mA per battery
Charge voltages	Bulk, Absorption, Float
Charge voltage AGM / GEL at 25°C	28.80 VDC, 28.50 VDC, 27.20 VDC
Charge voltage Traction at 25°C	29.20 VDC, 28.90 VDC, 26.50 VDC
Charge voltage Open lead acid at 25°C	28.50 VDC, 28.50 VDC, 26.50 VDC
Charge voltage Lithium ION at 25°C	28.80 VDC, 27.20 VDC, 26.50 VDC
Return current from absorption to float	6% of Imax
PowerCube status on/off	Digital output (relay, two-way contact)
Failure	Digital output (relay, two-way contact)
AC grid disabled	Digital input (potential free input, closed is disabled)
PM input disabled	Digital input (potential free input, closed is disabled)
Conformity	Directive EMC 2004/108/EC : EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022,EN 61000-3-2, 62040-2 Low voltage directive 2006/95/EC: EN 62040-1-1, EN 50091-2, EN 60950-1

PROTECTIONS
PM input isolation protection	Yes (open collector output 30 VDC, 100 mA)
Over temperature protection	Yes, derating above 40°C, shutdown at high temperatures. (with automatic restart after cooling down)
Overvoltage protection (manual restart needed)	36 VDC + / - 0.5 VDC
Ingress Protection index	IP21

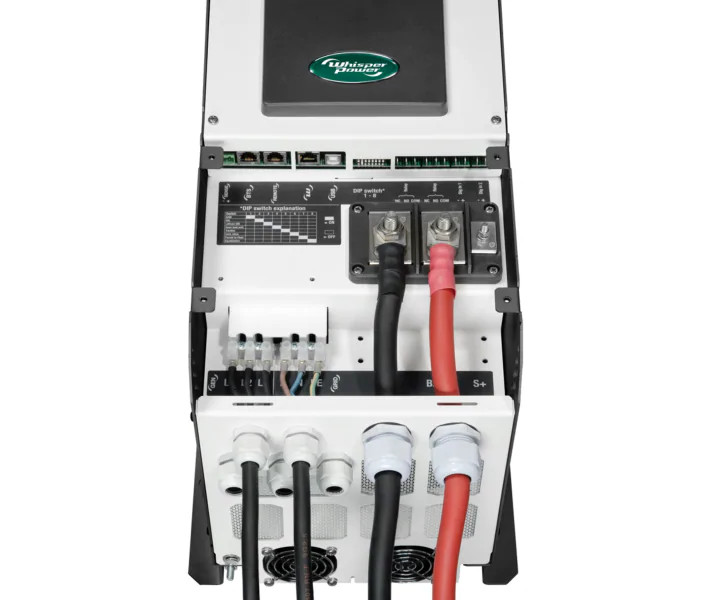

MECHANICAL SPECIFICATIONS
Main battery connection	2 x M10 studs
Slave battery connection	1 x M5 stud
Earth grounding lug	1 x M6 stud
AC grid input	3 x M3 screw terminal block
PM grid input	3 x M3 screw terminal block
Remote control panel	RJ12
Battery temperature sensor	RJ12
Whisper Connect CANbus	RJ45
Voltage sense	Phoenix MSTB 2.5 / 2-ST-5.08
Digital outputs	6 x fastons (6.3x0.8)
Digital inputs	4 x fastons (6.3x0.8)
Operating temperature range	-20 - 55°C (derating above 40°C)
Relative humidity in operation	up to 95% without condensation
Ventilation	Combined cooling (convection and forced (variable speed))
Acoustic level	<52 dB
Warranty	2 years
Accessories	Battery temperature sensor and remote control panel
