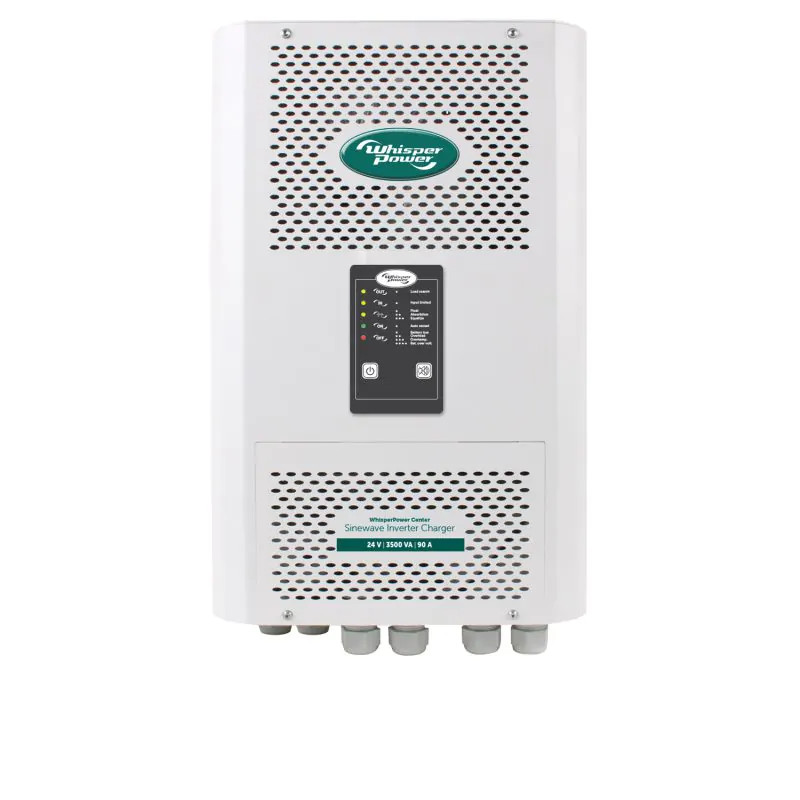

WhisperPower WPC 24 V / 3500 VA – 90 A / 120V / 60Hz - Single Input

Name: WhisperPower WPC 24 V / 3500 VA – 90 A / 120V / 60Hz - Single Input
Brand: WHISPERPOWER
SKU: WPP-60201312
Price: 2290916 HUF

Price: 2 290 916 Ft
without VAT: 1 803 871 Ft+VAT (487 045 Ft)

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

60201312

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

pcs

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Current (A):

Article number:

WPP-60201312

Nominal battery voltage :

24 VDC

Volt-Ampere :

Folyamatos: 3000, Max: 9000

Website:

https://www.whisperpower.com/wpc-24-v-3500-va-90-a

Weight:

28 kg/pcs

TECHNICAL SPECIFICATIONS
Nominal battery voltage	24 VDC
Continuous power @ 25°C	3000 VA
Power 30 min. @ 25°C	3500 VA
Power 5 sec. @ 25°C	9000 VA
Maximum load	Up to short-circuit (fully protected)
Maximum a-symmetric load	Up to continuous power
Load detection (stand-by)	2 to 25 W (AES) Automatic Enable System
Power factor	0.1 - 1
Efficiency (@ full load)	94 %
Consumption OFF / Stand-by / ON	1.4 W / 1.6 W / 12 W
Output voltage	Pure sine wave 230 VAC (+/- 2%)
Output frequency	50 Hz / 60 Hz (1) +/- 0.05% (crystal controlled)
Harmonic distortion (voltage)	<2% THD
Overload and short-circuit protection	Automatic disconnection with 3 time restart attempt
Overheat protection	Warning before shut-off with automatic restart

BATTERY CHARGER SPECIFICATIONS
Charge Characteristic	6-step Bulk - Absorption - Floating - Equalization - reduced floating - periodic absorption. Number of steps, thresholds and return amps are completely adjustable.
Maximum charging current	90 A
Temperature compensation	With Whisper temperature sensor WPC-BTS
Power Factor Correction (PFC)	EN 61000-3-2
Input voltage range	150 to 250 VAC
Input frequency range	45 to 65 Hz
Input current max. (transfer relay) / Output current max.	30 A / 45 A
Transfer time	<15 ms

MAIN SPECIFICATIONS
Weight	28 kg
Dimension H x W x D [mm]	510 x 330 x 150 mm
Protection degree	IP21
Color	RAL 9003
Conformity	Directive EMC 2004/108/EC : EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, 62040-2. Low voltage directive 2006/95/EC : EN 62040-1-1, EN 50091-2, EN 60950-1
Operating temperature range	-20..+40°C, derating to 55°C
Relative humidity (operational)	95% without condensation
Ventilation	Forced from 45°C
Warranty	2 years
Acoustic level	<40 dB / <45 dB (without / with ventilation)
