WhisperPower WPC-BSI 500 Battery Status Interface
WhisperPower WPC-BSI 500 Battery Status Interface
Price: 227 926 Ft
without VAT: 179 469 Ft+VAT (48 457 Ft)
  1. Battery Monitoring
  1. Energy supply
  2. WhisperPower
  3. Monitoring & control
  4. Battery Monitoring

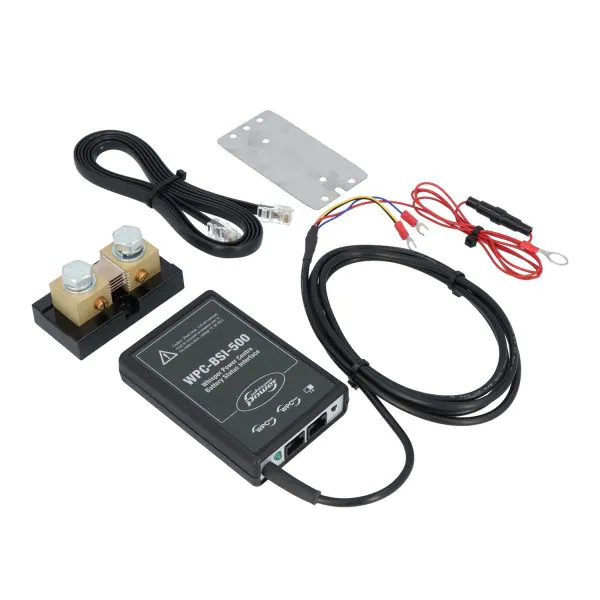

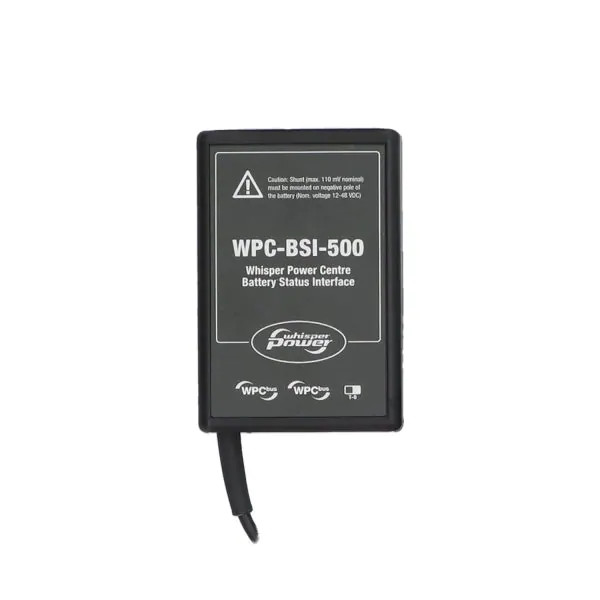

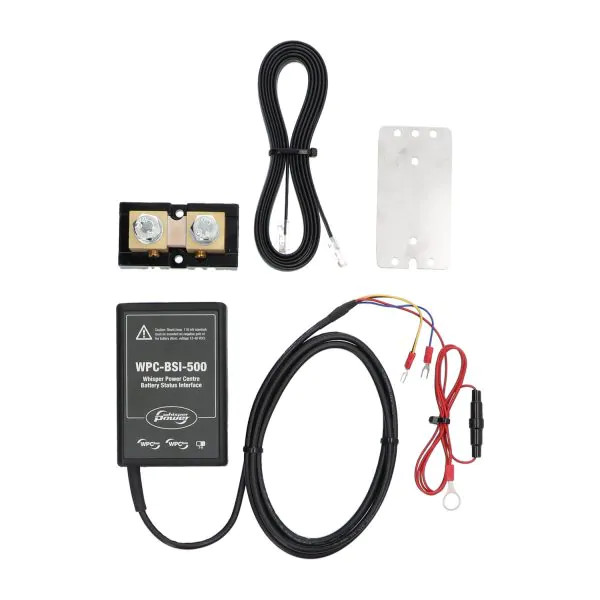

WhisperPower WPC-BSI 500 Battery Status Interface

Article No.:
WPP-60201082
WhisperPower WPC-BSI 500 Battery Status Interface
WhisperPower WPC-BSI 500 Battery Status Interface
WhisperPower WPC-BSI 500 Battery Status Interface
WhisperPower WPC-BSI 500 Battery Status Interface
WhisperPower WPC-BSI 500 Battery Status Interface
WhisperPower WPC-BSI 500 Battery Status Interface
Price: 227 926 Ft
without VAT: 179 469 Ft+VAT (48 457 Ft)
Manufacturer:
WHISPERPOWER
Manufacturer Article number:
60201082
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!
pcs
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

One of the most important indicators for a safe and effective operating of an energy system with batteries is their state of charge. The BSI offers, for Whisper Power Centre, a highly precise measuring and an extremely efficient algorithm that calculates the state of charge in the most accurate way.

Csomagajánlatok
  • Details
  • Info
  • Technical specification
  • Download User Manual
Details

WhisperPower WPC-BSI 500 Battery Status Interface

One of the most important indicators for a safe and effective operating of an energy system with batteries is their state of charge. The BSI offers, for Whisper Power Centre, a highly precise measuring and an extremely efficient algorithm that calculates the state of charge in the most accurate way.

The WPC-PSCP and WPC-RCC provides the display, the data logging, the graphical display of the state of charge history and the settings. Values of the BSI can be used in the programming of the WPC Series.
Values can be displayed like for instance:

– State of charge
– Voltage
– Current
– Time to go
– Throughput energy
– Battery temperature



Features:

  • To be used with WPC-PSCP panel
  • Accurate energy monitoring of your battery bank
  • No sudden empty battery: precise ‘time remaining’ indicator (hrs, min)
  • Calculation of ampere hours consumed
  • State of charge indicator in %
  • Various programmable alarms
  • Easy to use, plug and play installation
  • 500A - 1200A Shunt
Info
Article number:
WPP-60201082
Website:
https://www.whisperpower.com/wpc-bsi-500-battery-s...
Weight:
900 g/pcs
Technical specification
DIMENSIONS & WEIGHT
Dimensions (mm) 110.5*75*26
Weight (Kg) 0.9
TECHNICAL SPECIFICATIONS
Supply voltage range 7..85 VDC
Supply current 3mA@48VDC
Input voltage range 7..85 VDC
Shunt measurment input range ±195 mV
RMS continous current @ 25 °C ±500 A
Maximum measurable peak current ±1950 A
Voltage measurement accuracy 0.3 %
Current measurement accuracy 0.5 %
Battery capacity 20..20000 Ah
Readout resolution: Current (A) and capacity (Ah) (1..10) ±0.01
Readout resolution: Current (A) and capacity (Ah) (10..100) ±0.1
Readout resolution: Current (A) and capacity (Ah) (100..9999) ±1
Readout resolution: State of charge ±0.1 %
Readout resolution: Temperature ±0.1 °C
Readout resolution: Time to go ±1 sec.
Readout information Battery voltage, current, state of charge, power used, time to go, batterytemperature, Relative Capacity, historical Ah data, Total kAh charged, Total kAhdischarged, Total time: Charge counting in Ah and hr.
GENERAL
Operation temperature -20..+40 °C
Protection degree IP20
Conformity LVD 2006/95/EC, EMC 2004/108/EC, RoHS 2002/95/ECEN 60950:2005, EN 61000-6-2:2005, EN 61000-6-3:2007
Download User Manual


PDF Download
