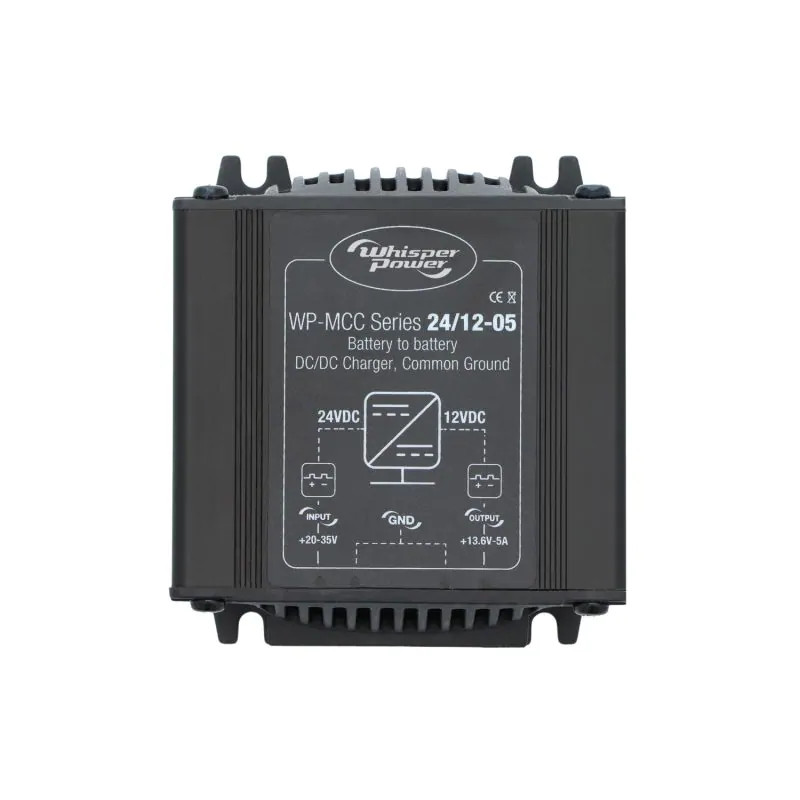

WhisperPower MCC 24-12 VDC 5A B2B charger

Name: WhisperPower MCC 24-12 VDC 5A B2B charger
Brand: WHISPERPOWER
SKU: WPP-60201023

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

60201023

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Multifunctional DC/DC B2B charger MCC 24-12 VDC 5 A with current limitation and common ground. Three-step charging process that ensures a fast, efficient, and safe way of charging, improves battery performance, and extends battery life. Step-down converter, supplies devices with stabilized 12V DC while your battery produces 24V. Can be used in parallel.

Details

WhisperPower MCC 24-12 VDC 5A B2B charger

DC-DC converter with current limitation
Designed to convert 24 VDC to 12 VDC and/or to charge 12 V batteries
Multi step charge characteristics, programmable
Delivered with temperature sensor as standard
Can be used as dimming device for DC lighting
High quality industrial design for high reliability and longer life cycle

Data

Input voltage (DCV):

Current (A):

Article number:

WPP-60201023

Website:

https://www.whisperpower.com/wp-mcc-24-12-05

Weight:

270 g/pcs

Technical specification

ARTICLE NUMBER
60201023	MCC 24-12 VDC 5A B2B charger

DIMENSIONS & WEIGHT
Length x width x height, mm (in.)	50 × 98 × 88 (2 x 3.9 x 3.5)
Weight, kg (lb.)	0.270 (0.6)

TECHNICAL SPECIFICATIONS
Converter type	voltage step down and stabilization

INPUT
Nominal input voltage	24 VDC
Input range, specifications met	24 .. 32 VDC
Input range, no defects	0 .. 35 VDC

OUTPUT
Nominal output voltage	13.8 VDC
Voltage adjustable	12 .. 15 VDC
Output accuracy	2%
Ripple, peak output voltage	1%
maximum power output	70 W
continuous output power	70 W
Maximum output current	5 A
Continuous output current at 40 °C	up to 5 A

GENERAL
efficiency	>92%
consumption no load	<5 mA
Ambient operating temperature	-10°C .. +40°C
Storage temperature	-25° .. +85°C
Relative humidity in use	up to 95%, non-condensing
Galvanic isolation	Yes, 500 Vac
Cooling	Convectional

PROTECTIONS
Current / short circuit	Restricted by current rating
Overheating, shut down	Power restricted by temperature

MECHANICAL SPECIFICATIONS
Faston in / off, max thread thickness	6 mm²
Mounting holes	dia 4 mm, rh 58 x 90
International Protection rating	IP20
Housing	frame 4
Housing material	Alu / ABS
Housing colour	RAL 9011 graphite black
Meets the following Standards	EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU Note: The above specifications are subject to change without prior notice.
