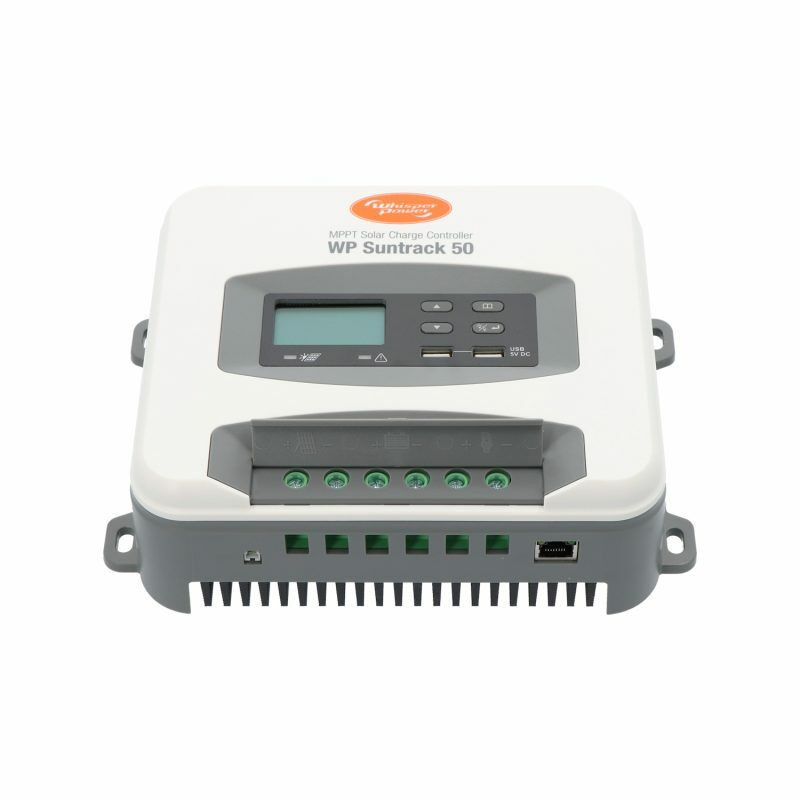

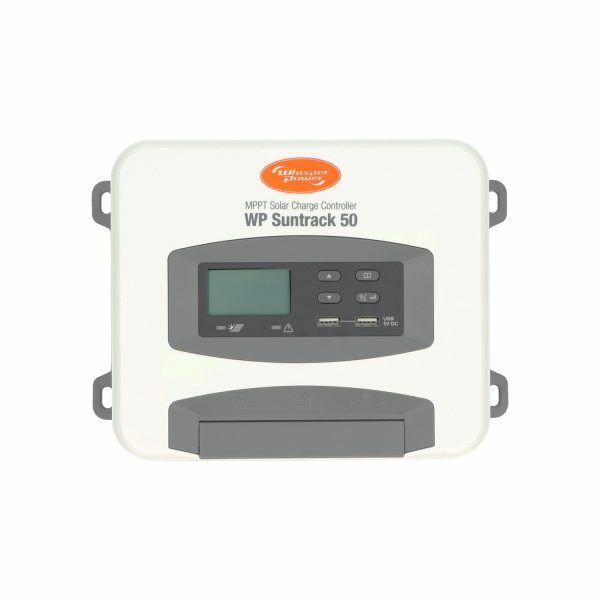

WhisperPower Suntrack 50 A with MPPT 3-Step charge controller

The WhisperPower Suntrack 50 MPPT Solar Charge controller is connecting solar panels (PV) to a 12, 24 or 48 VDC battery. The advanced MPPT technology applied ensures a fast and complete charge, even under cloudy and fluctuating weather circumstances. The Suntrack 50 comes with a monitoring APP (Ecosolar), temperature sensor and bluetooth connection.



• Install between panel and battery
• SunTrack regulator with MPPT technology
• MPPT= Maximum Power Point Tracking converting extra voltage in to charge current. Increases system efficiency by approximately 30%

Info

Output voltage (DCV):

12/24/36/48

Current (A):

50

Article number:

WPP-60111436

Power (W):

12 V Battery 700 W; 24 - 48 V Battery 1400 W

Solar Energy Category:

Napelem töltő regulátor

Battery Rating:

12 V / 24 V / 36 V / 48 V

Website:

https://www.whisperpower.com/suntrack-50

Weight:

2.3 kg/db

Technical specification

ARTICLE NUMBER
60111436	Suntrack 50

DIMENSIONS & WEIGHT
Dimensions (H x W x D)	238 x 177 x 73 mm (9.4" x 7" x 2.9" inch)
Weight	2.3 kg / 5.1 lb.

PV INPUT
PV max open circuit voltage (VDC)	135 V
MPPT voltage	16 - 108 V
Max PV input power	12 V Battery 700 W; 24 - 48 V Battery 1400 W;
Max MPPT current	(12 / 24 V) / 50 A; 36 V / 35 A; 48 V / 25 A

DC OUTPUT
Battery voltage	12 V / 24 V / 36 V / 48 V
Battery capacity	≥50 Ah
Constant voltage charging voltage	STD: 14.4 V / 28.8 V / 43.2 V / 5 7.6 V - LI: 14.5 V - AGM: 14.6 V / 29.2 V / 43.8 V / 58.4 V

LOAD OUTPUT
Output current	50 A

USB OUTPUT
Output voltage	5 V
Standby current	Battery input 12 V
Solar charger	<60 mA
Solar charger + Wifi module	<160 mA
Max output current	3.4 A
