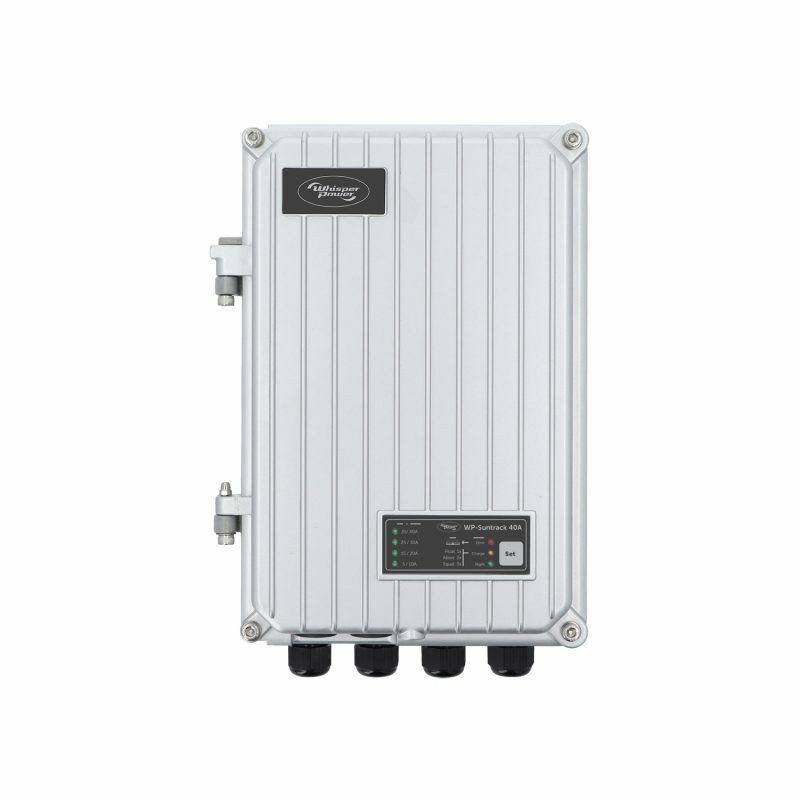

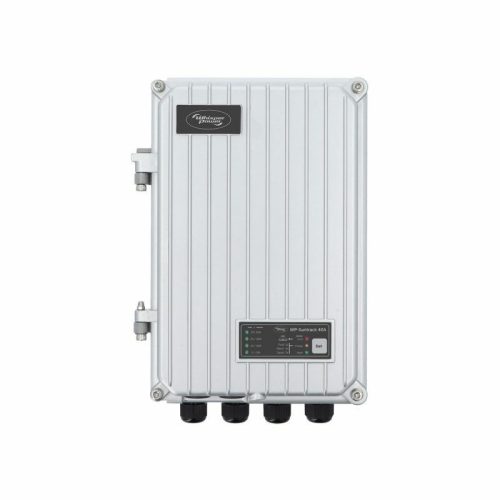

WhisperPower Suntrack Pro 12-48 V 40 A

Name: WhisperPower Suntrack Pro 12-48 V 40 A
Brand: WHISPERPOWER
SKU: WPP-60110423

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

60110423

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The Suntrack Pro 12-48 V – 40 A features advanced MPPT tracking and an optimal charging algorithm, delivering fast and dependable battery charging. It incorporates multi-stage, temperature-compensated charging. The Suntrack Pro should be positioned between the solar array and the battery bank. Its MPPT consistently searches for the solar generator’s ideal voltage to maximize energy extraction. This optimal point changes continuously in response to external conditions such as sunlight and temperature, requiring the system to adjust accordingly.

Details

WhisperPower Suntrack Pro 12-48 V 40 A

4 step charger for longer battery life
Tracking efficiency: >99%
Conversion efficiency: 98%
Protection against incorrect wiring and reverse polarity
Fully configurable
IP54 enclosure
8 predefined battery charge curves as standard
Up to 15 Wp Suntrack units can be installed in parallel on the same communication bus

Data

Output voltage (DCV):

12/24/48

Current (A):

Article number:

WPP-60110423

Nominal battery voltage :

12 V / 24 V / 48 V

Power (W):

625-2500

Solar Energy Category:

Napelem töltő regulátor

Website:

https://www.whisperpower.com/suntrack-pro-12-48-v-...

Weight:

3.8 kg/db

Technical specification

ARTICLE NUMBER
60110423	Suntrack Pro 12-48 V - 40 A

DIMENSIONS & WEIGHT
Length x width x height, mm (in.)	220 x 120 x 310 (8.7" x 4.7" x 12.2")
Weight, kg (lb.)	3.8 (8.4)

ELECTRICAL
Nominal Battery Volage	12 V / 24 V / 48 V
maximum Solar power Recommended	625 W / 1250 W / 2500 W
maximum Solar VOC	80 VDC / 150 VDC / 150 VDC
maximum Solar Vmp	75 VDC / 145 VDC / 145 VDC

ELECTRICAL CHARACTERISTICS BATTERY SIDE
maximum Output Current	40 A
Nominal Battery Voltages	Automatic or manual set to 12 / 24 / 48 VDC
Operating Voltage Range	Above battery voltage, minimum 7 V

PERFORMANCES OF THE DEVICE
power Conversion Efficiency	98%
maximum Standby Consumption (48 V)	25 mA > 1.2 W
maximum Standby Consumption (24 V)	30 mA > 0.8 W
maximum Standby Consumption (12 V)	35 mA > 0.5 W
Battery Charge modes	4 Stages: Bulk, Absorbtion, Float, Equalisation
Battery temperature compensation (available with accessory BtS-01)	-3 mV / oC / cell (25oC ref) default value adjustable -8 to 0 mV / oC

ELECTRONIC PROTECTION
PV Reverse polarity	Up to -150 VDC
Battery reverse polarity	Up to -150 VDC
Battery overvoltage	Up to -150 VDC
Over temperature	Protected
Reverse current at night	Prevented by relays

ENVIRONMENT
Operating Ambient temperature Range	-20°C to 55°C
Humidity	100%
Ingress protection of Enclosures	IP54, IEC/EN 60529:2001
mounting Location	Indoor

GENERAL
Warranty	5 Years
parallel Operation (separated pV arrays)	Up to 15 devices
max wire size	35 mm²
Glands	M20 x 1.5

COMMUNICATION
Network Cabling	Communication Bus
Remote Display and Controller	WP-RC or WP-PSCP
Menu languages	English / French / German / Spanish
Data Logging	With RCC -2/03and SD card

ACCORDANCE TO STANDARDS
CE compliant	EMC 2004/108/CE • LV 2006/95/CE • RoHS 2002/95/CE
Safety	IEC/EN 62109-1:2010
EMC (Electro Magnetic Compatibility)	IEC/EN 61000-6-3:2011 • IEC/EN 61000-6-1:2005
