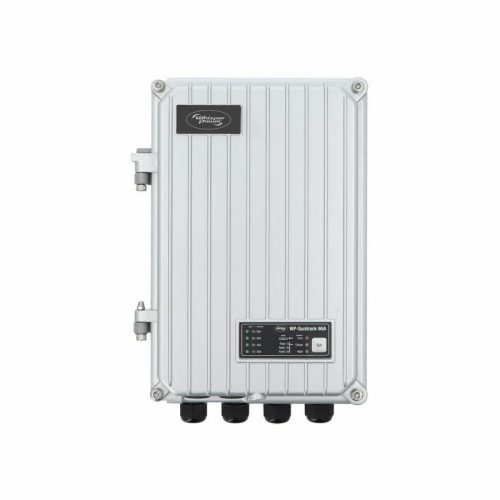

WhisperPower Suntrack Pro 12 – 48 V / 65 A

Price: 603 561 Ft
without VAT: 475 245 Ft+VAT (128 316 Ft)

WhisperPower Suntrack Pro 12 – 48 V / 65 A

Name: WhisperPower Suntrack Pro 12 – 48 V / 65 A
Brand: WHISPERPOWER
SKU: WPP-60110420
Price: 603561 HUF

Price: 603 561 Ft
without VAT: 475 245 Ft+VAT (128 316 Ft)

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

60110420

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The Suntrack Pro 12-48 V – 65 A combines an superior mppt tracking and a perfect charge algorithm, ensuring a fast and reliable charge of the batteries. this includes multi stage temperature compensated charging. the Suntrack Pro 12-48 V – 65 A should be installed between the solar array and the battery. the mppt continuously seeks out the solar generator’s optimal voltage to retrieve the maximum available energy. this operating point varies constantly depending on outdoor conditions (sunlight, temperature etc.) to which it must adapt.

Details

WhisperPower Suntrack Pro 12 – 48 V / 65 A

4 step charger for longer battery life
Tracking efficiency: >99%
Conversion efficiency: 98%
Protection against incorrect wiring and reverse polarity
Fully configurable
IP54 enclosure
8 predefined battery charge curves as standard
Up to 15 Wp Suntrack units can be installed in parallel on the same communication bus

Info

Output voltage (DCV):

12/24/48

Current (A):

Article number:

WPP-60110420

Nominal battery voltage :

12 V / 24 V / 48 V

Power (W):

1000-4000

Solar Energy Category:

Napelem töltő regulátor

Website:

https://www.whisperpower.com/suntrack-pro-12-48-v-...

Weight:

5.2 kg/db

Technical specification

ARTICLE NUMBER
60110420	Suntrack Pro 12-48 V / 65 A

DIMENSIONS & WEIGHT
Dimensions (W x D x H)	220 x 120 x 310 mm (8.7" x 4.7" x 12.2" inch)
Weight	5.2 kg / 11.5 lb.

ELECTRICAL
Nominal Battery Volage	12 V / 24 V / 48 V
maximum Solar power Recommended	1000 W / 2000 W / 4000 W
maximum Solar VOC	80 VDC / 150 VDC / 150 VDC
maximum Solar Vmp	75 VDC / 145 VDC / 145 VDC

ELECTRICAL CHARACTERISTICS BATTERY SIDE
maximum Output Current	65 A
Nominal Battery Voltages	Automatic or manual set to 12 / 24 / 48 VDC
Operating Voltage Range	Above battery voltage, minimum 7 V

PERFORMANCES OF THE DEVICE
power Conversion Efficiency	98%
maximum Standby Consumption (48 V)	25 mA > 1.2 W
maximum Standby Consumption (24 V)	30 mA > 0.8 W
maximum Standby Consumption (12 V)	35 mA > 0.5 W
Battery Charge modes	4 Stages: Bulk, Absorbtion, Float, Equalisation
Battery temperature compensation (available with accessory BtS-01)	-3 mV / oC / cell (25oC ref) default value adjustable -8 to 0 mV / oC

ELECTRONIC PROTECTION
PV Reverse polarity	Up to -150 VDC
Battery reverse polarity	Up to -150 VDC
Battery overvoltage	Up to 150 VDC
Over temperature	Protected
Reverse current at night	Prevented by relays

ENVIRONMENT
Operating Ambient temperature Range	-20°C to 55°C
Humidity	100%
Ingress protection of Enclosures	IP54, IEC/EN 60529:2001
mounting Location	Indoor

GENERAL
Warranty	5 Years
parallel Operation (separated pV arrays)	Up to 15 devices
max wire size	35 mm²
Glands	M20 x 1.5

COMMUNICATION
Network Cabling	Communication Bus
Remote Display and Controller	WP-RC or WP-PSCP
Menu languages	English / French / German / Spanish
Data Logging	With RCC -2/03and SD card

ACCORDANCE TO STANDARDS
CE compliant	EMC 2004/108/CE • LV 2006/95/CE • RoHS 2002/95/CE
Safety	IEC/EN 62109-1:2010
EMC (Electro Magnetic Compatibility)	IEC/EN 61000-6-3:2011 • IEC/EN 61000-6-1:2005
