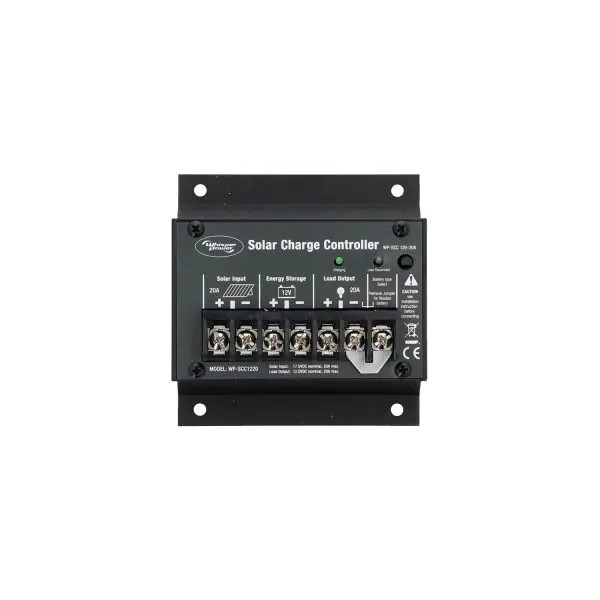

WhisperPower Solar Charge Controller PWM 12 V – 20 A

Name: WhisperPower Solar Charge Controller PWM 12 V – 20 A
Brand: WHISPERPOWER
SKU: WPP-60110411

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

60110411

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The WhisperPower Solar Charge Controller PWM 12 V – 20 A is a highly efficient device for managing solar energy in off-grid setups. By converting PV solar energy to charge batteries effectively, it ensures optimal usage of harvested solar power. The added feature of protecting the battery from overcharge and over-discharge (for the LD model) adds a layer of reliability and safety, making it an excellent choice for anyone looking to optimize their solar energy system.

Details

WhisperPower Solar Charge Controller PWM 12 V – 20 A

Suitable for every type of battery: Gel, AGM or open lead
Plug and play connectors for panel, battery and 12 V load
Automatic shut down if battery voltage (too) low
Can feed up to 20 amps / 450 Watts solar power to the batteries
Temperature compensation as standard
LEDs battery indicator and load status

Data

Article number:

WPP-60110411

Battery Rating:

12 V

Battery Type:

Sealed / Flooded

Max. Charge Current:

20 A

Charge Voltage Range:

14.2 - 14.6 V

Float Voltage Range:

13.4 - 13.8 V

Parasitic Current:

<15 mA

Website:

https://www.whisperpower.com/solar-charge-controll...

Weight:

200 g/pcs

Technical specification

ARTICLE NUMBER
60110411	Solar Charge Controller PWM 12 V - 20 A

DIMENSIONS & WEIGHT
Length x width x height	100 x 100 x 33 mm ( 3.9" x 3.9" x 1.3" inch)
Weight	0.2 kg / 0.4 lb.

DC INPUT
Max. PV Voltage	26 V
Max. PV Current	20 A
Voltage across PV & Battery	<0.15 V

DC OUTPUT
Battery Rating	12 V
Battery Type	Sealed / Flooded
Max. Charge Current	20 A
Charge Voltage Range	14.2 - 14.6 V
Float Voltage Range	13.4 - 13.8 V
Parasitic Current	<15 mA

DC OUTPUT (LOAD)
Load Current (Continuous)	20 A

PROTECTIONS
PV Reverse Polarity	Protected
Battery Overcharge	Yes
Load Over-Discharge Voltage	<11.5 V
Load Reconnected Voltage	12.6 V
Build-in Temperature Sensor	Yes

INDICATOR
Indicators	Charging / Load Disconnect LED Indicator

ENCLOSURE
Input/Output Connection	Heavy duty terminals
