WhisperPower Solar Charge Controller PWM 12 V – 10 A

Bundle offers

• Details
• Data
• Technical specification
• Download User Manual

Details

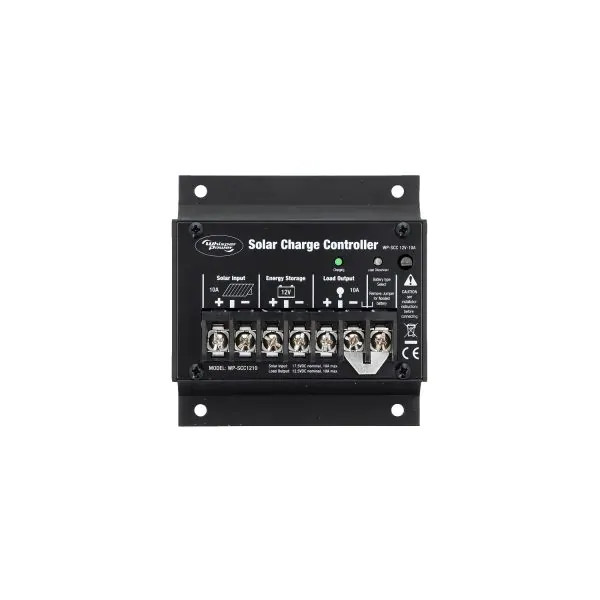

WhisperPower Solar Charge Controller PWM 12 V – 10 A

Meet the WhisperPower Solar Charge Controller PWM 12 V – 10 A. With our state of the art, easy to use design, the Solar Charge Controller PWM 12 V – 10 A will offer you a reliable service to convert your PV solar energy to charge you battery in an effective and efficient way. It also protects your battery from overcharge by the PV or over discharge (LD model only) through the DC load connected.

• Suitable for every type of battery: Gel, AGM or open lead
• Plug and play connectors for panel, battery and 12 V load
• Automatic shut down if battery voltage (too) low
• Temperature compensation as standard
• LEDs battery indicator and load status

Data

Article number:

WPP-60110409

Battery Rating:

12 V

Battery Type:

Sealed / Flooded

Max. Charge Current:

10 A

Charge Voltage Range:

14.2 - 14.6 V

Float Voltage Range:

13.4 - 13.8 V

Parasitic Current:

<10 mA

Website:

https://www.whisperpower.com/solar-charge-controll...

Weight:

200 g/pcs

Technical specification

ARTICLE NUMBER
60110409	Solar Charge Controller PWM 12 V - 10 A

DIMENSIONS & WEIGHT
Length x width x height	100 x 100 x 33 mm ( 3.9" x 3.9" x 1.3" inch)
Weight	0.2 kg / 0.4 lb.

DC INPUT
Max. PV Voltage	26 V
Max. PV Current	10 A
Voltage across PV & Battery	<0.15 V

DC OUTPUT
Battery Rating	12 V
Battery Type	Sealed / Flooded
Max. Charge Current	10 A
Charge Voltage Range	14.2 - 14.6 V
Float Voltage Range	13.4 - 13.8 V
Parasitic Current	<10 mA

DC OUTPUT (LOAD)
Load Current (Continuous)	10 A

PROTECTIONS
PV Reverse Polarity	Protected
Battery Overcharge	Yes
Load Over-Discharge Voltage	<11.5 V
Load Reconnected Voltage	12.6 V
Build-in Temperature Sensor	Yes

INDICATOR
Indicators	Charging / Load Disconnect LED Indicator

ENCLOSURE
Input/Output Connection	Heavy duty terminals
