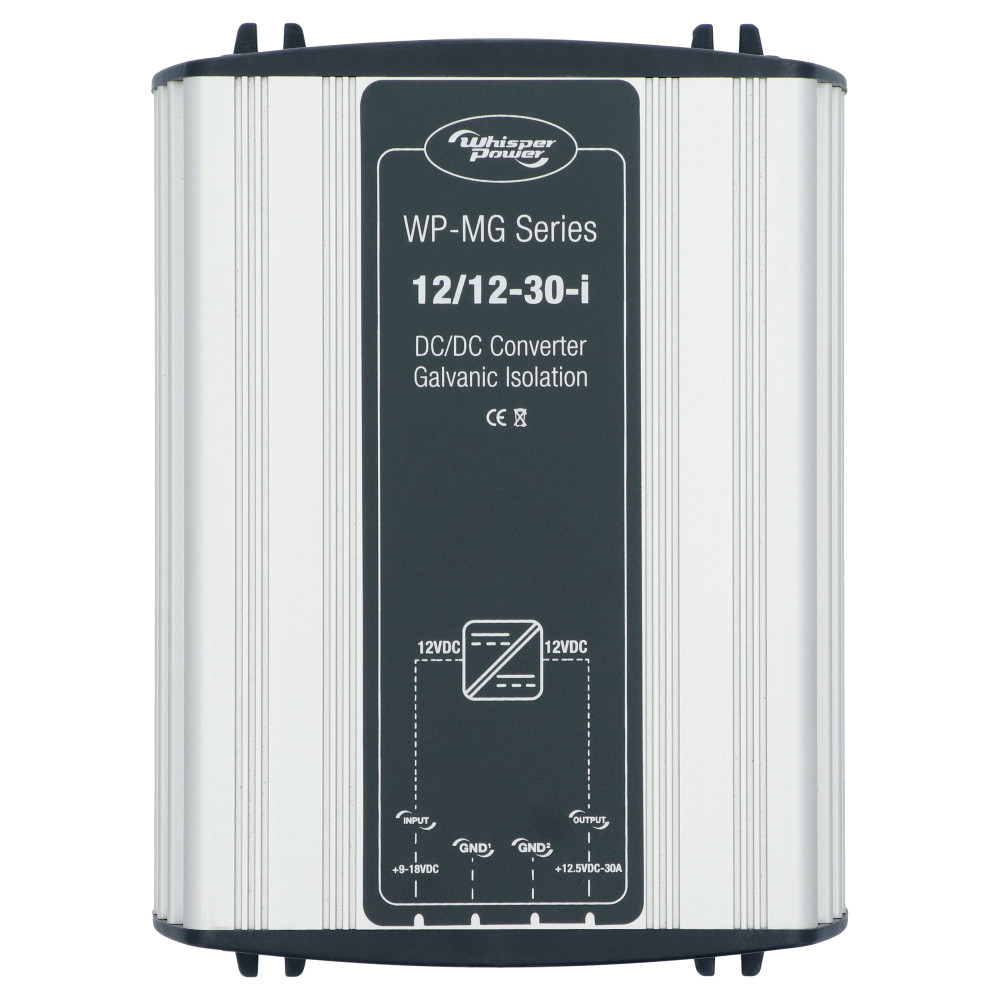

WhisperPower MG 12-12 VDC 30 A -i

Name: WhisperPower MG 12-12 VDC 30 A -i
Brand: WHISPERPOWER
SKU: WPP-60110026
Price: 133209 HUF

Price: 133 209 Ft
without VAT: 104 889 Ft+VAT (28 320 Ft)

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

60110026

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

pcs

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

DC/DC voltage stabilizer MG 12-12 VDC 30 A -i. Designed for constant output voltage, regardless of fluctuations in input voltage. Protects your electronic equipment from damage caused by voltage variations, such as spikes or drops from the battery. Galvanic isolated model, extra stability due to separated power circuits.

Details

WhisperPower MG 12-12 VDC 30 A -i

DC/DC voltage stabilizer MG 12-12 VDC 30 A -i. Designed for constant output voltage, regardless of fluctuations in input voltage. Protects your electronic equipment from damage caused by voltage variations, such as spikes or drops from the battery. Galvanic isolated model, extra stability due to separated power circuits.

Voltage stabilization
Galvanic isolated
Premium quality industrial design for high reliability and longer life cycle
Silent, no humming, only temperature-controlled fans for cooling
No interference with radios, VHF or other sensitive equipment
Compact, fast and plug-and-play installation
Can be run in parallel for high-demand appliance

Info

Output voltage (DCV):

Article number:

WPP-60110026

Website:

https://www.whisperpower.com/wp-mg-1212-30-i

Technical specification

ARTICLE NUMBER
60110026	MG 12/12-30-i

DIMENSIONS & WEIGHT
Length x width x height, mm (in.)	83 x 186 x 133 (3.3 x 7.3 x 5.2)
Weight, kg (lb.)	1.4 (3.1)

TECHNICAL SPECIFICATIONS
Converter type	voltage stabilization

INPUT
Nominal input voltage	12 VDC
Input range, specifications met	9 .. 18 VDC
Input range, no defects	0 .. 18 VDC

OUTPUT
Nominal output voltage	12.5 VDC
Voltage adjustable	Yes
Output accuracy	3%
Ripple, peak output voltage	1%
maximum power output	490 W
continuous output power	420 W
Maximum output current	30 A
Continuous output current at 40 °C	up to 30 A

GENERAL
efficiency	>87%
consumption no load	<25 mA
Ambient operating temperature	-10°C .. +40°C
Storage temperature	-25° .. +85°C
Relative humidity in use	up to 95%, non-condensing
Galvanic isolation	Yes, 500 Vac
Cooling	Mechanical

PROTECTIONS
Current / short circuit	Restricted by current rating
Overheating, shut down	Power restricted by temperature

MECHANICAL SPECIFICATIONS
Faston in / off, max thread thickness	6 mm²
Mounting holes	dia 4 mm, rh 91 x 177
International Protection rating	IP20
Housing	frame 8
Housing material	Anodized aluminium, ABS end caps
Housing colour	RAL 9006 blank alu
Meets the following Standards	EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU Note: The above specifications are subject to change without prior notice.
