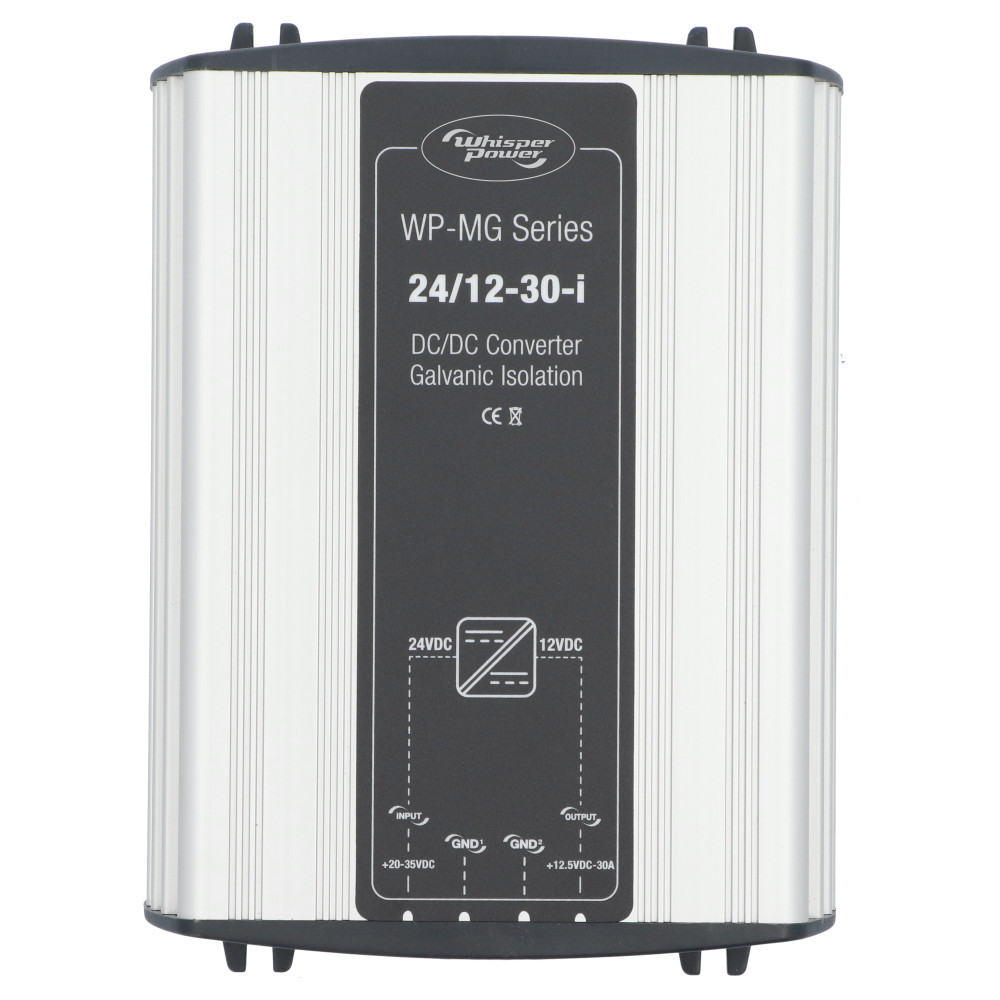

WhisperPower MG 24-12 VDC 30 A -i

Name: WhisperPower MG 24-12 VDC 30 A -i
Brand: WHISPERPOWER
SKU: WPP-60110021
Price: 133089 HUF

Price: 133 089 Ft
without VAT: 104 794 Ft+VAT (28 295 Ft)

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

60110021

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

pcs

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Meet the DC-DC Galvanic isolated converter MG 24-12 VDC 30 A -i. Supplies devices with 12 VDC while the battery produces 24V. This step-down converter features an electronic process that ensures high efficiency with minimal heat output. Its efficiency and dependability render it an ideal choice for consistent voltage conversion. This version features galvanic isolation, ensuring additional stability through segregated current pathways.

Details

WhisperPower MG 24-12 VDC 30 A -i

Meet the DC-DC Galvanic isolated converter MG 24-12 VDC 30 A -i. Supplies devices with 12 VDC while the battery produces 24V. This step-down converter features an electronic process that ensures high efficiency with minimal heat output. Its efficiency and dependability render it an ideal choice for consistent voltage conversion. This version features galvanic isolation, ensuring additional stability through segregated current pathways.

Galvanic isolated
Voltage step down and stabilization
Premium quality industrial design for high reliability and longer life cycle
Silent, no humming, only temperature-controlled fans for cooling
No interference with radios, VHF or other sensitive equipment
Compact, fast and plug-and-play installation
Can be run in parallel for high-demand appliance

Info

Output voltage (DCV):

Current (A):

Article number:

WPP-60110021

Website:

https://www.whisperpower.com/wp-mg-24-12-30-i

Weight:

1.4 kg/pcs

Technical specification

ARTICLE NUMBER
60110021	MG 24/12-30-i

DIMENSIONS & WEIGHT
Length x width x height, mm (in.)	83 x 186 x 133 (3.3 x 7.3 x 5.2)
Weight, kg (lb.)	1.4 (3.1)

TECHNICAL SPECIFICATIONS
Converter type	voltage step down and stabilization

INPUT
Nominal input voltage	24 VDC
Input range, specifications met	20 .. 35 VDC
Input range, no defects	0 .. 35 VDC

OUTPUT
Nominal output voltage	12.5 VDC
Voltage adjustable	Yes
Output accuracy	3%
Ripple, peak output voltage	1%
maximum power output	400 W
continuous output power	360 W
Maximum output current	32 A
Continuous output current at 40 °C	up to 30 A

GENERAL
efficiency	>87%
consumption no load	<25 mA
Ambient operating temperature	-10°C .. +40°C
Storage temperature	-25° .. +85°C
Relative humidity in use	up to 95%, non-condensing
Galvanic isolation	Yes, 500 Vac
Cooling	Mechanical

PROTECTIONS
Current / short circuit	Restricted by current rating
Overheating, shut down	Power restricted by temperature

MECHANICAL SPECIFICATIONS
Faston in / off, max thread thickness	6 mm²
Mounting holes	dia 4 mm, rh 91 x 177
International Protection rating	IP20
Housing	frame 8
Housing material	Anodized aluminium, ABS end caps
Housing colour	RAL 9006 white aluminium
Meets the following Standards	EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU Note: The above specifications are subject to change without prior notice.
