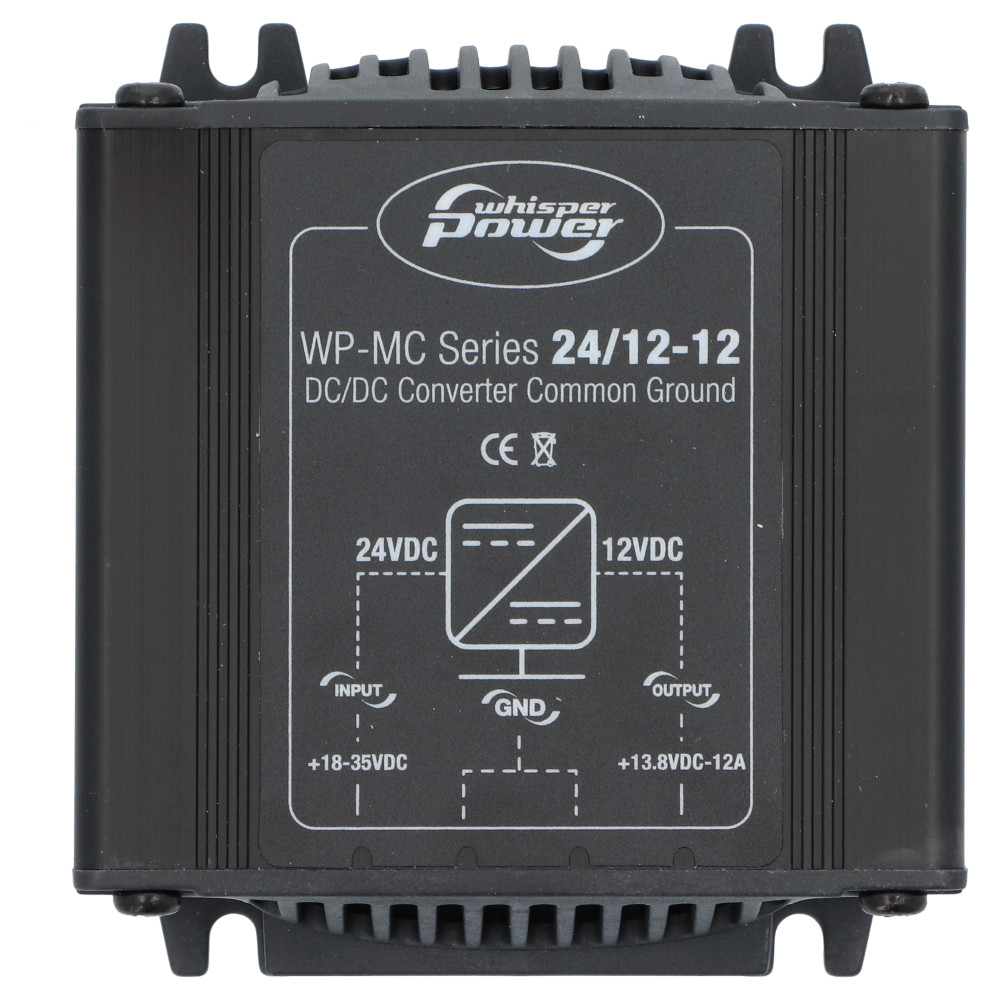

WhisperPower MC 24-12 VDC 12 A

DC-DC step-down converter MC 24-12 VDC 12 A with common negative. Powers devices at 12 VDC, utilizing a 24V battery. Thanks to Switched Mode technology, energy loss is significantly reduced while ensuring high output. Additionally, it provides robust protection against overload and high temperatures. Cannot be used in parallel.

• Voltage step down and stabilization
• Minimal energy loss thanks to Switched Mode technology (>90% efficiency)
• High quality industrial design for high reliability and longer life cycle
• Silent - no humming, only temperature-controlled fans for cooling
• No interference with radios, VHF or other sensitive equipment
• Compact, fast and easy to install
• Excellent price - performance ratio
• Cannot be used in parallel

Info

Output voltage (DCV):

24

Current (A):

12

Article number:

WPP-60110016

Website:

https://www.whisperpower.com/wp-mc-24-12-12

Weight:

290 g/pcs

Technical specification

ARTICLE NUMBER
60110016	MC 24-12 VDC 12 A

DIMENSIONS & WEIGHT
Length x width x height, mm (in.)	50 x 98 x 88 (2 x 3.9 x 3.5)
Weight, kg (lb.)	0.29 (0.64)

INPUT
Nominal input voltage	24 VDC
Input range, specifications met	18 .. 35 VDC
Input range, no defects	0 .. 35 VDC

OUTPUT
Nominal output voltage	13.8 VDC
Voltage adjustable	no
Output accuracy	3%
Ripple, peak output voltage	1%
maximum power output	170 W
continuous output power	170 W
Maximum output current	12 A
Continuous output current at 40 °C	up to 12 A

GENERAL
efficiency	>92%
consumption no load	<5 mA
Ambient operating temperature	-10°C .. +40°C
Storage temperature	-25° .. +85°C
Relative humidity in use	up to 95%, non-condensing
Galvanic isolation	Common negative
Cooling	convectional

PROTECTIONS
Current / short circuit	Yes / fuse
Overheating, shut down	no

MECHANICAL SPECIFICATIONS
Faston in/ off, max thread thickness	6 mm²
Mounting holes	dia 4 mm, rh 58×90
International Protection rating	IP20
Housing	frame 4
Housing material	Alu / ABS
Housing colour	RAL 9011 graphite black
Meets the following Standards	EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU Note: The above specifications are subject to change without prior notice.
