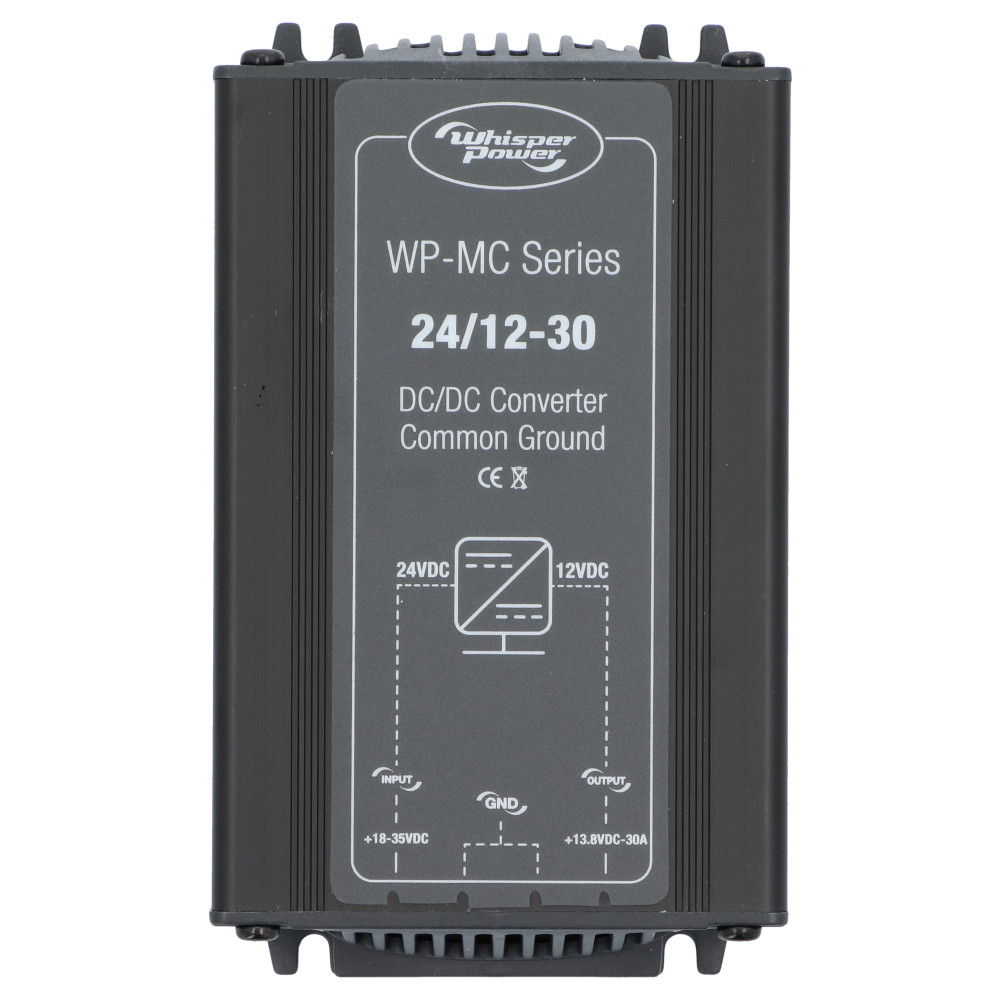

WhisperPower MC 24-12 VDC 30 A

DC-DC step-down converter MC 24-12 VDC 30 A with common negative. Delivers 12 VDC to equipment sourced from a 24V battery. The device employs Switched Mode technology for efficient energy usage and optimal output. Moreover, it is safeguarded against overload and can withstand high temperatures. Cannot be used in parallel.

• Voltage step down and stabilization
• Minimal energy loss thanks to Switched Mode technology (>90% efficiency)
• High quality industrial design for high reliability and longer life cycle
• Silent - no humming, only temperature-controlled fans for cooling
• No interference with radios, VHF or other sensitive equipment
• Compact, fast and easy to install
• Excellent price - performance ratio
• Cannot be used in parallel

Info

Output voltage (DCV):

24

Current (A):

30

Article number:

WPP-60110012

Website:

https://www.whisperpower.com/wp-mc-24-12-30

Weight:

500 g/pcs

Technical specification

ARTICLE NUMBER
60110012	MC 24-12 VDC 30 A

DIMENSIONS & WEIGHT
Length x width x height, mm (in.)	50 x 151 x 88 (2 x 6 x 3.5)
Weight, kg (lb.)	0.5 (1.1)

TECHNICAL SPECIFICATIONS
Converter type	voltage step down and stabilization

INPUT
Nominal input voltage	24 VDC
Input range, specifications met	18 .. 35 VDC
Input range, no defects	0 .. 35 VDC

OUTPUT
Nominal output voltage	13.8 VDC
Voltage adjustable	no
Output accuracy	1%
Ripple, peak output voltage	1%
maximum power output	490 W
continuous output power	420 W
Maximum output current	35 A
Continuous output current at 40 °C	up to 30 A

GENERAL
efficiency	>92%
consumption no load	<25 mA
Ambient operating temperature	-10°C .. +40°C
Storage temperature	-25° .. +85°C
Relative humidity in use	up to 95%, non-condensing
Galvanic isolation	Common negative
Cooling	Mechanical

PROTECTIONS
Current / short circuit	Restricted by current rating
Overheating, shut down	Power restricted by temperature

MECHANICAL SPECIFICATIONS
Faston in / off, max thread thickness	6 mm²
Mounting holes	dia 4 mm, rh 58 × 143
International Protection rating	IP20
Housing	frame 6
Housing material	Anodized aluminium, ABS end caps
Housing colour	RAL 9011 graphite black
Meets the following Standards	EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU Note: The above specifications are subject to change without prior notice.
