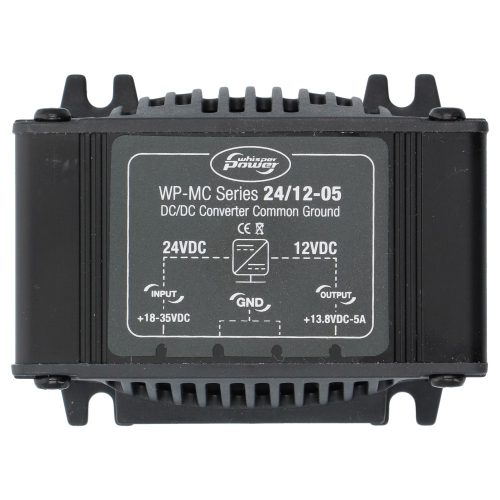

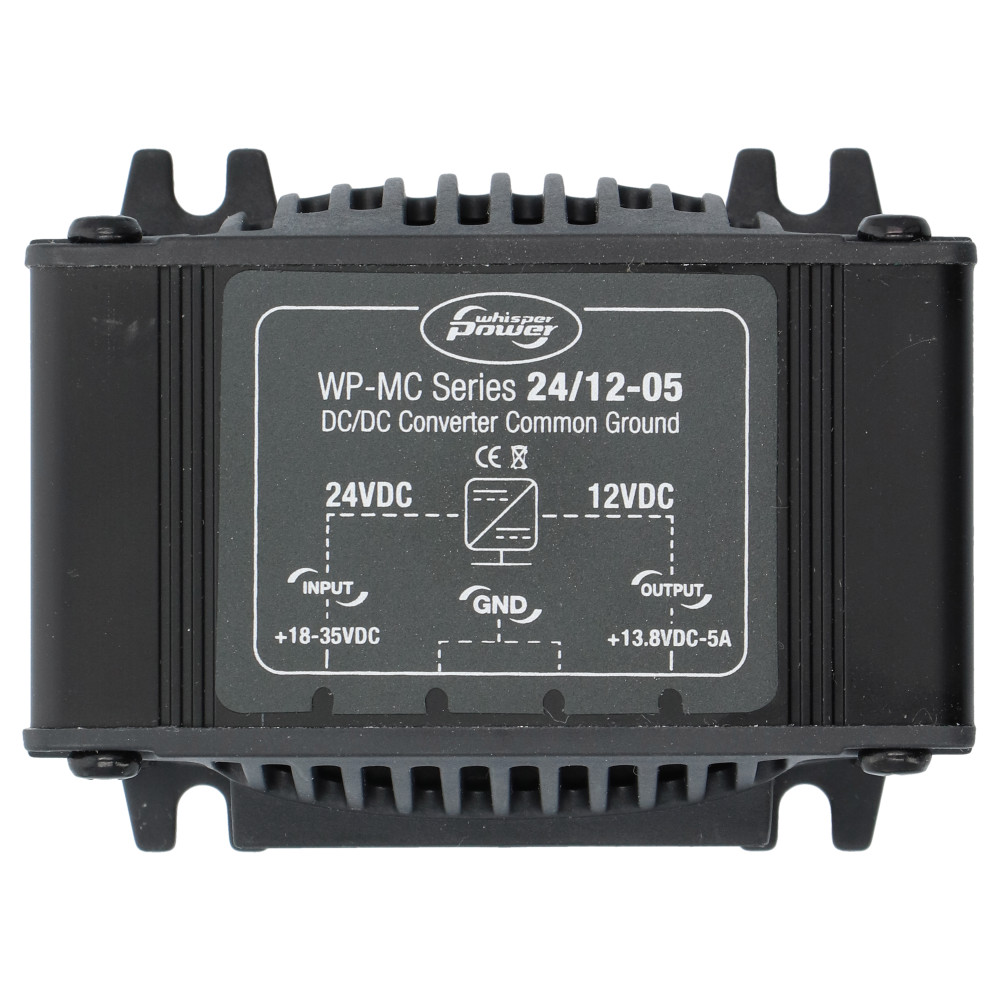

WhisperPower MC 24-12 VDC 5 A

Name: WhisperPower MC 24-12 VDC 5 A
Brand: WHISPERPOWER
SKU: WPP-60110005
Price: 30897 HUF

Price: 30 897 Ft
without VAT: 24 328 Ft+VAT (6 569 Ft)

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

60110005

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

pcs

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

DC-DC step-down converter MC 24-12 VDC 5 A with common negative. Provides a stable 12 VDC to devices while operating on a 24V battery. The Switched Mode technology ensures minimal energy loss and high output. Fully protected against overload and high ambient temperatures. Cannot be used in parallel.

Details

WhisperPower MC 24-12 VDC 5 A

Voltage step down and stabilization
Minimal energy loss thanks to Switched Mode technology (>90% efficiency)
High quality industrial design for high reliability and longer life cycle
Silent - no humming, only temperature-controlled fans for cooling
No interference with radios, VHF or other sensitive equipment
Compact, fast and easy to install
Excellent price - performance ratio
Cannot be used in parallel

Info

Output voltage (DCV):

Current (A):

Article number:

WPP-60110005

Website:

https://www.whisperpower.com/wp-mc-24-12-05

Weight:

270 g/pcs

Technical specification

ARTICLE NUMBER
60110005	MC 24-12 VDC 5 A

DIMENSIONS & WEIGHT
Length x width x height, mm (in.)	50 x 70 x 88 (2 x 2.8 x 3.5)
Weight, kg (lb.)	0.27 (0.6)

TECHNICAL SPECIFICATIONS
Converter type	Voltage step down and stabilization

INPUT
Nominal input voltage	24 VDC
Input range, specifications met	18 .. 35 VDC
Input range, no defects	0 .. 35 VDC

OUTPUT
Nominal output voltage	13.8 VDC
Voltage adjustable	no
Output accuracy	3%
Ripple, peak output voltage	1%
maximum power output	70 W
continuous output power	70 W
Maximum output current	5 A
Continuous output current at 40 °C	up to 5 A

GENERAL
efficiency	>92%
consumption no load	<5 mA
Ambient operating temperature	-10°C .. +40°C
Storage temperature	-25° .. +85°C
Relative humidity in use	up to 95%, non-condensing
Galvanic isolation	Common negative
Cooling	convectional

PROTECTIONS
Current / short circuit	Yes / fuse
Overheating, shut down	no

MECHANICAL SPECIFICATIONS
Faston in / off, max thread thickness	6 mm²
Mounting holes	dia 4 mm, rh 58 × 90
International Protection rating	IP20
Housing	frame 4
Housing material	Alu / ABS
Housing colour	RAL 9011 graphite black
Meets the following Standards	EN61000-6-3 (EN55022), EN61000-6-2 (EN61000-2/3/4, EN61000-4-3), LVD 2006/95/EC (EN60335-1), Automotive EMC 2004/104/EC, RoHS 2011/65/EU Note: The above specifications are subject to change without prior notice.
