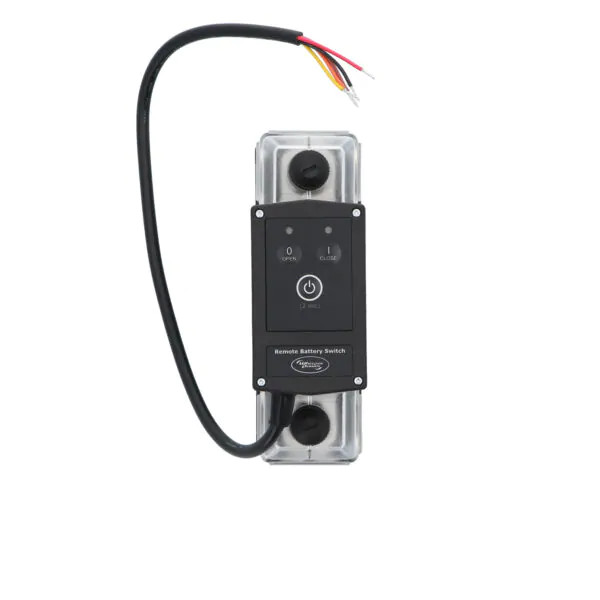

WhisperPower Remote Battery Switch 12 V / 500 A

Name: WhisperPower Remote Battery Switch 12 V / 500 A
Brand: WHISPERPOWER
SKU: WPP-50214733

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

50214733

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

Main warehouse

In stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The DC Modular Remote Battery Switch 12 V / 500 A is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500 Amps. The Remote Battery Switch 12 V / 500 A can easily be installed in an engine room or battery compartment while being controlled from a more convenient location by a small panel mounted switch. But the Switch can for instance also be controlled by a battery monitor or Lithium battery, as a discharge/overcharge protection.

Details

WhisperPower Remote Battery Switch 12 V / 500 A

Equipped with a 5 wire interface cable
No current draw from the battery when the contact is closed
Protected against high/low supply voltage and high temperature
Smart function to automatically fix light to medium contact weldings
Ignition protected according to ISO8846

Data

Article number:

WPP-50214733

Website:

https://www.whisperpower.com/remote-battery-switch...

Weight:

800 g/pcs

Technical specification

DIMENSIONS & WEIGHT
Length x width x height	150 x 50 x 94 mm (5.9" x 2" x 3.7" inch)
Weight	0.8 kg (1.8 lb.)

TECHNICAL SPECIFICATIONS
Rated voltage	60 VDC
Nominal current	500 A
Cranking current (1min.)	1000 A
Nominal make / break current	500 A (0..34 Vdc) / 350 A (35..60 Vdc)
Peak make / break current	1600 A (0..34 Vdc) / 1200 A (35..60 Vdc)
Coil / supply voltage (+Vdc)	7..17 VDC
Coil / supply current (idle state)1)	< 100 uA
Coil / supply current (state change)1)	< 4 A

GENERAL
Remote control	By control wires
Local control2)	Top side buttons (On/Standby, Close contact, Open contact)
Indicators	Top side LEDs for Contact open, Contact closed, Error and Setup
Mechanical life	100000 cycles
Electrical life	10000 cycles
Operating temperature range	-20..+60°C
Connection stud size	M10
DC Modular grid size	1x3
Protection class	IP65
Standards	CE certified (EMC Directive 2014/30/EU, Low voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU and Ignition protection standard ISO 8846)
