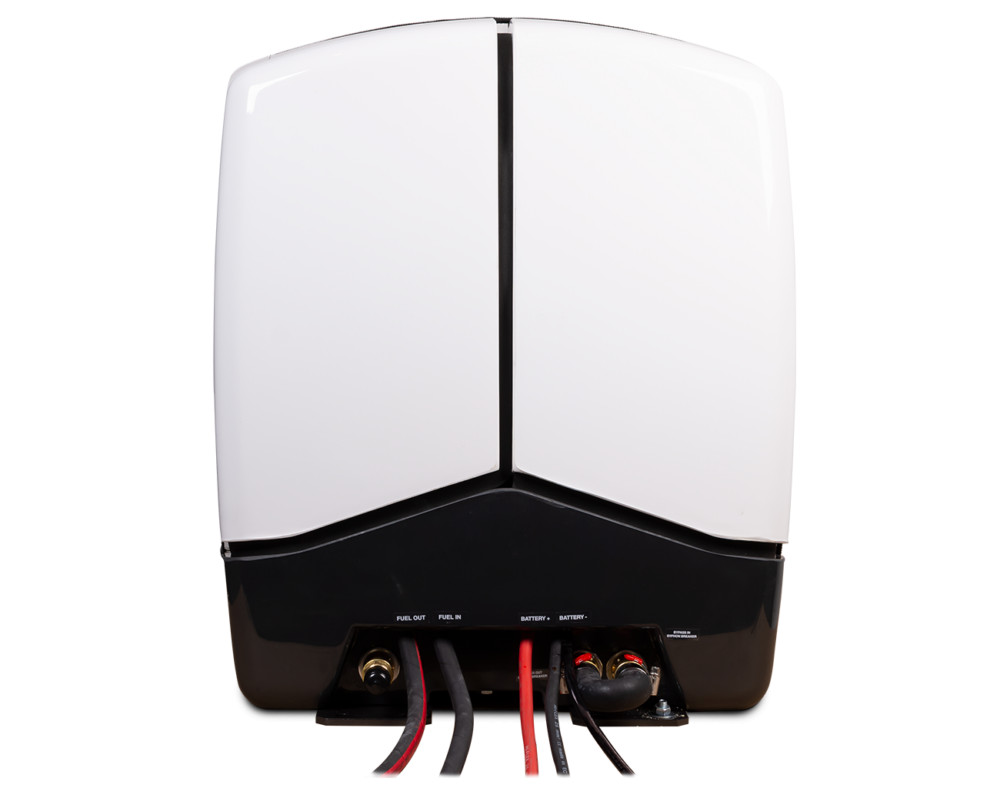

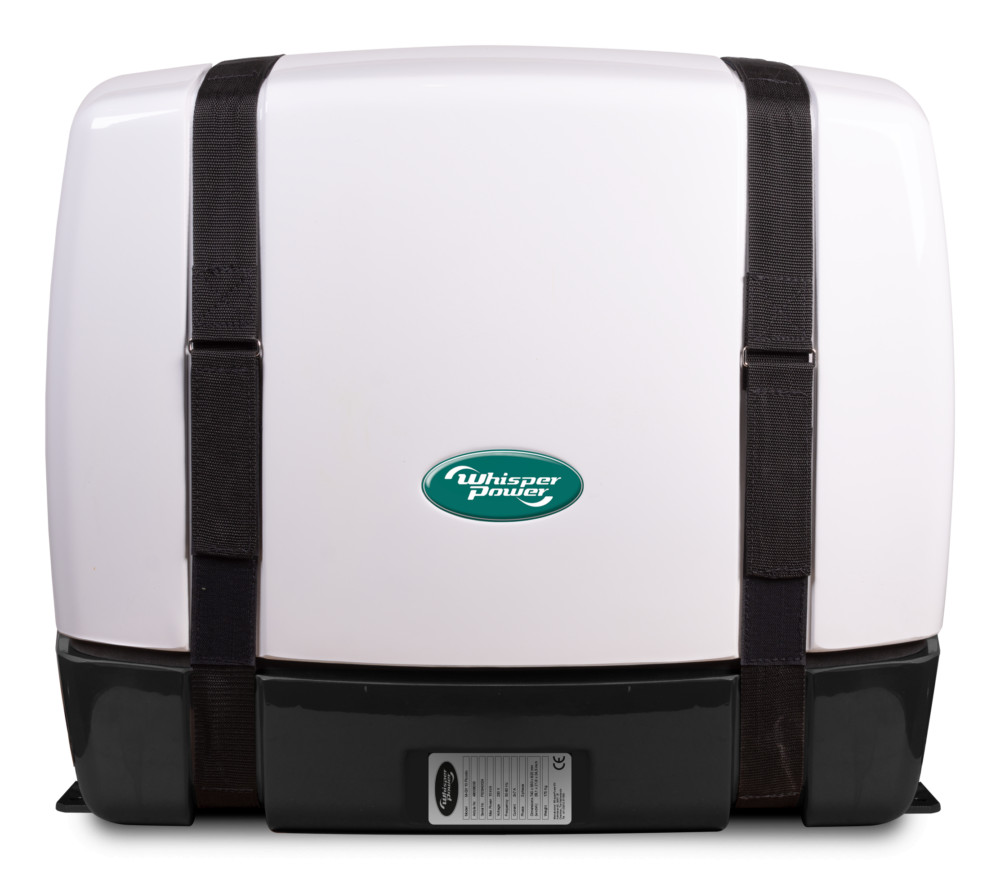

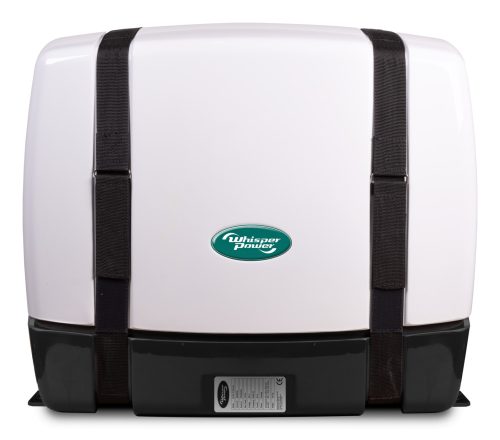

WhisperPower Piccolo M-GV10 10KVA / 8kW - 230V / 50Hz Diesel Generator

Item number:
WPP-49009005
WhisperPower Piccolo M-GV10  10KVA / 8kW - 230V / 50Hz  Diesel Generator
WhisperPower Piccolo M-GV10  10KVA / 8kW - 230V / 50Hz  Diesel Generator
WhisperPower Piccolo M-GV10  10KVA / 8kW - 230V / 50Hz  Diesel Generator
WhisperPower Piccolo M-GV10  10KVA / 8kW - 230V / 50Hz  Diesel Generator
WhisperPower Piccolo M-GV10  10KVA / 8kW - 230V / 50Hz  Diesel Generator
WhisperPower Piccolo M-GV10  10KVA / 8kW - 230V / 50Hz  Diesel Generator
Manufacturer:
WHISPERPOWER
Manufacturer Article number:
49009005
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

The WhisperPower Genverter© Piccolo 10 is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as a washing machine, small air conditioning system, electrical cooking hob and battery charging devices.

Bundle offers
  • Details
  • Data
  • Technical specification
  • Download User Manual
Details

WhisperPower Piccolo M-GV10 10KVA / 8kW - 230V / 50Hz Diesel Generator

The WhisperPower Genverter© Piccolo 10 is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as a washing machine, small air conditioning system, electrical cooking hob and battery charging devices.

Data
Kimeneti feszültség (ACV) :
230
Frequency:
50
Usage:
Hajó
Inverter:
Igen
Continuous Power kVA at 25°C:
10
Intermittent Power kW at 25°C:
8.5
Website:
https://www.whisperpower.com/diesel-generators/pic...
Weight:
175 kg/db
Technical specification
ARTICLE NUMBER
49009055 Piccolo 10 – Ungrounded (120V / 60Hz)
MAIN SPECIFICATIONS
Nominal voltage / frequency 120 VAC, 1 ph, 60 Hz (50 Hz)
Inverter Module WP-PMG frame 3
Phase Wire 1 phase, 3 wires or split phase, 4 wires
Intermittent Power kW at 25ºC (77ºF) 8.5 kW
Continuous Power kVA at 25ºC (77ºF) 10 kVA
Noise level 51 dB(A) at 7 m, 60 dB(A) at 1m
Rpm range 2400 .. 2800 rpm, adjustable
Alternator technology Permanent magnet
Generator cooling Indirect water-cooling (engine + alternator)
Generator control DDC
Control panel DDC Local + DDC Remote
Peak power 2 s 200%
Harmonic distortion < 3%
Frequency tolerance +/- 0,1%
DIESEL ENGINE SPECIFICATIONS

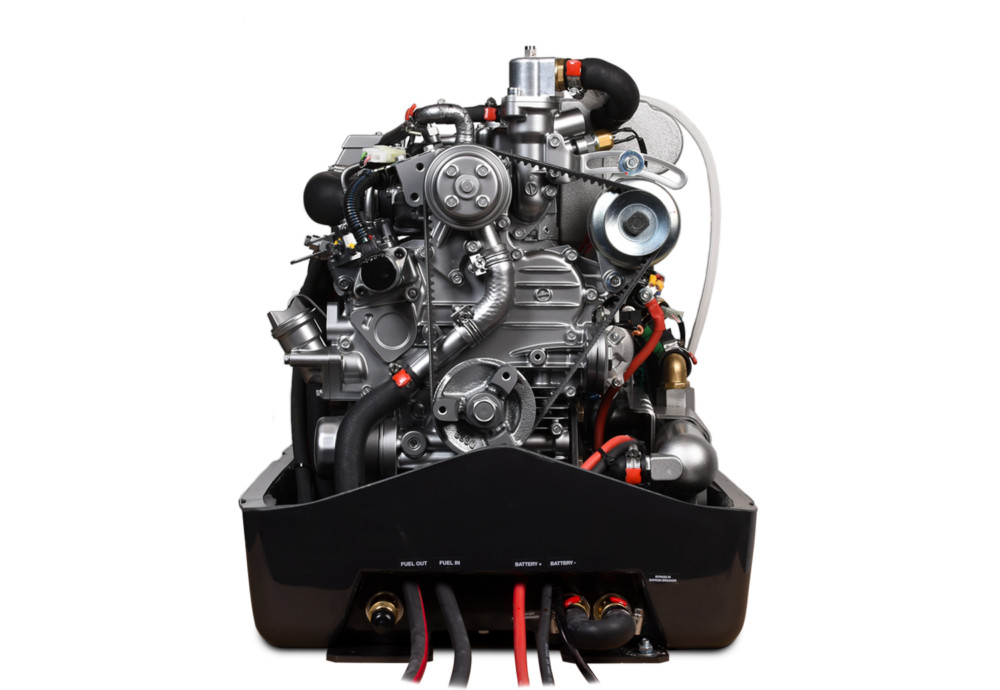

Engine WhisperPower Kubota D722
Engine family NKBXL.719KCB
Emission class Stage V certified / EPA / Tier 4
Displacement 719 cc
Cylinders 3
Bore & stroke, mm (in.) 67 x 68 (2.6 x 2.7)
Compression ratio 23.5
Air consumption <0.94 m3 / min
Cooling system Heat exchanger
Fuel consumption (no load - full load) 2.6-3.8 l/hr
Starter battery charge method/ current Alternator 12 V / 12.5 A
DIMENSIONS & WEIGHT
Length x width x height (cabinet), mm (in.) 740 x 550 x 622 (29 x 21.7 x 24.5)
Length x width x depth (PMG), mm (in.) 542 x 384 x 257 (21.3 x 15.1 x 10.1)
Dry weight (cabinet), kg (lb.) 175 (385.8)
Dry weight (PMG), kg (lb.) 30 (66)
Exhaust type, mm (in.) Ø 40 mm, wet (1.6)
Max. operating angle 25º in all directions
OPTIONAL
Optional 2nd start/stop panel, Touch panel 7"
Optional Ungrounded
Optional Keel Cooling
Download User Manual


PDF Download
