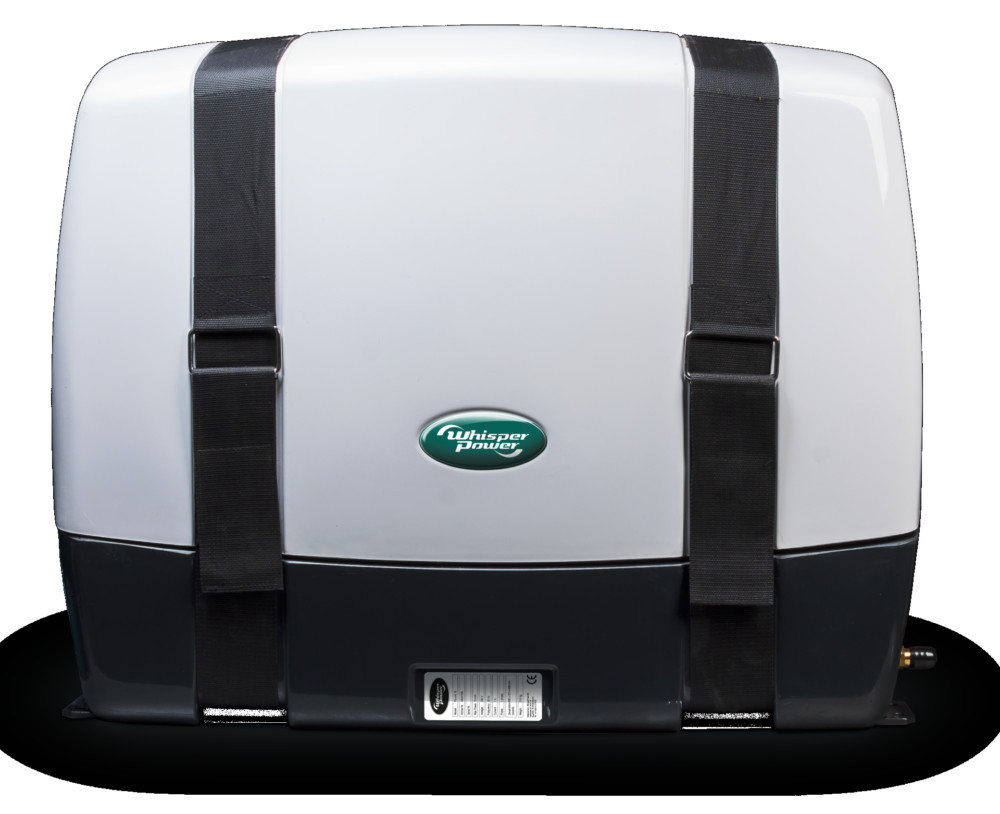

WhisperPower Elite W-GV15 15KVA / 12kW - 230V / 50Hz Diesel Generator
Manufacturer:
WHISPERPOWER
Manufacturer Article number:
49007020
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
The WhisperPower Genverter© Elite 15 is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as electrical equipment & tools, airconditioning, a cooking hob and battery charging devices.
Bundle offers
WhisperPower Elite W-GV15
The WhisperPower Genverter© Elite 15 is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as electrical equipment & tools, airconditioning, a cooking hob and battery charging devices.
Kimeneti feszültség (ACV) :
230
Frequency:
50
Usage:
Kamion
Inverter:
Igen
Continuous Power kVA at 25°C:
15
Intermittent Power kW at 25°C:
12.5
Weight:
220 kg/db
| ARTICLE NUMBER | |
|---|---|
| 49007020 | Elite 15 |
| MAIN SPECIFICATIONS | |
|---|---|
| Intermittent Power kW at 25ºC (77ºF) | 12.5 kW |
| Continuous Power kVA at 25ºC (77ºF) | 15 kVA |
| Noise level | 54 dB(A) at 7 m, 65 dB(A) at 1m |
| Rpm range | 2400 .. 2800 rpm, adjustable |
| Alternator technology | Permanent magnet |
| Generator cooling | Radiator / liquid cooled |
| Generator control | DDC |
| Control panel | DDC Local + DDC Remote |
| Inverter module | WP-PMG frame 3 |
| Nominal voltage / frequency | 230 VAC, 1 ph, 50 Hz (60 Hz) / 120 VAC, split phase, 60 Hz (50 Hz) |
| Phase/wire | 1 phase, 3 wires or split phase, 4 wires |
| Peak power 2 s | 200% |
| Harmonic distortion | < 3% |
| Frequency tolerance | +/- 0,1% |
| DIESEL ENGINE SPECIFICATIONS | |
|---|---|

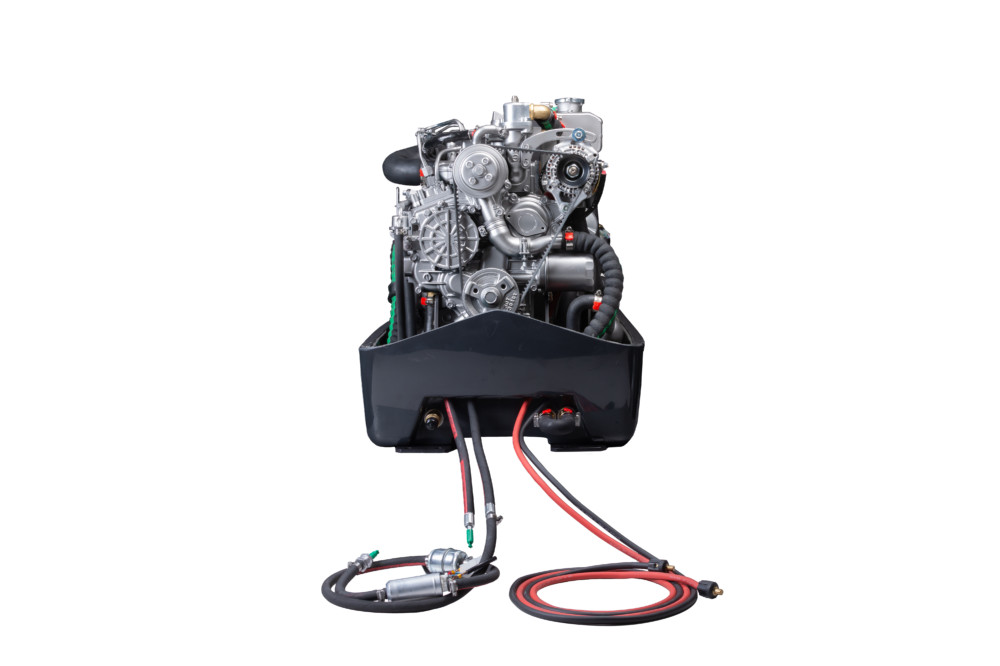

| Engine | WhisperPower Kubota D1105 |
| Engine family | PKBXL01.5DCB |
| Emission class | Stage V certified / EPA / Tier 4 |
| Displacement | 1123 cc |
| Cylinders | 3 |
| Bore & stroke, mm (in.) | 78 x 78.4 (3.1 x 3.1) |
| Compression ratio | 24.0 |
| Air consumption | <1.47 m3 / min |
| Cooling system | Radiator |
| Fuel consumption (no load - full load) | 4.2 - 5.6 l/hr |
| Starter battery charge method/ current | Alternator 12 V / 40 A |
| DIMENSIONS & WEIGHT | |
|---|---|
| Length x width x height (cabinet), mm (in.) | 875 x 570 x 690 (34.4 x 22.4 x 27.2) |
| Length x width x depth (PMG), mm (in.) | 542 x 384 x 257 (21.3 x 15.1 x 10.1) |
| Dry weight (cabinet), kg (lb.) | 210 + 9.9 (463 + 21.8) |
| Exhaust type | R 1 inch, dry |
| Max. operating angle | 25º in all directions |
