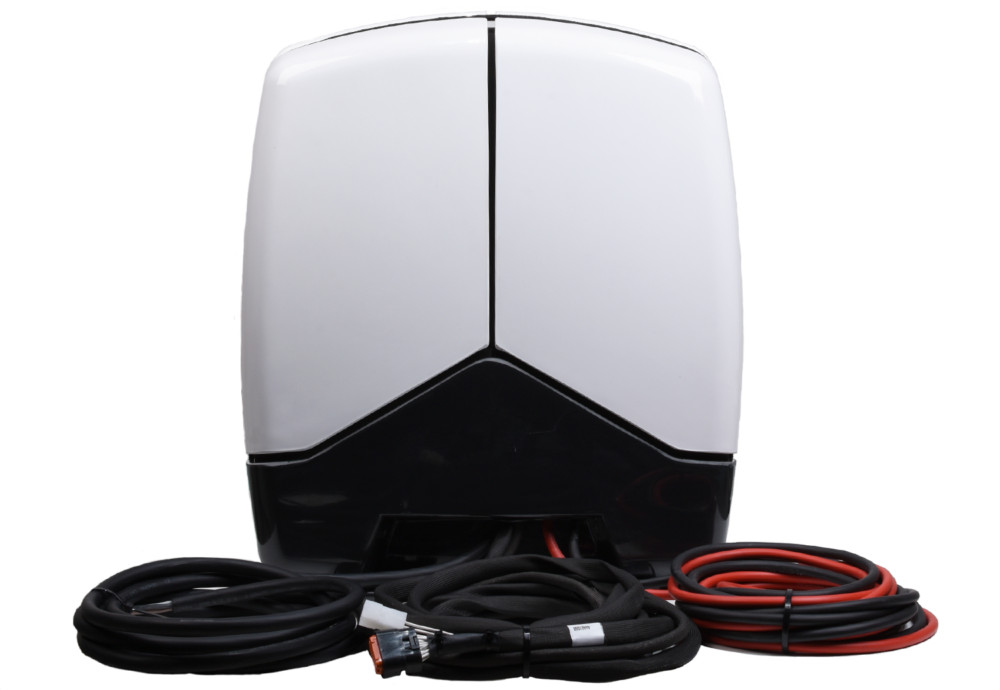

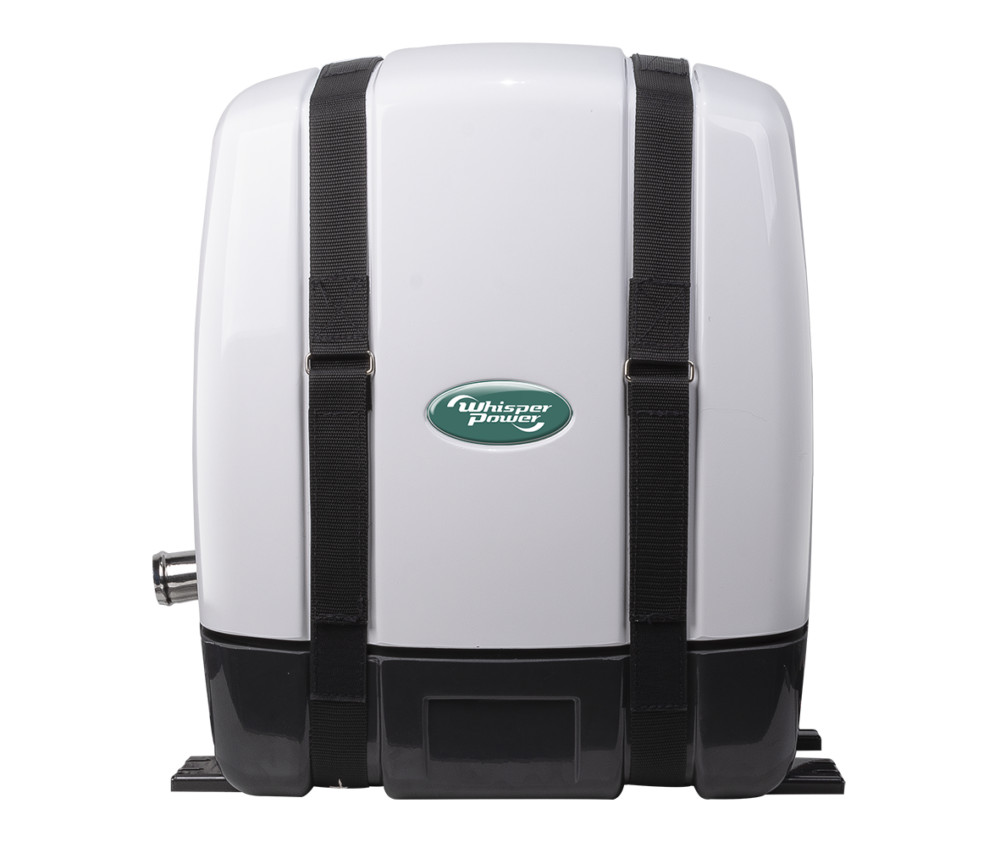

WhisperPower Piccolo M-GV5 4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator

Item number:
WPP-49003005
WhisperPower Piccolo M-GV5  4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator
WhisperPower Piccolo M-GV5  4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator
WhisperPower Piccolo M-GV5  4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator
WhisperPower Piccolo M-GV5  4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator
WhisperPower Piccolo M-GV5  4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator
WhisperPower Piccolo M-GV5  4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator
WhisperPower Piccolo M-GV5  4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator
WhisperPower Piccolo M-GV5  4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator
Manufacturer:
WHISPERPOWER
Manufacturer Article number:
49003005
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

The WhisperPower Genverter© Piccolo 5 is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as a washing machine, small air conditioning system, electrical cooking hob, battery chargers and inverter/charger combinations.

Bundle offers
  • Details
  • Data
  • Technical specification
  • Download User Manual
Details

WhisperPower Piccolo M-GV5 4.4kVA / 3.5kW - 230V / 50Hz Diesel Generator

The little power house

The WhisperPower Genverter© Piccolo 5 is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as a washing machine, small air conditioning system, electrical cooking hob, battery chargers and inverter/charger combinations.

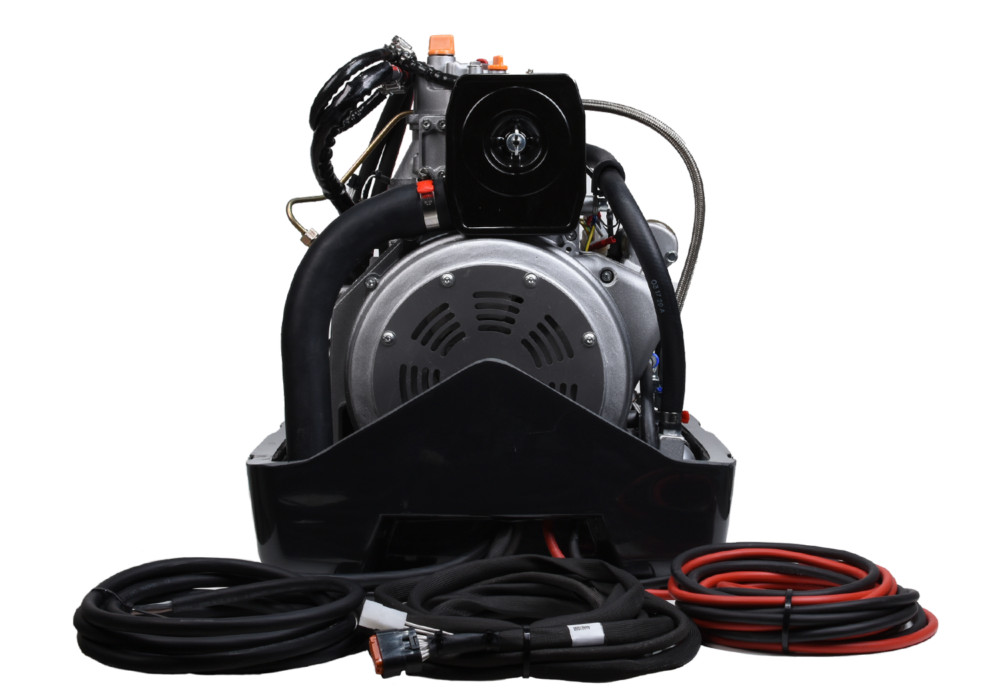

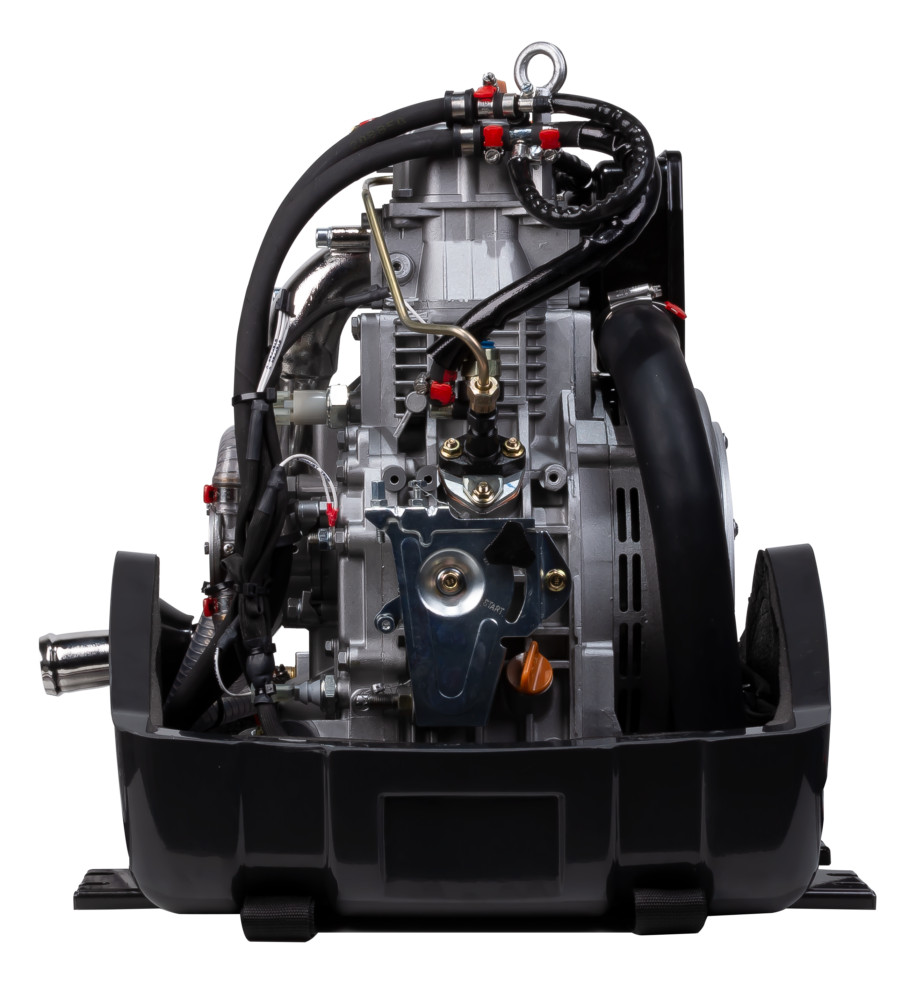

Unique engine
All Piccolo 5 models are fitted with a modern diesel engine designed by WhisperPower, entirely for the purpose of generating power the smooth way. The engine is cooled by a heat exchanger designed for indirect water-cooling. The circulation water pump is driven by a PTO (no belt). This WhisperPower engine operates between 2400 and 3600 rpm.

Data
Kimeneti feszültség (ACV) :
230
Frequency:
50
Usage:
Hajó
Inverter:
Igen
Continuous Power kVA at 25°C:
4.4
Intermittent Power kW at 25°C:
3.5
Website:
https://www.whisperpower.com/diesel-generators/pic...
Weight:
80 kg/db
Technical specification
ARTICLE NUMBERS
49003005 Piccolo 5
49003006 Piccolo 5 - Ungrounded version
MAIN SPECIFICATIONS
Intermittent Power kW at 25ºC (77ºF) 4.4 kVA / 3.5 kW
Continuous Power kVA at 25ºC (77ºF) 4.4 kVA
Noise level 54 dB(A) at 7 m, 65 dB(A) at 1m
Rpm range 2400 .. 3600 rpm, adjustable or automatic
Alternator technology Permanent magnet
Generator cooling Air cooled
Generator control PMG
Control panel PMG + PMG Remote
Inverter Module WP-PMG frame 1 Plus
Nominal voltage / frequency 230 VAC, 1 ph, 50 Hz (60 Hz)
Phase/wire 1 Phase, 3 wires
Peak power 2 s 200%
Harmonic distortion < 5%
Frequency tolerance +/- 0,1%
DIESEL ENGINE SPECIFICATIONS
Engine WhisperPower WP1
Displacement 309 cc
Cylinders 1
Bore & stroke, mm (in.) 78 x 67 (3.1 x 2.6)
Compression ratio 21.1
Air consumption <0.42 m3 / min
Cooling system Heat exchanger
Fuel consumption (no load - full load) 0.8-1.2 l/hr
DIMENSIONS & WEIGHT
Length x width x height (cabinet), mm (in.) 450 x 470 x 520 (17.7 x 18.5 x 20.5)
Length x width x height (PMG), mm (in.) 436 x 196 x 148 (17.2 x 7.7 x 5.8)
Dry weight (cabinet + PMG), kg (lb.) 68 + 7,6 (150 + 16.8)
Exhaust type, mm (in.) Ø 40, wet (1.6)
Max. operating angle 25º in all directions
Download User Manual


PDF Download
