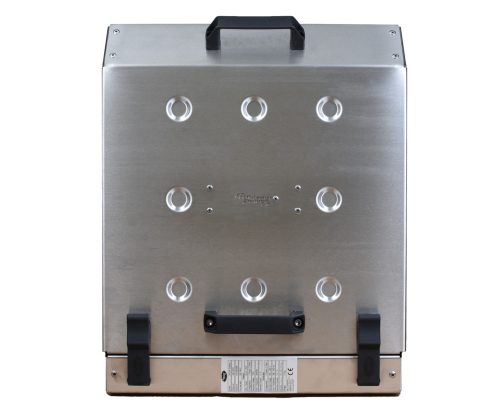

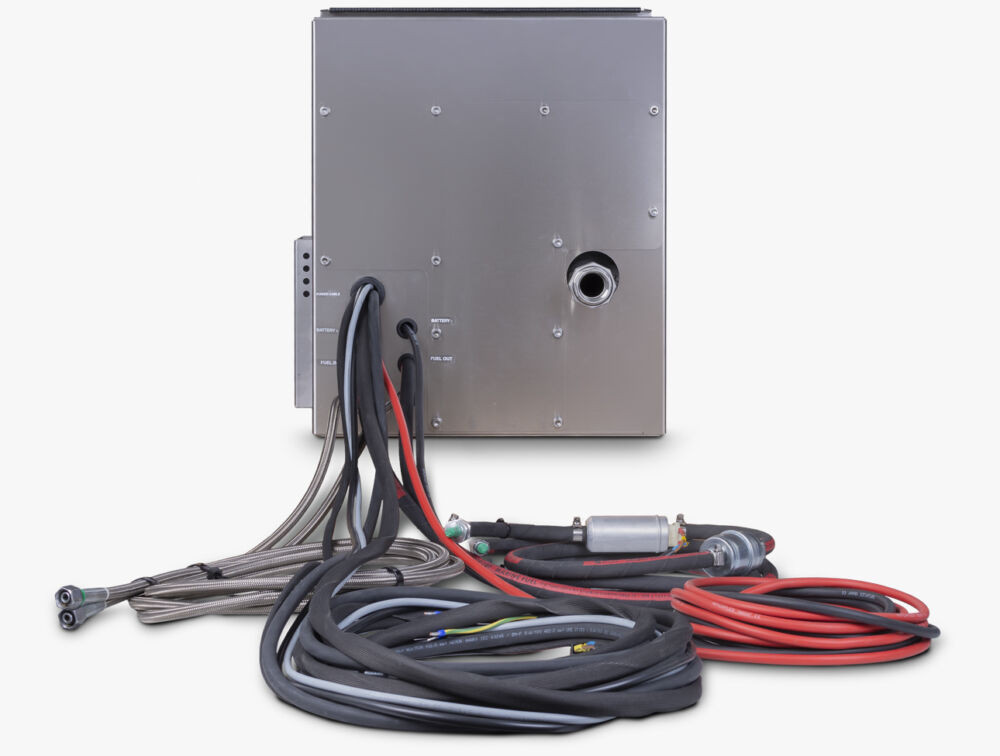

WhisperPower W-GV4 SCALINO OUTDOOR MOBILE 230V / 50Hz - 4kVA Diesel Generator
Manufacturer:
WHISPERPOWER
Manufacturer Article number:
44002020
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
The WhisperPower Genverter© Scalino Outdoor is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as electrical equipment & tools, airconditioning, a cooking hob and battery charging devices.
Bundle offers
WhisperPower W-GV4 SCALINO OUTDOOR MOBILE 230V / 50Hz - 4kVA Diesel Generator
The WhisperPower Genverter© Scalino Outdoor is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as electrical equipment & tools, airconditioning, a cooking hob and battery charging devices.
Output voltage (DCV):
230
Frequency:
50
Usage:
Kamion
Inverter:
Igen
Continuous Power kVA at 25°C:
3.5
Intermittent Power kW at 25°C:
3.5
Weight:
85 kg/db
| ARTICLE NUMBER | |
|---|---|
| 44002025 | Scalino Outdoor |
| title | < > |
| MAIN SPECIFICATIONS | |
|---|---|
| Intermittent Power kW at 25ºC (77ºF) | 3.5 kW |
| Continuous Power kVA at 25ºC (77ºF) | 3.5 KVA |
| Continuous Power kW at 25ºC (77ºF) | 3 kW |
| Rpm range | 2400 .. 3600 rpm |
| Inverter Module | WP-PMG frame 1 Plus |
| Nominal voltage / frequency | 120 VAC, 1 ph, 60 Hz (50 Hz) |
| Noise level | 54 dB(A) at 7 m, 65 dB(A) at 1m |
| Alternator voltage regulation | AVR, forced ventilation |
| Cooling | External radiator cooled |
| Generator control | PMG |
| Control panel | PMG Local + PMG Remote |
| Phase/wire | 1 Phase, 3 wires |
| Peak power 2 s | 200% |
| Harmonic distortion | <<> 5% |
| Frequency tolerance | +/- 0,1% |
| DIESEL ENGINE SPECIFICATIONS | |
|---|---|
| Engine | WhisperPower WP1 |
| Displacement | 309 cc |
| Cylinders | 1 |
| Bore & stroke, mm (in.) | 78 x 76 (3.1 x 3) |
| Compression ratio | 21.1 |
| Air consumption | <0.42 m3 / min |
| Fuel consumption (no load - full load) | 0.8-1.2 l/hr |
| Starter battery charge method/ current | handy charger 12V / 7A |
| DIMENSIONS & WEIGHT | |
|---|---|
| Depth x width x height (cabinet), mm (in.) | 510 × 450 × 490 (20.1 x 17.1 x 19.3) |
| Length x width x depth (PMG), mm (in.) | 436 x 196 x 148 (17.2 x 7.7 x 5.8) |
| Dry weight (cabinet PMG), kg (lb.) | 68 + 7.6 (150 + 16.8) |
| Exhaust type | R 1 inch, dry |
| Max. operating angle | 25º in all directions |
