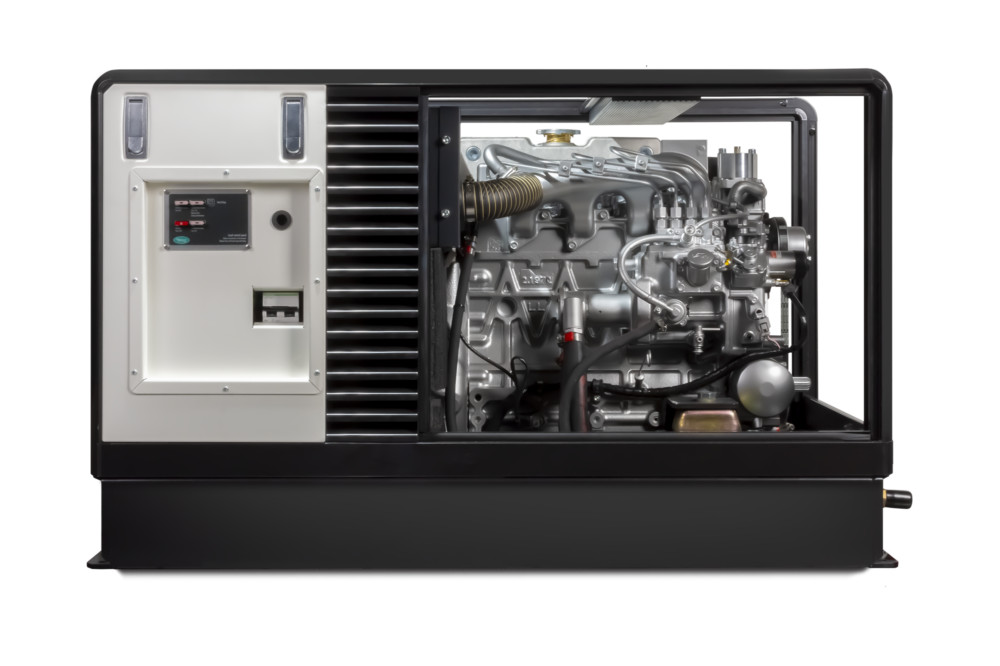

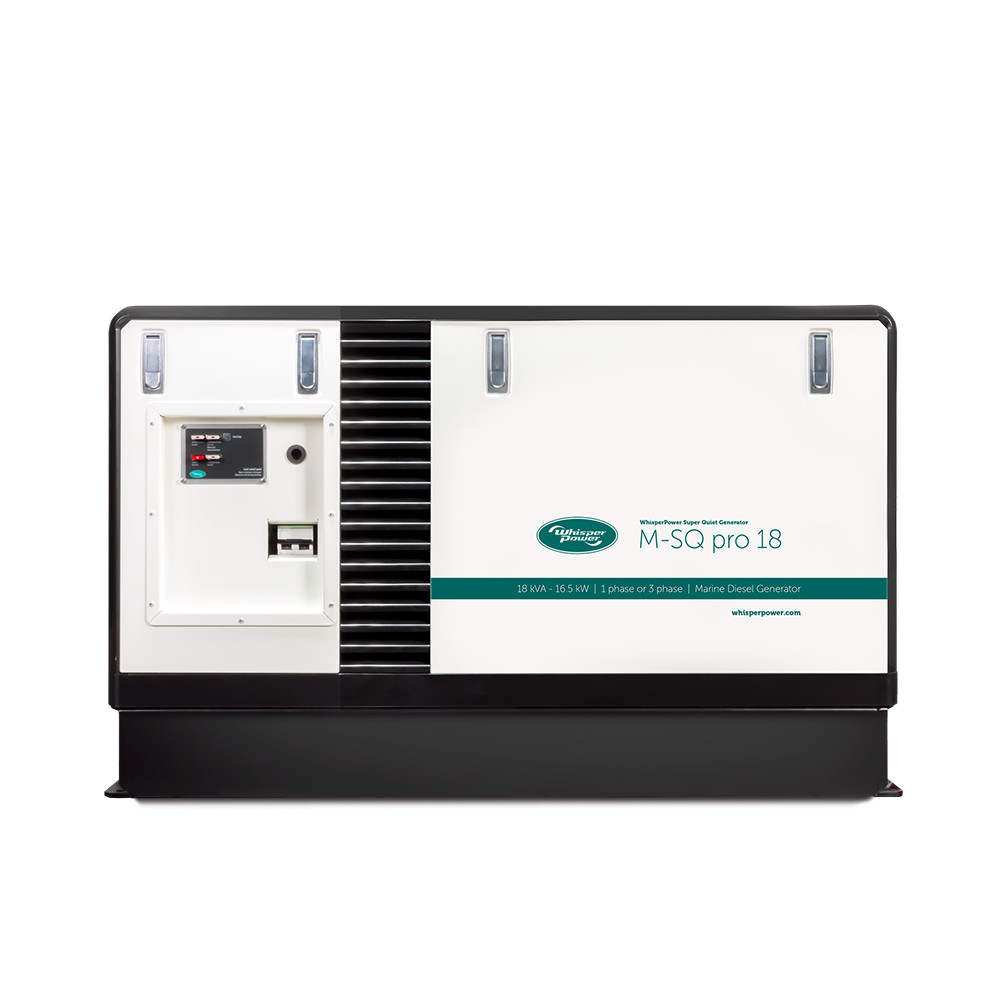

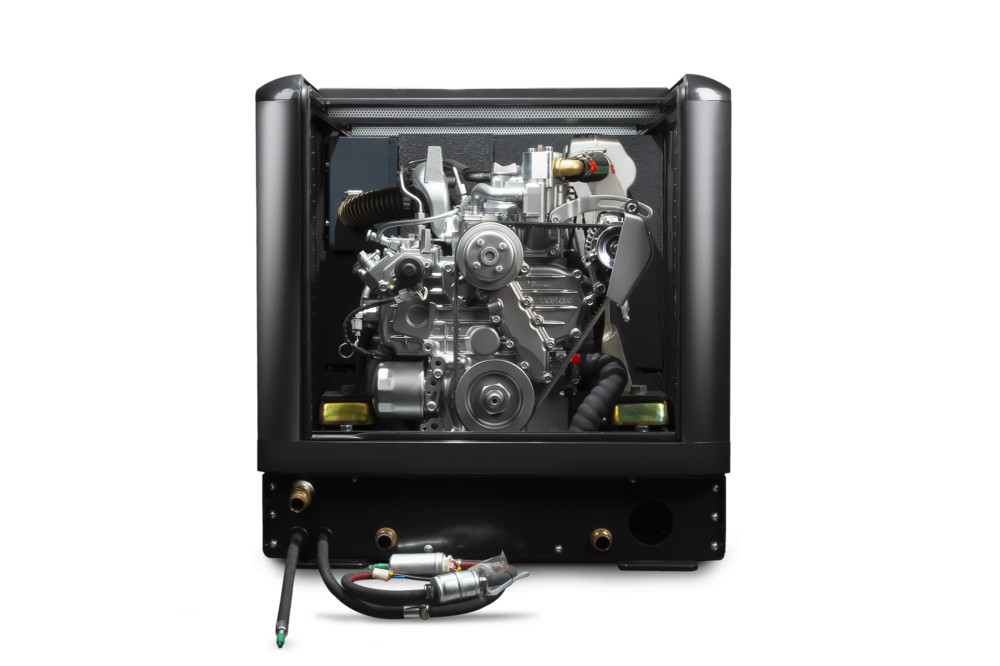

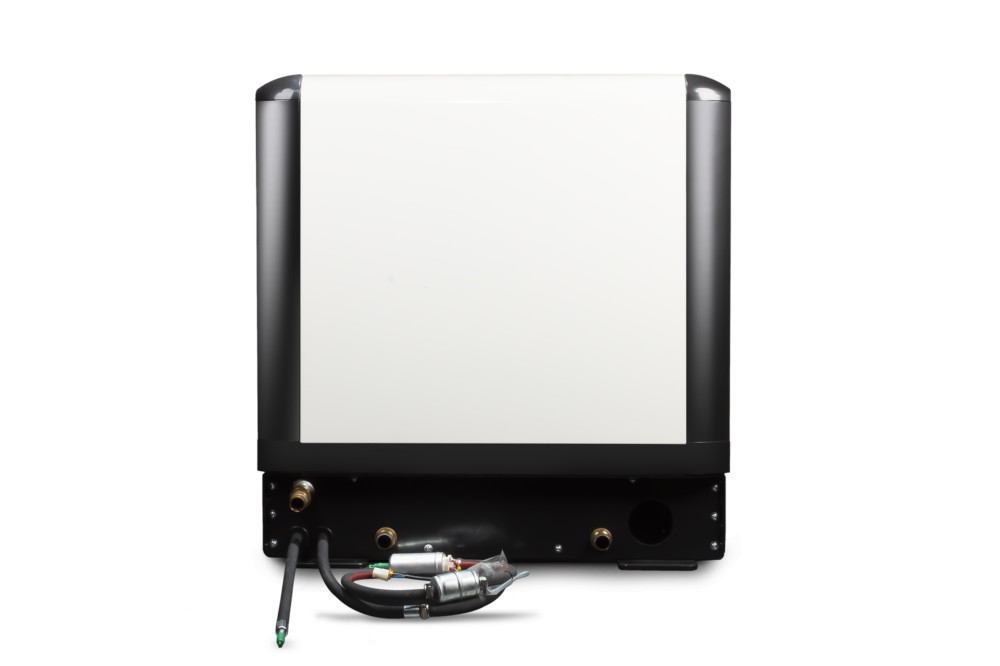

WhisperPower M-SQ Pro 18 18KVA / 14.5kW 230V / 50Hz Diesel Generator

Item number:
WPP-41208105-STV
WhisperPower M-SQ Pro 18  18KVA / 14.5kW 230V / 50Hz  Diesel Generator
WhisperPower M-SQ Pro 18  18KVA / 14.5kW 230V / 50Hz  Diesel Generator
WhisperPower M-SQ Pro 18  18KVA / 14.5kW 230V / 50Hz  Diesel Generator
WhisperPower M-SQ Pro 18  18KVA / 14.5kW 230V / 50Hz  Diesel Generator
WhisperPower M-SQ Pro 18  18KVA / 14.5kW 230V / 50Hz  Diesel Generator
WhisperPower M-SQ Pro 18  18KVA / 14.5kW 230V / 50Hz  Diesel Generator
WhisperPower M-SQ Pro 18  18KVA / 14.5kW 230V / 50Hz  Diesel Generator
WhisperPower M-SQ Pro 18  18KVA / 14.5kW 230V / 50Hz  Diesel Generator
Manufacturer:
WHISPERPOWER
Manufacturer Article number:
41208105-STV
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

Every M-SQ (Super Quiet) Pro 18 WhisperPower diesel generator is designed for non-stop, 1500 rpm operation under harsh circumstances. They are robust, silent, compact and extremely reliable.

Bundle offers
  • Details
  • Data
  • Technical specification
  • Download User Manual
Details

WhisperPower M-SQ Pro 18 18KVA / 14.5kW 230V / 50Hz Diesel Generator

Every M-SQ (Super Quiet) Pro 18 WhisperPower diesel generator is designed for non-stop, 1500 rpm operation under harsh circumstances. They are robust, silent, compact and extremely reliable. All M-SQ Pro 18 generators are made in the Netherlands and tested during a 3 hours running period in one of the most advanced generator production facilities in the world, before distributed on a world-wide base by dedicated, service orientated, distribution partners.

Only the best 4 cylinder engines are applied: long lasting, reliable, silent engines, complying with EPA Tier 4 (USA standard) and Stage V (European standard). The engine is water-cooled and kept on a constant temperature via a heat exchanger.

Data
Kimeneti feszültség (ACV) :
230
Frequency:
50
Usage:
Hajó
Inverter:
Nem
Continuous Power kVA at 25°C:
17.5
Intermittent Power kW at 25°C:
14.5
Website:
https://www.whisperpower.com/diesel-generators/m-s...
Weight:
500 kg/db
Technical specification

ARTICLE NUMBER
41208105-STV M-SQ Pro 18 1 ph, STV (DDC)
41208105-STV M-SQ Pro 18 1 ph, STV-DSE (deepsea)
MAIN SPECIFICATIONS
Intermittent Power kW at 25ºC (77ºF) 14.5 kW
Continuous Power kVA at 25ºC (77ºF) 17.5 kVA
Nominal voltage / frequency 230 VAC, 1 ph, 50 Hz
Noise level 55 dB
Rpm range 1500 rpm
Cooling Indirect water cooled
Alternator voltage regulation AVR, forced ventilation
Peak power 2 s 200%
Harmonic distortion < 3%
Frequency tolerance +/- 5 %
DIESEL ENGINE SPECIFICATIONS
Engine WhisperPower Kubota V2203 M BG
Emission class Stage V certified
Cylinders 4
Displacement, L (In.) 2.197 (134)
Bore, mm (ln.) 87 (3.4)
Store, mm (In.) 92,4 (3.6)
Compression ratio 22.0
Combustion system IDI
Nominal speed, rpm 1500
Net Continuous power at rated rpm, kW (hp) 17.2 (23.1)
Governor, type Mechanical (+/- 5%)
Angular operation continuous 20º
DIMENSIONS & WEIGHT
Length x width x height (cabinet), mm (in.) 1220 x 719 x 754 (48 x 31.1 x 29.7)
Dry weight, kg (lb.) 495 (1091)
Wet exhaust, mm (in.) Ø 50 (2)
Max. operating angle 25º in all directions
