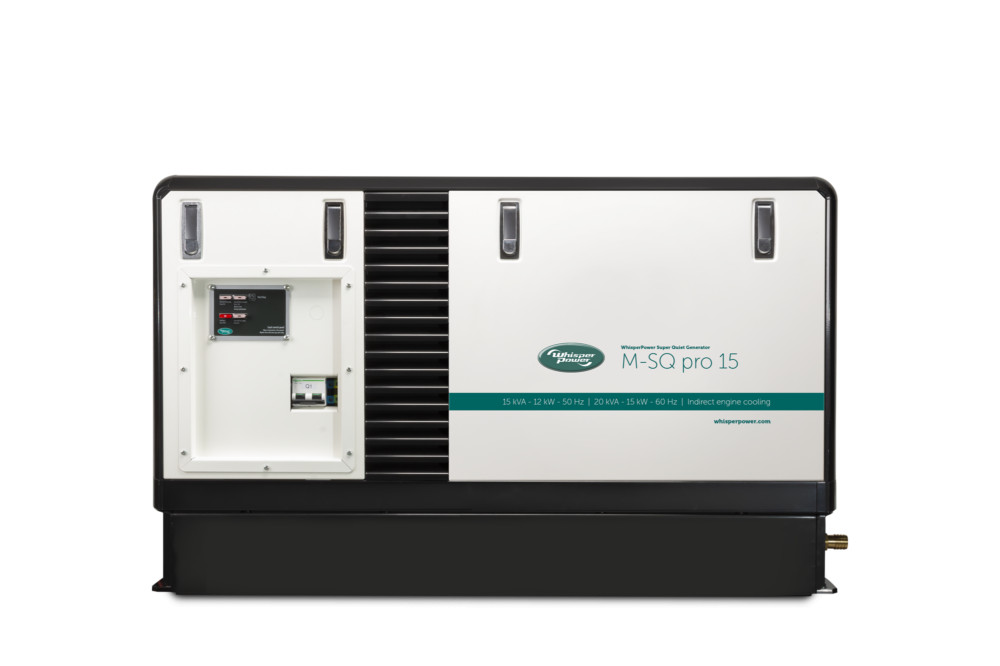

WhisperPower M-SQ Pro 15 15KVA / 12kW 230V / 50Hz Diesel Generator
Manufacturer:
WHISPERPOWER
Manufacturer Article number:
41207005-STV
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!
Every M-SQ (Super Quiet) Pro 15 WhisperPower diesel generator is designed for non-stop, 1500 rpm operation under harsh circumstances. They are robust, silent, compact and extremely reliable.
Bundle offers
WhisperPower M-SQ Pro 15 15KVA / 12kW 230V / 50Hz Diesel Generator
Every M-SQ (Super Quiet) Pro 15 WhisperPower diesel generator is designed for non-stop, 1500 rpm operation under harsh circumstances. They are robust, silent, compact and extremely reliable.

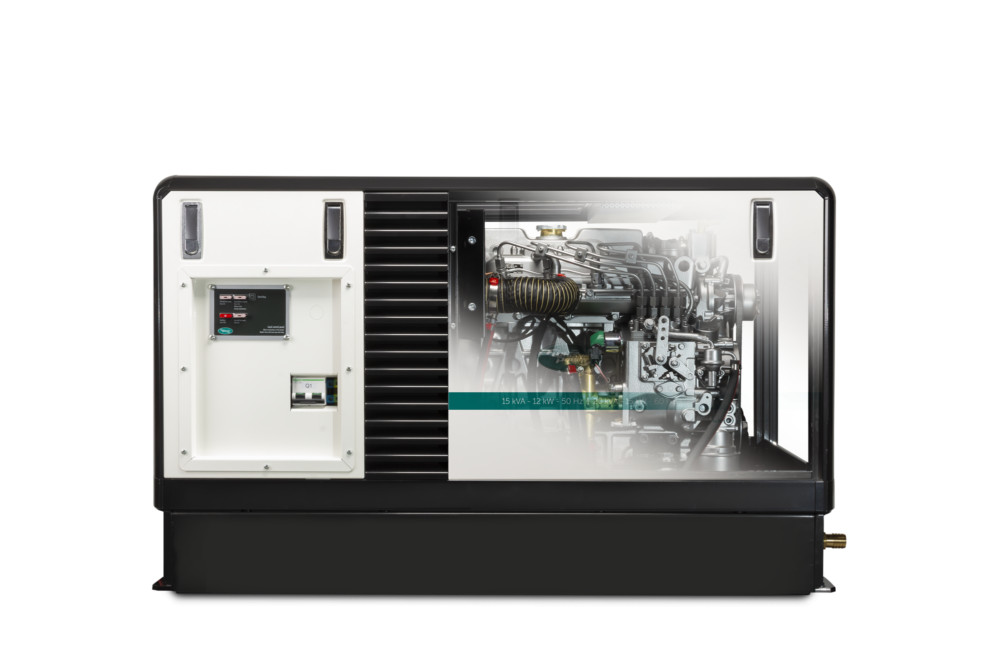

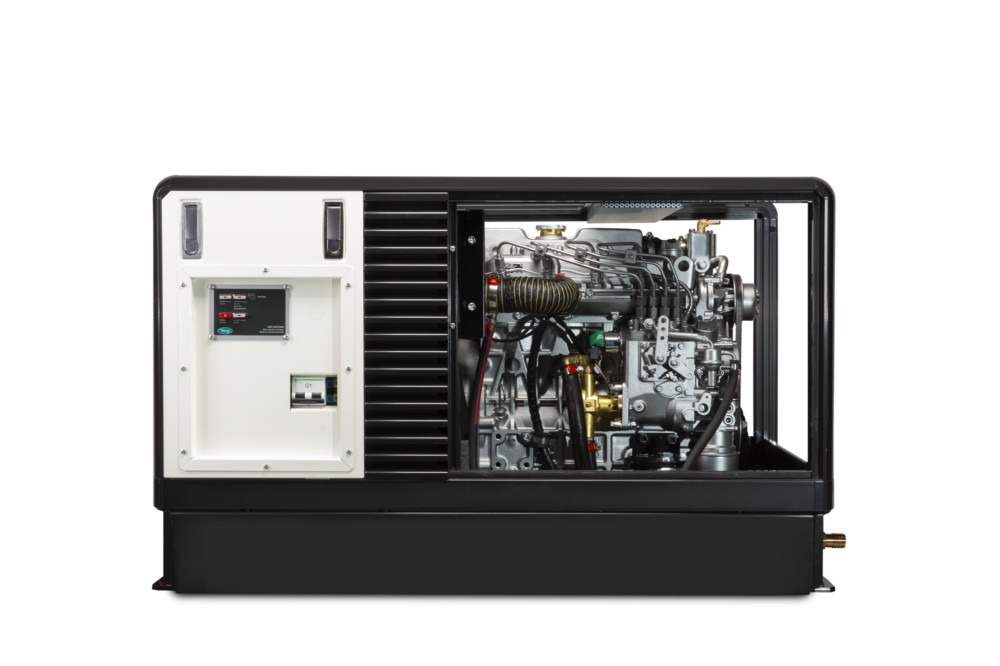

Only the best 4 cylinder engines are applied: long lasting, reliable, silent engines, complying with EPA Tier 4 (USA standard) and Stage V (European standard). The engine is water-cooled and kept on a constant temperature via a heat exchanger.
Kimeneti feszültség (ACV) :
230
Frequency:
50
Usage:
Hajó
Inverter:
Nem
Continuous Power kVA at 25°C:
13.75
Intermittent Power kW at 25°C:
12
Weight:
410 kg/db
| ARTICLE NUMBER | |
|---|---|
| 41207305-STV | M-SQ Pro 15 3 ph, STV (DDC) |
| 41207305-STV | M-SQ Pro 15 3 ph, STV-DSE (deepsea) |
| MAIN SPECIFICATIONS | |
|---|---|
| Intermittent Power kW at 25ºC (77ºF) | 12 kW |
| Continuous Power kVA at 25ºC (77ºF) | 13.75 kVA |
| Nominal voltage / frequency | 400 - 230 VAC, 3 ph, 50 Hz |
| Noise level | 55 dB |
| Rpm range | 1500 rpm |
| Cooling | Indirect water cooled |
| Alternator voltage regulation | AVR, forced ventilation |
| Peak power 2 s | 200% |
| Harmonic distortion | < 3% |
| Frequency tolerance | +/- 5 % |
| DIESEL ENGINE SPECIFICATIONS | |
|---|---|
| Engine | WhisperPower Kubota V1505 BG |
| Engine family | PKBXL01.5BCC |
| Emission class | Stage V certified |
| Cylinders | 4 |
| Displacement, L (In.) | 1.5 (91.5) |
| Bore, mm (ln.) | 78.0 (3.07) |
| Store, mm (In.) | 78.4 (3.09) |
| Compression ratio | 23.0 |
| Combustion system | IDI |
| Nominal speed, rpm | 1500 |
| Net Continuous power at rated rpm, kW (pk) | 12.0 (16.4) |
| Governor, type | Mechanical (+/- 5%) |
| Angular operation continuous | 20º |
| DIMENSIONS & WEIGHT | |
|---|---|
| Length x width x height, mm (in.) | 984 x 462 x 625 (38.7 x 18.2 x 24.6) |
| Dry weight cabinet, kg (lb.) | 410 (904) |
| Wet exhaust, mm (in.) | Ø 50 (2) |
| Max. operating angle | 25º in all directions |
