WhisperPower BMSS PRO Battery Monitor
WhisperPower BMSS PRO Battery Monitor
Price: 279 586 Ft
without VAT: 220 146 Ft+VAT (59 440 Ft)
  1. Battery Monitoring
  1. Energy supply
  2. WhisperPower
  3. Monitoring & control
  4. Battery Monitoring

WhisperPower BMSS PRO Battery Monitor

Article No.:
WPP-40290323
WhisperPower BMSS PRO Battery Monitor
WhisperPower BMSS PRO Battery Monitor
WhisperPower BMSS PRO Battery Monitor
WhisperPower BMSS PRO Battery Monitor
Price: 279 586 Ft
without VAT: 220 146 Ft+VAT (59 440 Ft)
Manufacturer:
WHISPERPOWER
Manufacturer Article number:
40290323
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!
pcs
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

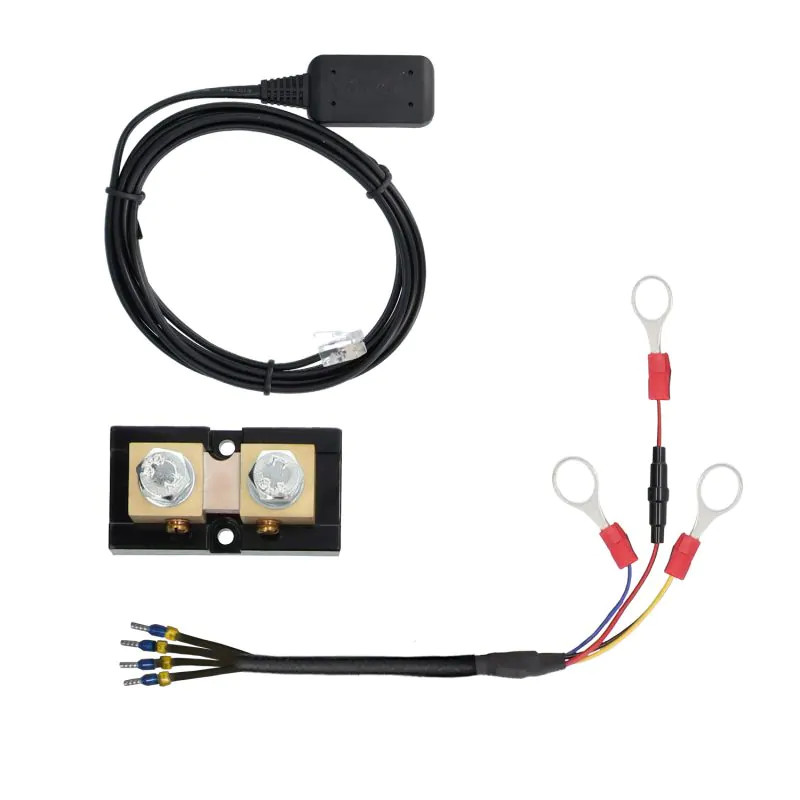

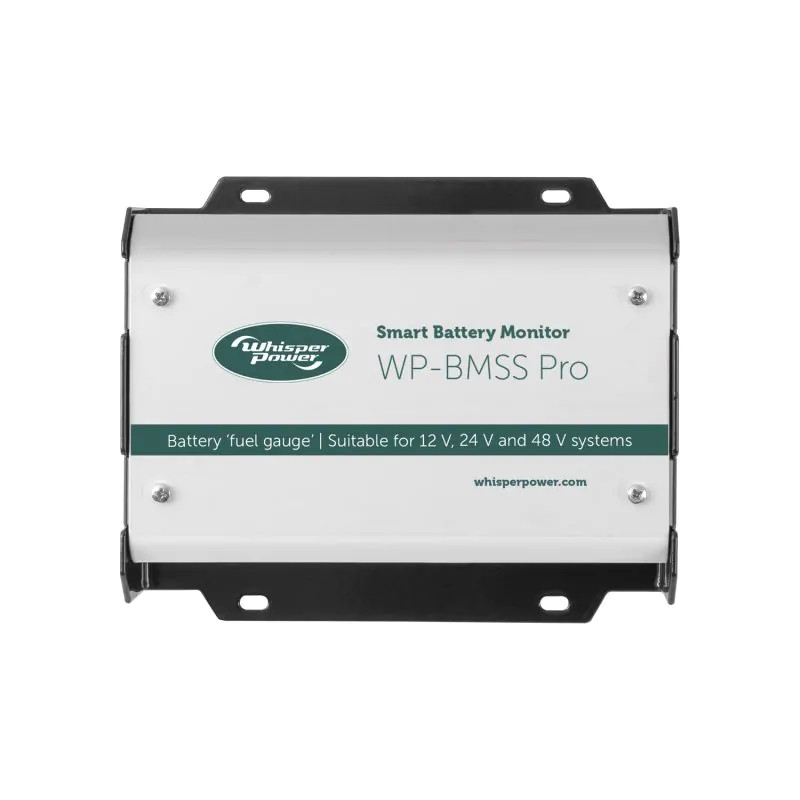

The WP-BMSS Battery Monitor Smart Shunt completes your WhisperPower energy supply system by providing full details about the state of your battery or battery bank. All information is communicated via WhisperConnect, thereby integrating this product into a range of battery chargers, generator sets and inverters from WhisperPower, to be read out by the WPTouch system control panels (40280105, 40280101, 40280102, 40280103).

Csomagajánlatok
  • Details
  • Info
  • Technical specification
  • Download User Manual
Details

WhisperPower BMSS PRO Battery Monitor

The WP-BMSS Battery Monitor Smart Shunt completes your WhisperPower energy supply system by providing full details about the state of your battery or battery bank. All information is communicated via WhisperConnect, thereby integrating this product into a range of battery chargers, generator sets and inverters from WhisperPower, to be read out by the WPTouch system control panels (40280105, 40280101, 40280102, 40280103).

  • Full WhisperConnect CAN bus functionality
  • Battery ‘fuel gauge’ for energy systems
  • Human interface via WhisperTouch panel or optional remote ROM
  • Connectivity by fully programmable alarm contacts
  • Compatible to all types of batteries, including Li-Ion
  • One product for 12V, 24V and 48V systems
  • DIN-rail or wall mountable
  • Best choice to complete your energy system
Info
Article number:
WPP-40290323
Website:
https://www.whisperpower.com/bmss-pro-battery-moni...
Technical specification
DIMENSIONS & WEIGHT
Weight (Kg) <0.5
Dimensions (h × w × d) (mm) 75 × 90 × 50
SPECIFICATIONS
Power supply voltage 6-60V DC
Current draw (standby) <9mA @ 12V
Operating temperature -20°C to + 60°C
Voltage measurement range 6-60V DC
Battery capacity 20-9999Ah
Shunt compatibility 50-1000A, 50-60mV
Voltage resolution +-0.001V
Current resolution +-0.1A
Amp hour resolution +-0.1Ah
Time remaining resolution 0-480 hours, +- 1 min
Temperature resolution +-1°C
Voltage measurement accuracy 0.3%
Current measurement accuracy 0.4%
Temperature accuracy +-2°C
State of charge accuracy +-1% of battery capacity
Local user interface Status LED, ROM
External communication WhisperConnect (CAN bus) -WP temp sensor - USB
Multipurpose contact 2 nc/no potential free contacts
Operation temperature -20°C to +40°C
Storage temperature -40..80 °C, Relative humidity in operation/ storage up to 95% non-condensing
ALARM CONTACTS
Voltage 24V
Current 1A
Measurement shunt included 1200A, 50mV
Download User Manual
