WhisperPower WBM Modular Smart Shunt
WhisperPower WBM Modular Smart Shunt
Price: 169 170 Ft
without VAT: 133 205 Ft+VAT (35 965 Ft)
  1. Battery Monitoring
  1. Energy supply
  2. WhisperPower
  3. Monitoring & control
  4. Battery Monitoring

WhisperPower WBM Modular Smart Shunt

Article No.:
WPP-40290313
WhisperPower WBM Modular Smart Shunt
WhisperPower WBM Modular Smart Shunt
WhisperPower WBM Modular Smart Shunt
WhisperPower WBM Modular Smart Shunt
WhisperPower WBM Modular Smart Shunt
WhisperPower WBM Modular Smart Shunt
Price: 169 170 Ft
without VAT: 133 205 Ft+VAT (35 965 Ft)
Manufacturer:
WHISPERPOWER
Manufacturer Article number:
40290313
Warranty period :
Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év
Üzembe helyezés, üzemben tartás :
A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!
pcs
Main warehouse
Out of stock
External warehouse
In stock
Delivery time approx: 1-2 Weeks!

Cost effective plug-and-play battery monitoring system with Smart Shunt

Csomagajánlatok
  • Details
  • Info
  • Technical specification
  • Download User Manual
Details

WhisperPower WBM Modular Smart Shunt

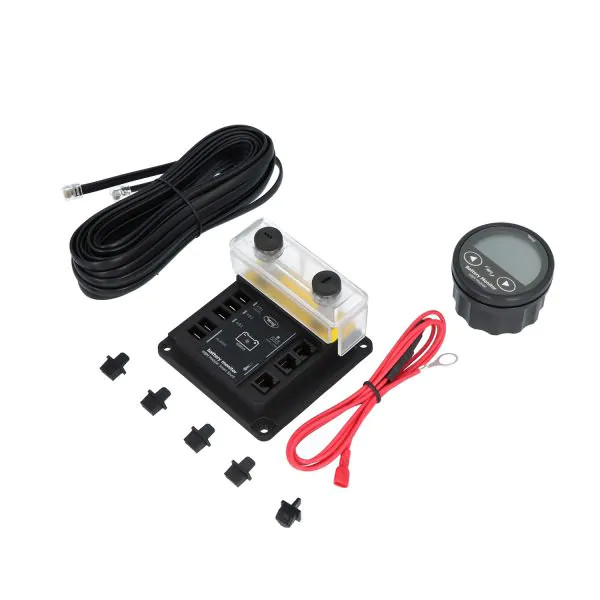

Cost effective plug-and-play battery monitoring system with Smart Shunt includes:

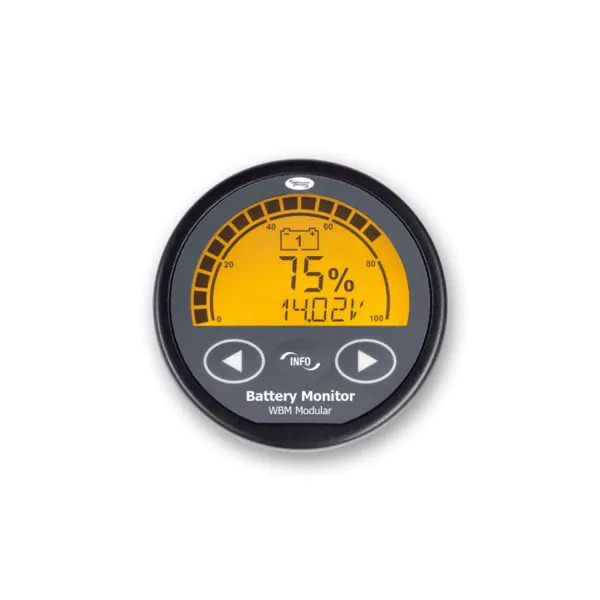

– 52 mm round battery monitor with Time Remaining indication

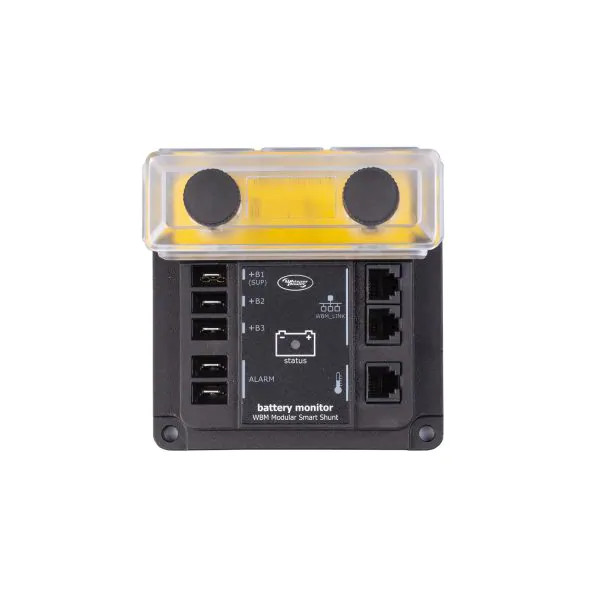

– Shunt to be placed close to the battery
– 10 meters of connection cable from the shunt to display
– Optimized footprint for perfect integration with our DC Modular series of high current busbars and fuse holders.
– Large amount of additional features to optimally supervise your battery system and control external equipment
– The WBM Modular Smart Shunt is compatible with lead based and Lithium (LiFePO4) based batteries.

  • Optimized footprint for perfect integration with our DC Modular series of high current busbars and fuseholders
  • Large amount of additional features to optimally supervise your battery system and control external equipment
  • The WBM Modular Smart Shunt is compatible with lead based and Lithium (LiFePO4) based batteries
Info
Article number:
WPP-40290313
Website:
https://www.whisperpower.com/wbm-modular-smart-shu...
Technical specification
DIMENSIONS & WEIGHT
Shunt dimensions Footprint 100 x 100 mm
Shunt dimensions Base height 24.0 mm
Shunt dimensions Total height 64.5 mm
Shunt weight 290 grams
Display dimensions: Front panel Ø 64.0 mm
Display dimensions: Body diameter Ø 51.5 mm
Display dimensions: Total depth 36.0 mm
Display weight 70 grams
MAIN SPECIFICATIONS
Parameter Smart Shunt
Supply voltage range 7..70 Vdc
Supply current (@ 12 V / 24 V / 48 V) 10mA / 6mA / 5mA
Input voltage range main battery (+B1) 7..70 Vdc
Input voltage range second and third battery (+B2, +B3) 1..70 Vdc
Input current range -600..+600 A2)
Battery capacity range 10..10000 Ah
Operating temperature range -20..+50°C
Storage temperature range -30..+70°C
Readout resolution:Voltage (0..70 V) ± 0.01V
Readout resolution:Current (0..10 A) ± 0.01A
Readout resolution:Current (10..100 A) ± 0.1A
Readout resolution:Current (100..600 A) ± 1A
Readout resolution:State of Charge (0..100%) ± 1%
Readout resolution:Time remaining (0..24hrs) ± 1min
Readout resolution:Amphours (0..10000 Ah) ± 0.01 Ah..10 Ah (variable)
Readout resolution:Power (0..42 kW) ± 0.01 W..1 kW (variable)
Readout resolution:Temperature (-20°C..+50°C) ± 0.5°C
Voltage measurement accuracy ± 0.3%
Current measurement accuracy ± 0.4%
PROTECTIONS
Protection class IP20 (shunt vertically mounted),IP65 (CDU front panel only)
Standards CE certified (EMC Directive 2014/30/EU) including EN50498 Automotive EMC
