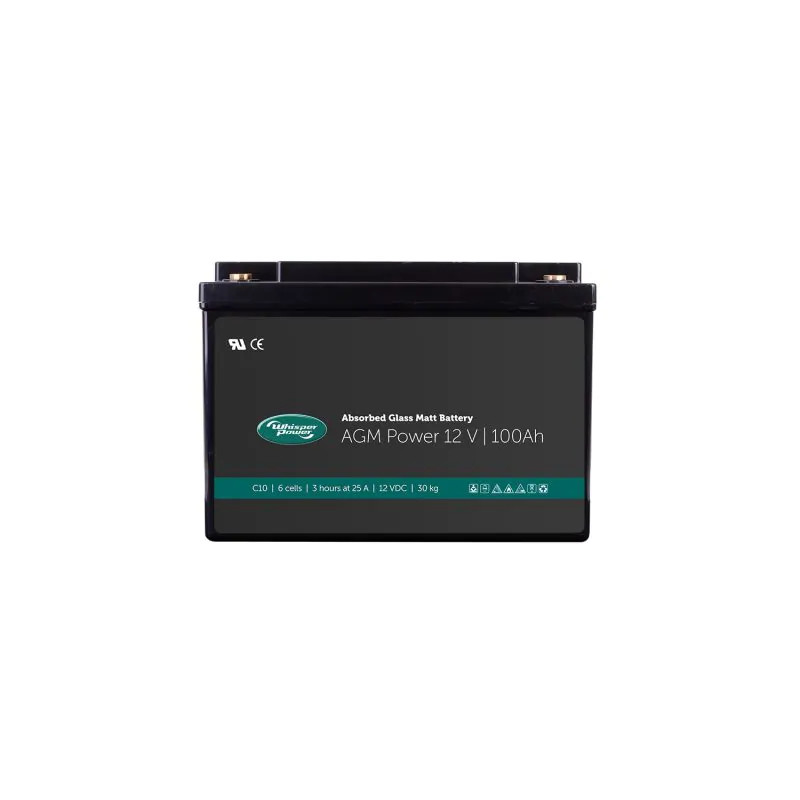

WhisperPower AGM battery 12 V – 100 Ah

Name: WhisperPower AGM battery 12 V – 100 Ah
Brand: WHISPERPOWER
SKU: WPP-40290031

Manufacturer:

WHISPERPOWER

Manufacturer Article number:

40290031

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben fordulj szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The WhisperPower 12 V – 100 Ah AGM battery is the most economical and maintenance-free battery designed for a long service life. WhisperPower 12 V – 100 Ah AGM batteries are based on VRLA (Valve Regulated Lead Acid) technology, which means they require little ventilation, do not have to be placed in an upright position and are maintenance free.

Details

WhisperPower AGM battery 12 V – 100 Ah

100 Ah, 12 VDC
Suitable for medium-sized inverters
Power supply for the entire DC system
Pumps and power cranks
Suitable for marine, mobile and solar power systems and as a starter battery.

Data

Article number:

WPP-40290031

Nominal battery voltage :

12 VDC

Capacities (Ah) :

100 Ah

Cell number:

Website:

https://www.whisperpower.com/agm-battery-12-v-100-...

Weight:

30 kg/pcs

Technical specification

TECHNICAL SPECIFICATIONS
Length x width x height	328 x 172 x 222 mm (12.9" x 6.8" x 8.7" inch)
Weight ±10%	30.0 kg (66.1 lb.)
Rated capacity	100 Ah
C10* or C20	C10
Nominal voltage	12,0 VCC
Terminal type	M8 Caravanas
Number of cells	6

CHARGE / DISCHARGE PARAMETERS
Constant load voltage (IU, buoyancy)	13.60 .. 13.80 VCC a 25oC
Cyclic charging voltage (INDNR, absorption)	14.25 .. 14.60 VCC a 25oC
Maximum recommended load current (highest possible)	40 to 50% of nominal capacity
Temperature ratio	-4mv/celda/°C
Discharge voltage	1.75 VCC @ (A) ≤ 0.2°C • 1.70 VCC @ 0.2°C (A) ≤ 1.0°C
Full download (100% DOD)	1.65 VCC @ (A) ≥ 1.0°C

NOMINAL CAPACITY AT 25°C
25°C nominal	UP TO 1.75 VDC/CEL
20 hours of discharge	104.0 Ah
10 hours of discharge	100.0 Ah
5 hours of discharge	89.0 Ah
Peukeurt coefficient	1.21<P<1.24
Use at 25 A discharge	190 minutes
Auto discharge	Less than 3% per month at 25°C

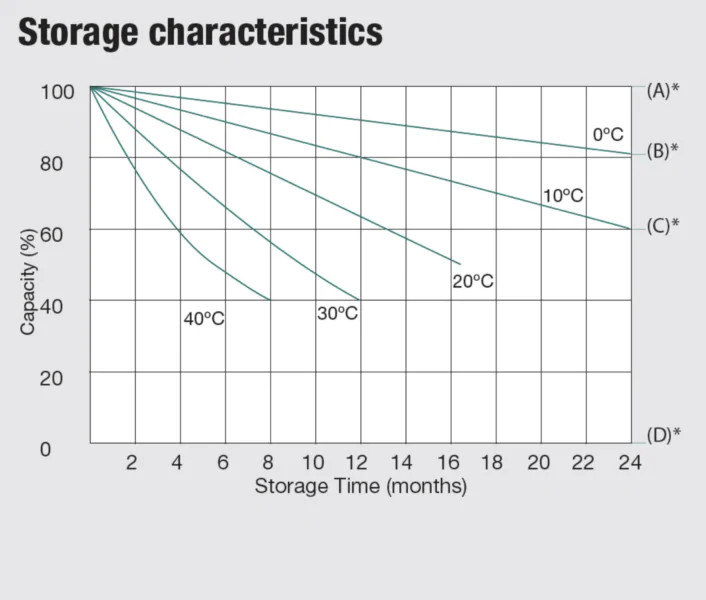

Storage time	AGM batteries can be stored for up to 6 months at 25 °C, charging before use is recommended.

BATTERY PARAMETERS
Inrush current at 25°C (5s)	1000 A

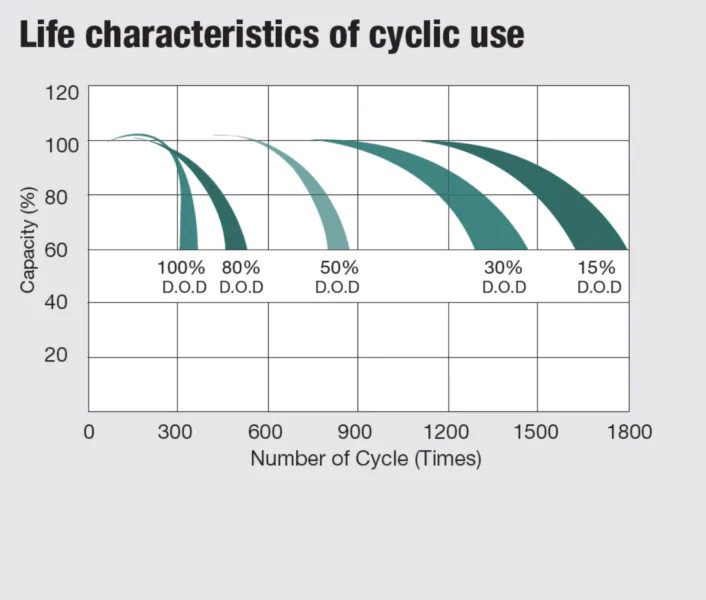

Cyclic life at 80% discharge	400
Internal resistance (approx.)	5,0m Ω
