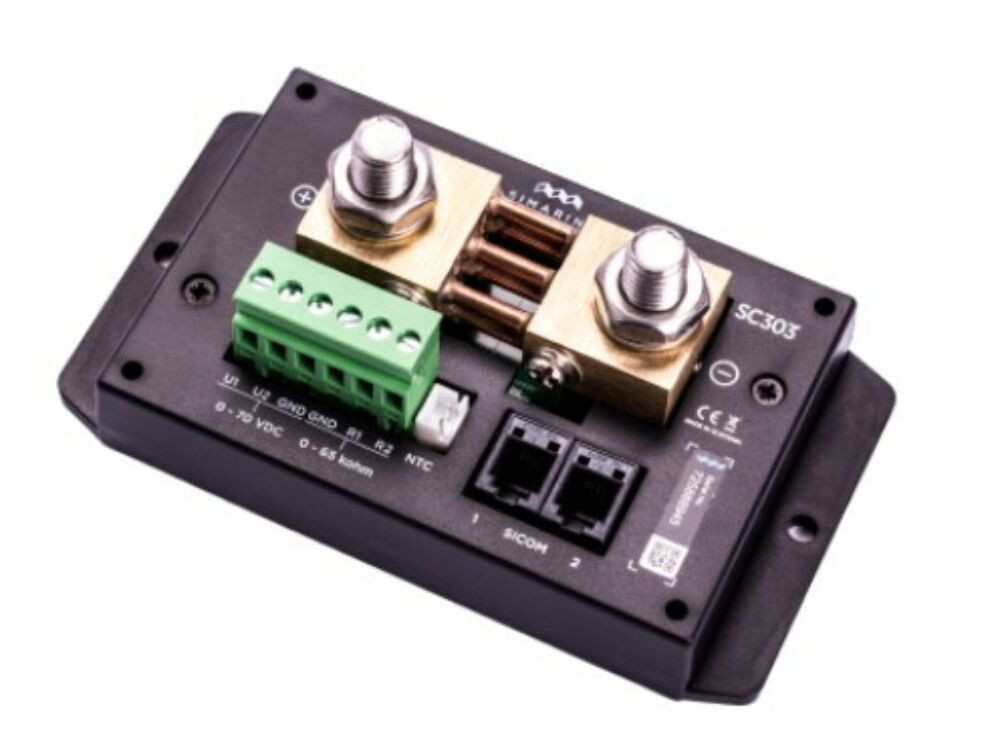

Innovative combination of shunt and tank level module. SC303 is an active combo shunt for PICO battery monitor with 2x voltages, 2x tank level or temperature, 1x socket for temperature sensor with JST connector and 1x current sensor up to 300A for up to 75V systems.

Details

Simarine digital shunt SC303

SC303 active combo shunt precisely monitors battery voltage on 12V, 24V, 48V, 60V and 72V systems, battery temperature and continuous currents up to 300A (400A peak). It’s suitable for maximal power of 3600W at 12V or 7200W at 24V. It is equipped with one additional battery voltage input (2 in total).

The integrated tank level has 2 resistance type inputs for monitoring tank level or temperature and an additional JST socket for temperature sensor with an JST connector. Additionally, the SC303 module can also be used for monitoring current draw of heavy consumers like inverters, bow and stern thrusters and anchor winches and current generated on generators like shore power chargers, solar panels, hydro- and wind generators.

SC303’s innovative protected architecture allows wiring in either negative (up to 72V) or positive (up to 24V) side.

Data

Type of energy supply:

Shönt

Input voltage (DCV):

6-35

Current (A):

300

Article number:

SM-SC303

Network Protocol:

SiCOM

Wired Protocol:

Ethernet

Number of inputs:

Website:

https://simarine.net/combo-shunts-sc303-and-sc503/

Technical specification

SC303
Category	Specification
Operating
Voltage range	6 - 35 VDC
Temperature range	-20°C to 70°C (-4°F to 158°F)
Power consumption at 12 V	Operating: 1.2 mA
Current Measurement
Measuring range	0.01 - 300 A
Accuracy	±1%
Resolution	0.01 A
Sampling rate	100 ms
Maximal current (continuous)	300 A
Peak current (<5 min)	400 A
Peak current (<1 min)	700 A
Voltage drop at 300 A	37.5 mV
Max voltage on terminals	35 V
Voltage Inputs (U1, U2)
Quantity	2
Range	0 - 75 VDC
Accuracy	±0.3%
Resolution	1 mV
Sampling rate	100 ms
Resistance Inputs (R1, R2, JST socket)
Quantity	3
Range	0 Ohm – 65 kOhm
Accuracy	±3%
Temperature Sensor
Type	NTC 10k
Range	–13°C to +80°C
Accuracy (–10 to +60°C)	±3.0%
Communication	SiCOM
Installation and Dimensions
Dimensions	125 x 70 x 22 mm / 4.92 x 2.75 x 0.86 in
Battery connection	M10 bolts
