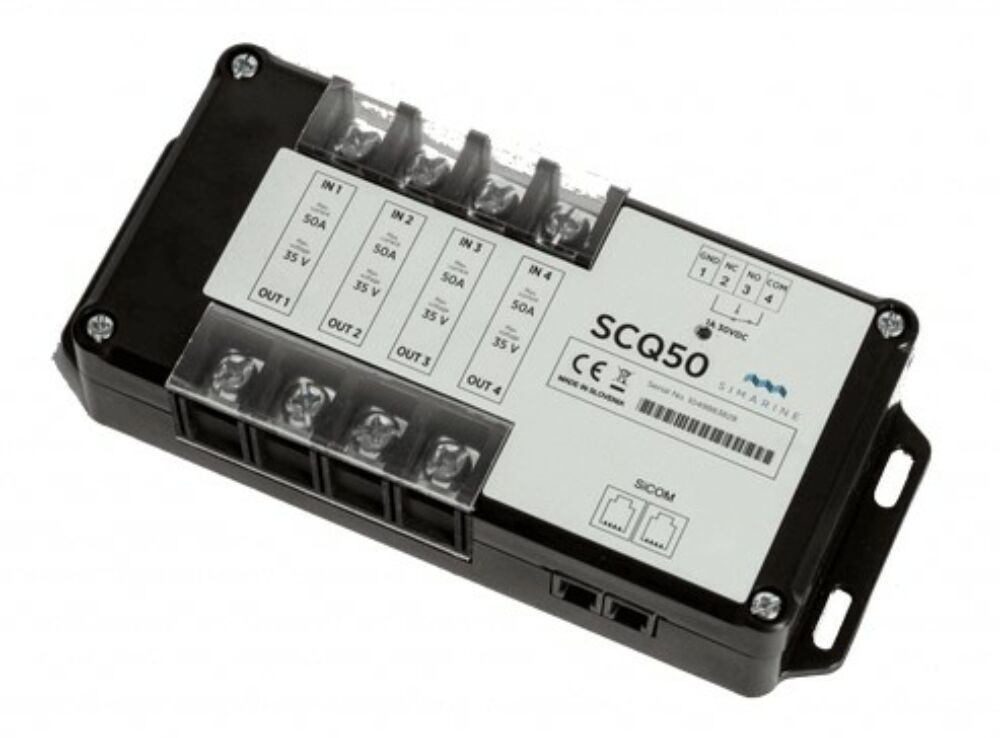

Simarine SCQ50 Quadro shunt  4x40A

SCQ50 is an innovative shunt module with four inputs for monitoring individual consumer and generator continuous currents up to 50A (35A peak) per input on 12V and 24V systems. That is very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power. The current channels can be combined for higher amperage, meaning the continuous currents on the combined channels up to 50A (70A peak) on 12V and 24V volts. SCQ50’s innovative protected architecture allows wiring in either negative (low) or positive (high) side. Up to five modules can be connected simultaneously to monitor up to 20 current channels (only on PICO Battery Monitor).

Data

Type of energy supply:

Shönt

Input voltage (DCV):

6-35

Current (A):

25

Article number:

SM-S008

Network Protocol:

SiCOM

Wired Protocol:

Ethernet

Number of inputs:

8

Website:

https://simarine.net/quadro-shunt-modules-scq25-sc...

Weight:

230 g/db

Technical specification

Section	Parameter	Value
Operating	Voltage range	6 - 35 VDC
	Temperature range	From -20°C up to 70°C (-4°F up to 158°F)
Power consumption at 12 V	Operating	2.5 mA
Current Measuring (per channel)	Range	0.01 – 50 A
	Accuracy	± 1%
	Resolution	0.01 A
	Sampling rate	100 ms
Maximal current	Voltage drop at 300 A	35 mV
	Continuous	25 A
	Peak current (<1min)	35 A
Mechanical	Dimensions	183 x 91 x 34 mm
Current channels	Number of channels	4
Connectivity	Interface	SiCOM
Alarm contact		1



Download User Manual

Download PDF
