Simarine SCQ25T Quadro shunt and tank module

Name: Simarine SCQ25T Quadro shunt and tank module
Brand: SIMARINE
SKU: SM-S004

Manufacturer:

SIMARINE

Manufacturer Article number:

S004

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Main warehouse

In stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

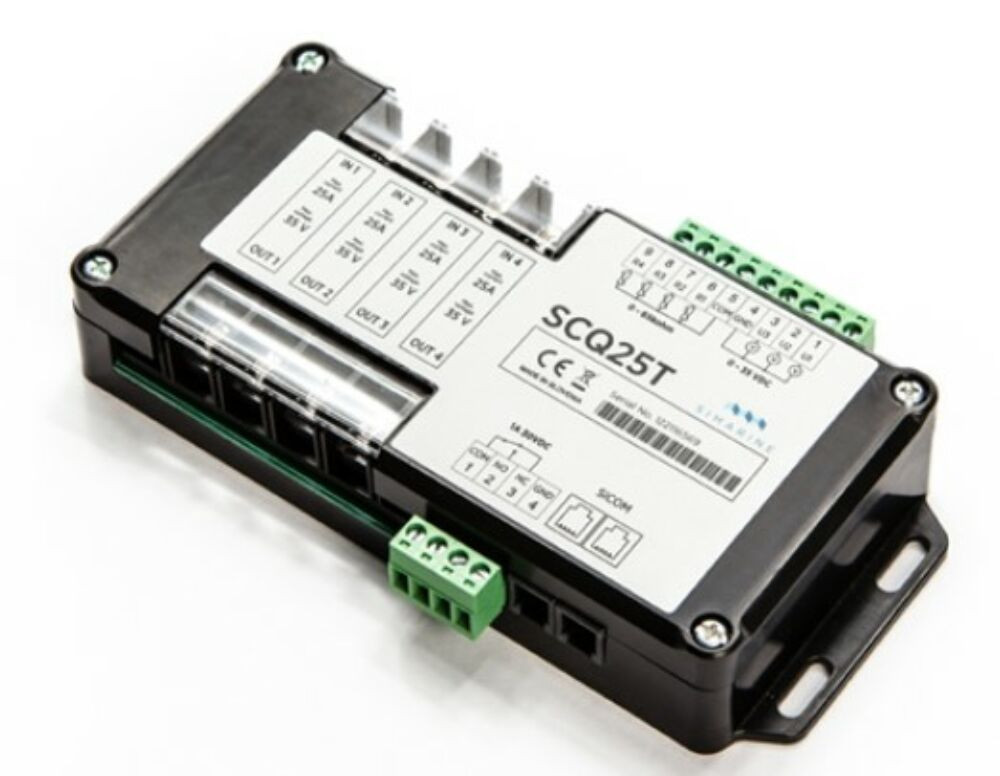

SCQ25T is a highly verstaile and innovative combination of shunt, tank interface and voltage module. Its higly innovative shunt module with four inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak) per input on 12V and 24V systems. Additionally, equipped with four resistance inputs for resistance-type tank level or temperature sensors and three voltage inputs for voltage-type tanks sensors and battery voltages allows wide connection possibilities.

Details

Simarine SCQ25T Quadro shunt and tank module

That is very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power. The current channels can be combined for higher amperage, meaning the continuous currents on the combined channels up to 50A (70A peak) on 12V and 24V volts.

SCQ25T’s innovative protected architecture allows wiring in either negative (low) or positive (high) side.

Data

Type of energy supply:

Shönt

Input voltage (DCV):

6-35

Current (A):

Article number:

SM-S004

Network Protocol:

SiCOM

Wired Protocol:

Ethernet

Number of inputs:

Website:

https://simarine.net/quadro-shunt-modules-scq25-sc...

Weight:

300 g/db

Technical specification

Section	Parameter	Value
Operating	Voltage range	6 - 35 VDC
	Temperature range	From -20°C up to 70°C (-4°F up to 158°F)
Power consumption at 12 V	Operating	2.5 mA
Current Measuring (per channel)	Range	0.01 - 25 A
	Accuracy	± 1%
	Resolution	0.01 A
	Sampling rate	100 ms
Maximal current	Continuous	25 A
	Peak current (<1min)	35 A
Voltage inputs (U1, U2, U3)	Number of inputs	3
	Range	0 - 75 VDC
	Resolution	1 mV
	Accuracy	± 0.3 %
	Sampling rate	100 ms
Resistance inputs (R1, R2, R3, R4)	Number of inputs	4
	Range	0 Ohm–65 kOhm
	Accuracy	±3 %
Mechanical	Dimensions	183 x 91 x 34 mm
		7.20 x 3.58 x 1.33 in
Connectivity	Interface	SiCOM
Alarm contact		1

Download User Manual

Download PDF
