Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables

Csomagajánlatok

• Details
• Info
• Technical specification

Details

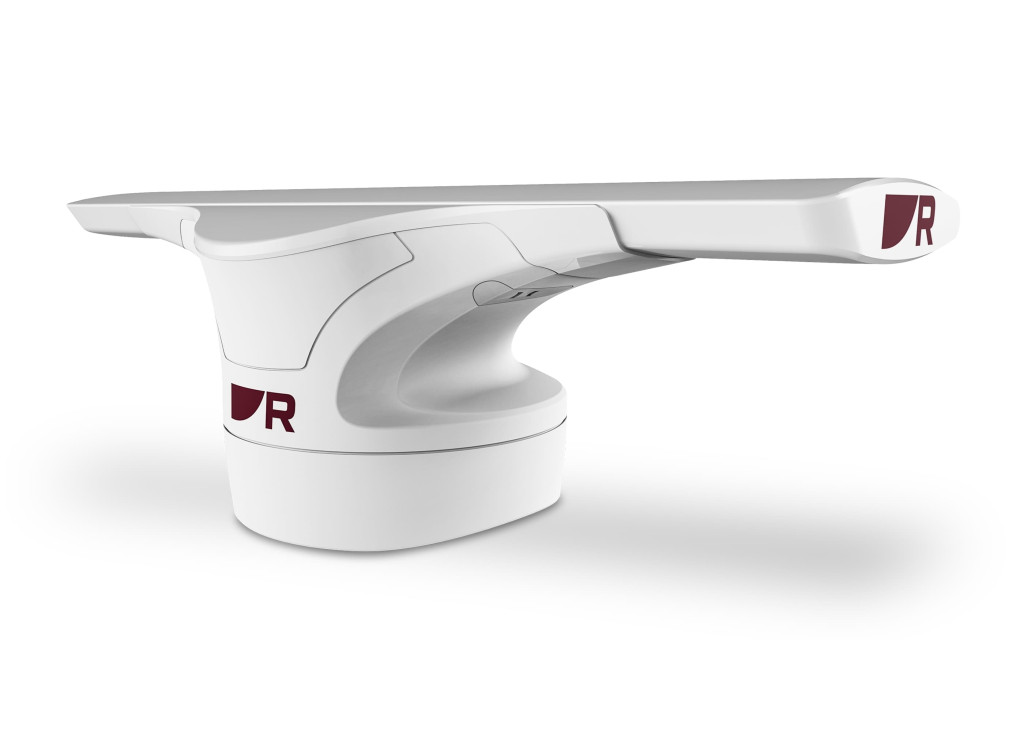

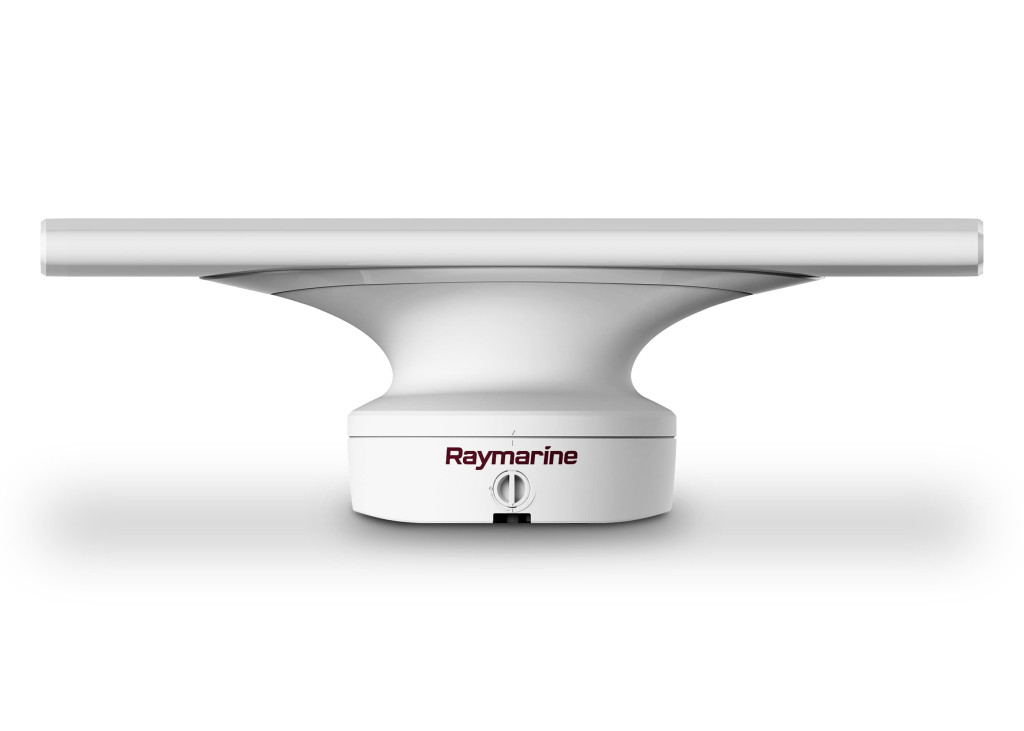

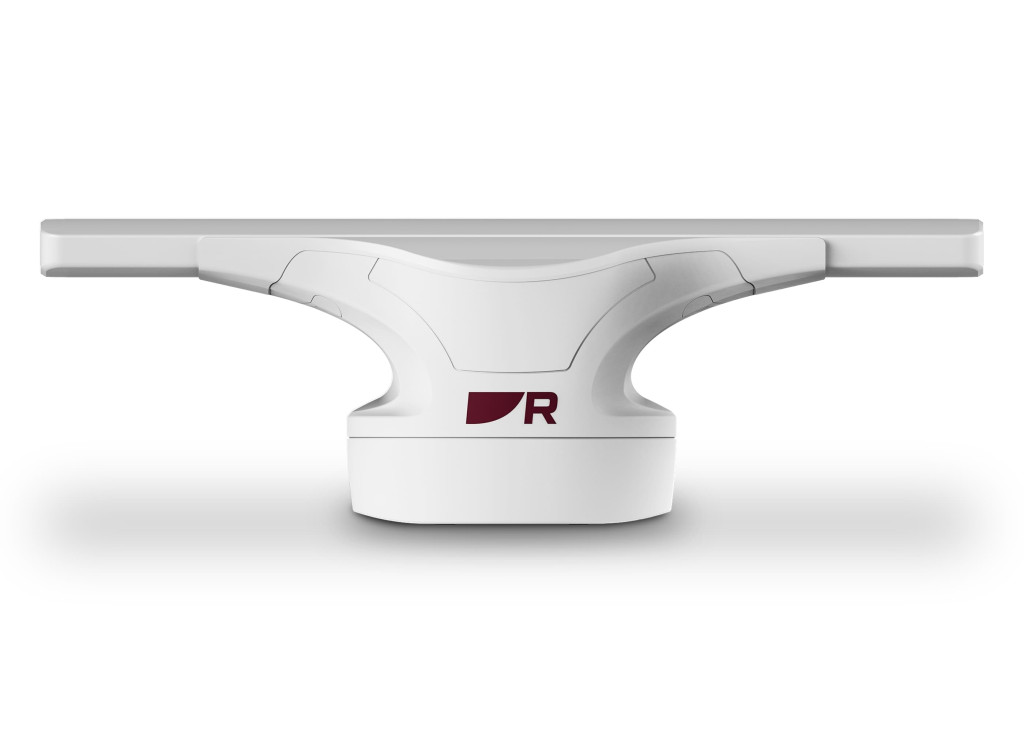

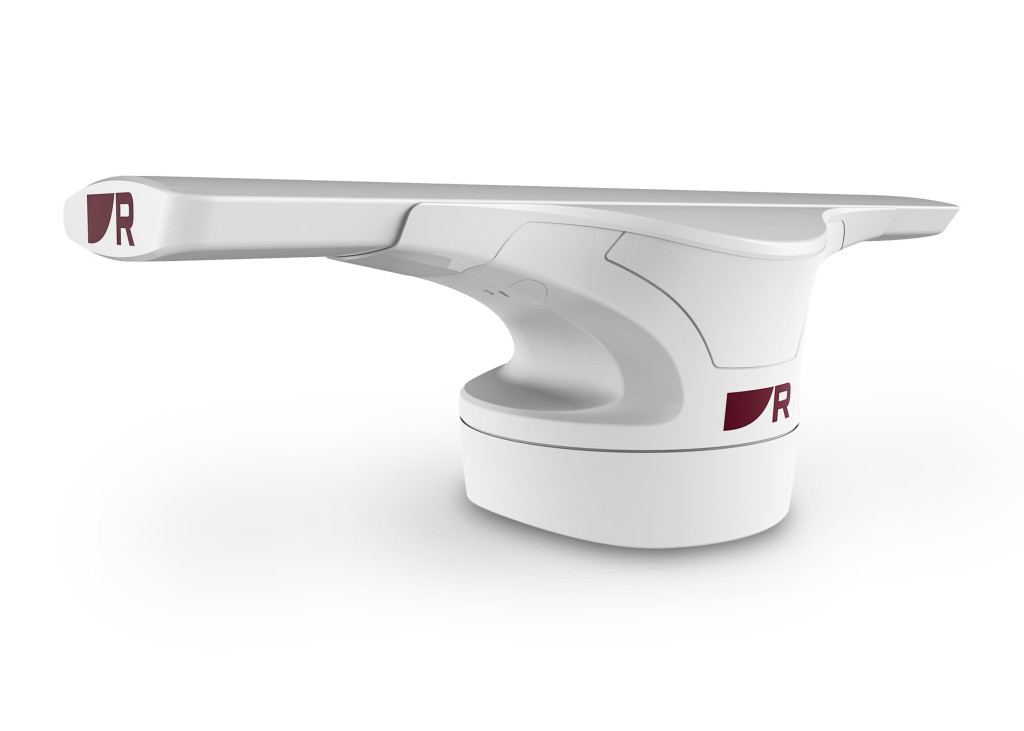

Raymarine Cyclone 55 Watts 3ft Open Array Radar

Evolved for the Ocean

With a 55-watt solid-state transmitter, Cyclone delivers excellent target separation and long-range resolution using CHIRP pulse compression and beam sharpening technology. The power output of Cyclone is equivalent to a 6kW magnetron radar and gives Cyclone a range of up to 72 nautical miles.

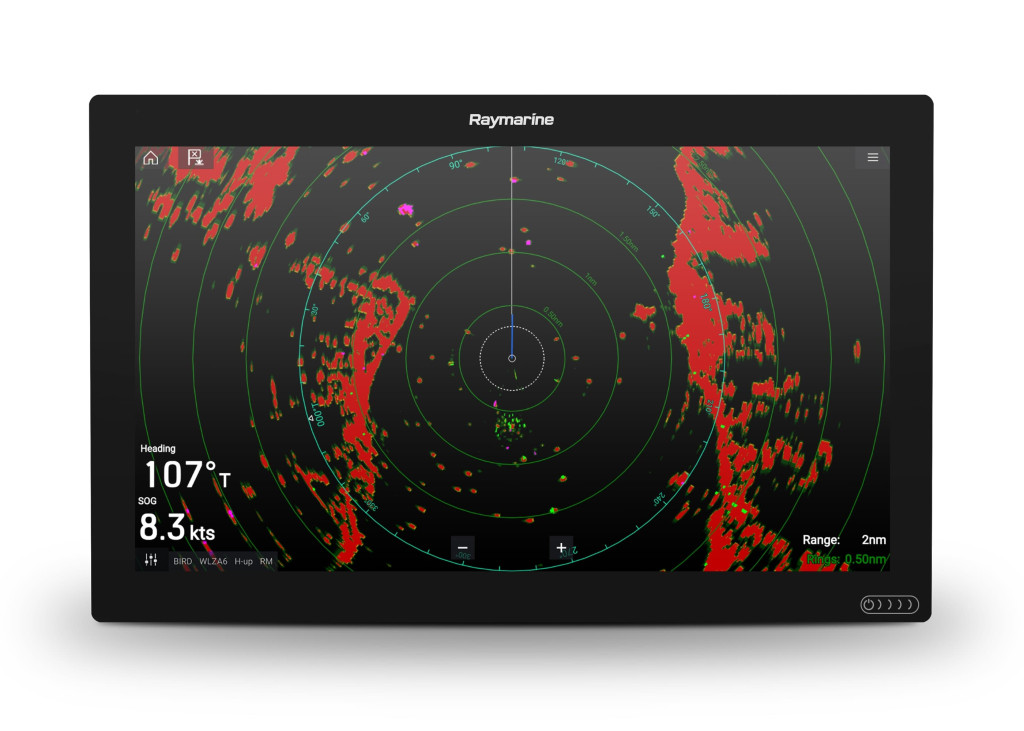

Cyclone radars feature innovative detection capabilities, including Doppler target tracking, RangeFusion™ technology, Bird Mode, and high-speed 60 rpm imaging.

Cyclone Radar Features

Aircraft wing inspired

Engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar.

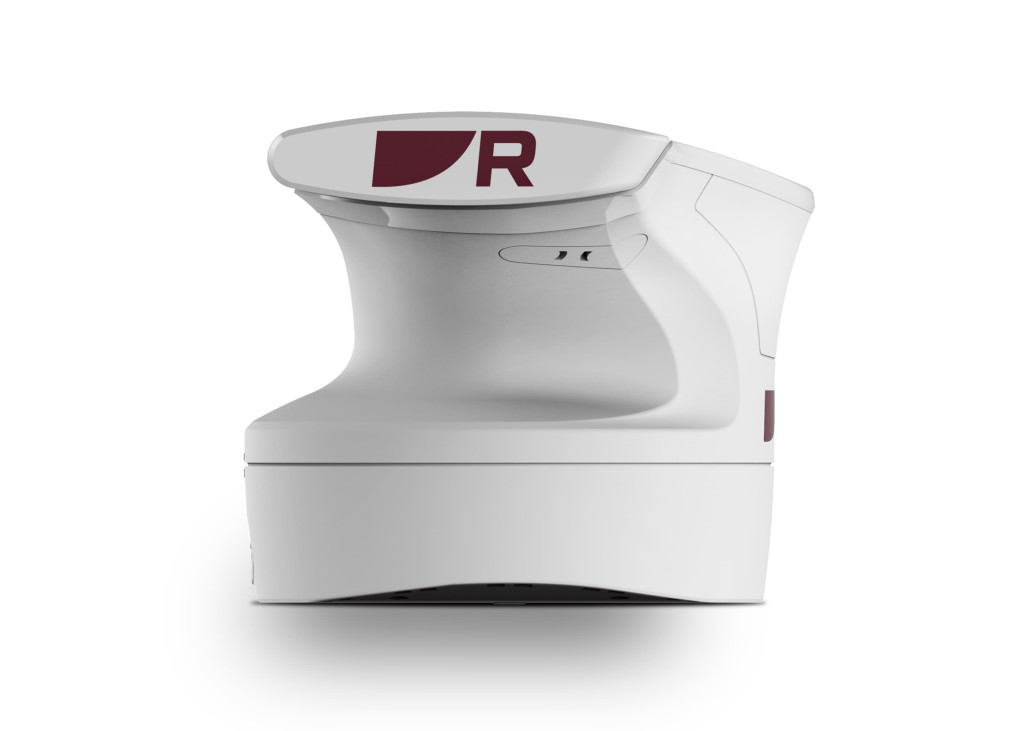

Low profile

At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.

Clean installation

Innovative pedestal design conceals cable connections for a cleaner installation. Built in cable gland to allow sleeker design configuration to boat designers.

Enhanced Situational Awareness

RangeFusion™ technology

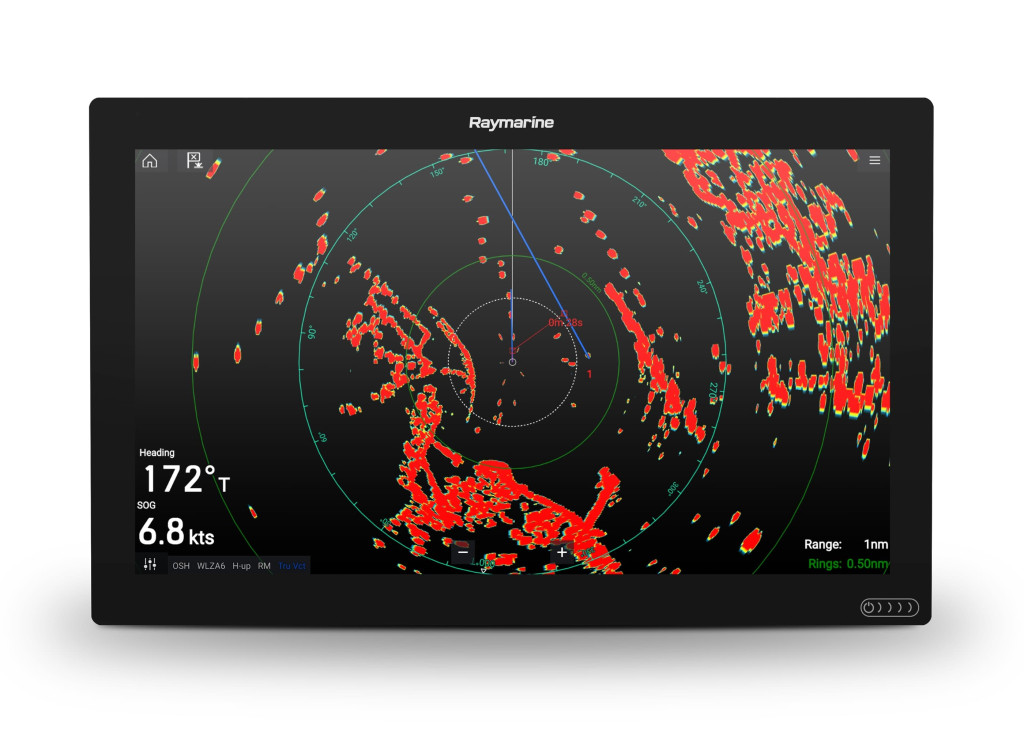

Available exclusively on Cyclone radars, RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.

Doppler target tracking

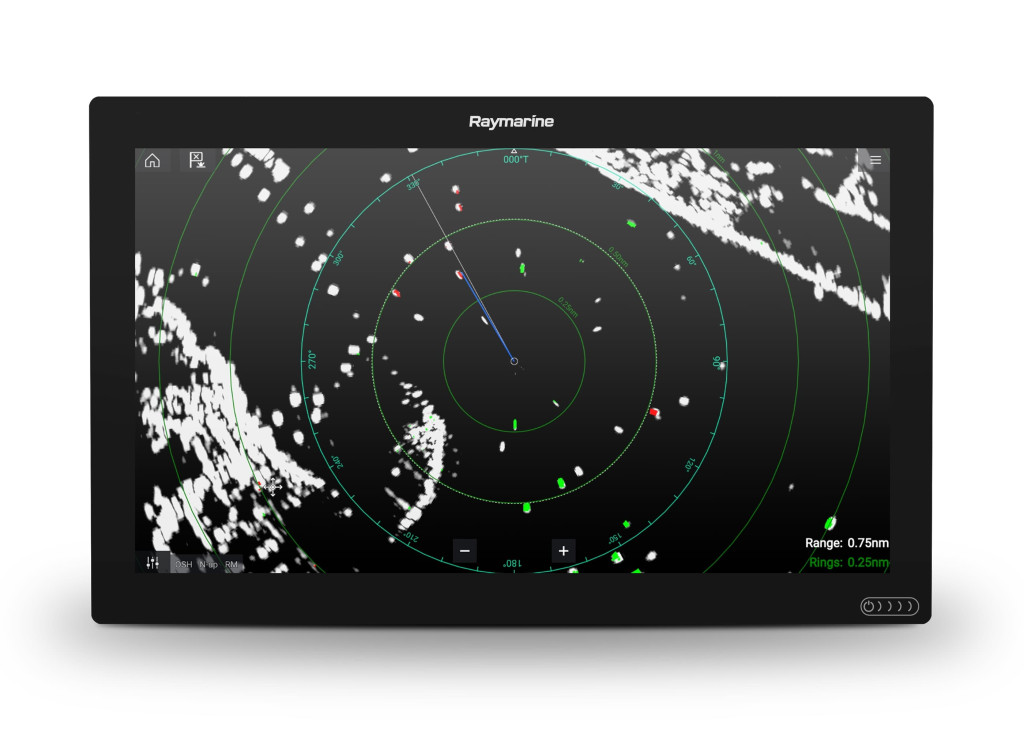

Available exclusively on Quantum 2 radomes and Cyclone open array radars, Doppler allows the radar to instantly detect targets in motion and display them in a unique color palette. Inbound targets are red while outbound targets are green for improved awareness in high-traffic situations.



What's in the box?

The following parts are supplied with the Cyclone radar.

1	Radar pedestal
2	M10 stud x 4
3	M10 nut x 8
4	M10 spring washer x 4
5	M10 plain washer x 4
6	Cable gasket
7	Radar Antenna
8	M8 Hex Bolt x4
9	M8 Plain Washer x 4
10	M8 Spring Washer x 4
11	O Ring x 4
12	RayNet data cable
13	Power cable
14	Denso paste
15	Documentation pack

Info

Article number:

RM-T70491

Website:

https://www.raymarine.com/en-gb/our-products/marin...

Technical specification

General
Antenna Size	3 / 4 / 6 Foot Array
Max Range Scale	72 Nm
Rotation Speed	12 / 24 / 36 / 48 / 60 rpm
Boot Up time	40 seconds
Standby to Transmit	Less than 5 seconds
Power Connection	1x Power connector
Data Connection	1x RayNet connector
Transmitter Frequency	9370, 9400, 9430 MHz (User Selectable)
Receiver Characteristic	Linear
Receiver Noise	Less than 5 dB

Power
Peak Power Output	55 W
Supply voltage (Using VCM100)	Nominal: 12 V dc or 24 V dc Minimum: 10.2 V dc Maximum: 31.2 V dc
Power Consumption (Typical)	70 W
Power Consumption (Max)	170 W
Power Consumption (Standby)	30 W

Antenna / Beam
Beamwidth (vertical)	25°
Beamwidth (horizontal)	2.83°
Polarization	Horizontal
Length	1031 mm / 40.59 in
Weight	7 Kg / 15.4 lb

Pedestal
Dimensions	388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)
Weight	16 Kg

Environmental
Waterproof Rating	IPX6
Operating Temperature Range	-25°C to +55°C (-13°F to 131°F)
Humidity	Up to 93% at 40°C (104°F)
Maximum Wind Speed	100 Kts

ARPA
Target tracking	Tracking of 100 simultaneous ARPA targets.

Conformance
Standards (Canada)	RSS138 Iss. 1, Technical Acceptance Certificate, Cyclone: IC:4069B-953LPSSR, Cyclone Pro: IC:4069B-953MPSSR
Standards (European Union & EFTA)	Radio Equipment Directive 2014/53/EU, Self-Declaration
Standards (Australia / New Zealand)	ACMA Declaration of Conformity, Compliance level 3
Standards (USA)	47CFR Part 80, Certificate of Approval, Cyclone: FCC ID: PJ5-953LPSSR, Cyclone Pro: FCC ID: PJ5-953MPSSR

Receiver
Receiver characteristic	Linear
Receiver noise	Less than 5 dB

Physical (Antenna)
Dimensions	3 Foot Antenna Length: 1031 mm (40.5 inches) 4 Foot Antenna Length: 1336 mm (52.59 inches) 6 Foot Antenna Length: 1945mm (76.57 inches)
Weight	3 Foot Antenna Weight: 7Kg (15.43lbs) 4 Foot Antenna Weight: 9Kg (19.84lns) 6 Foot Antenna Weight: 12Kg (26.45lbs)

Antenna
Polarization	Horizontal
Beamwidth (vertical)	25°
Rotation speed	12 RPM / 24 RPM/ 36 RPM / 48 RPM/ 60 RPM
Beamwidth (horizontal)	3 Foot Antenna:2.83° 4 Foot Antenna:1.99° 6 Foot Antenna1.32°

Transmitter
Transmitter frequency	9370, 9400, 9430 MHz (User Selectable)
Peak power output	55 W
Peak power output	110 W

Physical (Pedestal)
Dimensions	388 mm x 360 mm x 335 mm (to top of antenna)
Weight	16 Kg

Connections
Data connection	1x RayNet connector
Power connection	1x Power connector

Compatibility
Axiom 2 XL - 16", 19", 22" and 24" models	Yes
Axiom 2 Pro - 9", 12" and 16" RVM and -S variants	Yes
Axiom+ - 7", 9" and 12" RV and chartplotter variants	Yes
Element - 7", 9" and 12" HV and -S variants	No
Axiom XL - 16", 19", 22" and 24" models	Yes
Axiom Pro - 9", 12" and 16" RVX and -S variants	Yes
Axiom - 7", 9" and 12" RV and chartplotter variants	Yes
gS-Series - gS95, gS125 and gS165	No
e-Series - e7, e7D, e95, e97, e125, e127, e165	No
eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165	No
c-Series - c95, c97, c125, c127	No
a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128	No
E-Series Widescreen - E90W, E120W, E140W	No
C-Series Widescreen - C90W, C120W, C140W	No
G-Series Classic - GPM400	No
E-Series Classic - E80, E120	No
C-Series Classic - C70, C80, C120	No 1
Notes	1 - C-Series Classic chartplotter displays are only compatible with analog radar scanners, discontinued.
