Raymarine 12kW Magnum with 4ft Open Array and 15m RayNet Radar Cable

Csomagajánlatok

• Details
• Info
• Technical specification

Details

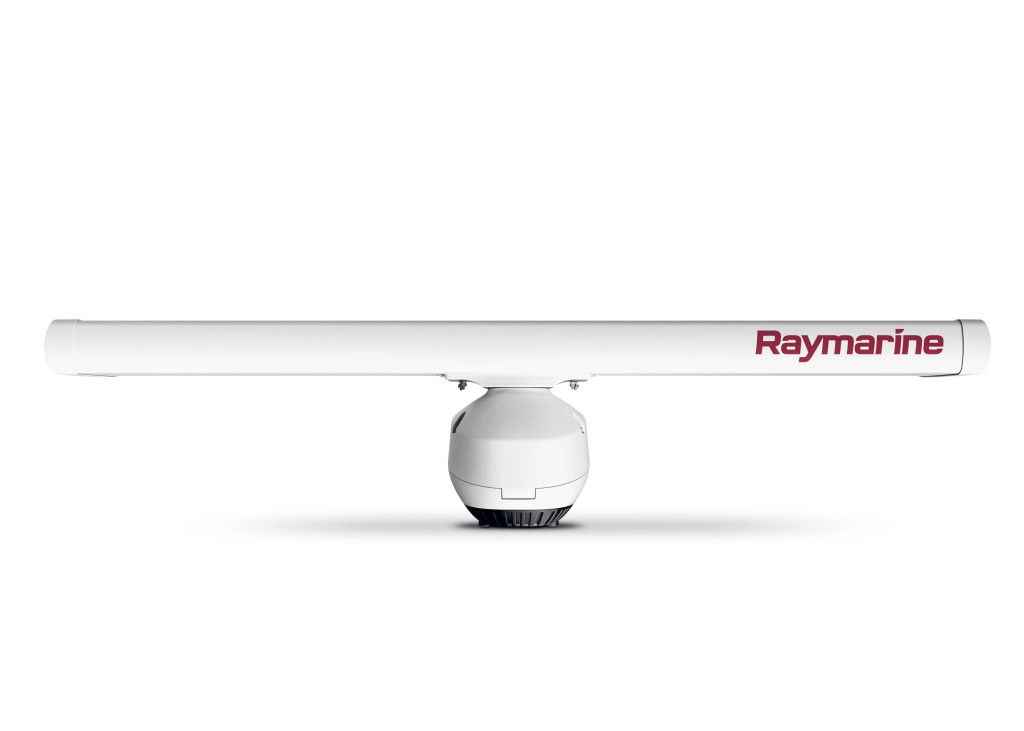

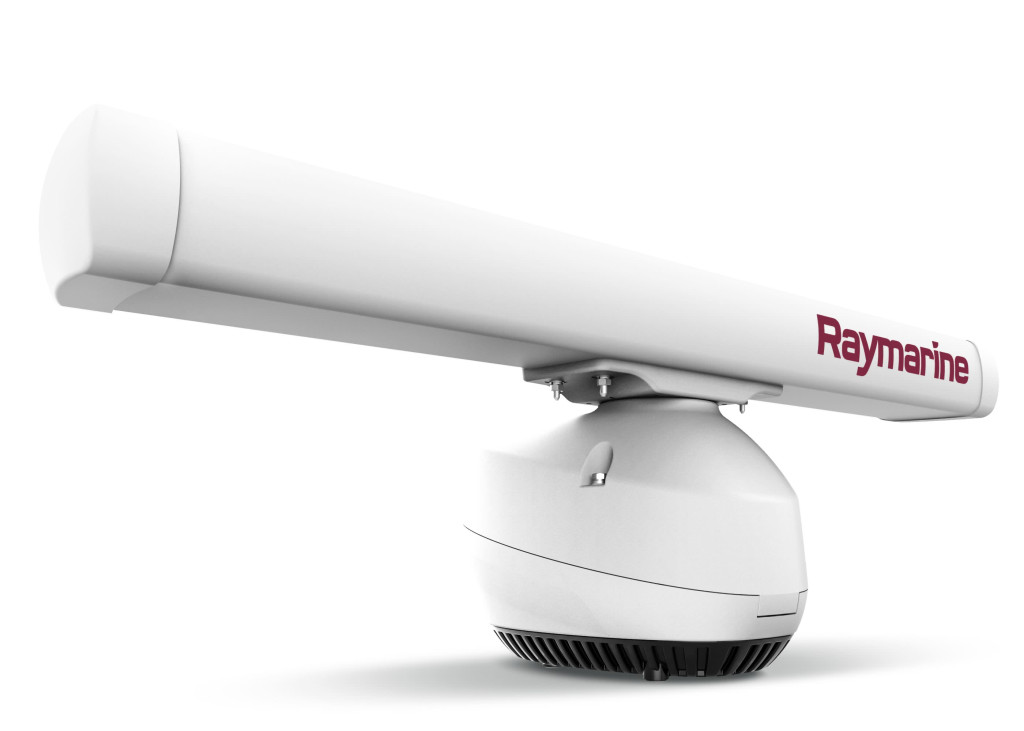

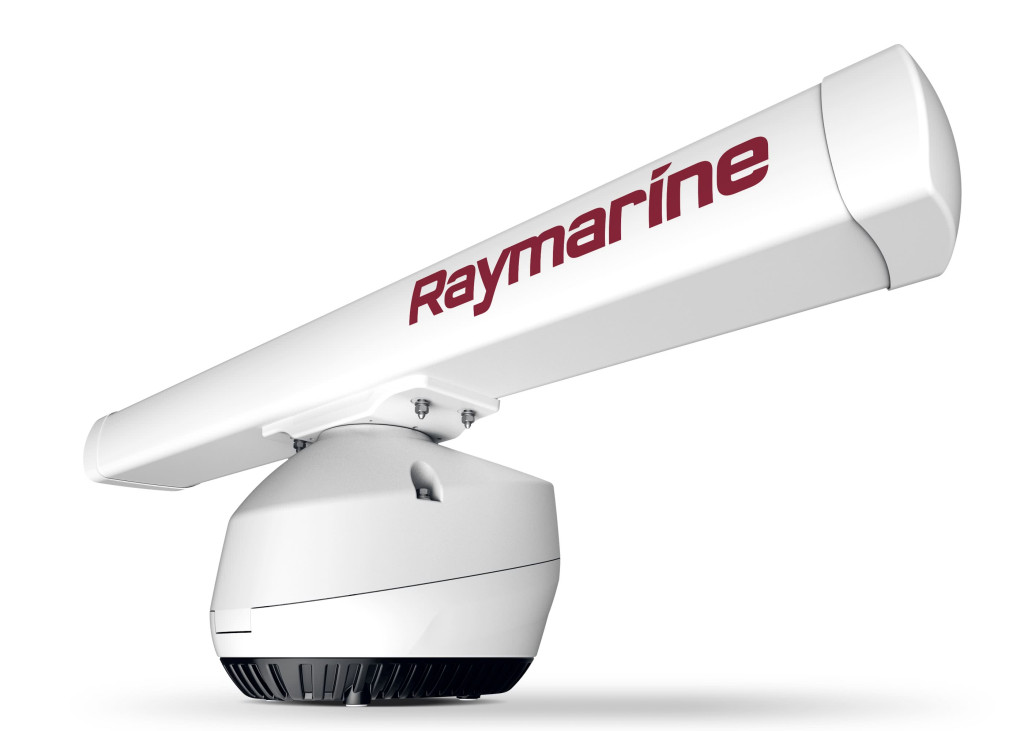

Raymarine 12kW Magnum with 4ft Open Array



Powerful Open Array Radar

Magnum 12 kW is our most powerful Magnum open array radar. Available with either a 4-foot or 6-foot open array antenna, Magnum 12 kW is the choice of marine professionals and offshore enthusiasts.

Choose the 4-foot model for high performance, compact radar, or experience the benefits of extended range and improved target resolution with the 6-foot array option.

What's in the box?

The following parts are supplied with the Magnum 12 kW radar.

1	Pedestal
2	Documentation
3	Denso paste
4	Lifting sling
5	Studs x 4
6	Plain washers x 4
7	Spring washers x 4
8	Nuts x 8
9	Cable tightening tool
10	Radar-RayNet & power cable (15 m 49.21 ft))
11	VCM100 mounting screws x 2
12	VCM100 cable clamp mounting screws x 3
13	VCM100 Voltage Converter Module
14	VCM100 cable clamp
15	Antenna (4 ft or 6 ft)
16	Threaded alignment guides x 4
17	Plain washer x 4
18	Spring washers x 4
19	Nuts x 4



Info

Article number:

RM-T70412

Water resistance rating:

IPX6

Website:

https://www.raymarine.com/en-gb/our-products/marin...

Weight:

29 kg/pcs

Technical specification

Power
Power consumption	Typical: < 110 W
Power consumption	Standby: < 30 W
Power consumption	Sleep: < 1.2 W
Nominal supply voltage	Using VCM100: 12 V dc / 24 V dc
Operating voltage range	Using VCM100: 10.8 V dc to 31.2 V dc

Conformance
Standards	USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3

Environmental
Relative humidity	Up to 95% @ 35°C (95°F)
Waterproof rating	IPx6
Maximum wind speed	85 knots
Operating temperature	-25°C to +55°C (-13°F to 131°F)

Radar
Maximum range scale	72 nautical miles
Beamwidth (horizontal)	4' Array: 1.85° (nominal) 6' Array: 1.15° (nominal)
Peak power output	4 kW
Standby mode	Magnatron heater: ON, Magnetron control: ON, All other services: OFF
Polarization	Horizontal
Transmit frequency	9405 MHz ±20 MHz
Warm-up time	75 seconds
Beamwidth (vertical)	25° (nominal)
Rotation speed	24 RPM / 48 RPM
Standby to transmit	2.5 seconds

Physical
Dimensions	Height (including antenna): 430 mm (16.9 in), Length: 409 mm (16.1 in), Width: 314 mm (12.3 in)
Dimensions	4 ' Array: 1306 mm (51.4 in) 6' Array: 1918 mm (75.7 in)
Weight	29 kg (63.93 lbs)

Compatibility
Axiom 2 XL - 16", 19", 22" and 24" models	Yes
Axiom 2 Pro - 9", 12" and 16" RVM and -S variants	Yes
Axiom+ - 7", 9" and 12" RV and chartplotter variants	Yes
Element - 7", 9" and 12" HV and -S variants	No
Axiom XL - 16", 19", 22" and 24" models	Yes
Axiom Pro - 9", 12" and 16" RVX and -S variants	Yes
Axiom - 7", 9" and 12" RV and chartplotter variants	Yes
gS-Series - gS95, gS125 and gS165	Yes
eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165	Yes
e-Series - e7, e7D, e95, e97, e125, e127, e165	Yes
c-Series - c95, c97, c125, c127	Yes
a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128	Yes
E-Series Widescreen - E90W, E120W, E140W	Yes
C-Series Widescreen - C90W, C120W, C140W	Yes
G-Series Classic - GPM400	Yes
E-Series Classic - E80, E120	Yes
C-Series Classic - C70, C80, C120	No1
Notes	1 - C-Series Classic chartplotter displays are only compatible with analog radar scanners, discontinued.
