Raymarine Autopilot EV-150 Hydraulic Pack

Article No.:
RM-T70330
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Raymarine Autopilot EV-150 Hydraulic Pack
Manufacturer:
RAYMARINE
Manufacturer Article number:
T70330
Main warehouse
Out of stock
External warehouse
Out of stock
Delivery time approx: 1-2 Weeks!
Csomagajánlatok
  • Details
  • Info
  • Technical specification
Details

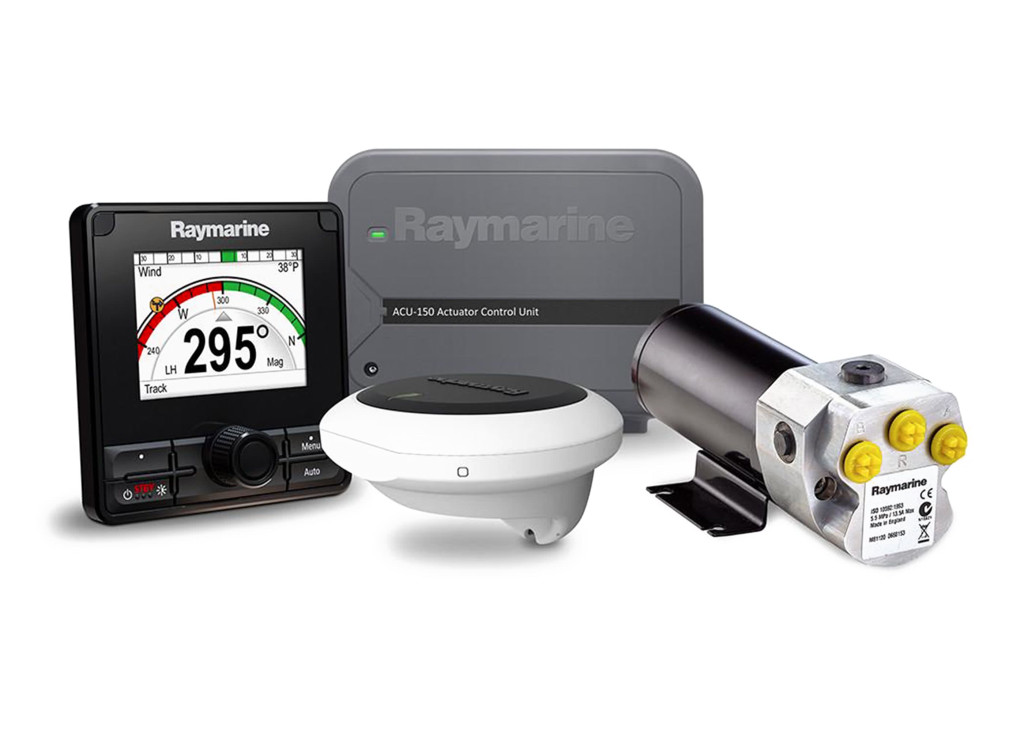

Raymarine EV-150 Power Pilot

Autopilot System for Hydraulic Outboards and Inboards

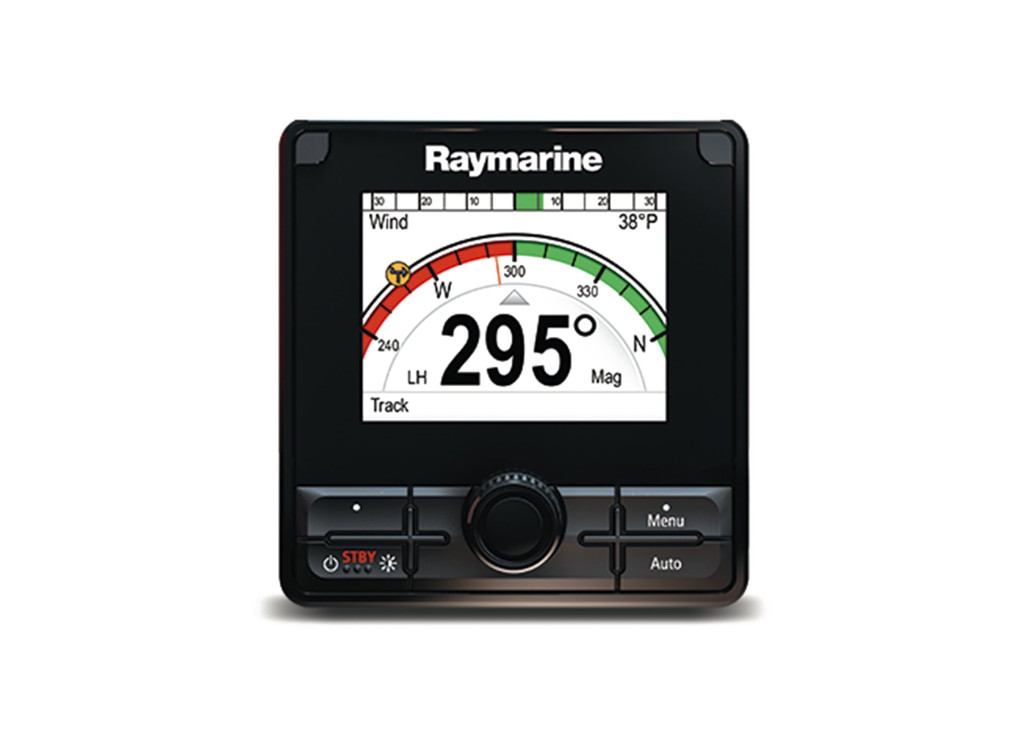

The EV-150 Power Pilot is a complete autopilot solution for powerboats with hydraulic steering.  Ideal for boats with single-engine outboards or single inboard engines, the EV-150 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-150 actuator control unit.  The system includes a Type 1 hydraulic autopilot pump. The pump is compatible with outboard and inboard hydraulic steering cylinder capacities between 80cc – 230cc (4.9 in3–14in3). EV-150 Power Pilot systems are available with a p70Rs autopilot control head, ACU-150 actuator control unit, EV-1 heading sensor, and a 12 Volt Type 1 hydraulic pump.  Raymarine autopilot owners with an existing Type 1 hydraulic drive can upgrade to Evolution technology with Evolution Power Pilot kit without the type 1 drive included.



EV-150 Power Pilot Key Features

  • Requires no complicated setup or autopilot calibration.

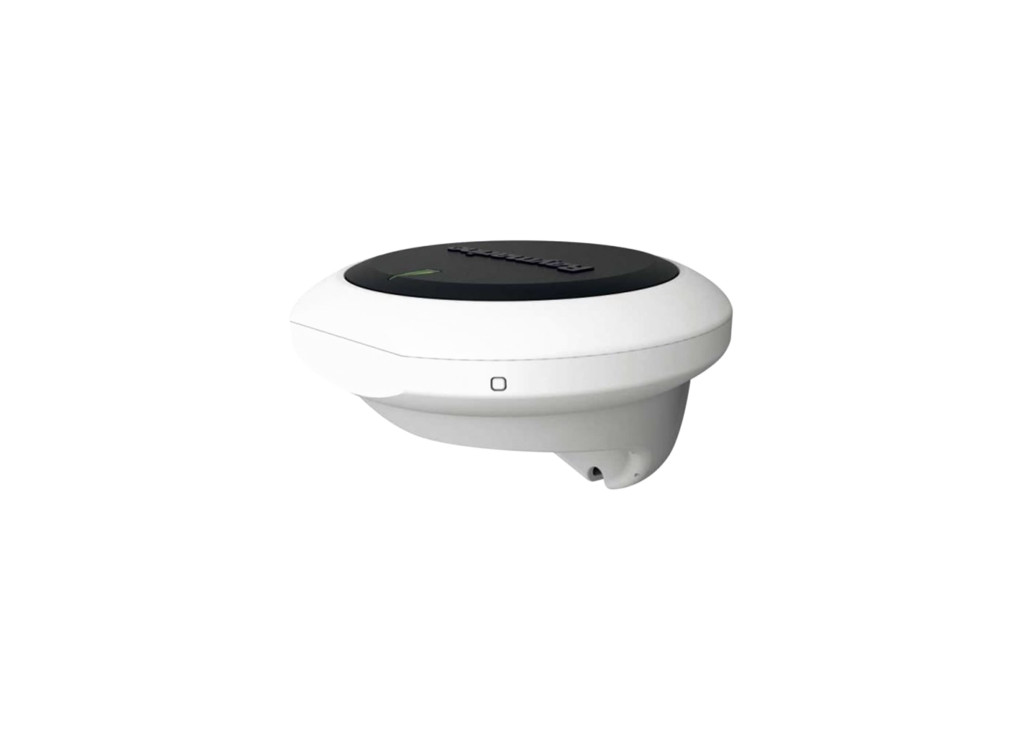

  • Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
  • Exclusive Raymarine Hydro-Balance™ technology adjusts for elasticity in the hydraulic steering systems and compensates automatically to prevent steering oscillation. The result is precise course-keeping and no drive-unit hunting.
  • The EV-150 autopilot steers so accurately you will save fuel and get to your destination faster.

What's in the box?



1

ACU unit

2

Documentation

3

Screws (pan head type)

4

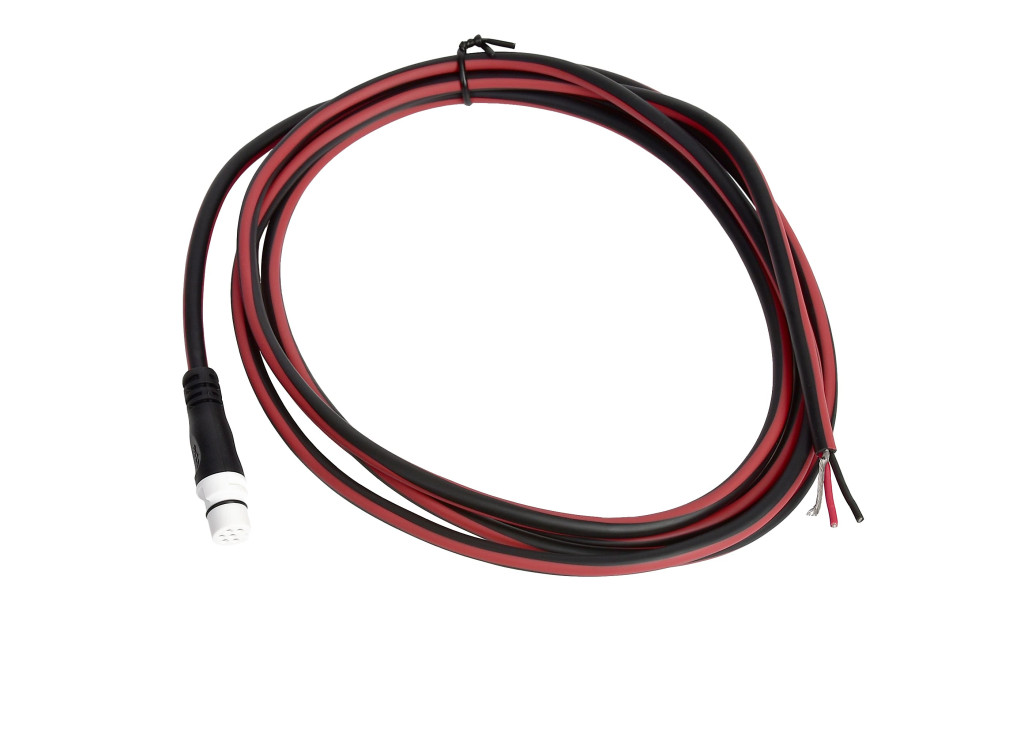

SeaTalkng spur to bare wires cable 1 m (3.3 ft)

Info
Article number:
RM-T70330
Website:
https://www.raymarine.com/en-gb/our-products/boat-...
Technical specification
Output
Drive current output

Maximum continuous 7 A at supply voltage

Physical
Dimensions

Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)

Weight

0.6 kg (1.32 lbs)

Environmental
Relative humidity

Max. 93%

Waterproof rating

Connector panel: IPx2, Drive electronics: IPx6

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-4 °F to 131 °F)

Conformance
Standards

Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Power consumption (standby)

300 mA (12 V)

Nominal supply voltage

12 V dc

Operating voltage range

10.8 V dc to 15.6 V dc

LEN (NMEA 2000 Load Equivalency Number)

1
