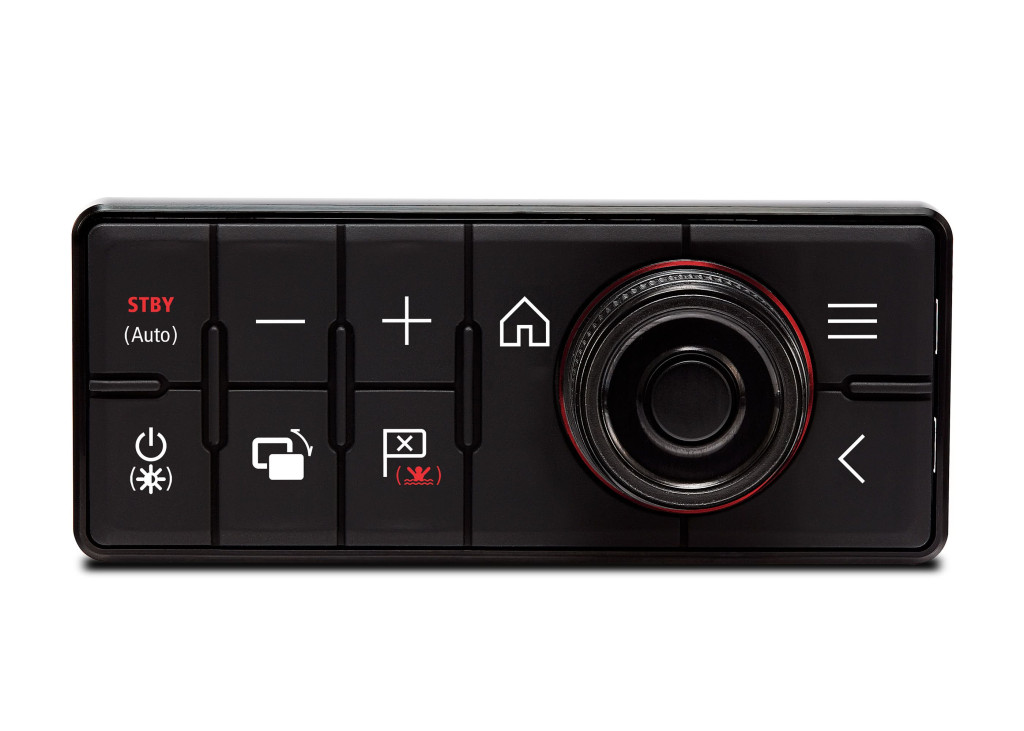

Raymarine System Remote Control Keypad (RMK-10) Portrait & Landscape

Article No.:
RM-T70293
Raymarine System Remote Control Keypad (RMK-10) Portrait & Landscape
Raymarine System Remote Control Keypad (RMK-10) Portrait & Landscape
Raymarine System Remote Control Keypad (RMK-10) Portrait & Landscape
Raymarine System Remote Control Keypad (RMK-10) Portrait & Landscape
Raymarine System Remote Control Keypad (RMK-10) Portrait & Landscape
Raymarine System Remote Control Keypad (RMK-10) Portrait & Landscape
Manufacturer:
RAYMARINE
Manufacturer Article number:
T70293
Main warehouse
Out of stock
External warehouse
Out of stock
Delivery time approx: 1-2 Weeks!

The RMK-10 remote keypad provides full control of the Axiom range of chartplotters from any mounting location.

Csomagajánlatok
  • Details
  • Info
  • Technical specification
Details

Raymarine System Remote Control Keypad (RMK-10)

Control at your fingertips

The fully backlit RMK-10 includes dedicated keys for home, menu, zoom in/out, window control, waypoint management, power/brightness, as well as Evolution autopilot control. RMK-10 also features the same easy-to-use rotary controller with the integrated cursor pad found on Axiom Pro chartplotter displays

RMK-10 Mounting Options

The RMK-10 is the perfect solution for remote control of Axiom chartplotter displays mounted beyond arm’s reach, or in overhead electronics boxes. The RMK-10 can be surface-mounted or flush-mounted and is available with key mats for horizontal or vertical installation. This gives you the flexibility to install the RMK-10 just about anywhere

Networking & Control

Utilizing Raymarine’s RayNet Ethernet networking, the RMK-10 can control a single Axiom display, or multiple Axiom displays mounted at the same location. When controlling multiple displays on the same helm, the RMK-10 provides seamless control across all of the displays.

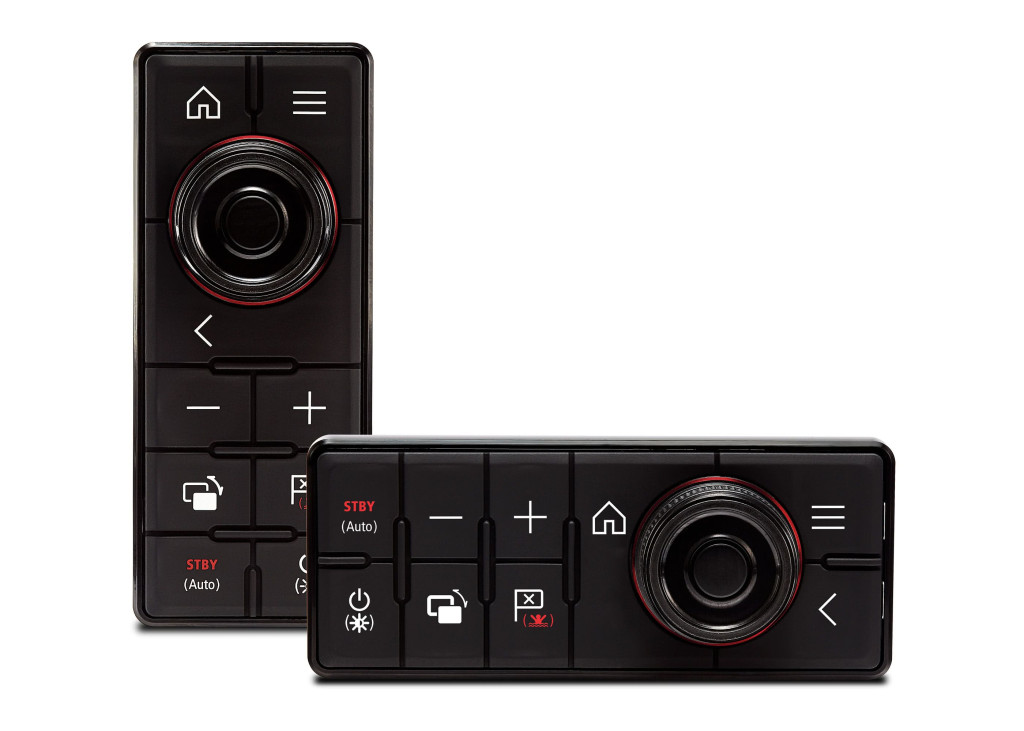

Raymarine RMK-10 in landscape or portrait mode
What's in the box illustration

What's in the box?

RMK-10 Package Contents

1

RMK-10 Keypad

2

Landscape keypad mat

3

Portrait keypad mat (supplied fitted to the unit)

4

Mounting gasket

6

Documentation

7

Right angled power cable 2 m (6.6 ft.)

8

RayNet network cable 2 m (6.6 ft.)

10

Mounting fixings x4



Info
Article number:
RM-T70293
Website:
https://www.raymarine.com/en-gb/our-products/chart...
Technical specification
Power
Nominal supply voltage

PoE: 48 V dc, Alternate power: 12 / 24 V dc

Operating voltage range

PoE: 44 V to 57 V dc, Alternate power: 9 V to 32 V dc

PoE class

Class 1

Power consumption

4 W Max with full keypad illumination

Environmental
Relative humidity

Max. 93%

Waterproof rating

IPx6, IPx7

Storage temperature

-30° C to +70° C (-22° F to 158° F)

Operating temperature

-25° C to +55° C (-13° F to 131° F)

Conformance
Ethernet / PoE

IEEE 802.3, IEEE 802.3af (PoE)

EMC

EN60945

Wired connections
Network / PoE

1 x RayNet 10/100 Mb/s connector

Alternate power

1 x Power connector (SeaTalkng style connector)
