Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)

Article No.:
RM-T70162
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Raymarine Evolution Autopilot with p70Rs control head & ACU-400, EV1 Sensor Core, EV1 Cabling kit (suitable for Type 2 & 3 drives)
Manufacturer:
RAYMARINE
Manufacturer Article number:
T70162
Main warehouse
Out of stock
External warehouse
Out of stock
Delivery time approx: 1-2 Weeks!

The EV-400 Power Pilot is the perfect solution for large powerboats with hydraulic steering.

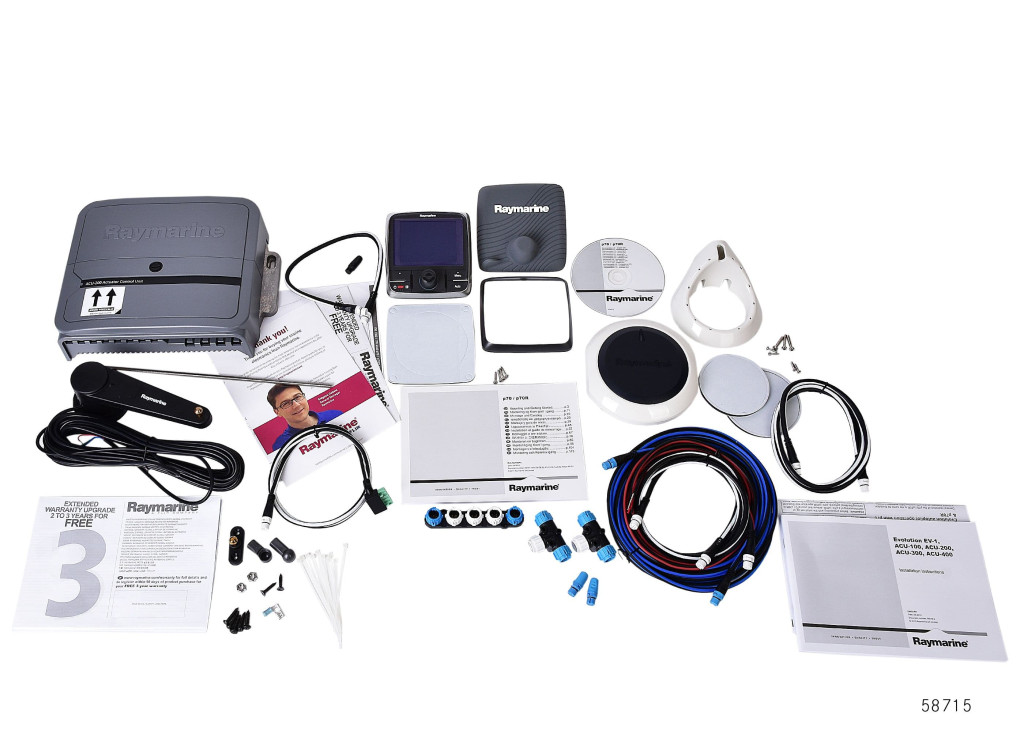

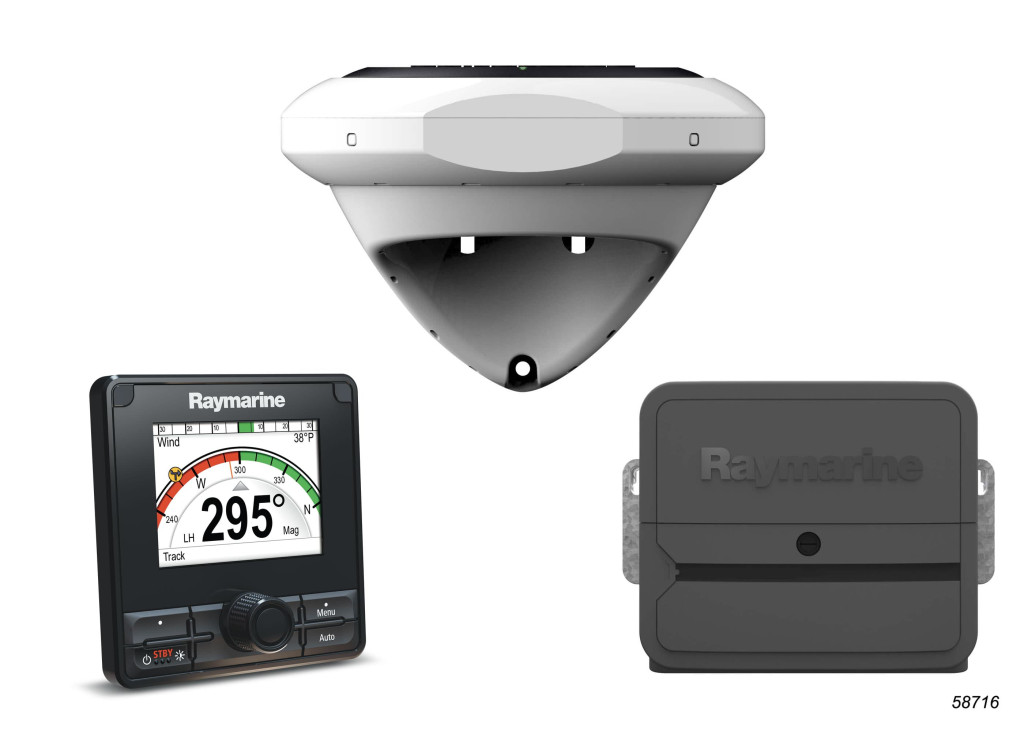

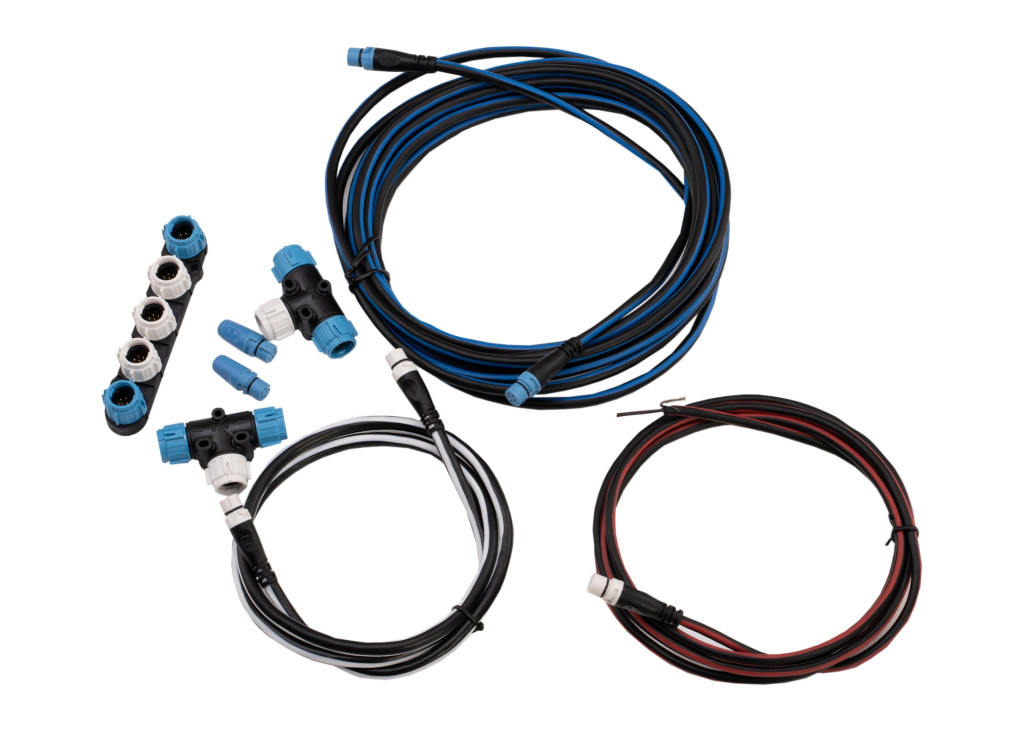

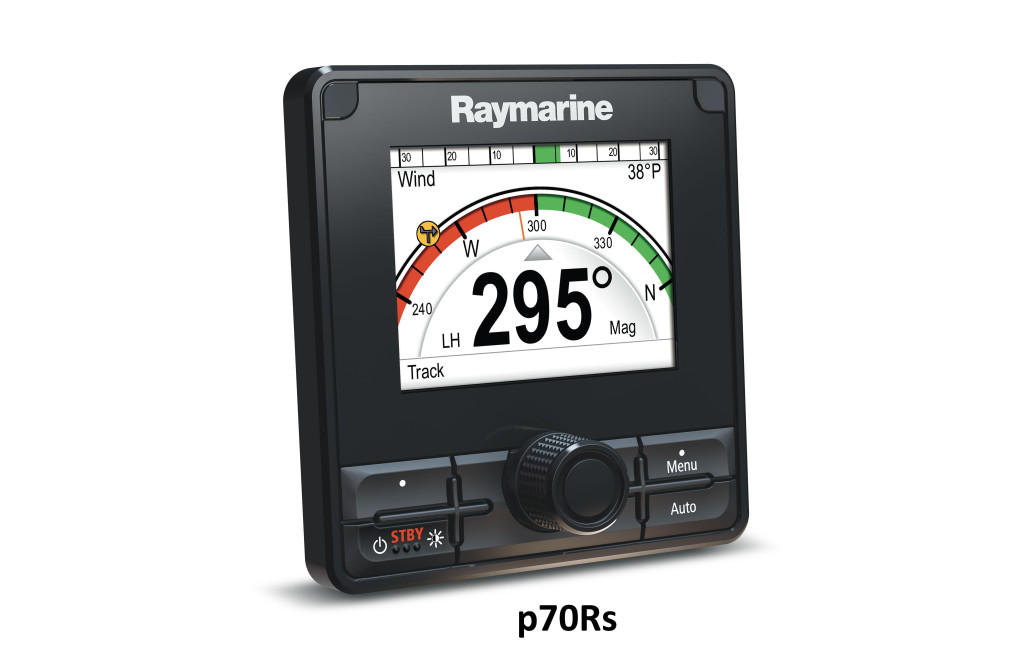

The EV-400 Power Pilot kit includes the p70Rs color, rotary autopilot controller, EV-1 sensor core, ACU-400 actuator control unit, rotary rudder feedback unit, and an Evolution cabling kit.

Choose any Type 2 or Type 3 hydraulic autopilot drive unit to complete the system.

Csomagajánlatok
  • Details
  • Info
  • Technical specification
Details

EV-400 Power Pilot

EV-400 Power Overview

The EV-400 Power Pilot is the perfect solution for large powerboats with hydraulic steering.

The EV-400 Power Pilot kit includes the p70Rs color, rotary autopilot controller, EV-1 sensor core, ACU-400 actuator control unit, rotary rudder feedback unit, and an Evolution cabling kit.

Choose any Type 2 or Type 3 hydraulic autopilot drive unit to complete the system.



EV-400 Power Pilot Key Features

  • Suitable for large powerboats with hydraulic steering systems
  • Works Type 2 or Type 3 hydraulic linear drives
  • Rotary rudder feedback sensor kit included
  • SeaTalkNG/NMEA2000 for networking with instruments and chartplotters
  • Requires no complicated setup or autopilot calibration.

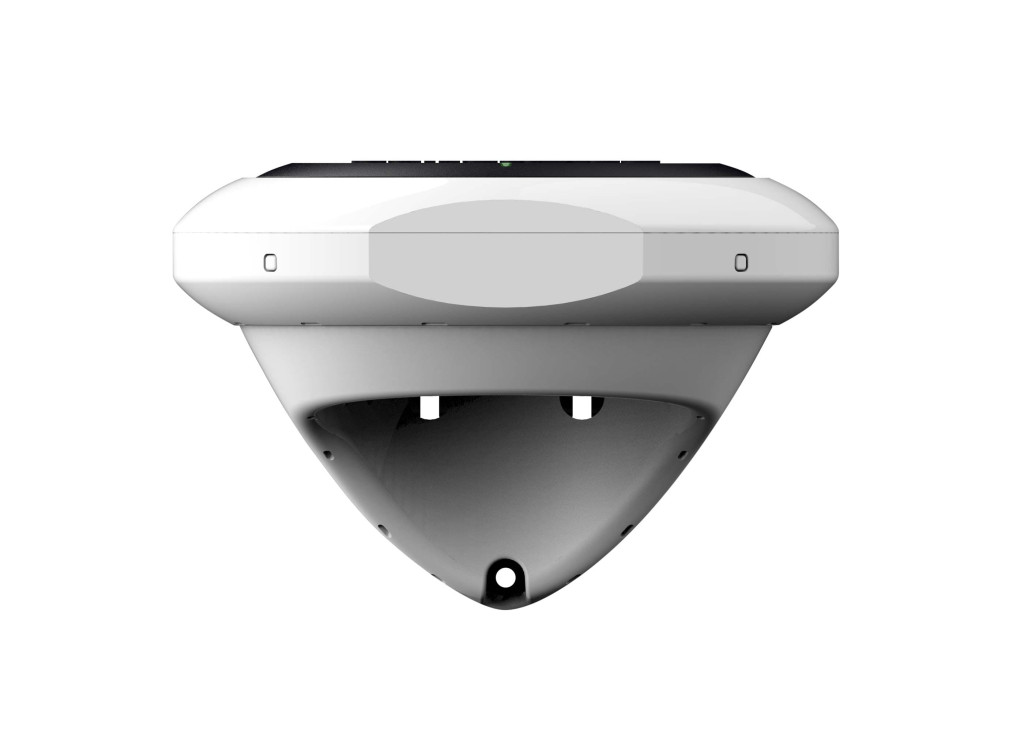

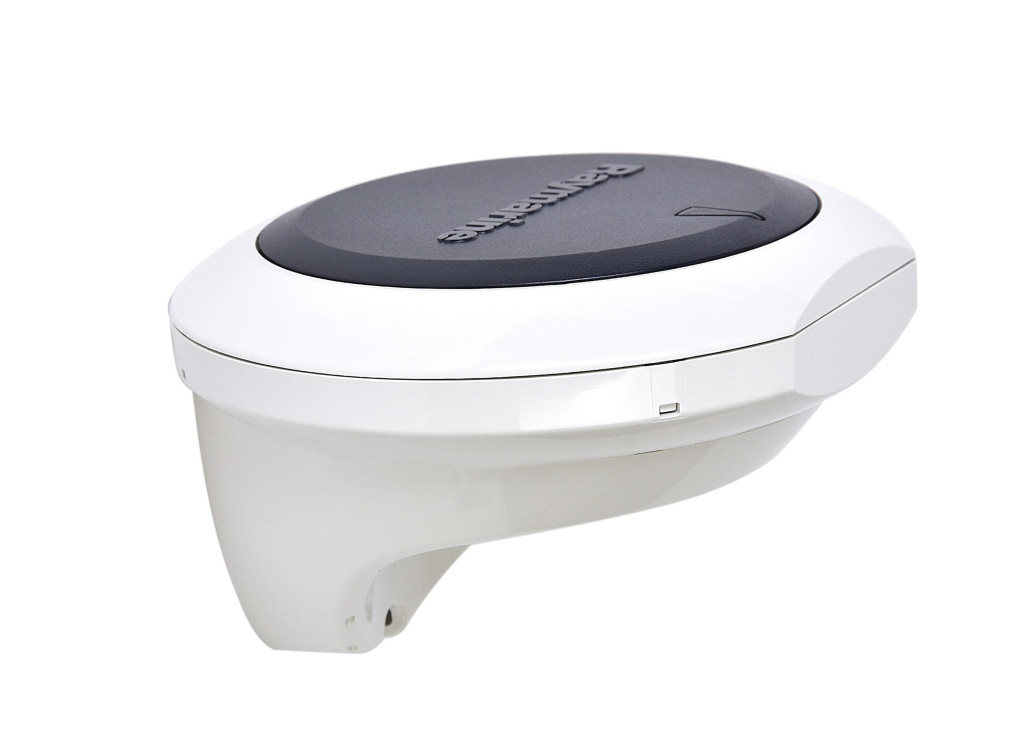

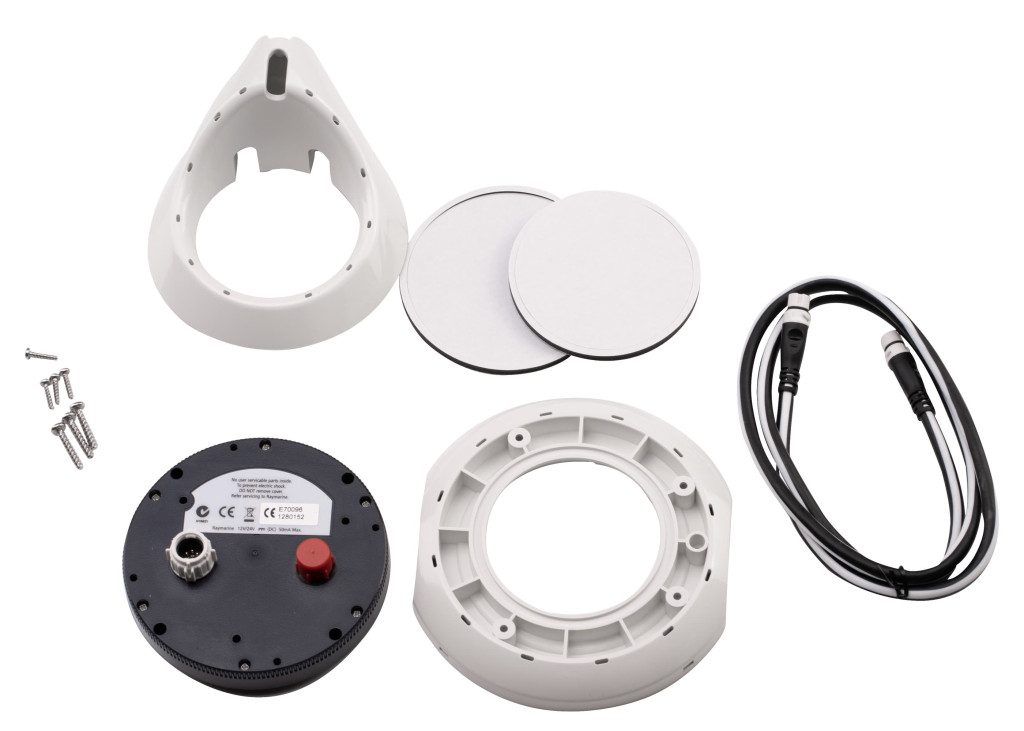

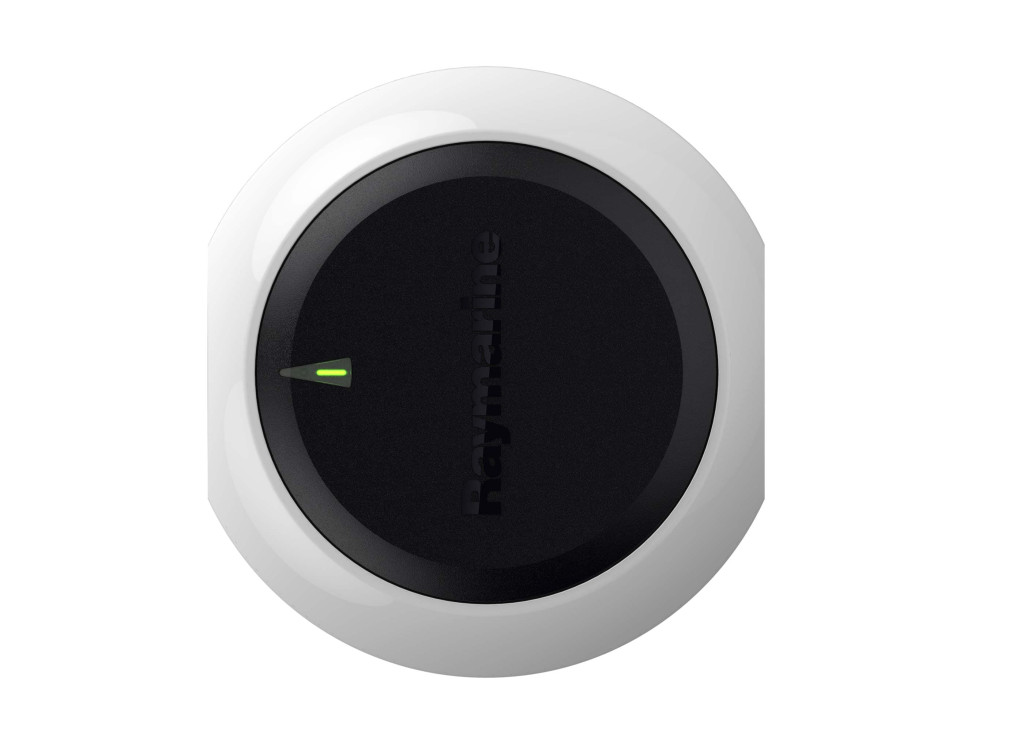

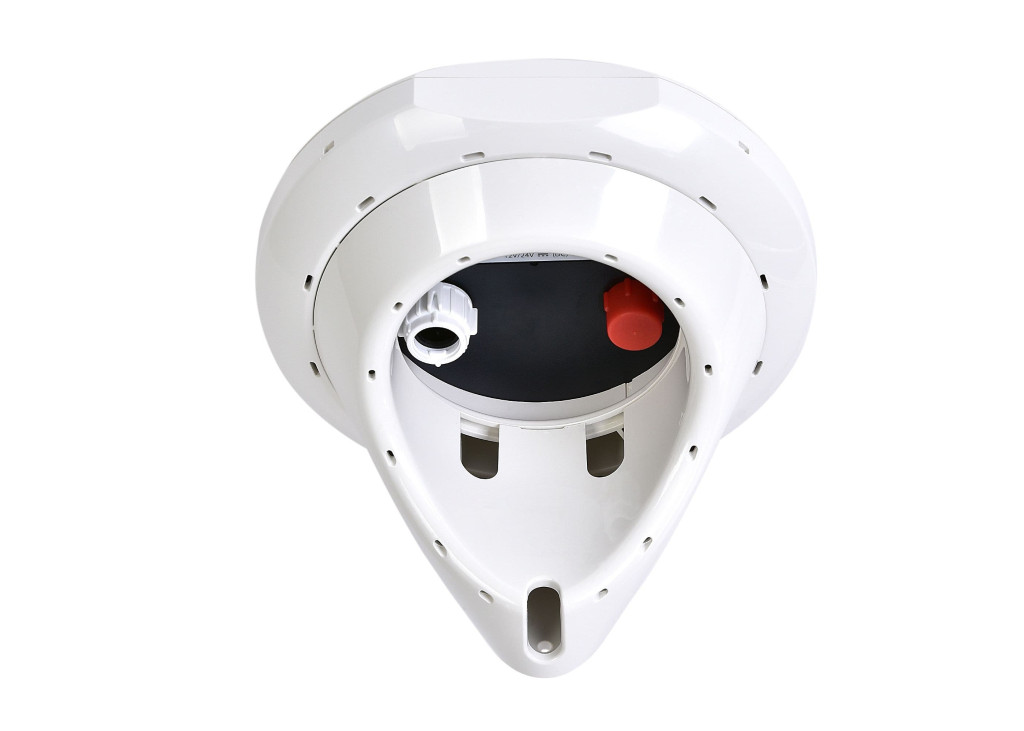

  • Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics

What's in the box?



1

ACU unit

2

Documentation

3

Screws (pan head type)

4

SeaTalkng spur to bare wires cable 1 m (3.3 ft)



Info
Article number:
RM-T70162
Website:
https://www.raymarine.com/en-gb/our-products/boat-...
Technical specification
Output
Drive clutch output

Up to 2.0 A continuous, selectable between 12 / 24 V

Drive current output

Maximum continuous 15 A at supply voltage

Physical
Dimensions

Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in)

Weight

2.2 kg (4.84 lbs)

Environmental
Relative humidity

Max. 93%

Waterproof rating

Drip resistant

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-4 °F to 131 °F)

Conformance
Standards

Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Power consumption (standby) - main power supply

300 mA (12 / 24 V)

Power output to SeaTalkng bus

3 A @ 12 V (fuse protected at 3 A)

Power consumption (standby) - SeaTalkng bus

20 mA (12 V)

Nominal supply voltage

12 / 24 V dc

Operating voltage range

10.8 V dc to 31.2 V dc

LEN (NMEA 2000 Load Equivalency Number)

1
