Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)

Article No.:
RM-T70160
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Raymarine Evolution Solenoid Autopilot with p70Rs control head & ACU-300, EV1 Sensor Core, EV1 Cabling kit (suitable for Solenoid drives)
Manufacturer:
RAYMARINE
Manufacturer Article number:
T70160
Main warehouse
Out of stock
External warehouse
Out of stock
Delivery time approx: 1-2 Weeks!
Csomagajánlatok
  • Details
  • Info
  • Technical specification
Details

EV-300 Solenoid Pilot System

EV-300 Solenoid Overview

The EV-300 system is for use onboard vessels with solenoid-controlled electro-hydraulic steering systems. The included ACU300 actuator control unit interacts directly with with the boat's steering gear solenoids, delivering accurate and reliable autopilot steering.

The EV-300 Solenoid autopilot also works with Raymarine and 3rd party constant running hydraulic drive units.

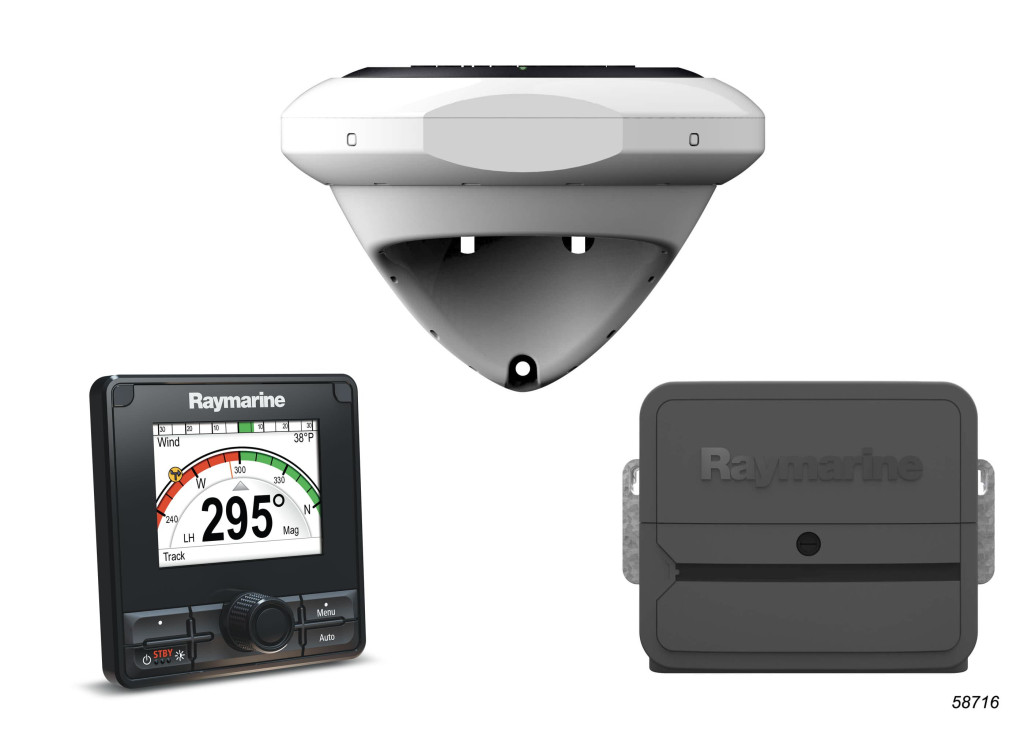

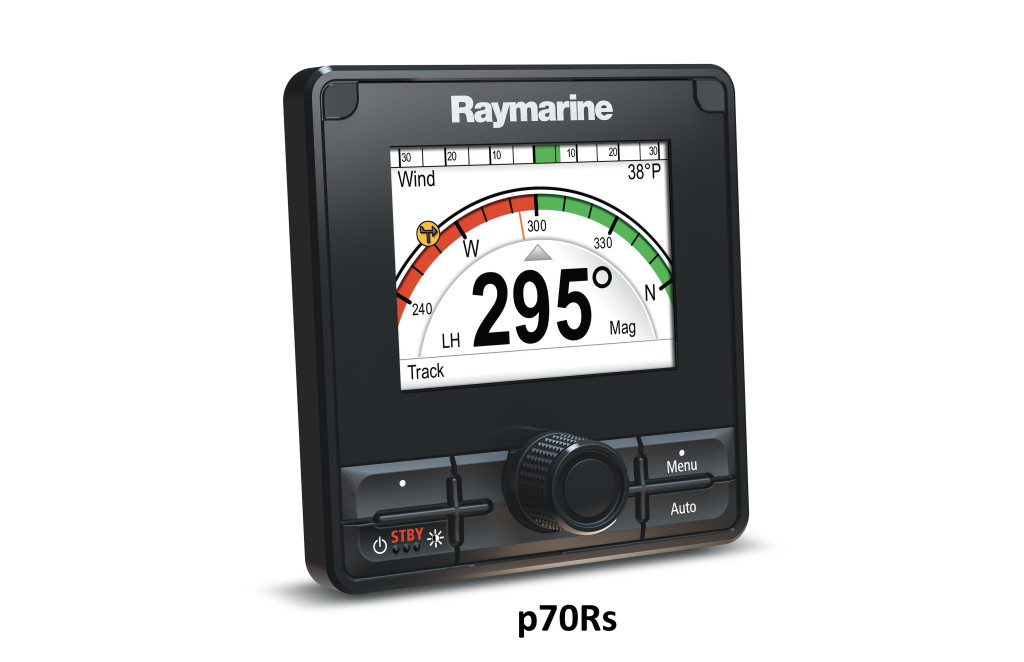

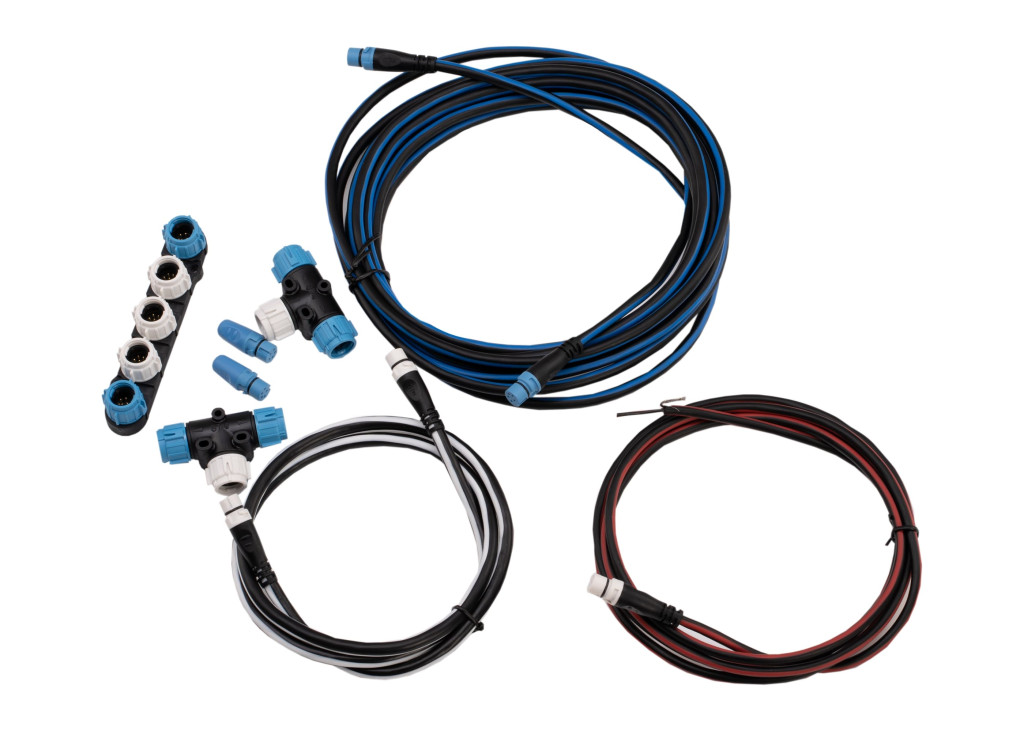

The EV-300 Solenoid autopilot system includes our p70Rs color autopilot remote control with rotary controller, the EV-1 Sensor Core, the EV-300 Actuator Control Unit, and an Evolution autopilot cabling kit.



EV-300 Solenoid Pilot Key Features

  • Suitable for vessels with solenoid-controlled hydraulic steering systems
  • Works with constant-running hydraulic drive systems
  • SeaTalkNG/NMEA2000 for networking with instruments and chartplotters
  • Requires no complicated setup or autopilot calibration.

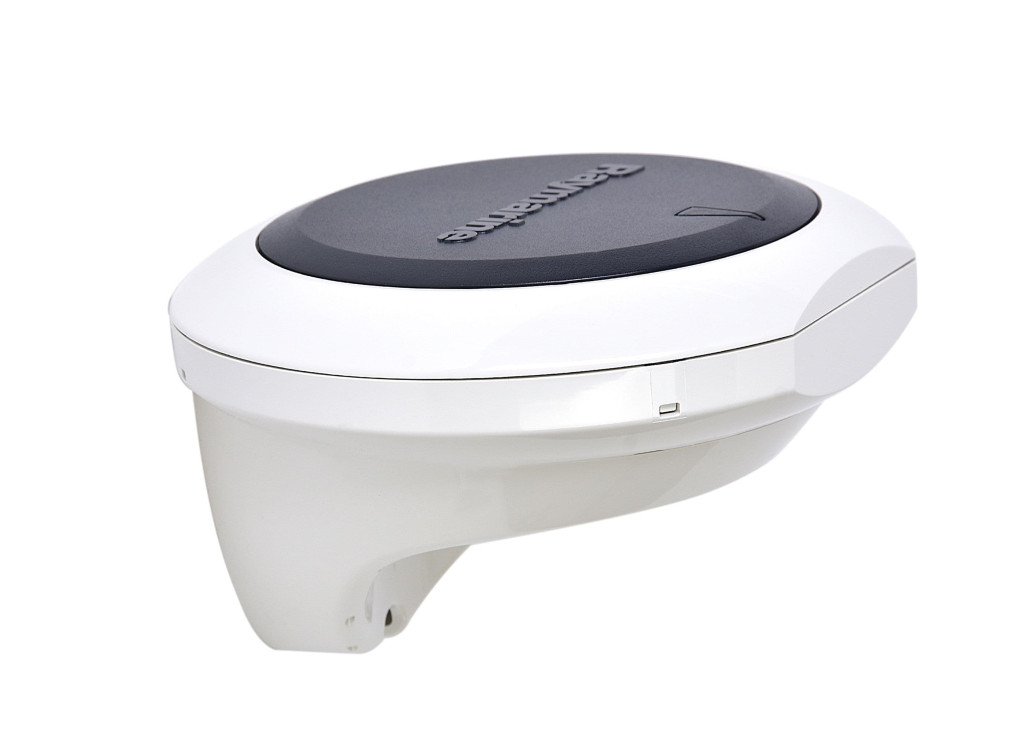

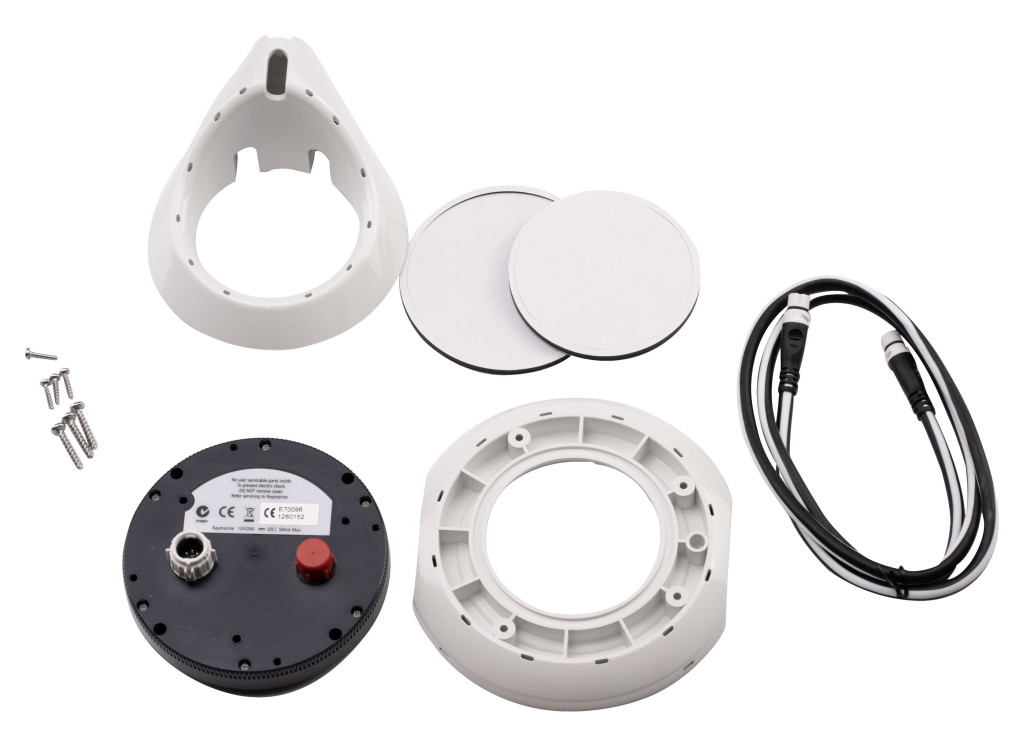

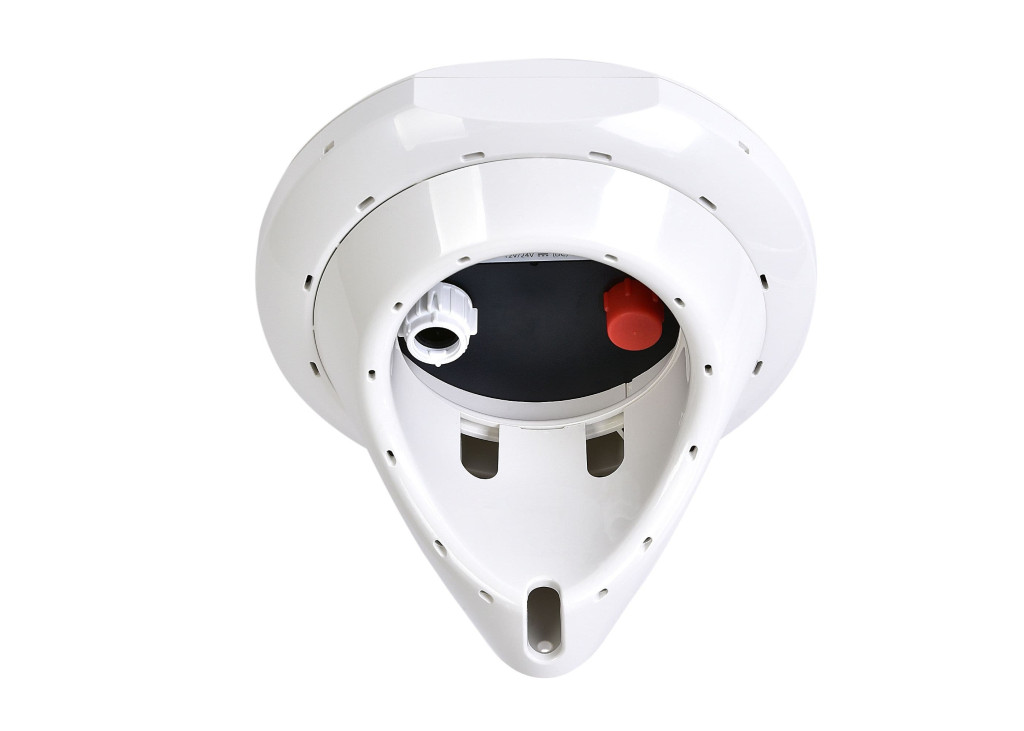

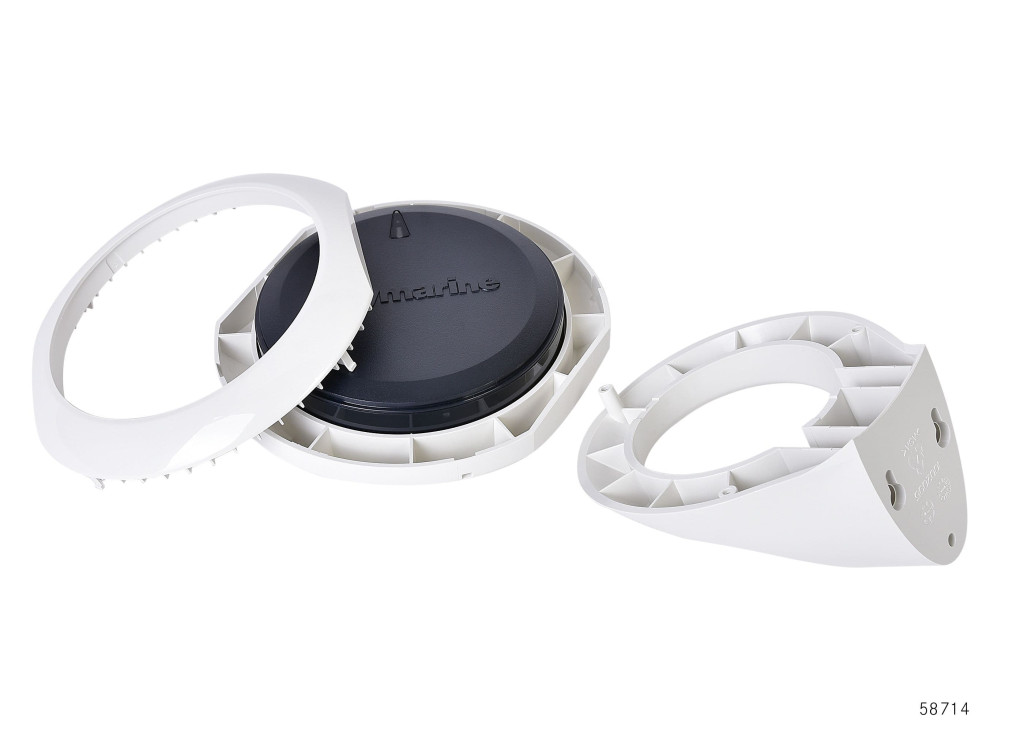

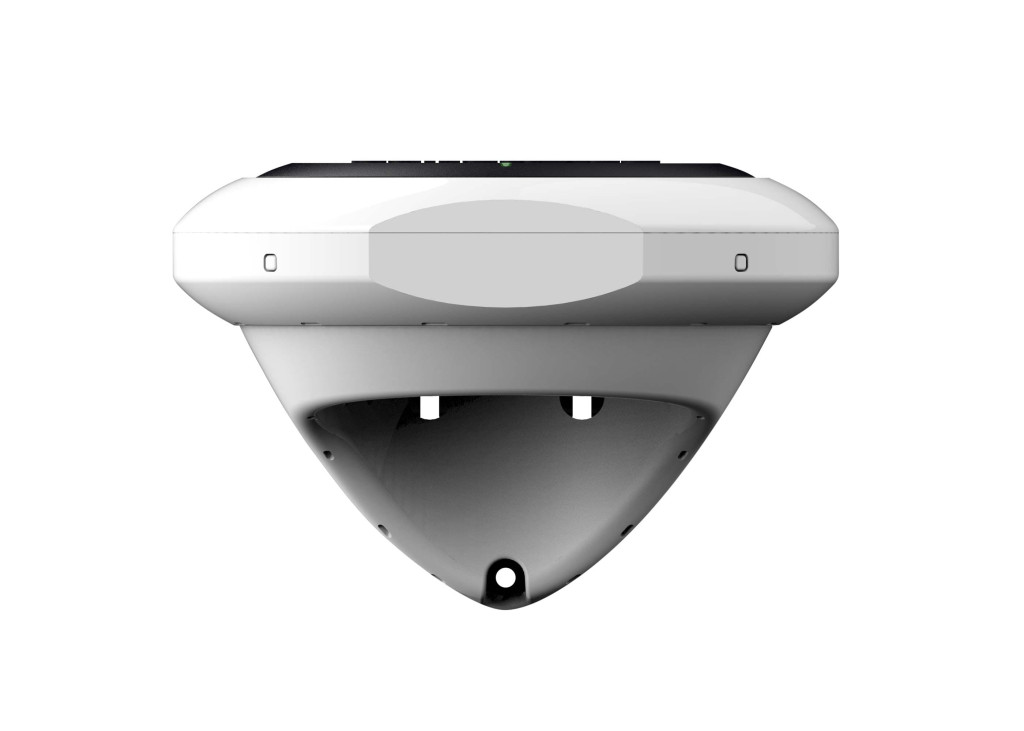

  • Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics

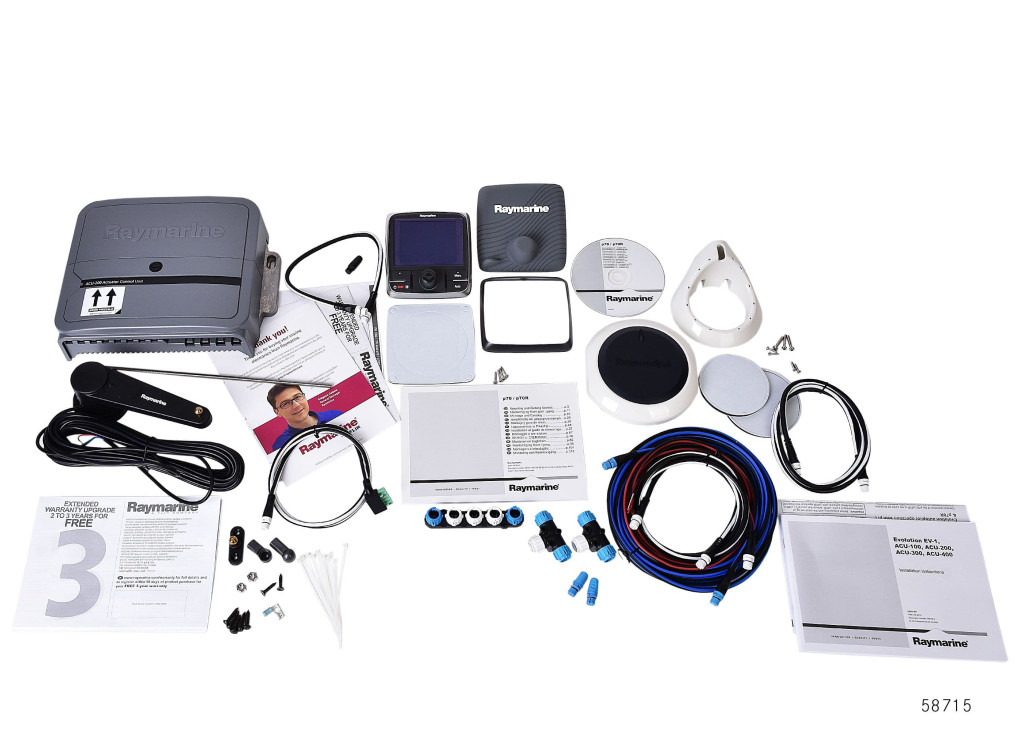

What's in the box?



1

ACU unit

2

Documentation

3

Screws (pan head type)

4

SeaTalkng spur to bare wires cable 1 m (3.3 ft)



Info
Article number:
RM-T70160
Website:
https://www.raymarine.com/en-gb/our-products/boat-...
Technical specification
Conformance
Standards

Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Physical
Dimensions

Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in)

Weight

2.2 kg (4.84 lbs)

Power
Power consumption (standby) - main power supply

300 mA (12 / 24 V)

Power output to SeaTalkng bus

3 A @ 12 V (fuse protected at 3 A)

Power consumption (standby) - SeaTalkng bus

20 mA (12 V)

Nominal supply voltage

12 / 24 V dc

Operating voltage range

10.8 V dc to 31.2 V dc

LEN (NMEA 2000 Load Equivalency Number)

1

Environmental
Relative humidity

Max. 93%

Waterproof rating

Drip resistant

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-4 °F to 131 °F)
