Raymarine Autopilot EV-200 Hydraulic Pack

Csomagajánlatok

• Details
• Info
• Technical specification

Details

Raymarine EV-200 Power Pilot

Autopilot System for Hydraulic Outboards and Inboards

The EV-200 Power Pilot is a complete autopilot solution for powerboats with hydraulic steering.  Ideal for many outboard or inboard powered boats, the EV-200 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-200 actuator control unit.

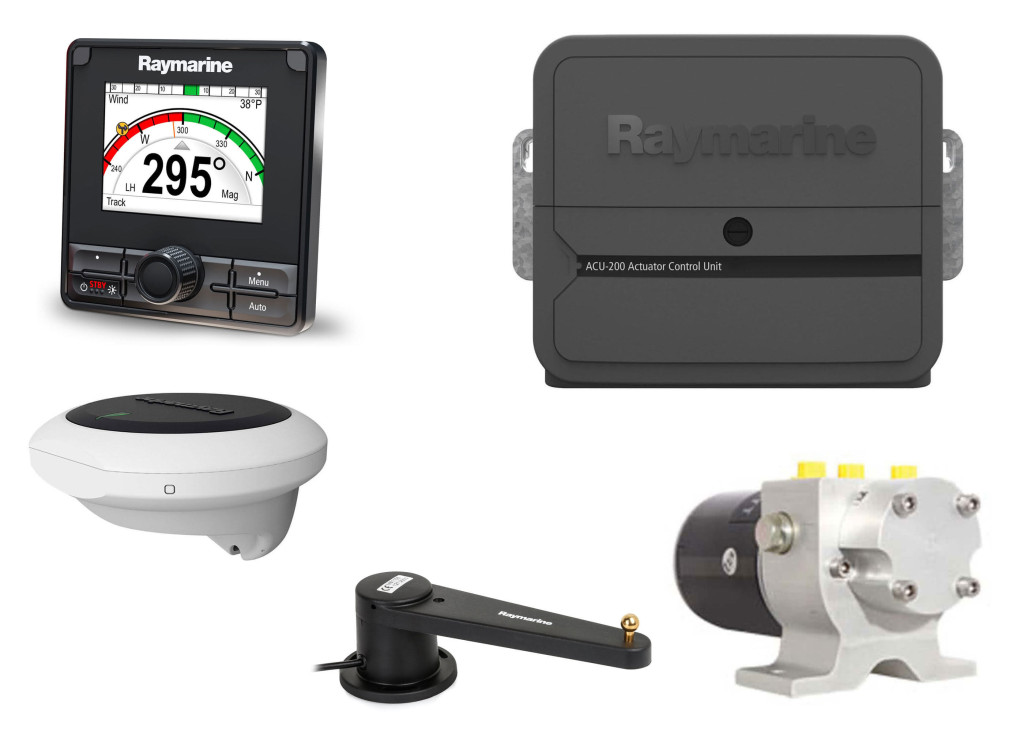

The complete system pack includes a Type 1 hydraulic autopilot pump that is compatible with outboard and inboard hydraulic steering cylinder capacities between 80cc – 230cc (4.9 in³–14in³).  EV-200 Power Pilot systems are available with p70Rs autopilot control head, ACU-200 actuator control unit, EV-1 heading sensor and a 12 Volt Type 1 hydraulic pump.

Raymarine autopilot owners with an existing Type 1 hydraulic drive can upgrade to Evolution technology with Evolution Power Pilot kit without the type 1 drive included.



EV-200 Power Pilot Key Features

• Requires no complicated setup or autopilot calibration.
• Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
• Exclusive Raymarine Hydro-Balance™ technology adjusts for elasticity in the hydraulic steering systems and compensates automatically to prevent steering oscillation. The result is precise course-keeping and no drive-unit hunting.
• The EV-200 autopilot steers so accurately you will save fuel and get to your destination faster.



What's in the box?



1	ACU unit
2	Documentation
3	Screws (pan head type)
4	SeaTalkng spur to bare wires cable 1 m (3.3 ft)



Info

Article number:

RM-T70157

Website:

https://www.raymarine.com/en-gb/our-products/boat-...

Technical specification

Output
Drive current output	Maximum continuous 15 A at supply voltage

Physical
Dimensions	Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)
Weight	0.6 kg (1.32 lbs)

Environmental
Relative humidity	Max. 93%
Waterproof rating	Connector panel: IPx2, Drive electronics: IPx6
Storage temperature	-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature	-20 °C to +55 °C (-4 °F to 131 °F)

Conformance
Standards	Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Power consumption (standby)	300 mA (12 V)
Nominal supply voltage	12 V dc
Operating voltage range	10.8 V dc to 15.6 V dc
LEN (NMEA 2000 Load Equivalency Number)	1
