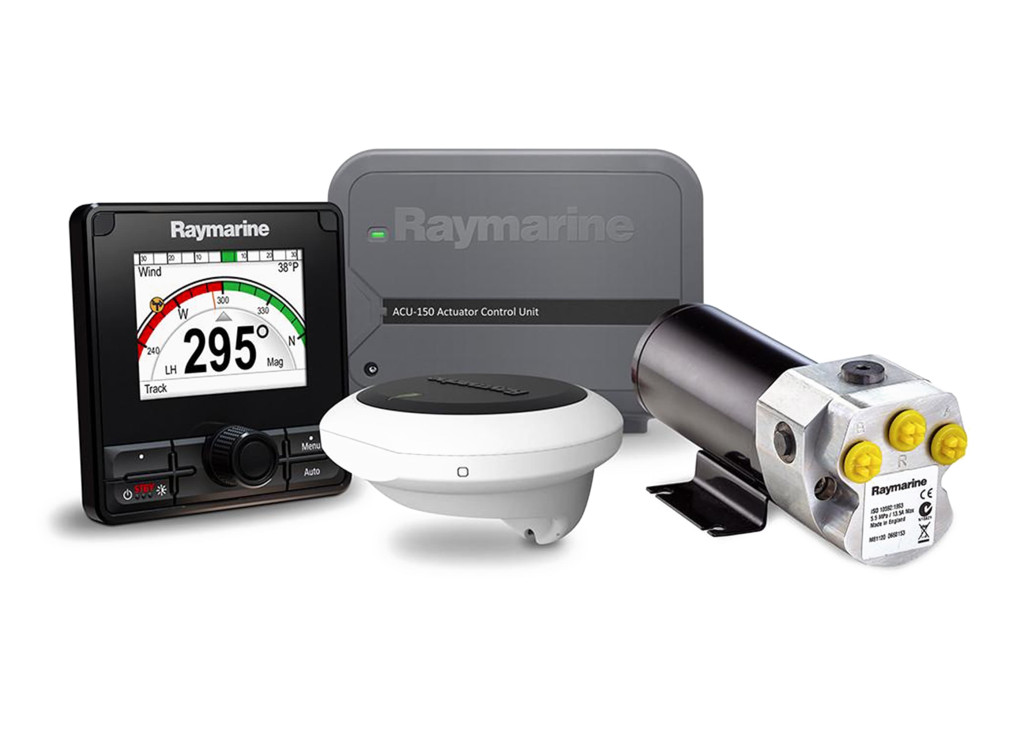

Raymarine EV-100 Power Pilot

Autopilot System for Hydraulic Outboards

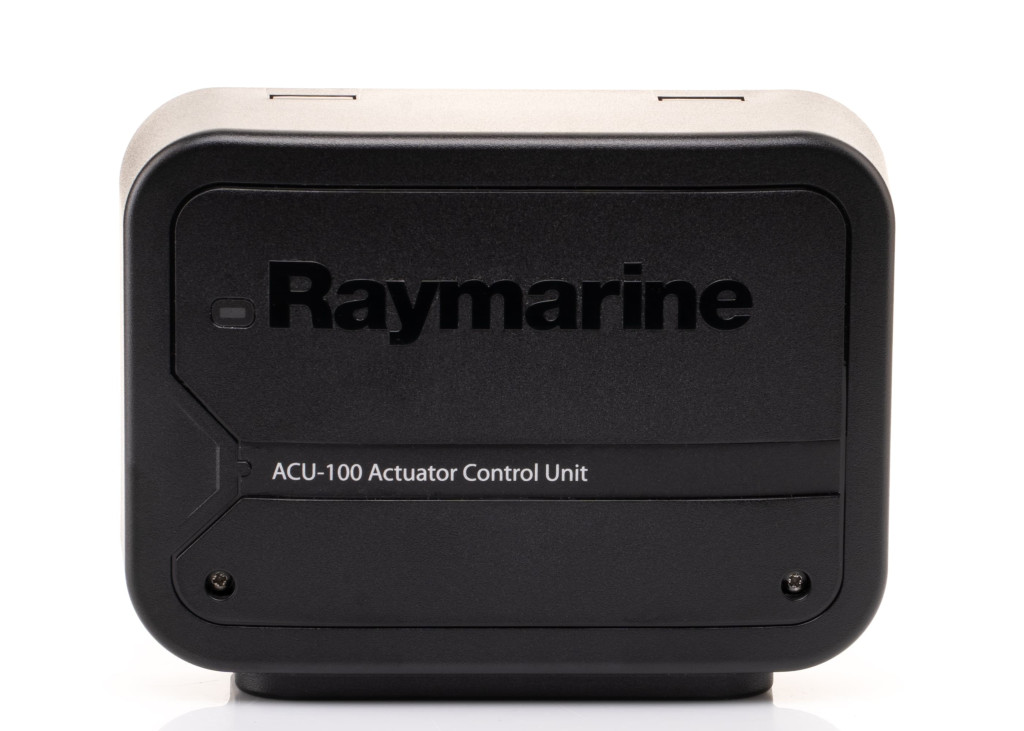

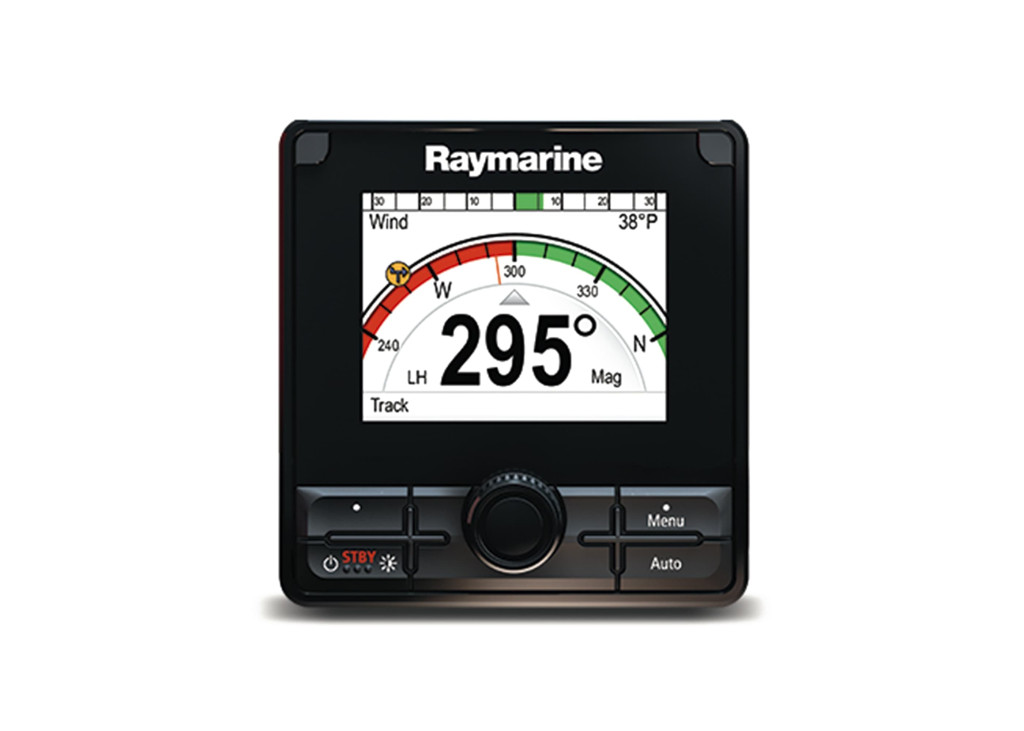

The EV-100 Power Pilot is a complete autopilot solution for smaller powerboats with hydraulic steering.  Ideal for boats with single-engine outboards, the EV-100 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit.  The system includes a .5 liter hydraulic autopilot pump. The pump is compatible with outboard hydraulic steering cylinder capacities between 50cc-110cc (3.1 in³–6.7 in³).  EV-100 Power Pilot systems are available with a p70Rs autopilot control head, or choose a system without a control head and use a Raymarine Axiom chartplotter for complete autopilot control.



EV-100 Power Pilot Key Features

• Requires no complicated setup or autopilot calibration.

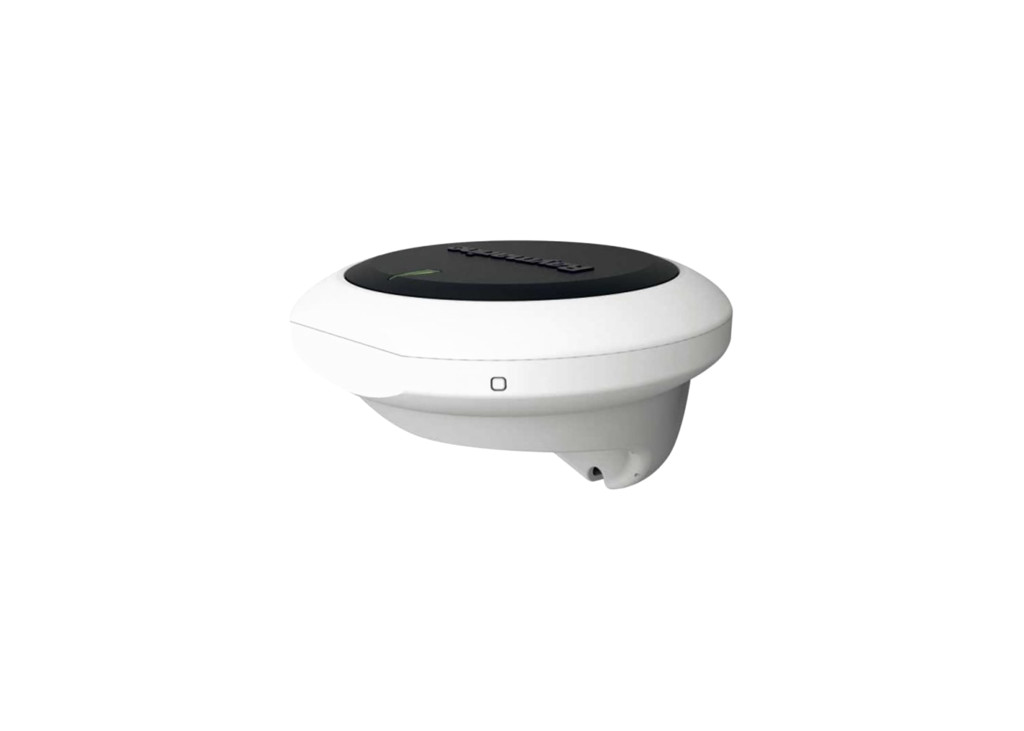

• Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
• Exclusive Raymarine Hydro-Balance™ technology adjusts for elasticity in the hydraulic steering systems and compensates automatically to prevent steering oscillation. The result is precise course-keeping and no drive-unit hunting.
• The EV-100 autopilot steers so accurately you will save fuel and get to your destination faster.



What's in the box?

1	ACU unit
2	Documentation
3	Screws (pan head type)

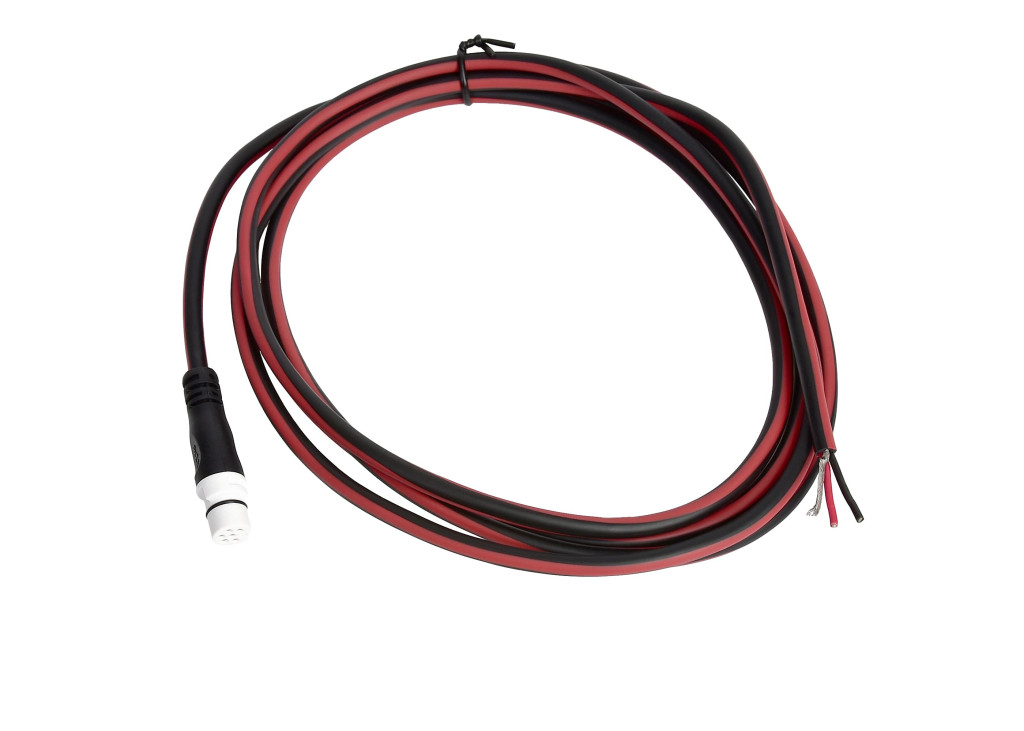

4	SeaTalkng spur to bare wires cable 1 m (3.3 ft)

Info

Article number:

RM-T70154

Website:

https://www.raymarine.com/en-gb/our-products/boat-...

Technical specification

Output
Drive current output	Maximum continuous 7 A at supply voltage

Physical
Dimensions	Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)
Weight	0.6 kg (1.32 lbs)

Environmental
Relative humidity	Max. 93%
Waterproof rating	Connector panel: IPx2, Drive electronics: IPx6
Storage temperature	-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature	-20 °C to +55 °C (-4 °F to 131 °F)

Conformance
Standards	Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Power consumption (standby)	300 mA (12 V)
Nominal supply voltage	12 V dc
Operating voltage range	10.8 V dc to 15.6 V dc
LEN (NMEA 2000 Load Equivalency Number)	1
