Raymarine EV-100 Wheel Pilot

Manufacturer:

RAYMARINE

Manufacturer Article number:

T70152

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

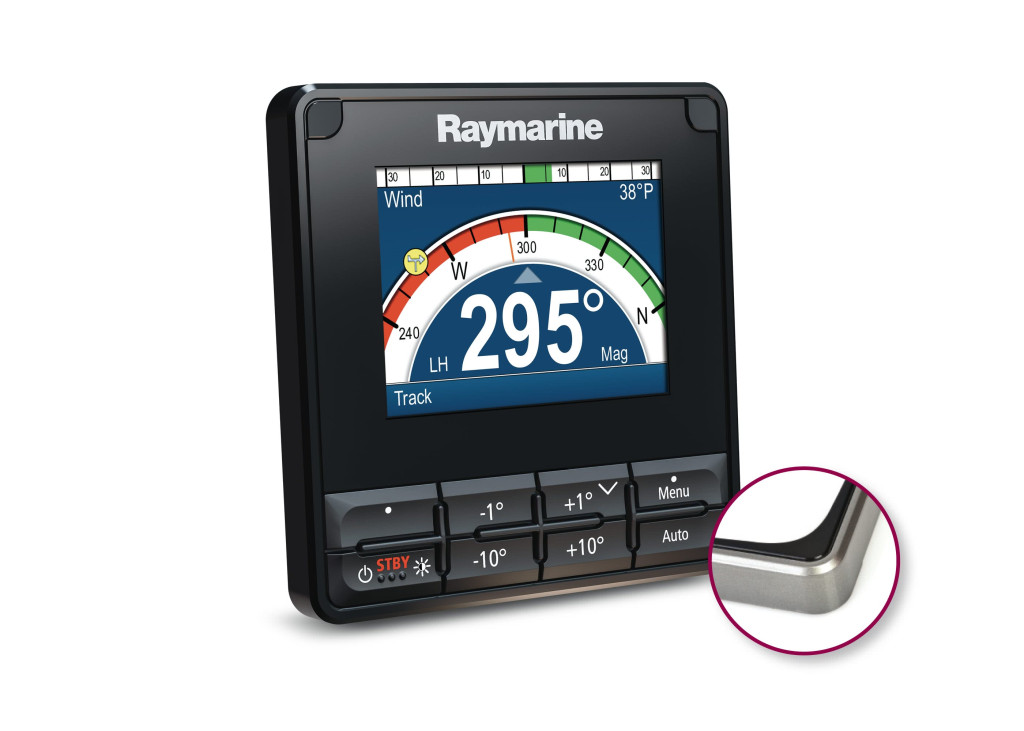

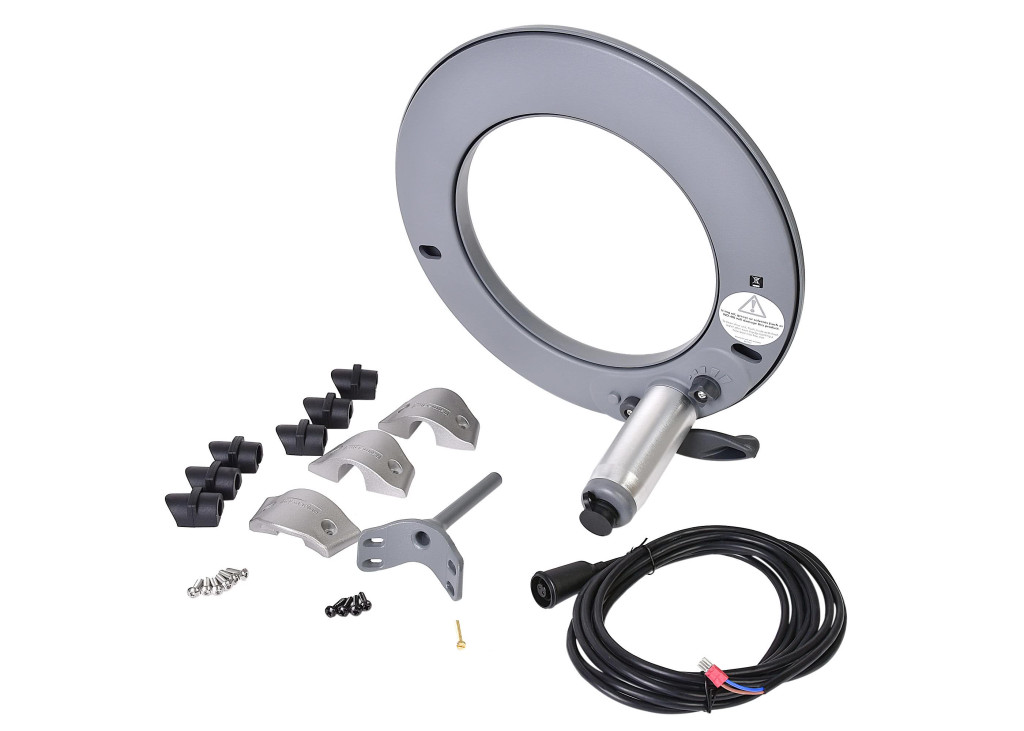

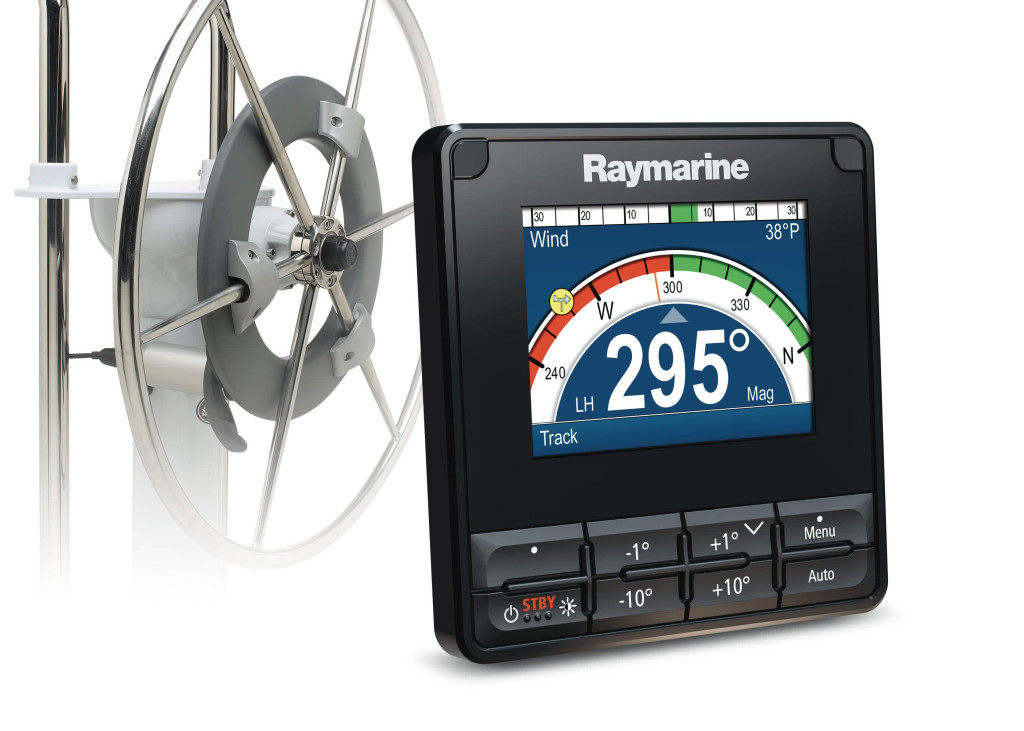

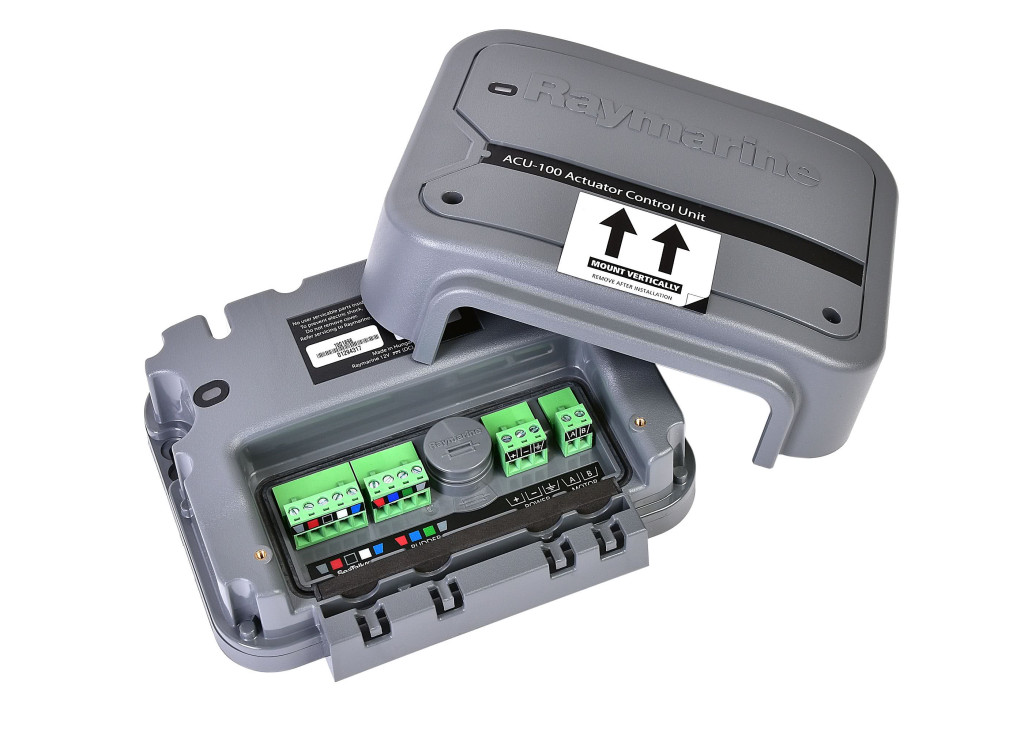

The EV-100 Wheel Pilot is a complete autopilot solution for wheel-steered sailboats. Designed for do-it-yourself installations, the EV-100 Wheel Pilot's externally mounted drive mounts in the cockpit, attached directly to the spokes of the boat's steering wheel. The EV-100 Wheel Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. EV-100 Wheel Pilot systems are available with p70s autopilot control head, or choose a system without a control head and use a Raymarine Axiom chartplotter for full autopilot control.

Details

Raymarine EV-100 Wheel Pilot

Autopilot for Wheel Steered Sailboats

EV-100 Wheel Pilot Key Features

Rated for wheel-steered sailboats up to 16,500 lbs (7,500kg) displacement
- Tech Tip: Remember to always take your vessel's fully laden displacement weight into account (often 20% above the designed displacement).
Designed for cockpit installations.
SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters
Requires no complicated setup or autopilot calibration.

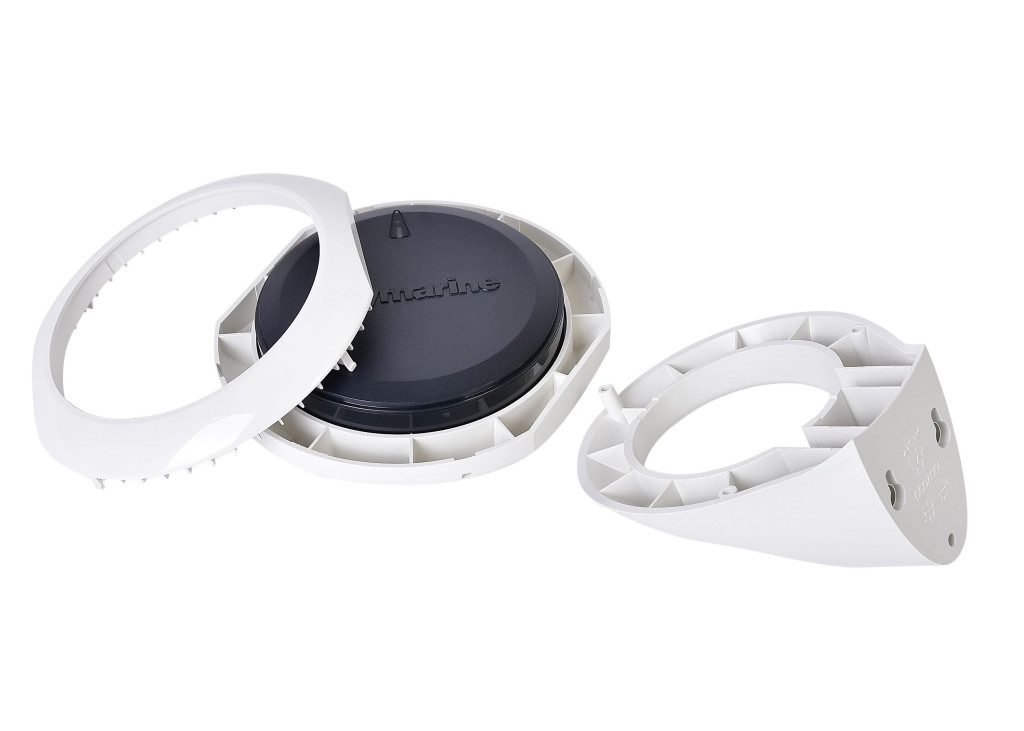

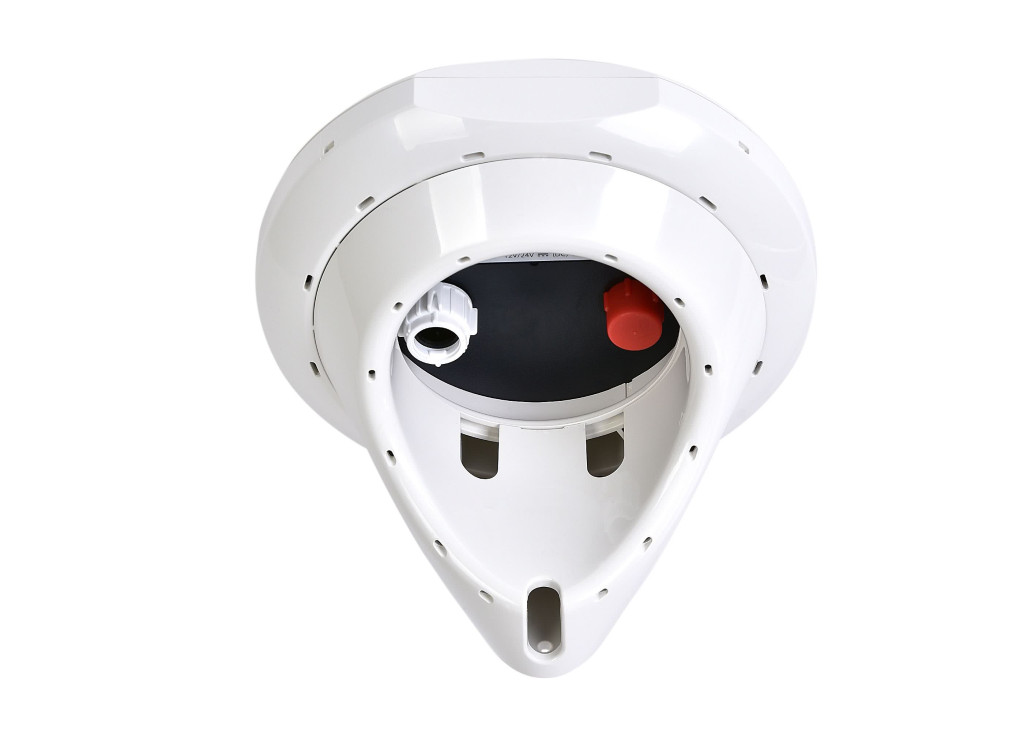

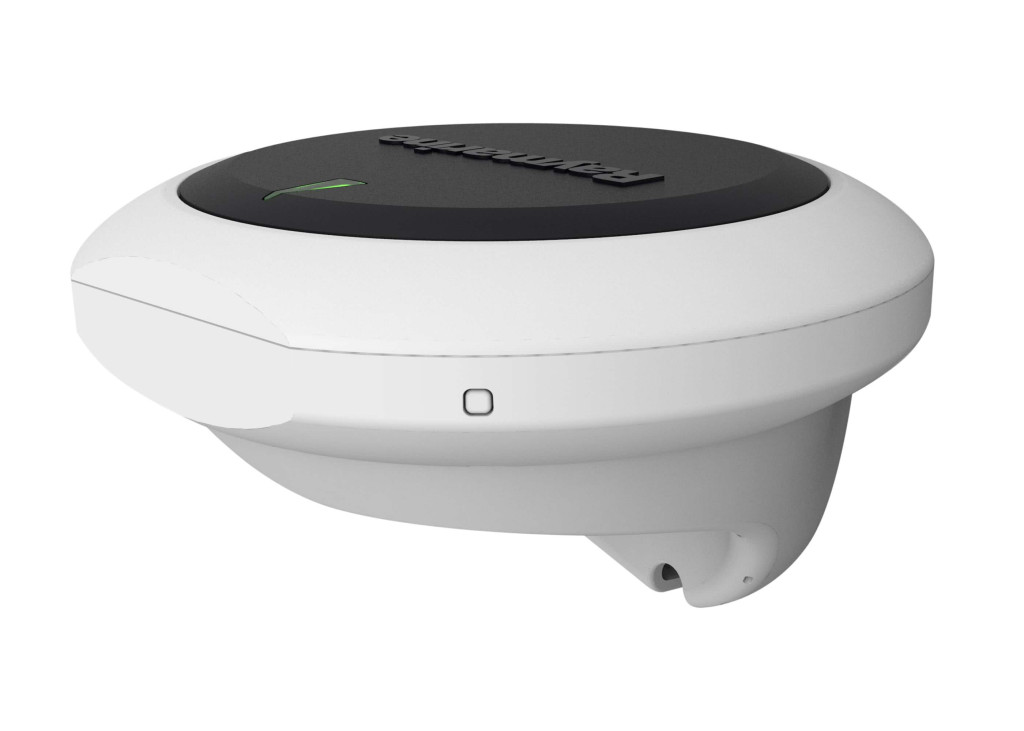

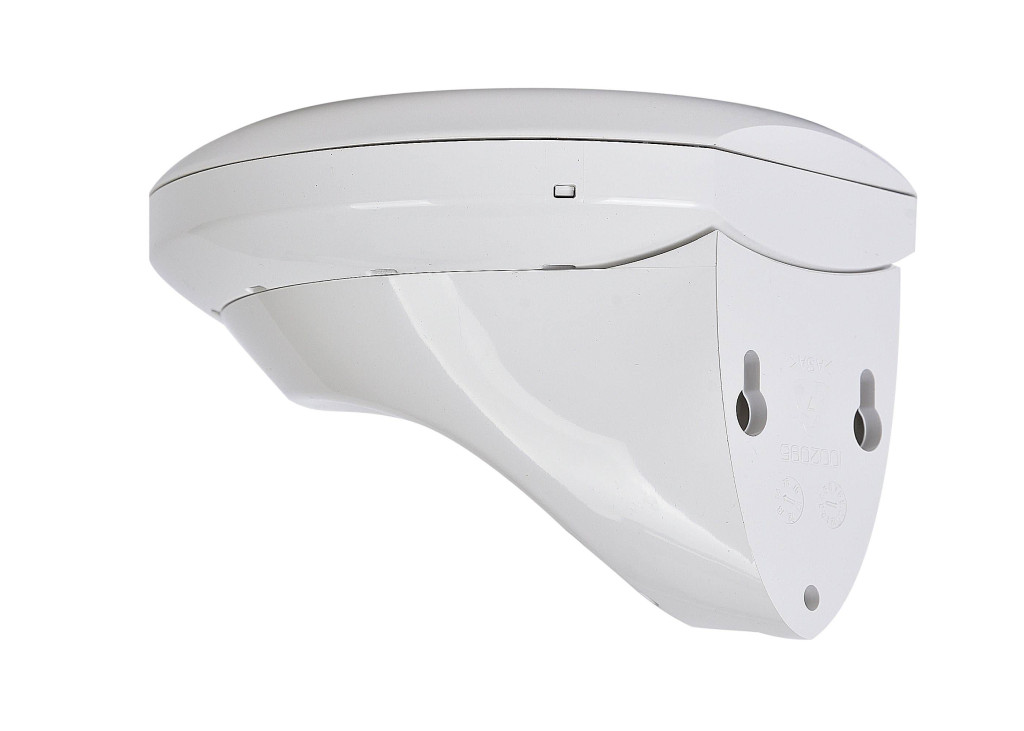

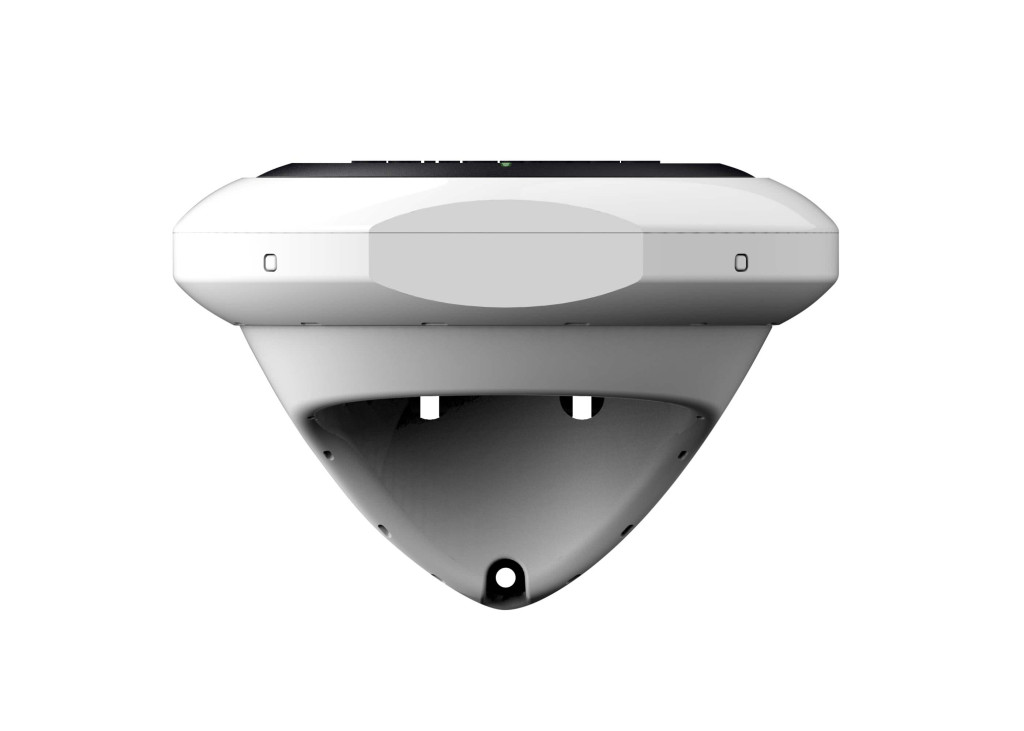

Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics

What's in the box?

1	ACU unit
2	Documentation
3	Screws (pan head type)
4	SeaTalkng spur to bare wires cable 1 m (3.3 ft)

Info

Article number:

RM-T70152

Website:

https://www.raymarine.com/en-gb/our-products/boat-...

Technical specification

Output
Drive current output	Maximum continuous 7 A at supply voltage

Physical
Dimensions	Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)
Weight	0.6 kg (1.32 lbs)

Environmental
Relative humidity	Max. 93%
Waterproof rating	Connector panel: IPx2, Drive electronics: IPx6
Storage temperature	-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature	-20 °C to +55 °C (-4 °F to 131 °F)

Conformance
Standards	Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Power consumption (standby)	300 mA (12 V)
Nominal supply voltage	12 V dc
Operating voltage range	10.8 V dc to 15.6 V dc
LEN (NMEA 2000 Load Equivalency Number)	1
