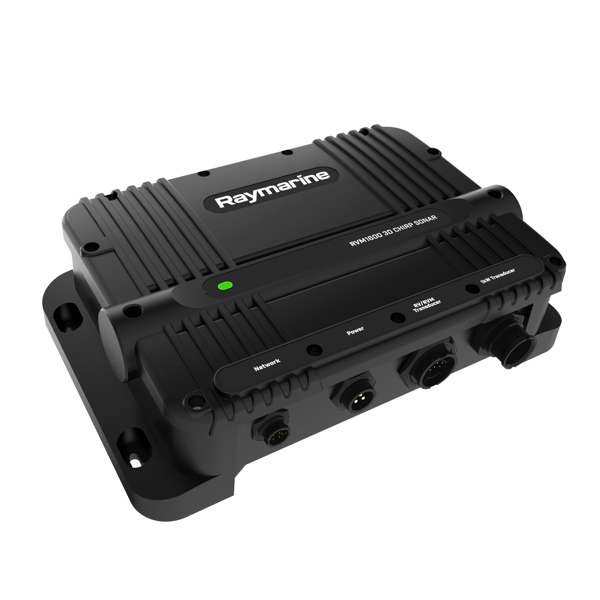

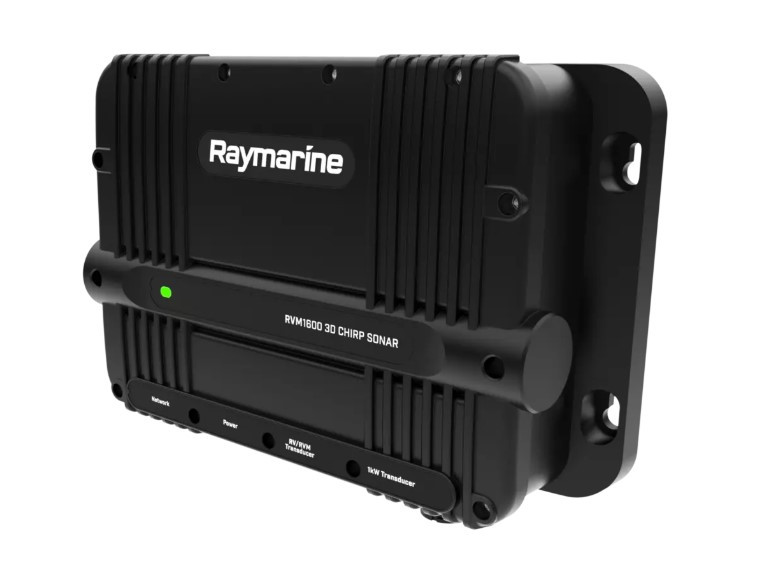

Raymarine RVM1600 RealVision Black Box Sonar

See Clearer and Go Deeper Than Ever

The RVM1600 for Axiom chartplotters takes multi-channel fish finder performance to new depths. The next generation of CHIRP DownVision, SideVision, 3D, and traditional CHIRP sonar, RealVision MAX fish finder technology delivers more power and life-like fish finder imagery so you can fish at the top of your game.

MAXIMUM CLARITY

RealVision MAX starts with high-performance CHIRP transducers, upgraded with larger elements and increased power output for extended fish finder range performance.

Next, RealVision MAX CHIRP signal processing and faster ping rates improve fish finder imagery and target identification.

With RealVision MAX, structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.

RealVision MAX Color Palettes

High-contrast color fish finder palettes are refined to accentuate targets and make fish stand out from the water column.

Maximum Range

RealVision MAX transducers are upgraded with a more powerful 600-watt High CHIRP frequency. The result is deeper range performance and stronger fish finder target returns. Track the bottom in depths greater than 1,200' (366 meters) and find fish beyond 400' (123 meters).



Multi-Channel Fish Finder

CHIRP DownVision® delivers a photo-like fish finder view of the world beneath your boat. See bottom structures and fish targets with amazing detail.

CHIRP SideVision® sonar expands your underwater horizon with full port and starboard coverage of fish, bait, and underwater structure. See further and see more fish than traditional side scanning sonars.

RealVision MAX 3D fish finder lets anglers see below, behind, and to the sides of the boat. Get a new perspective of the underwater world that simplifies locating and staying on structure

RealVision MAX Transducers

RealVision MAX transom mount and through hull transducer provide DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability to the RVM1600.  RealVision MAX transducers feature a built-in attitude and heading reference system (AHRS) for stabilizing 3D sonar imagery and automatically compensating for vessel motion.  A fast-response built-in water temperature sensor provides quick and accurate sea temperature readings.

What's in the box?

Package contents

1	RVM1600 3D CHIRP sonar module.
2	Power cable 1.5 m (4.9 ft).
3	RayNet (female) to RayNet (female) network cable 2 m (6.6 ft).
4	Documentation
5	Mounting screws M4.5 x 20 (x4).



Info

Article number:

RM-E70665

Water resistance rating:

IPX6 & 7

Website:

https://www.raymarine.com/en-gb/our-products/fishf...

Weight:

1.585 kg/pcs

Technical specification

Environmental
Relative humidity	up to 93% @ 40 °C (104 °F)
Waterproof rating	IPx6, IPx7
Non-operating temperature	-30 °C (-22 °F) to +70 °C (158 °F)
Operating temperature	-25 °C (-13 °F) to +55 °C (131 °F)

Sonar
Power output	RealVision MAX high CHIRP sonar channel: 600 Watts RMS Traditional dual channel CHIRP channel:  1kW RMS
Sonar channels	RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz) 1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
Connections	1x 3-pin Male power connector, 1x 10-pin RayNet network connector, 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, 1x 11-pin 1kW transducer connector

Conformance
Product markings	UKCA, CE, Australian RCM C-Tick, RoHS, WEEE Directive
Standards	EMC Directive 2014/30/EU, RoHS II 2011/65/EU, Worldwide Safety EN/IEC 62368-1, Europe, UK, Australia, New Zealand: EN/IEC 60945:2002, Australia and New Zealand: C-Tick, Compliance Level 2, Canada: ICES-003 (exempt when factory installed in a transport vehicle), USA: CFR47 Part 15b (SDoC exempt, installed in transport vehicle), Japan / China: ABS/CCS IEC 60945:2002, FCC Part 15.19, FCC Part 15.105 (b), ISEDC ICES-003

Physical
Depth	84.4 mm (3.32 in)
Width	299.4 mm (11.79 in)
Height (including cable bend radius)	285.6 mm (11.24 in)
Height (including connectors)	205.6 mm (8.09 in)
Height	188.0 mm (7.40 in)
Weight	1.585 kg (3.49 lbs)

Power
Inline fuse rating	5 A
Thermal breaker rating	5 A
Current	2.4 A Peak; 1.2 A RMS (Maximum) @ 12 V dc
Nominal supply voltage	12 V / 24 V dc
Operating voltage range	10.8 V to 31.2 V dc
Power consumption	10.4 W (Maximum)
