Raymarine AXIOM2 Pro 9 RVM, HybridTouch 9" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar

Manufacturer:

RAYMARINE

Manufacturer Article number:

E70654

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.

Details

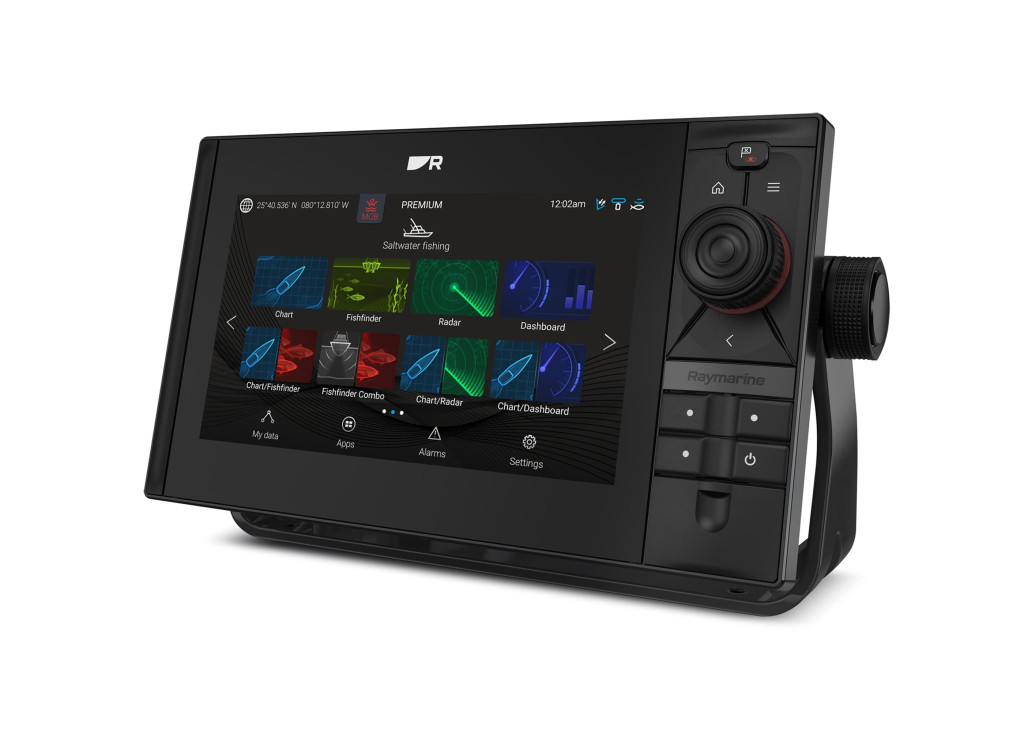

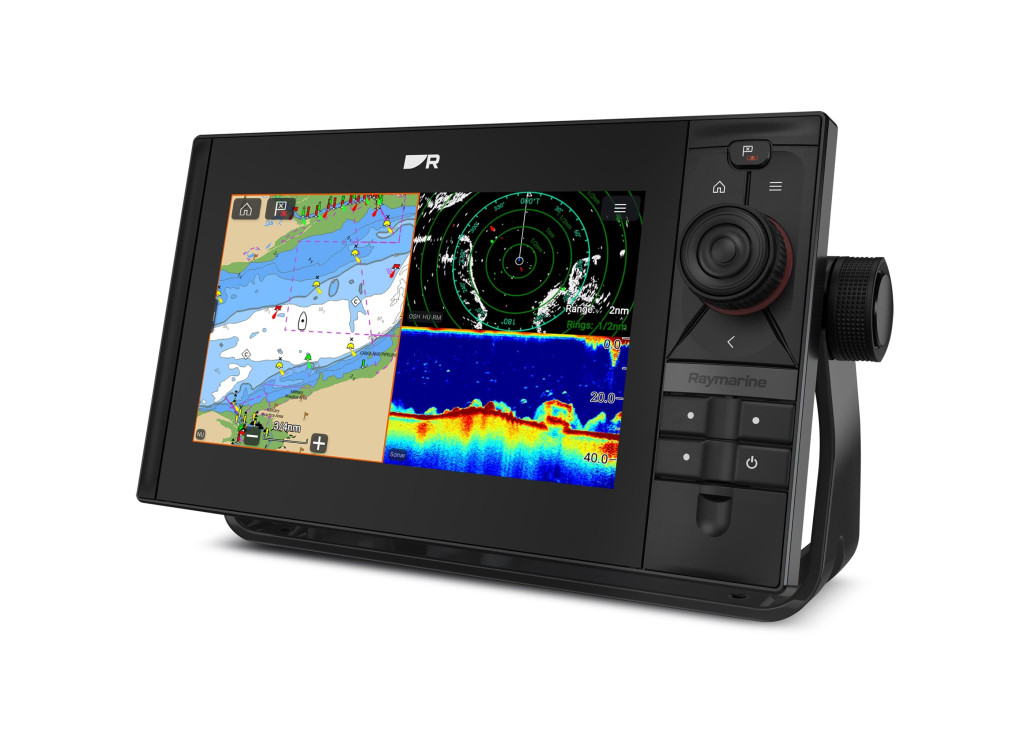

Raymarine AXIOM2 Pro 9 RVM, HybridTouch 9" Multi-function Display

Your Offshore Adventure Guide

Power That Pushes the Limits

Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.

Ready for All Conditions

Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

Confident Control

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.

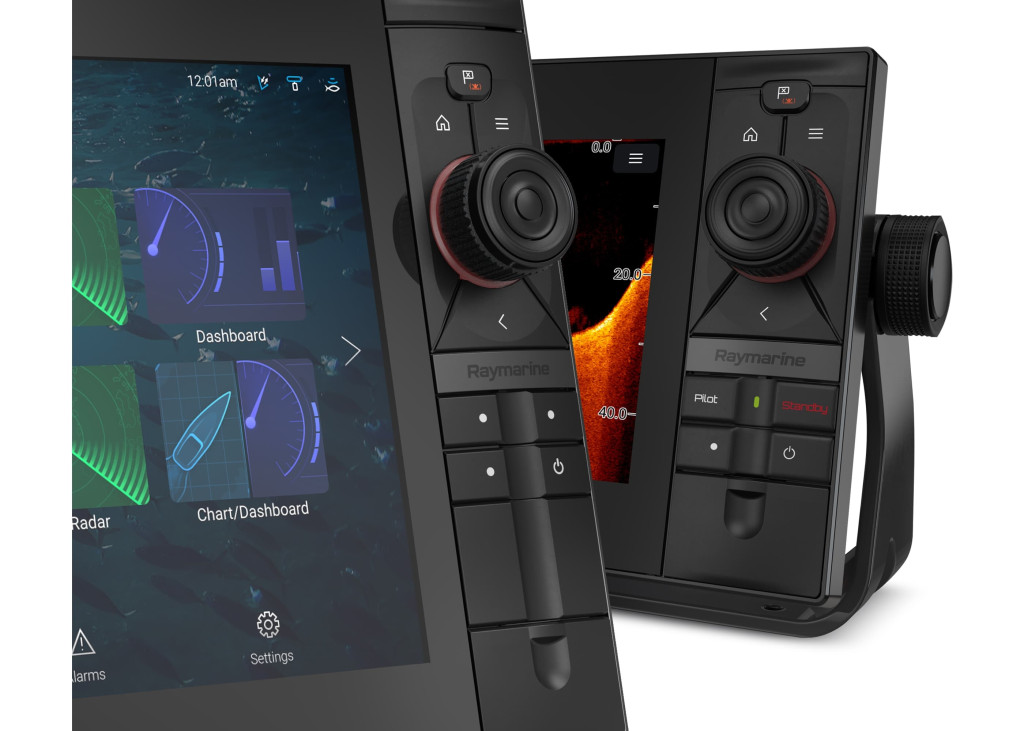

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

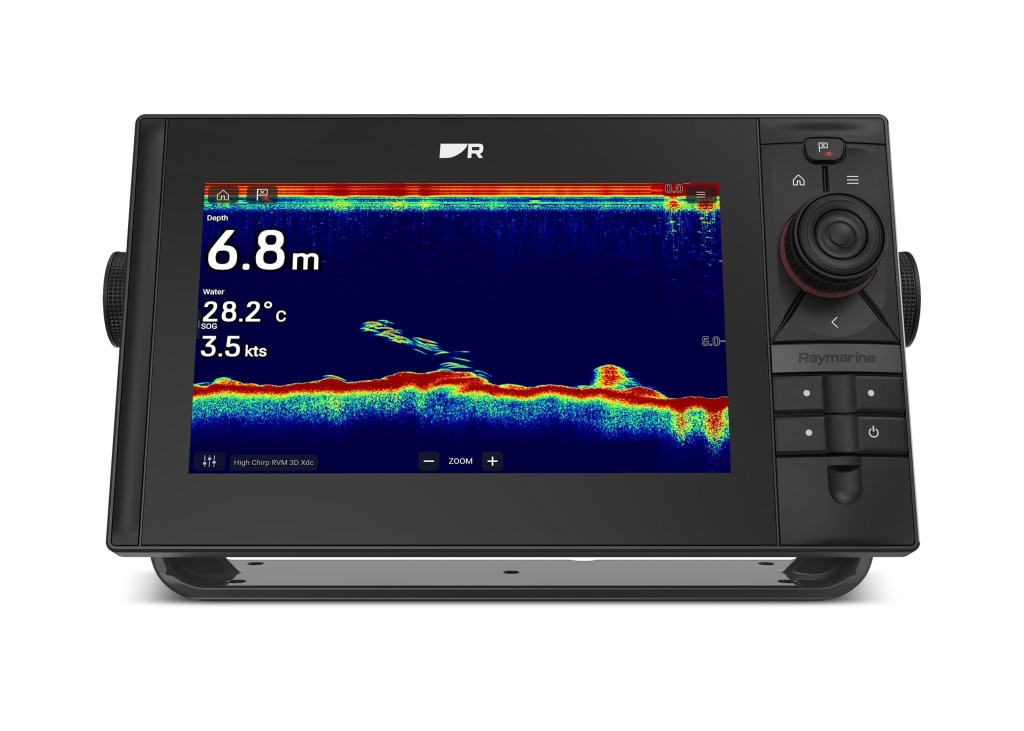

Find More Fish with RealVision MAX

RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.

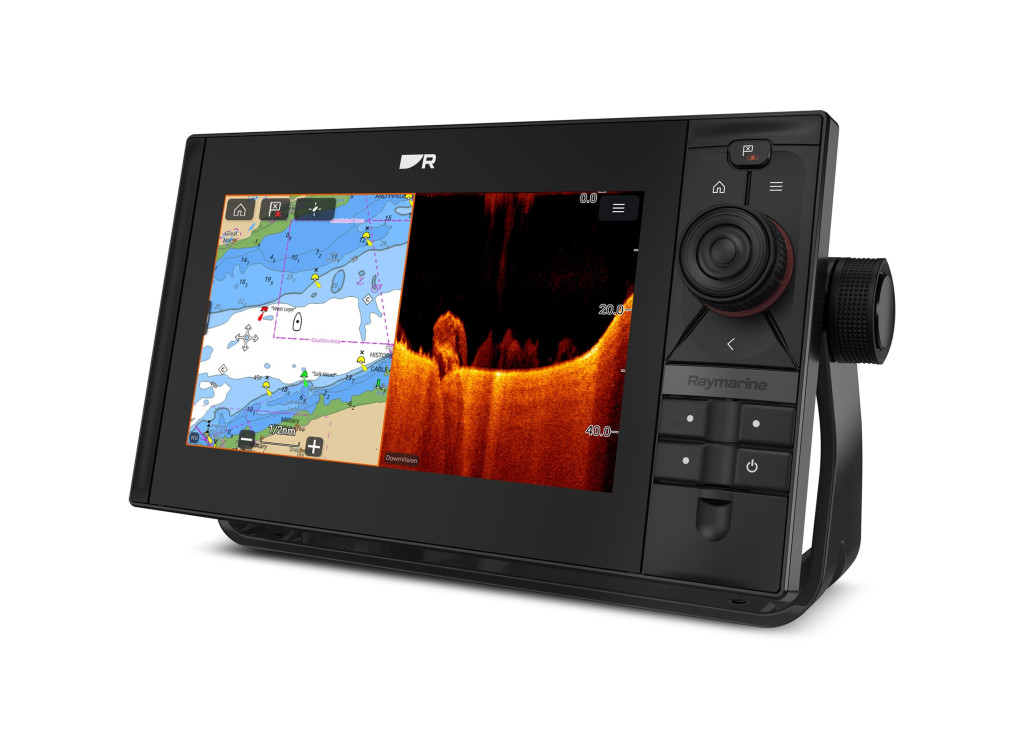

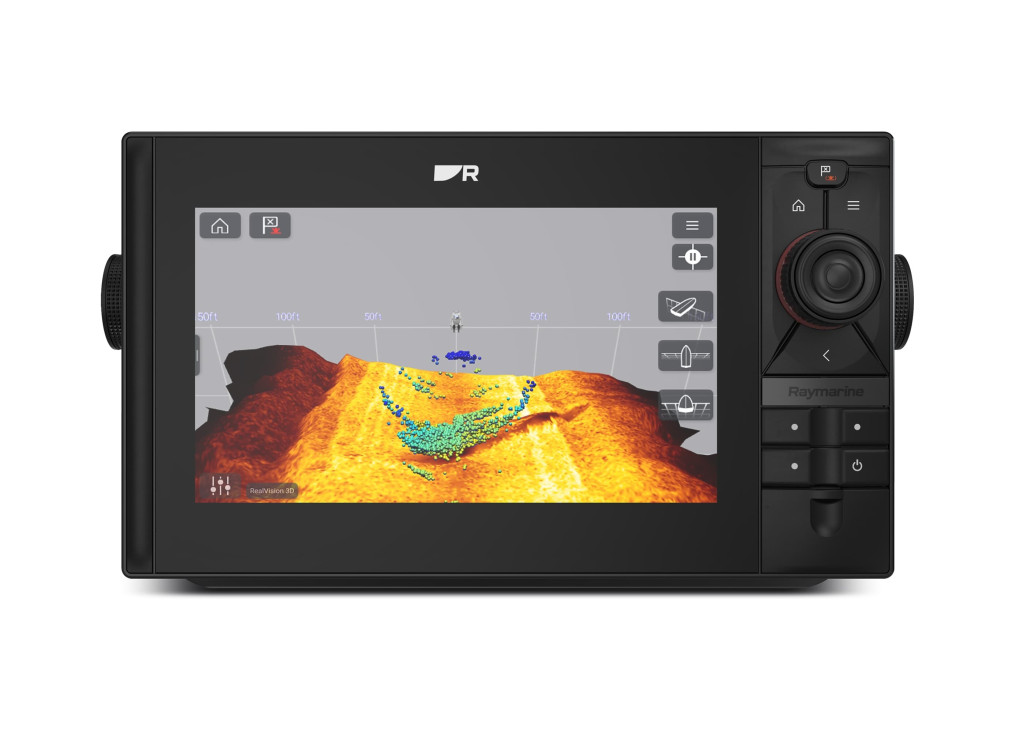

Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.

One Display- Endless Possibilities

Discover More

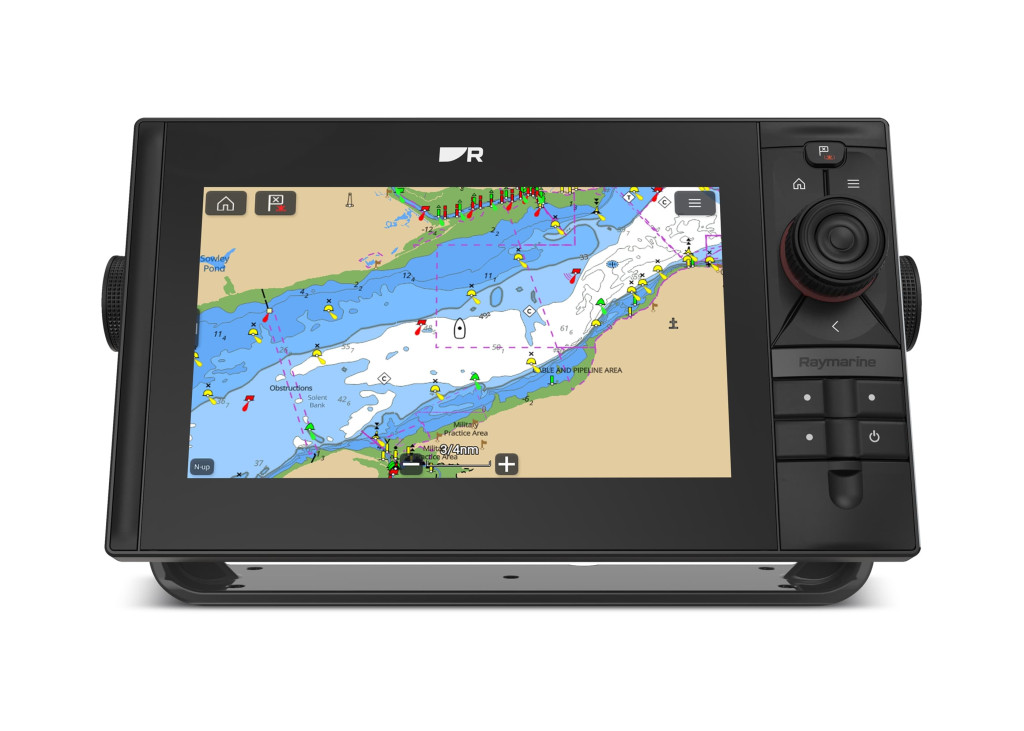

Created from official hydrographic chart sources, you can trust LightHouse Charts for maximum readability, intuitive navigation, and superior quality.

Upgrade your Awareness

Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.

Turn Night Into Day

FLIR thermal imaging and Axiom 2 Pro turn night into day, keeping you safe and secure so you can boat with confidence.

Axiom 2 Pro with ClearCruise Augmented Reality

Make Smarter Decisions

Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.

Advanced Engine Integration

Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.

Stream, Watch, and Listen

Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.

Smarter Boating

Stay Connected

Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.

Axiom on your Smartphone

Built-in Wi-Fi lets you view and control your Axiom 2 Pro on your phone or tablet with the Raymarine Mobile App.

Do More with LightHouse Apps

Expand the capabilities of our Axiom 2 Pro with third-party apps from our marine technology partners.

Create a Powerful Navigation System

Two RayNet Ethernet ports and NMEA2000 give you the flexibility to create an Axiom 2 Pro system with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.

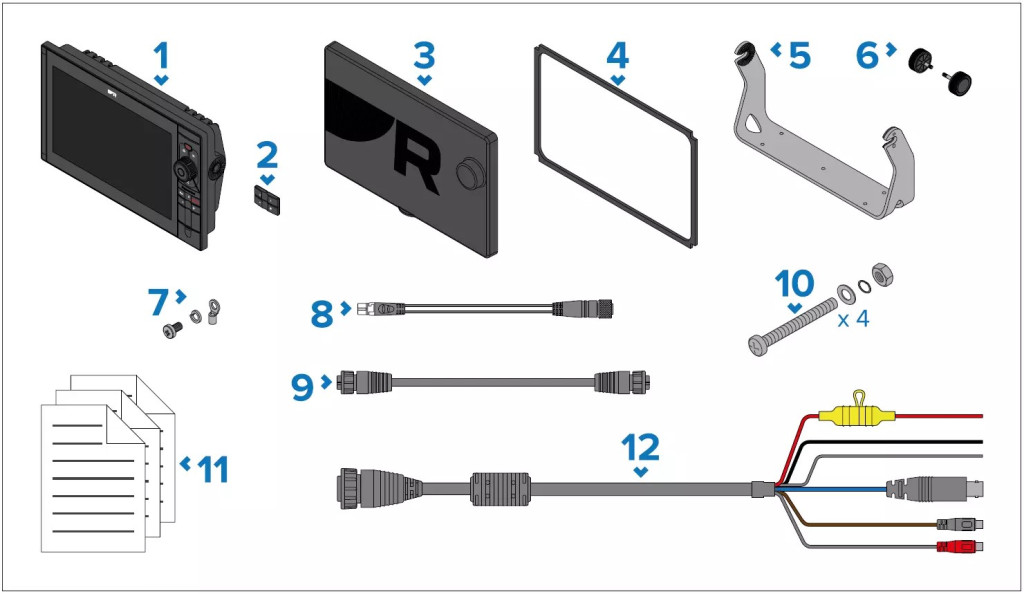

What's in the box?

1	Display unit
2	User Configurable Keypad

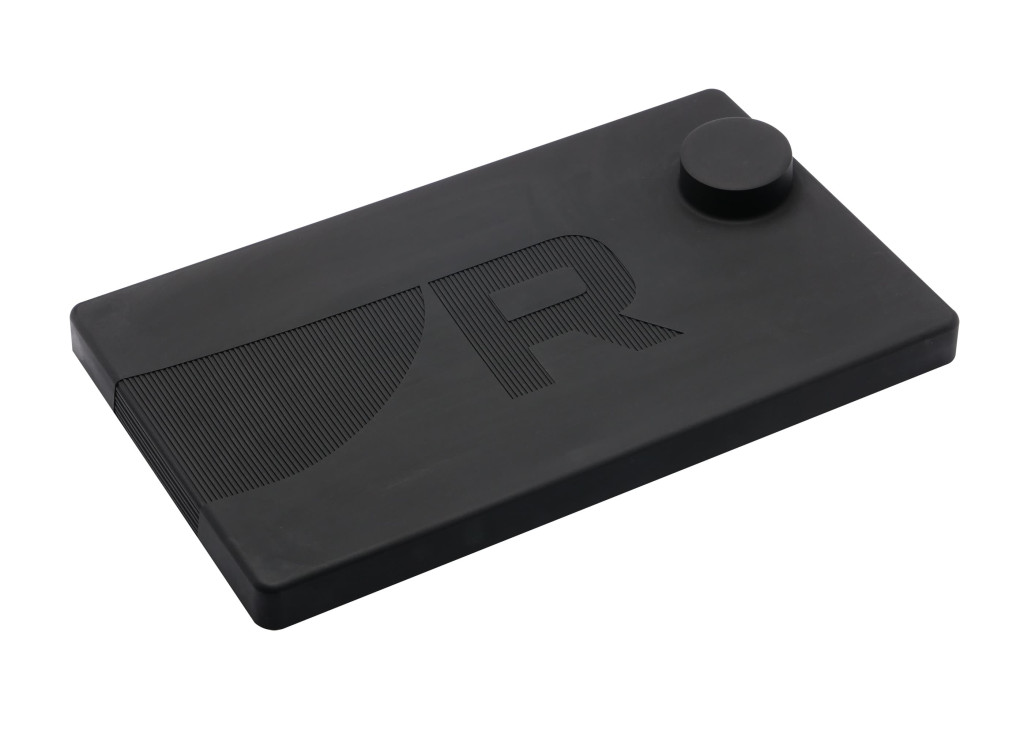

3	Suncover
4	Gasket
4	Trunnion knobs (x 2)
5	Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
7	Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
8	DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
9	RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
10	Mounting fixings x4
11	Documentation
12	Power/Video/Audio cable 1.5 m (4.92 ft)

Info

Article number:

RM-E70654

Display size (inch):

Display type :

Water resistance rating:

IPX6 & 7

Brightness (nit):

1300

Display Resolution:

1280 x 720

Website:

https://www.raymarine.com/en-gb/our-products/chart...

Technical specification

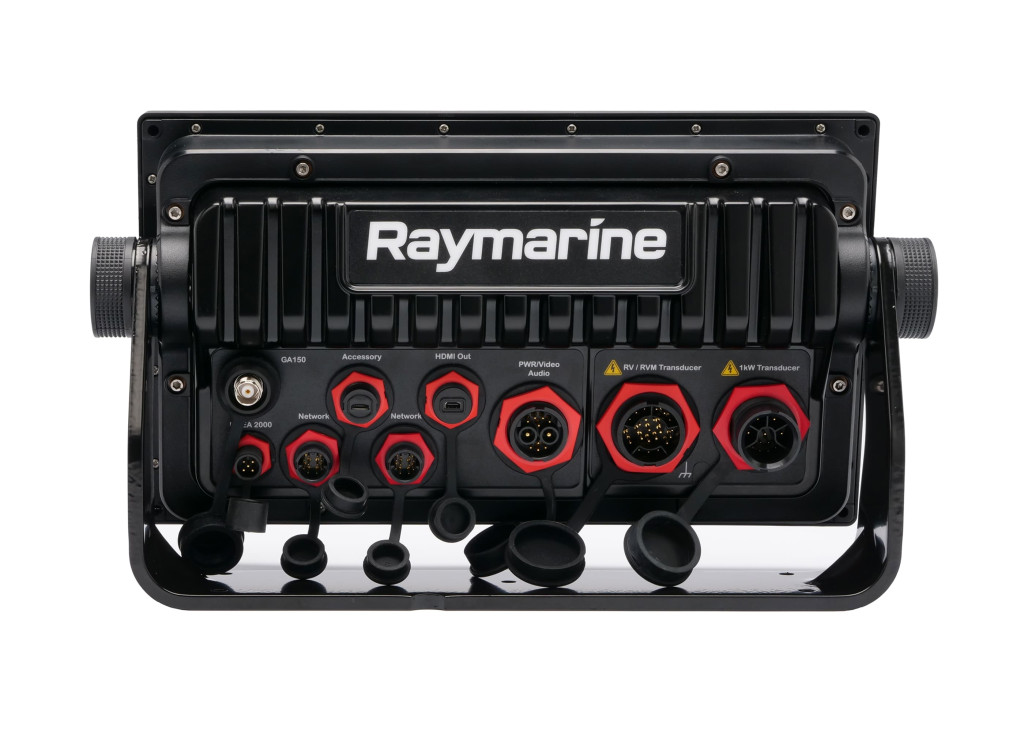

Connections
Ethernet connection	2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection	DeviceNet connector
Wi-Fi	Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth	v4.0
Accessory connection	USB Micro B
Internal storage	64GB Solid State
External storage	2 front mounted MicroSDXC card slots
Digital Video and Audio	HDMI Out Micro connector type D
Analog video connections	BNC Analog video input (on power cable)
Analog audio connections	RCA connectors via power cable
External GPS anternna	TNC connector

Physical
Dimensions (Trunnion mounted)	Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted)	Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)

Physical

Dimensions (Trunnion mounted)

Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)

Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)

Dimensions (Surface/Flush mounted)

Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)

Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)

Power
Power consumption @ 12 V dc	Axiom Pro 9: 33.12 W Axiom Pro 12: 29.88 W Axiom Pro 16: 42.36 W
Power consumption @ 24 V dc	Axiom Pro 9: 30.96 W Axiom Pro 12: 28.8 W Axiom Pro 16: 40.8 W
Operating voltage range	8 V dc to 32 V dc
Nominal supply voltage	12 V dc / 24 V dc
Off current @ 12 V dc	11 mA (0.13 W)
Off current @ 24 V dc	18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number)	1
Current	5 A
Fuse rating	15 A

Environmental
Operating temperature	-25°C to +55°C (-13°F to 131°F)
Storage temperature	-30°C to +70°C (-22°F to 158°F)
Relative humidity	Up to 93% @ 40°C (104°F)
Waterproof rating	IPx6, IPx7

LCD
Size (diagonal)	Axiom 2 Pro 9: 9.0" Axiom 2 Pro 12: 12.1" Axiom 2 Pro 16: 15.6"
Ratio	Axiom 2 Pro 9: 16:9 Axiom 2 Pro 12: 16:9 Axiom 2 Pro 16: 16:10
Resolution	Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD
Viewing angle	Top 88° / Bottom 88° / Left 88° / Right 88°
Type	IPS (In-Plane Switching)
Color depth	24-bit
Illumination	Axiom 2 Pro 9 1300 nits / 1300 cd/m2 Axiom 2 Pro 12 1200 nits / 1200 cd/m2 Axiom 2 Pro 16 1200 nits / 1200 cd/m2
Number of simultaneous touches	1 to 16

GPS (GNSS)
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)	WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels	Track up to 28 satellites simultaneously
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, Galileo, GLONASS, Beidou
Almanac Update	Automatic
Signal Acquisition	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Refresh rate	10 Hz (10 times per second)
Time to first fix from cold start	< 2 minutes

Sonar
Power output	RealVision MAX high CHIRP sonar channel: 600 Watts RMS Traditional dual channel CHIRP channel: 1kW RMS
Sonar channels	RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz) 1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
RealVision MAX Depth range	25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft)
1 kW Depth range	11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)
Connections	1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector
