Raymarine AXIOM+ 7 RV, Multi-function 7" Display with integrated RealVision 3D, 600W Sonar, no transducer (Without Chart)

Manufacturer:

RAYMARINE

Manufacturer Article number:

E70635

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

Axiom®+ RV is a new generation of Axiom chartplotters with RealVision^TM3D CHIRP sonar technology. Upgraded with 25 percent brighter displays, Axiom+ RV displays will up your fishfinding game.

Details

AXIOM+ 7 RV, Multi-function 7" Display

Award Winning Chartplotter - Plus more

Axiom®+ RV is a new generation of Axiom chartplotters with RealVision^TM3D CHIRP sonar technology. Upgraded with 25 percent brighter displays, Axiom+ RV displays will up your fishfinding game.

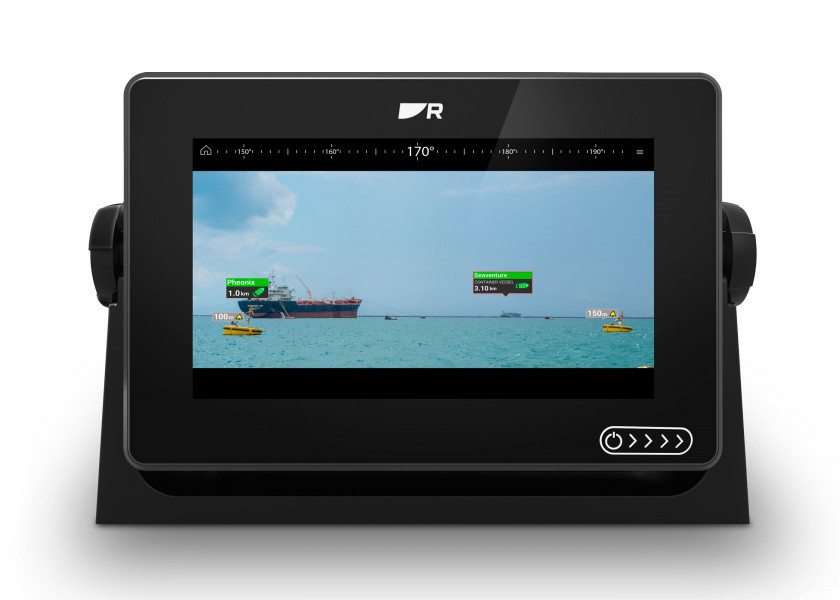

A quad-core processor delivers responsive performance and gives you the power to expand Axiom+ RV with solid state radar and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality.

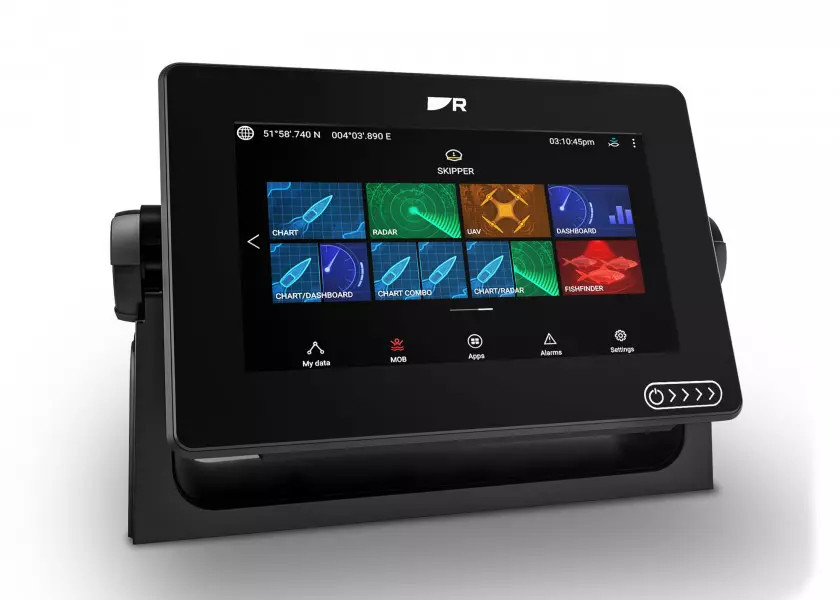

Axiom+ RV puts you in command with its advanced LightHouse operating system, making it easy to navigate and find fish with Axiom+ RV's CHIRP SideVision, DownVision, conventional CHIRP, and RealVision 3D sonar channels.

RealVision 3D Sonar

High Frequency CHIRP sonar for targeting fish and determining bottom density

CHIRP DownVision sonar for high definition views of structure, fish habitat and man-made objects

CHIRP SideVision for scanning beyond casting distance to see fish, structure and submerged objects out to the sides of the boat

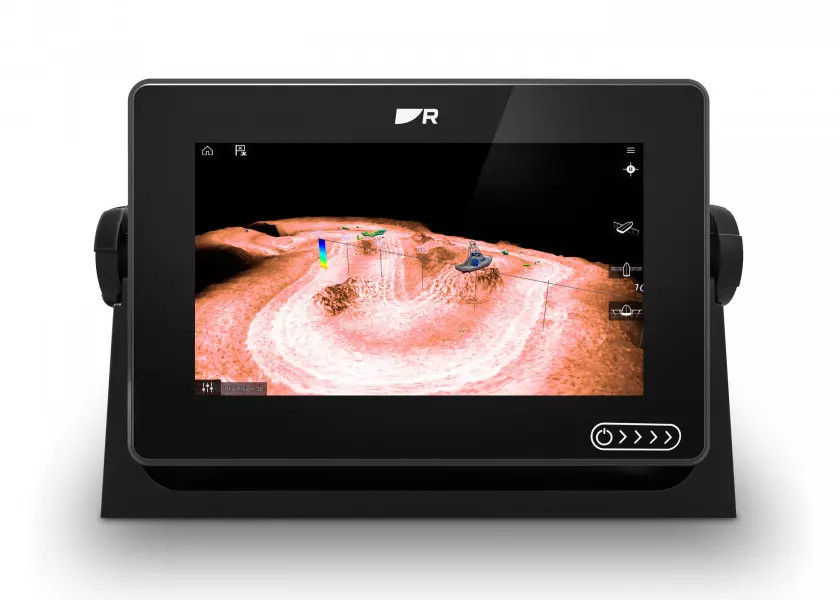

RealVision 3D Sonar which provides a gyro-stabilized, GPS-locked bathymetric model of the bottom and water column

Built-In 600W Digital Sonar at 50 kHz and 200 kHz. Add an optional adapter cable and AIRMAR transducer to your Axiom+ RV system and fish to even deeper depths with increased power and lower frequencies.

Maximum Visibility

Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.

Improved viewing with new LightHouse color themes, including Day, Dusk and Night mode.

25 percent brighter (up to 1,800 nits)

Performance Tuned

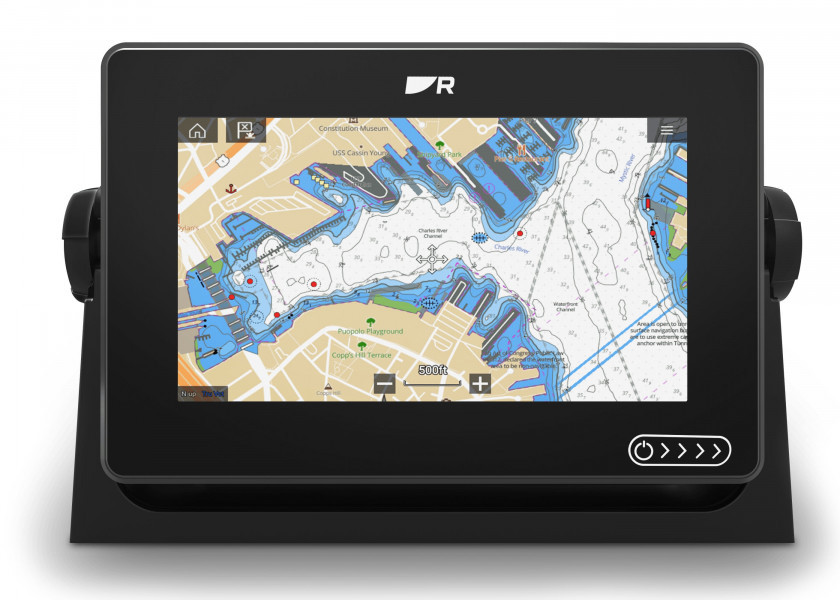

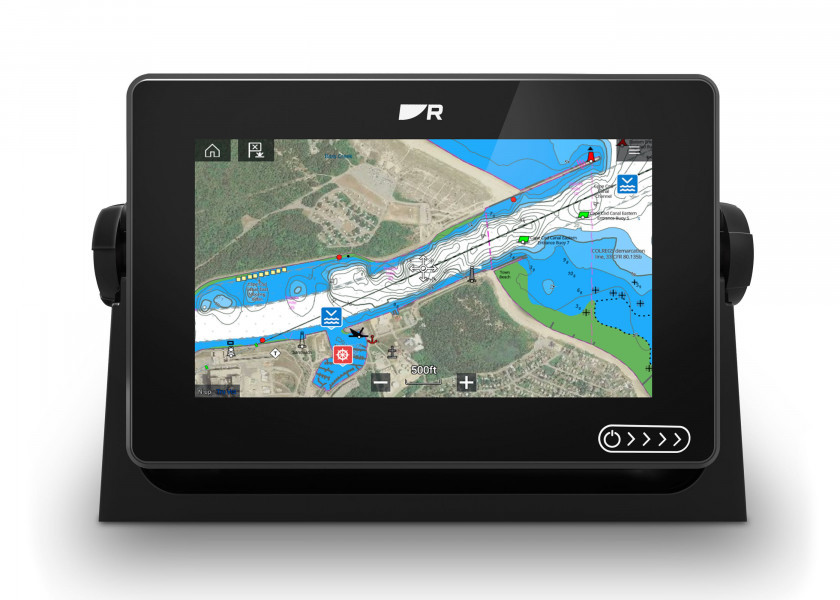

Fast and fluid chart redraw of LightHouse, Navionics and C-MAP electronics charts.

Powerful quad-core processor, plus increased onboard storage for personal data and apps.

Smart and intuitive LightHouse OS makes navigating easy.

Ready to Expand - Network with multiple displays, radars, engines, marine cameras, and more.

HydroTough display coating for wet weather touch screen operation

HydroTough^TM

Axiom+ features HydroTough nano-coated, impact-resistant screens that dispels water, oil, and smudges.

All-weather HydroTough technology delivers improved color and contrast and accurate touch controls - even when wet.

What's in the box?

1	MFD (Chartplotter)
2	Trunnion bracket
3	Trunnion knobs x 2
4	Suncover
5	Documentation
6	Panel mount gasket
7	Threaded studs (M5x58) x 4
8	Thumb nuts (M5) x 4
9	Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
10	DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)

Info

Article number:

RM-E70635

Display size (inch):

Display type :

WSVGA

Water resistance rating:

IPX6 & 7

Brightness (nit):

1800

Display Resolution:

1024 x 600

Website:

https://www.raymarine.com/en-gb/our-products/chart...

Technical specification

Physical
Dimensions (Trunnion mounted)	Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
Dimensions (Surface/Flush mounted)	Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)

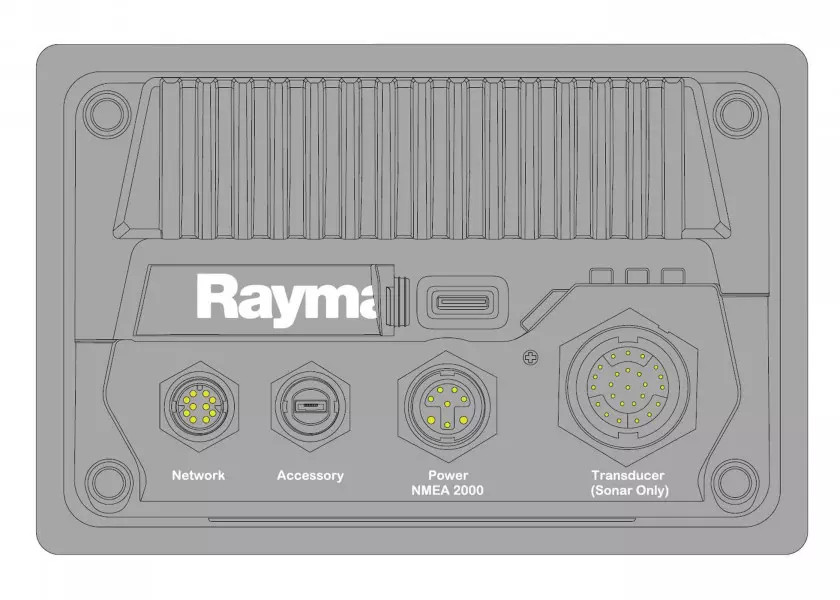

Accessory connection	USB Micro B
Ethernet connection	RayNet (10/100 Mbits/s)
External storage	MicroSDXC card slot x 1
NMEA 2000 connection	DeviceNet (male connector built into power cable)
Wireless connections	Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Internal storage	16 GB Solid State (14 GB usable)
Transducer connection	25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers

LCD
Size (diagonal)	Axiom+ 7: 7" Axiom+ 9: 9" Axiom+ 12: 12"
Resolution	Axiom+ 7: WSVGA 1024 x 600 Axiom+ 9: Widescreen HD 1280 x 720 Axiom+ 12: WXGA 1280 x 800
Viewing angle	Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°
Illumination	Axiom+ 7: 1800 nits / 1800 cd/m2 Axiom+ 9:1500 nits / 1500 cd/m2 Axiom+ 12: 1800 nits / 1800 cd/m2
Protective coating	HydroToughTM Oleophobic
Type	IPS (In-Plane Switching)
Color depth	24-bit
Number of simultaneous touches	2

Power
Power consumption	Axiom+ 7: 9.84 W Axiom+ 9: 11.98 W Axiom+ 12: 18.96 W
Operating voltage range	8 V dc to 16 V dc
Fuse rating	7 A
Nominal supply voltage	12 V dc
LEN (NMEA 2000 Load Equivalency Number)	1

Sonar
Depth range	CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)

Environmental
Operating temperature	-25°C to +55°C (-13°F to 131°F)
Storage temperature	-30°C to +70°C (-22°F to 158°F)
Relative humidity	Up to 93% @ 40°C (104°F)
Waterproof rating	IPx6, IPx7

GPS
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)	WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels	Track up to 28 satellites simultaneously
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, GLONASS, Beidou
Almanac Update	Automatic
Signal Acquisition	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Refresh rate	10 Hz (10 times per second)
Time to first fix from cold start	< 2 minutes
