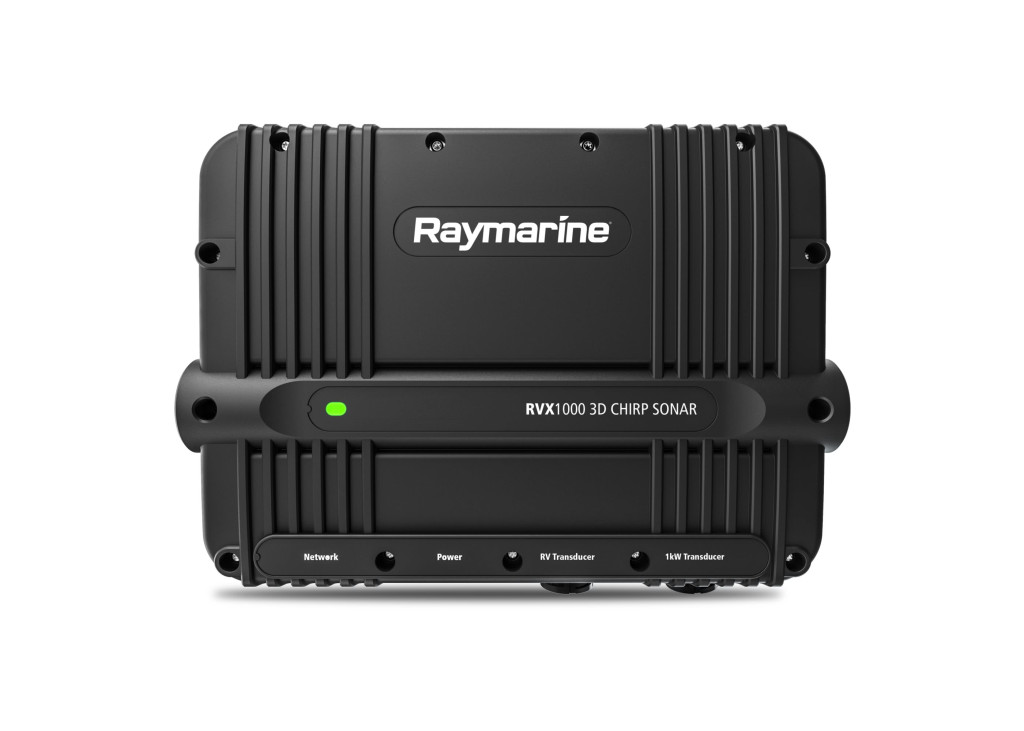

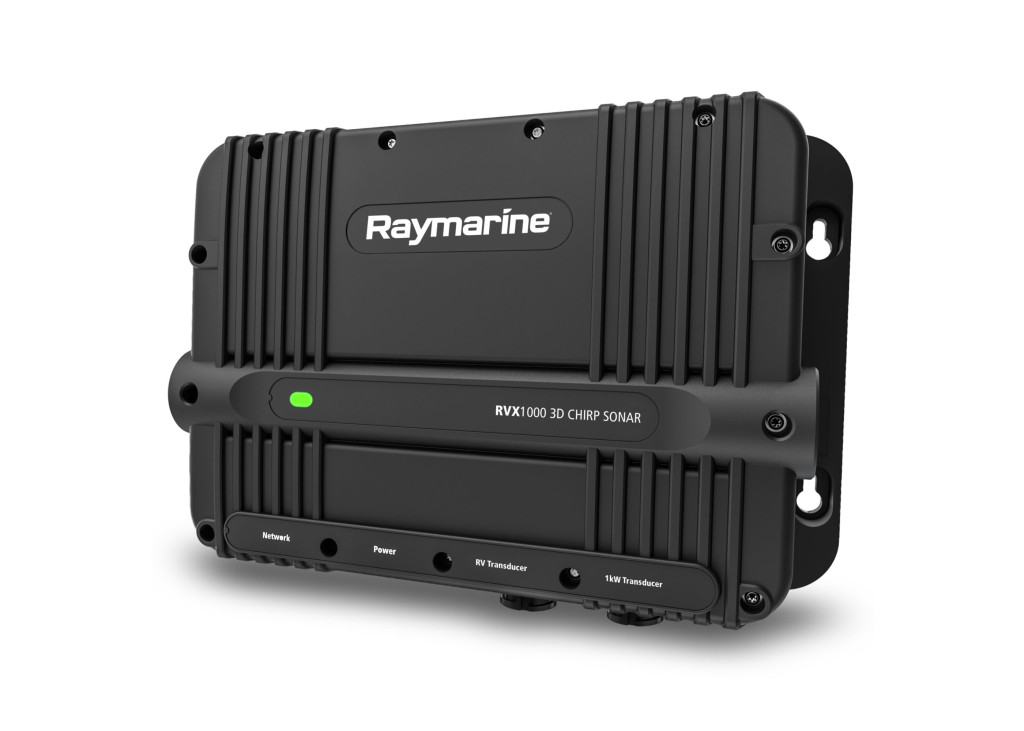

Raymarine RVX1000 RealVision Black Box Sonar

High-Performance 3D CHIRP Sonar Module

The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.



Powerful All-In-One Sonar

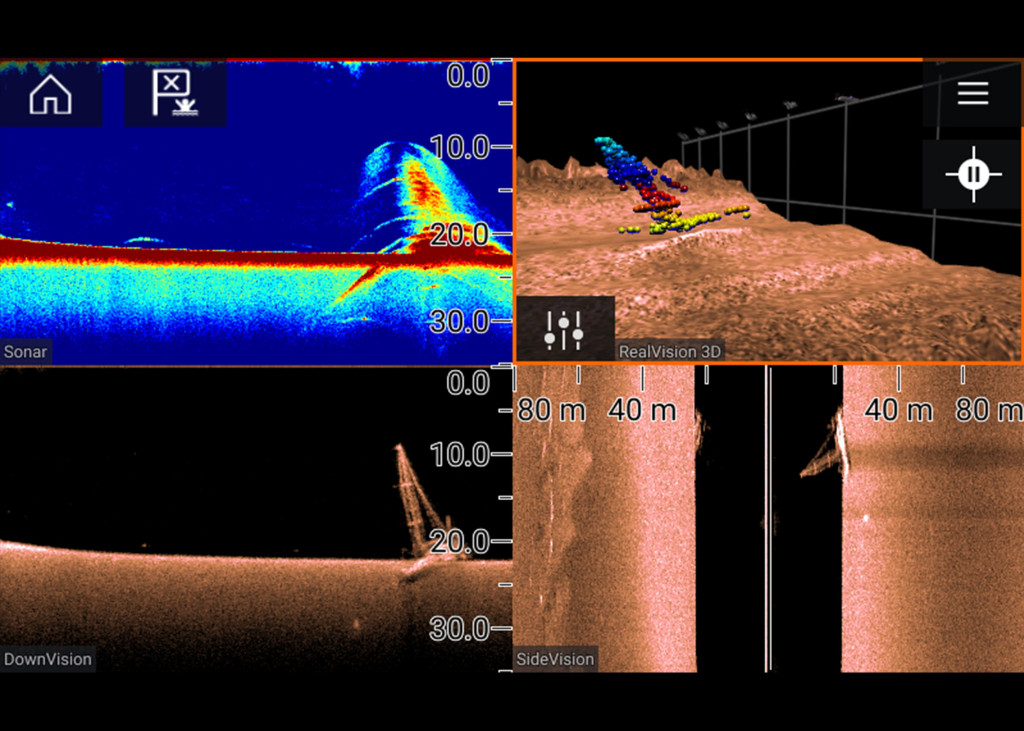

All-in-one sonar module with 5 channels for both inshore and offshore fishing.

• RealVision 3D
• CHIRP SideVision
• CHIRP DownVision
• Low-power, high-frequency CHIRP
• 1kW high-powered CHIRP Sonar (Low, Medium, High CHIRP, 50/80/100/160/200kHz)



Advanced Sonar Features

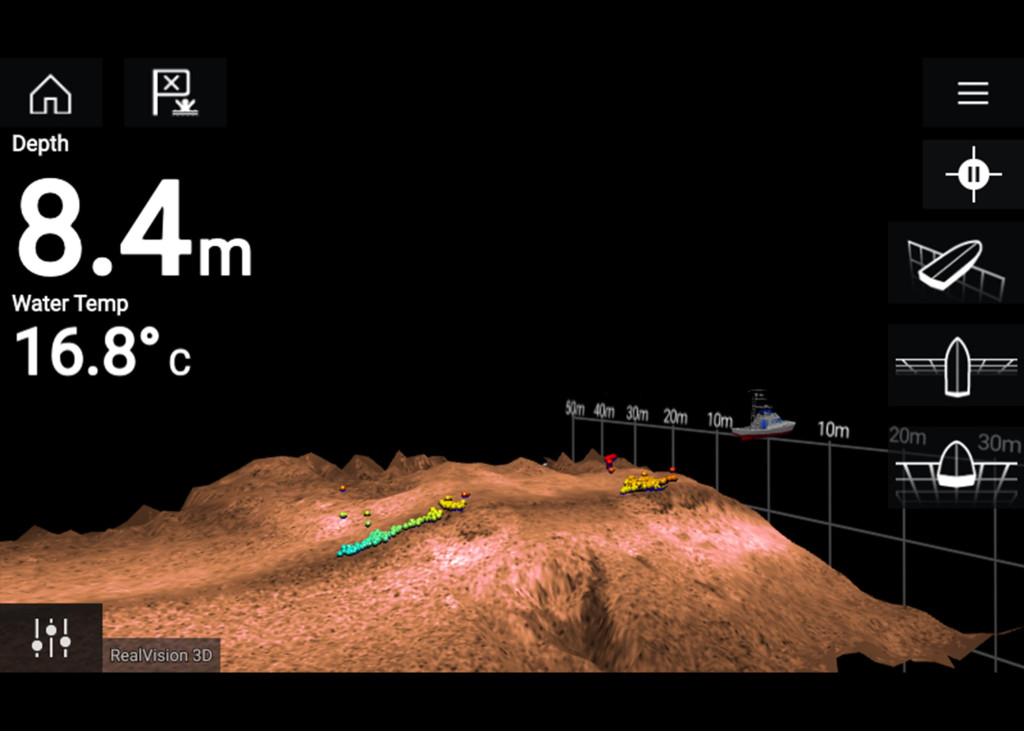

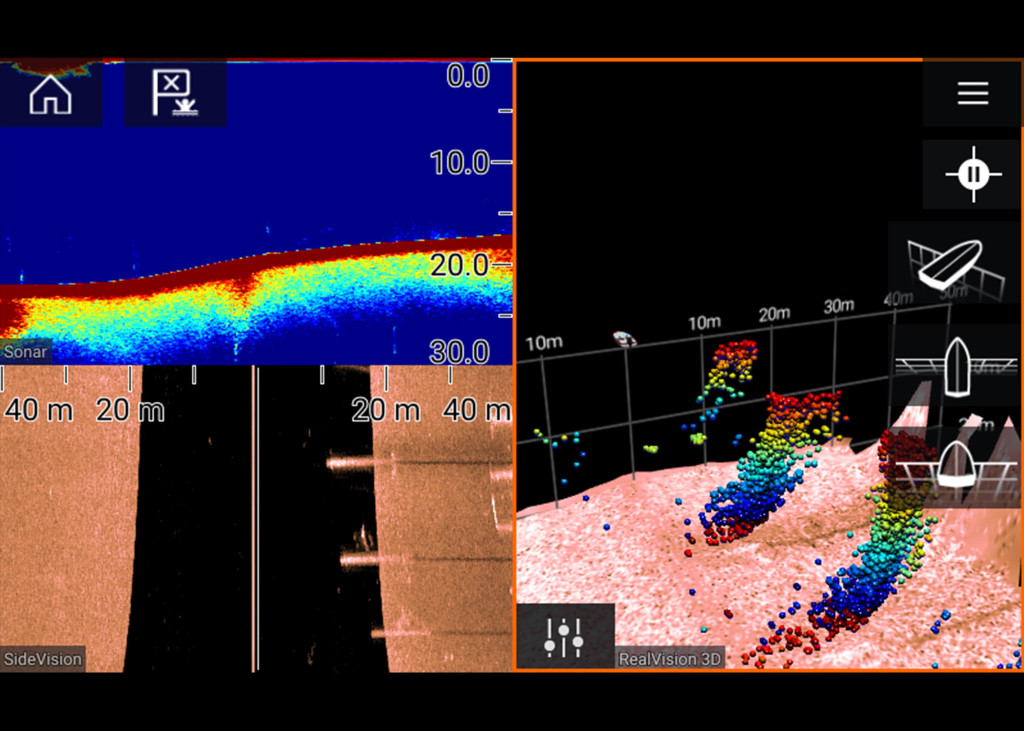

Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar.

• Sonar Scroll Back - rewind, pause and playback up to 10 minutes recorded sonar history to take a closer look at fish and structure, and easily plot waypoints.
• TruZoom™ magnification reveals extra target detail without loss of resolution.
• GPS Track feature uses precision GPS to construct the most accurate 3D model of the underwater world, in real-time.



Performance Upgrade

Powerful 3D sonar upgrade solution for Raymarine eS and gS Series line of multifunction displays.

• The RVX1000’s dedicated quad core processor allows previous generation MFD’s to run multiple sonar channels simultaneously without any compromise in performance.

What's in the box?



1	Sonar module
2	Power cable 1.5 m (5 ft)
3	Fixing screws (No. 8) x 4
4	Documentation
5	RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)

Info

Article number:

RM-E70511

Water resistance rating:

IPX6 & 7

Website:

https://www.raymarine.com/en-gb/our-products/fishf...

Weight:

1.59 kg/pcs

Technical specification

Environmental
Relative humidity	up to 93% @ 40°C (104°F)
Waterproof rating	IPx6, IPx7
Storage temperature	-30°C to +70°C (-22°F to 158°F)
Operating temperature	-25°C to +55°C (-13°F to 131°F)

Sonar
Power output	Up to 1 kW RMS
Depth range	0.9 m (3 ft) to 1,524 m (5,000 ft) (in optimum conditions using a 1 kW transducer)

Physical
Connections	Power connection, Network connection (RayNet connector) 10 / 100 Mb/s, Transducer connection x 2
Dimensions	Height: 188.0 mm (7.40 in), Width: 299.4 mm (11.79 in), Depth: 84.4 mm (3.32 in)
Weight	1.59 kg (3.49 lbs)

Conformance
Standards	EN 60945:2002, EMC Directive 2014/30/EU, EN 60950-1:2006+A2:2013, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Fuse rating	5 A
Current	2.4 A Peak; 1.2 A RMS
Nominal supply voltage	12 V dc / 24 V dc
Operating voltage range	10.8 V dc to 31.2 V dc
Power consumption	10.4 W
