Raymarine ACU-150 Actuator Control Unit

Article No.:
RM-E70430
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Manufacturer:
RAYMARINE
Manufacturer Article number:
E70430
Main warehouse
Out of stock
External warehouse
Out of stock
Delivery time approx: 1-2 Weeks!

Evolution autopilot actuator control unit for hydraulic steering only

Csomagajánlatok
  • Details
  • Info
  • Technical specification
Details

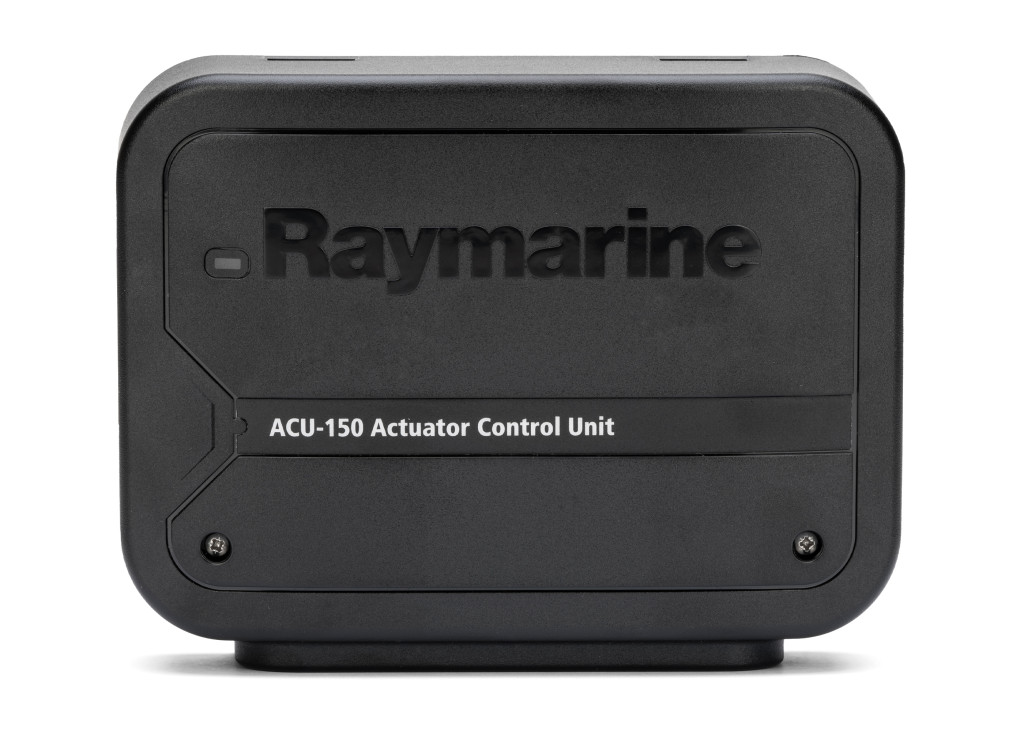

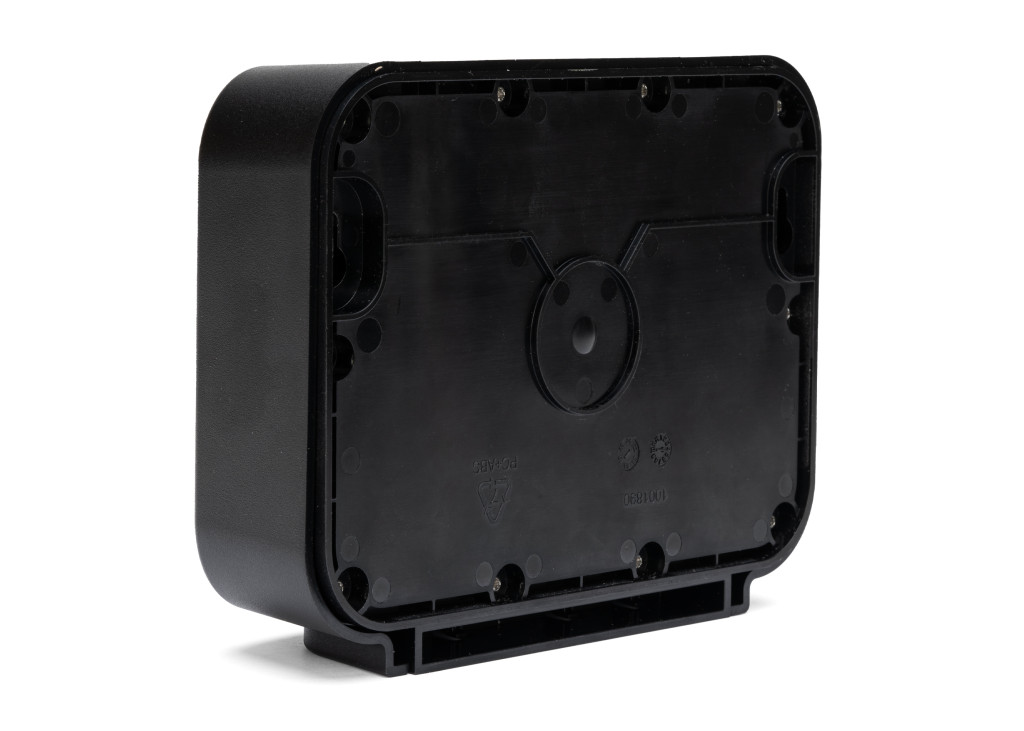

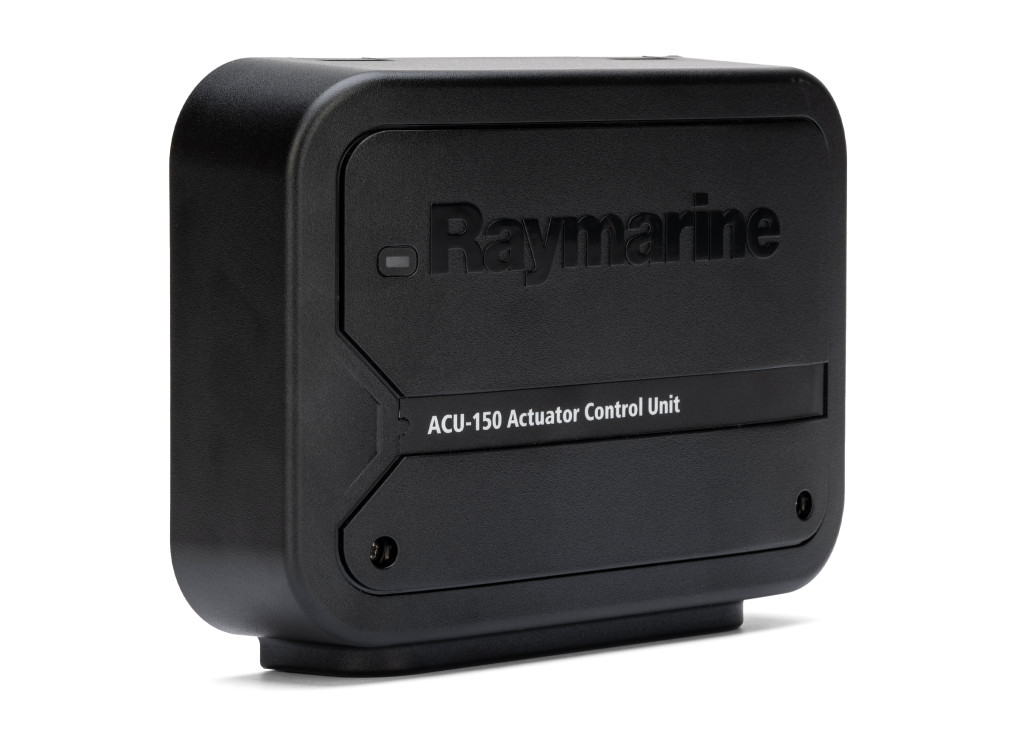

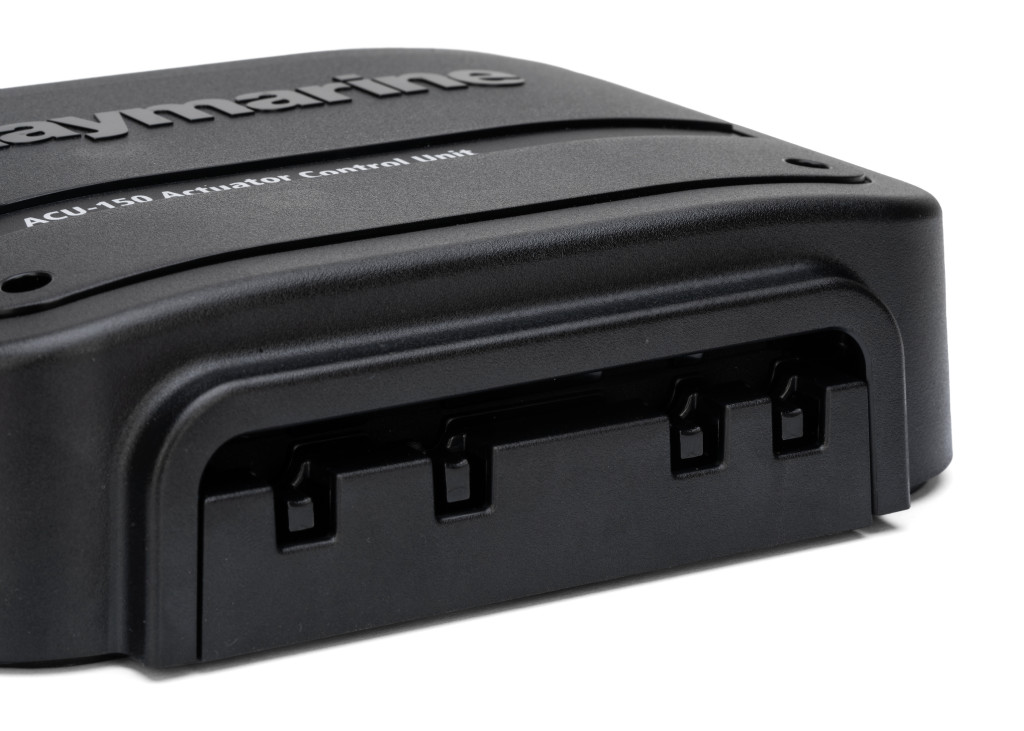

Raymarine ACU-150 Actuator Control Unit

ACU-150 Overview

The ACU-150 (Actuator Control Unit) is a key component for Evolution autopilots used on vessels with hydraulic steering. The ACU-150 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12-volt DC electrical source. Pair the ACU-150 with a Type 1 12-volt hydraulic drive unit.  The ACU-150 and Type 1 hydraulic pump combination is designed for hydraulic steering systems with a steering ram capacity between 4.9 cu. in.( 80cc) and 14.0 cu in (230cc). Combine with an EV-1 sensor, autopilot control head, and Type 1 hydraulic pump for a complete autopilot system.

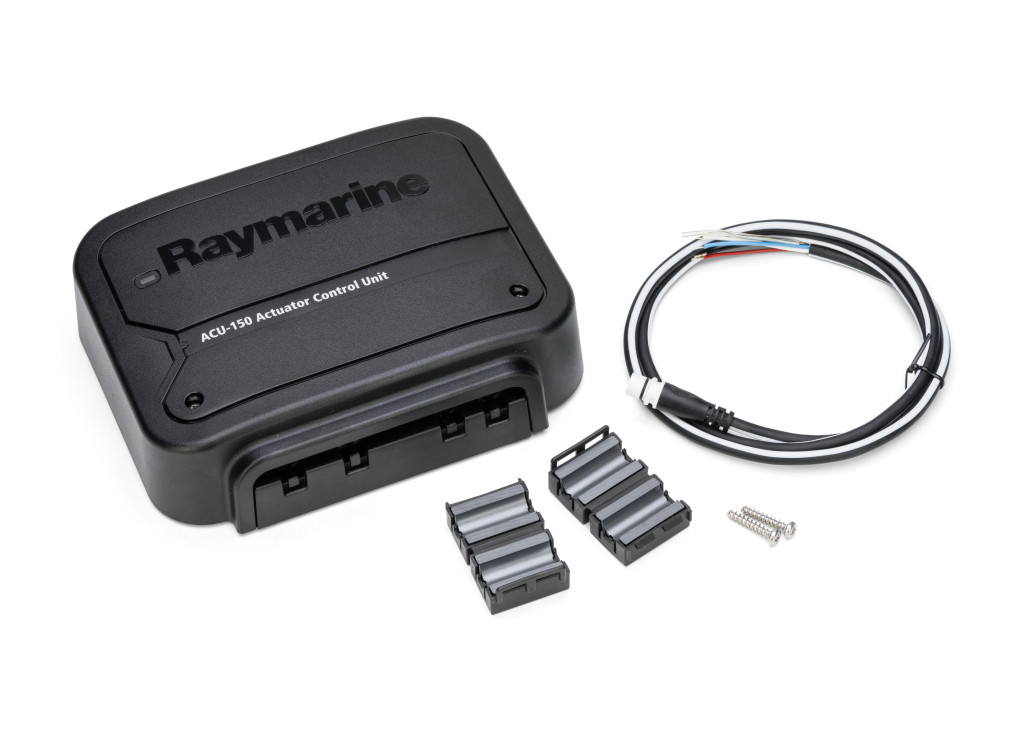

What's in the box?



1

ACU unit

2

Documentation

3

Screws (pan head type)

4

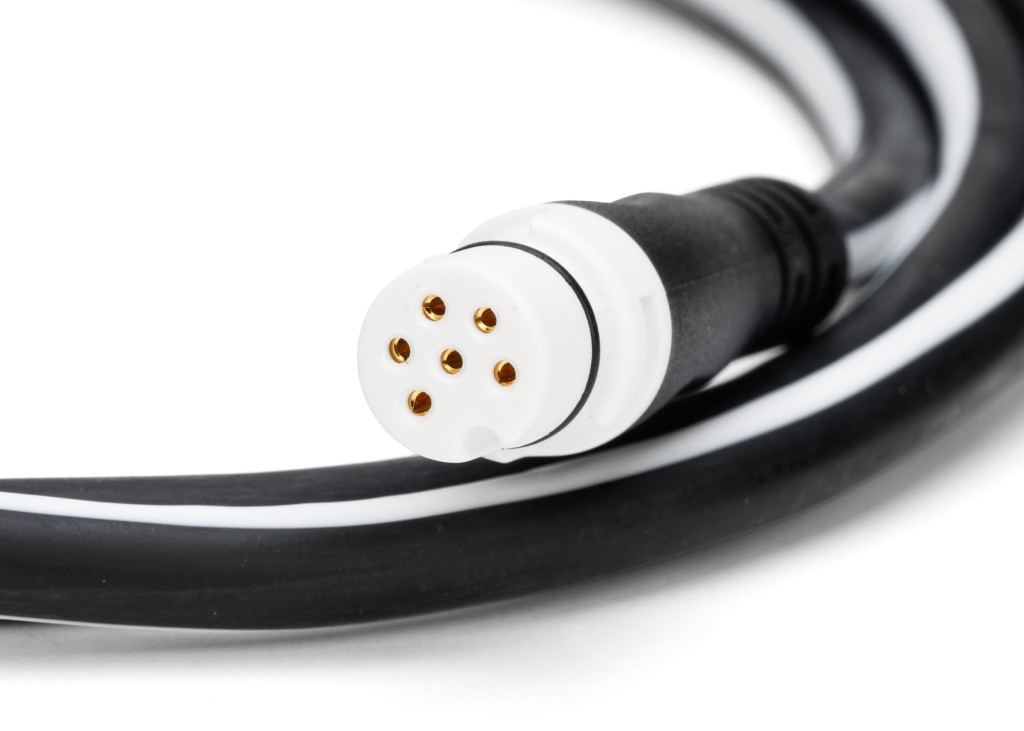

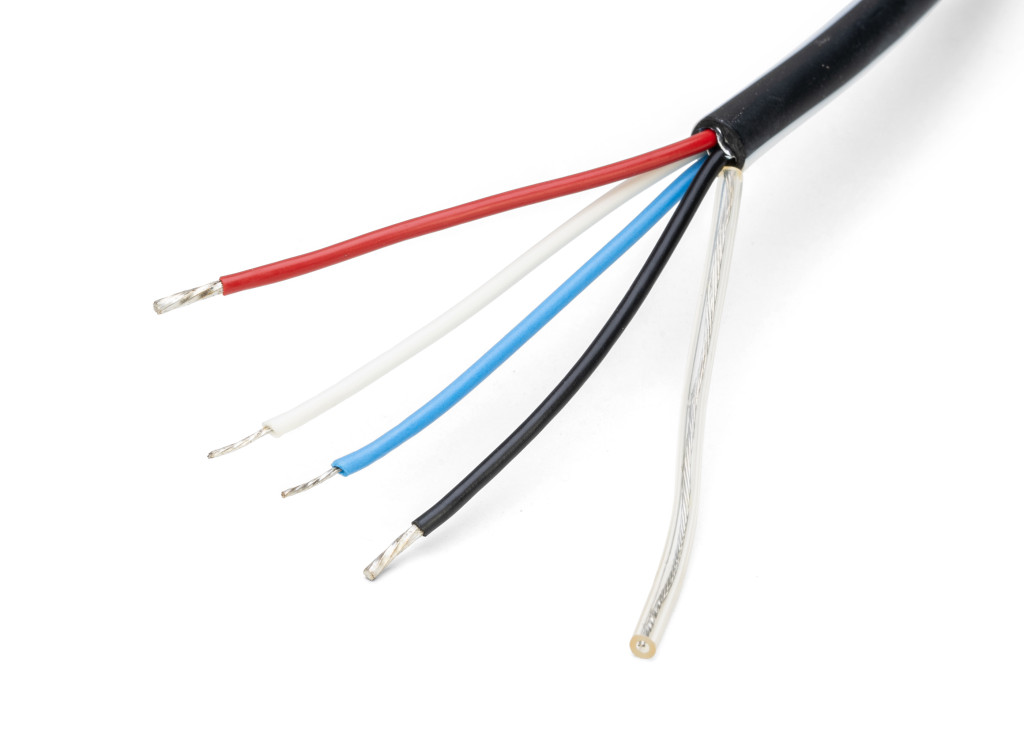

SeaTalkng spur to bare wires cable 1 m (3.3 ft)

Info
Article number:
RM-E70430
Website:
https://www.raymarine.com/en-gb/our-products/boat-...
Technical specification
Output
Drive current output

Maximum continuous 12 A at supply voltage

Physical
Dimensions

Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)

Weight

0.6 kg (1.32 lbs)

Physical
Dimensions

Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)

Weight

0.6 kg (1.32 lbs)

Conformance
Standards

Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Power consumption (standby)

300 mA (12 V)

Nominal supply voltage

12 V dc

Operating voltage range

10.8 V dc to 15.6 V dc

LEN (NMEA 2000 Load Equivalency Number)

1
