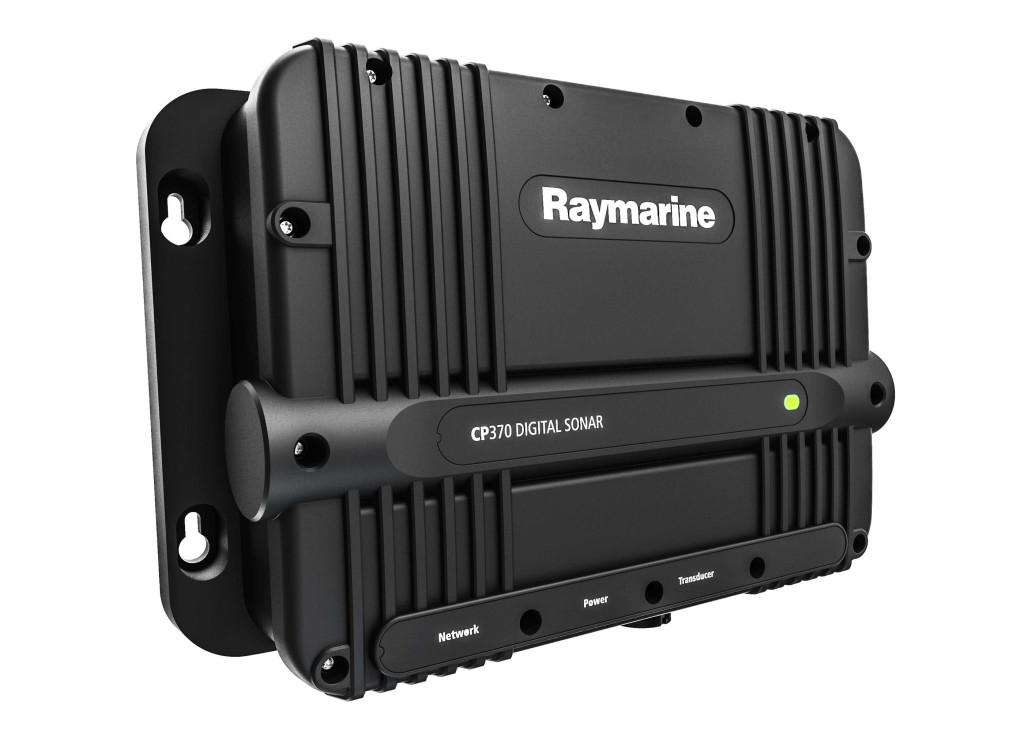

Raymarine CP370 ClearPulse 1KW Sonar Module

Digital Sonar Module

The CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine’s ClearPulse™ digital sonar processing.

The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.

ClearPulse signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.

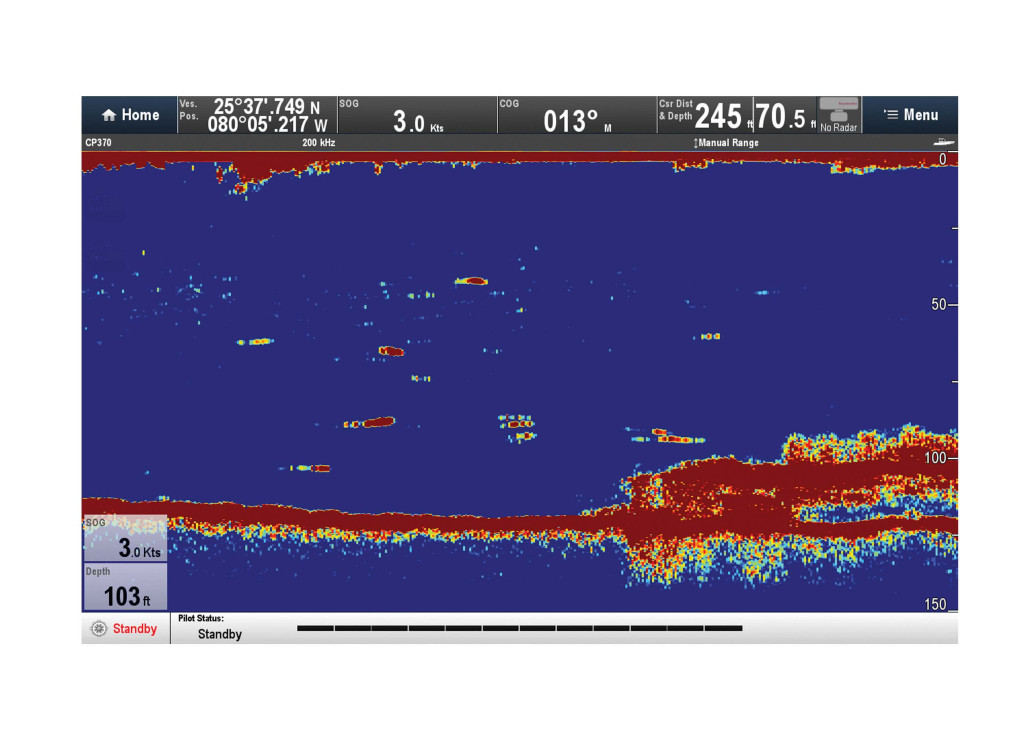

Sharper, Clutter Free Targets

• Smarter target intensity controls reveal bait and game fish with exceptional clarity
• Enhanced digital filtering reveals fish targets through the entire water column
• Spend less time looking for fish, and more time fishing - CP370 takes the guesswork out of interpreting the sonar display



Go Deeper with ClearPulse™ Sonar

• Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m)

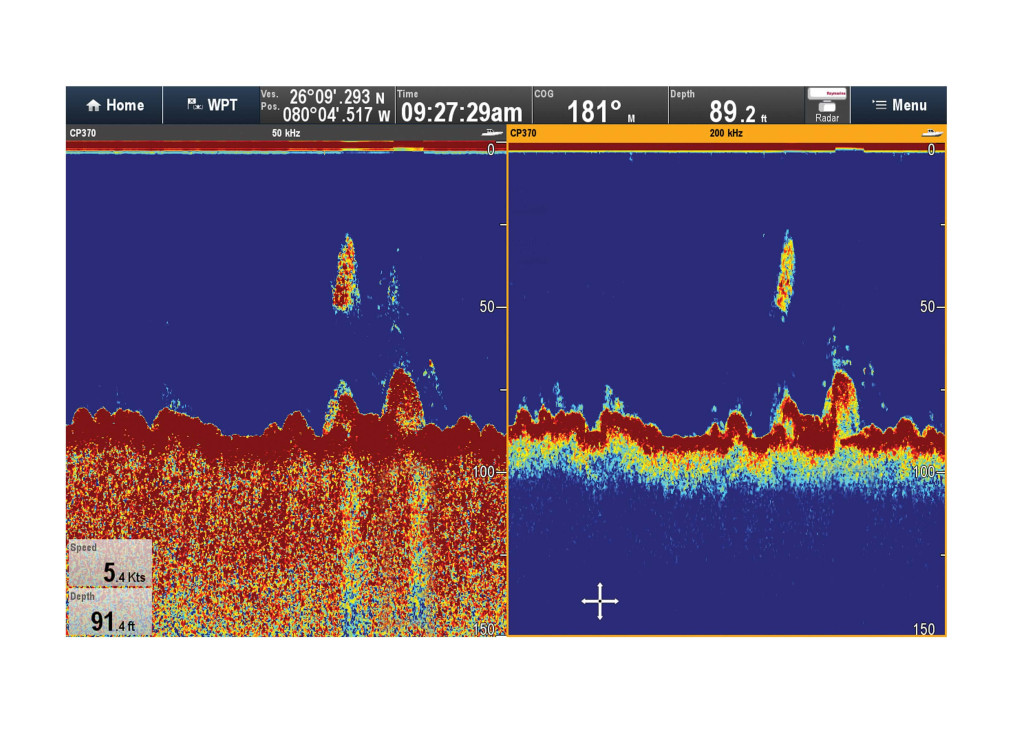

• High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing

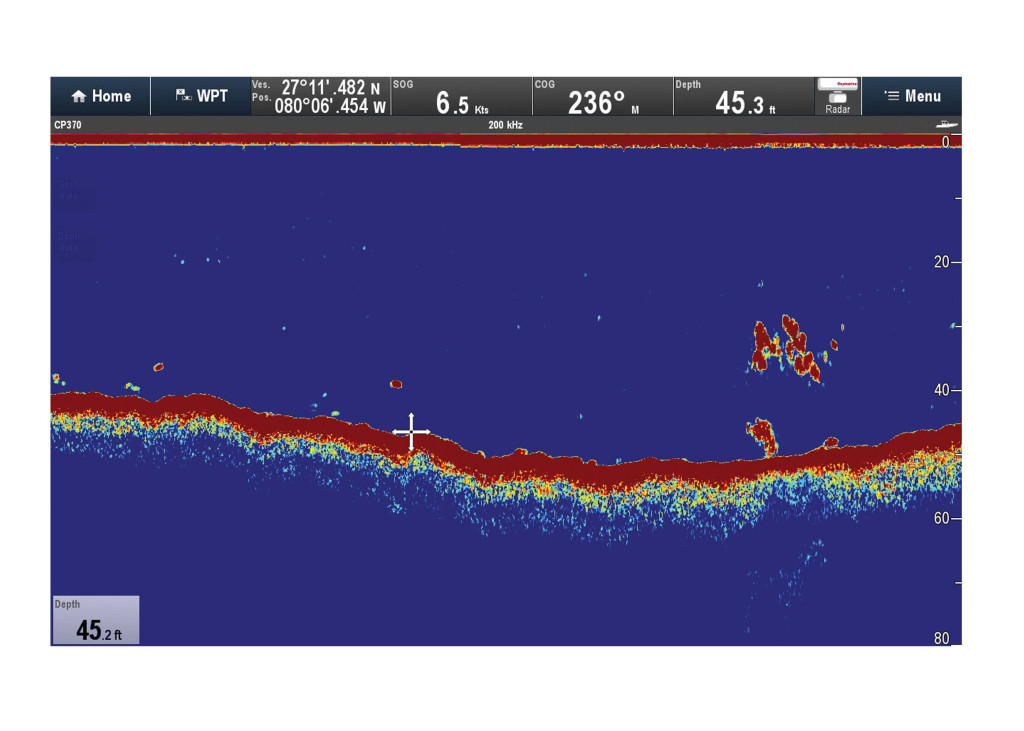

Accurate Bottom Tracking

• Track the bottom in extreme conditions with ClearPulse™ signal processing
• Bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons

What's in the box?



1	Sonar module
2	Power cable 1.5 m (5 ft)
3	Fixing screws (No.8) x 4
4	Documentation
9	RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)

Info

Article number:

RM-E70297

Water resistance rating:

IPX6

Website:

https://www.raymarine.com/en-gb/our-products/fishf...

Weight:

1.44 kg/pcs

Technical specification

Environmental
Relative humidity	Up to 95%
Waterproof rating	IPx6
Storage temperature	-30°C to +70°C (-22°F to 158°F)
Operating temperature	-10°C to +55°C (14°F to 131°F)

Sonar
Power output	Up to 1 KW RMS
Frequency	50 kHz and 200 kHz
Depth range	0.9 m (3 ft) to 1524 m (5,000 ft) (In optimum conditions and depending on transducer connected)

Physical
Connections	Power connection, Network connection (RayNet connector) 10 / 100 Mb/s, Transducer connection
Dimensions	Height: 205.6 mm (8.1 in), Width: 299.4 mm (11.79 in), Depth: 84.4 mm (3.3 in)
Weight	1.44 kg (3.16 lbs)

Conformance
Standards	EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Fuse rating	5 A
Power consumption	30.6 W (Maximum)
Current	3 A RMS
Nominal supply voltage	12 V dc / 24 V dc
Operating voltage range	10.8 V dc to 31.2 V dc
