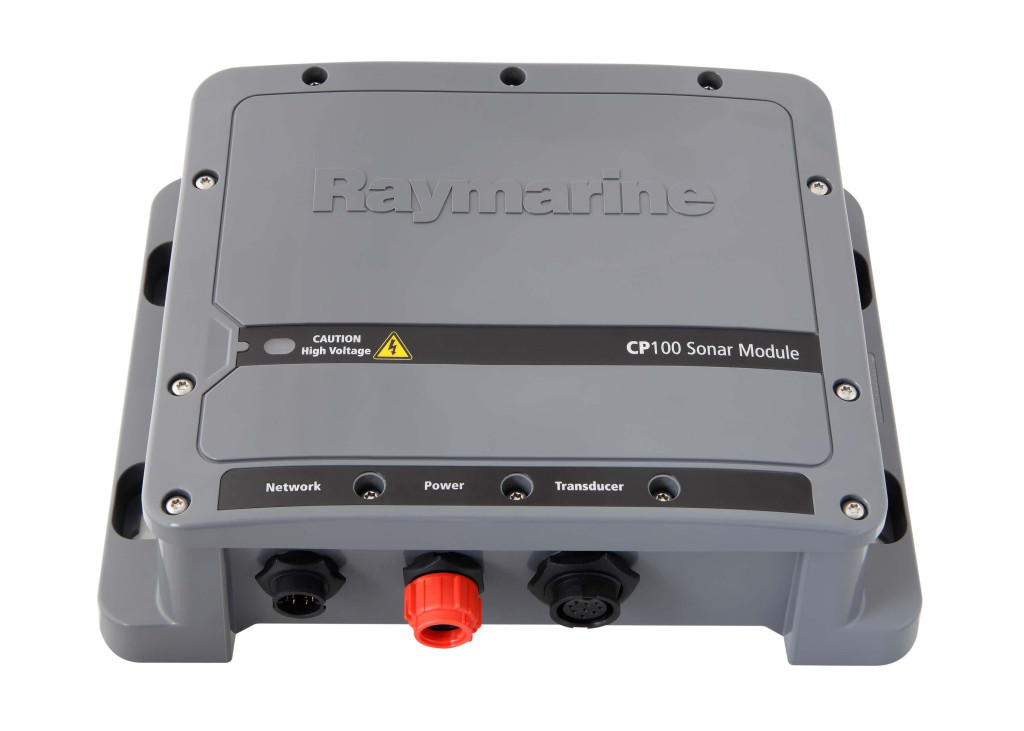

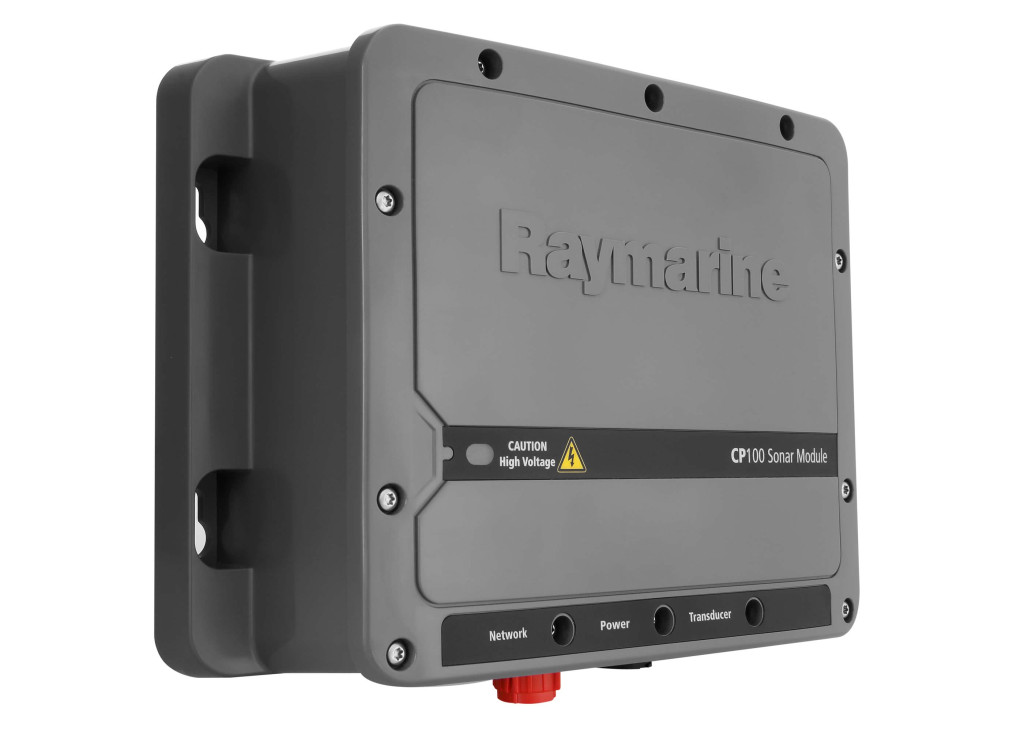

Raymarine CP100 DownVision Fishfinder

Underwater Vision and CHIRP Technology

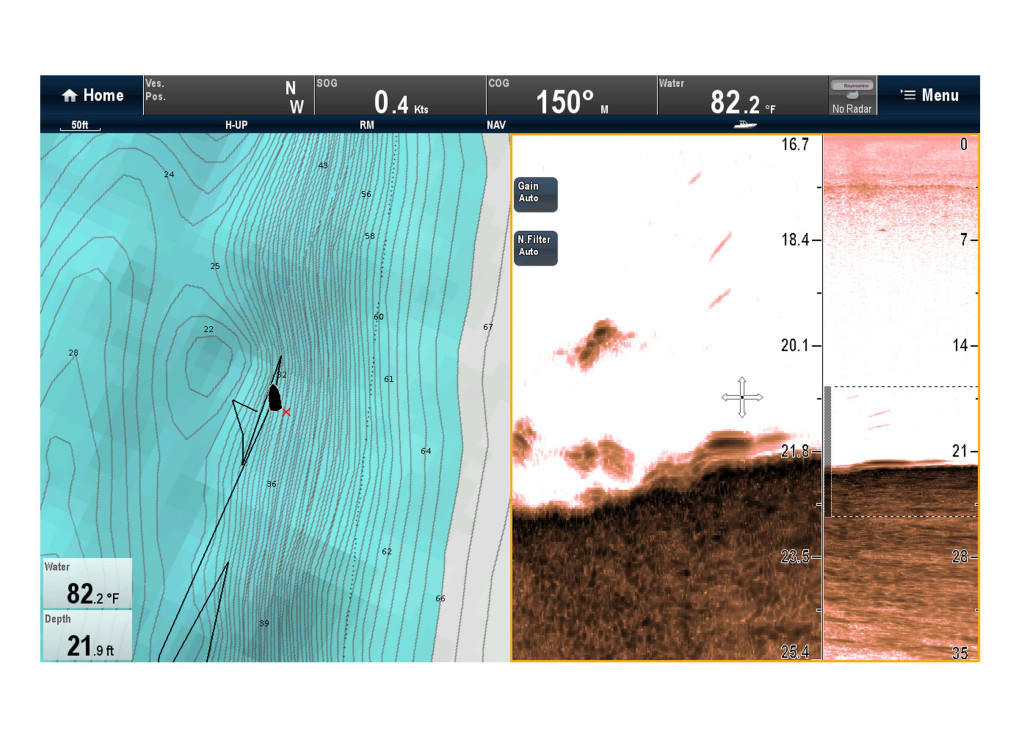

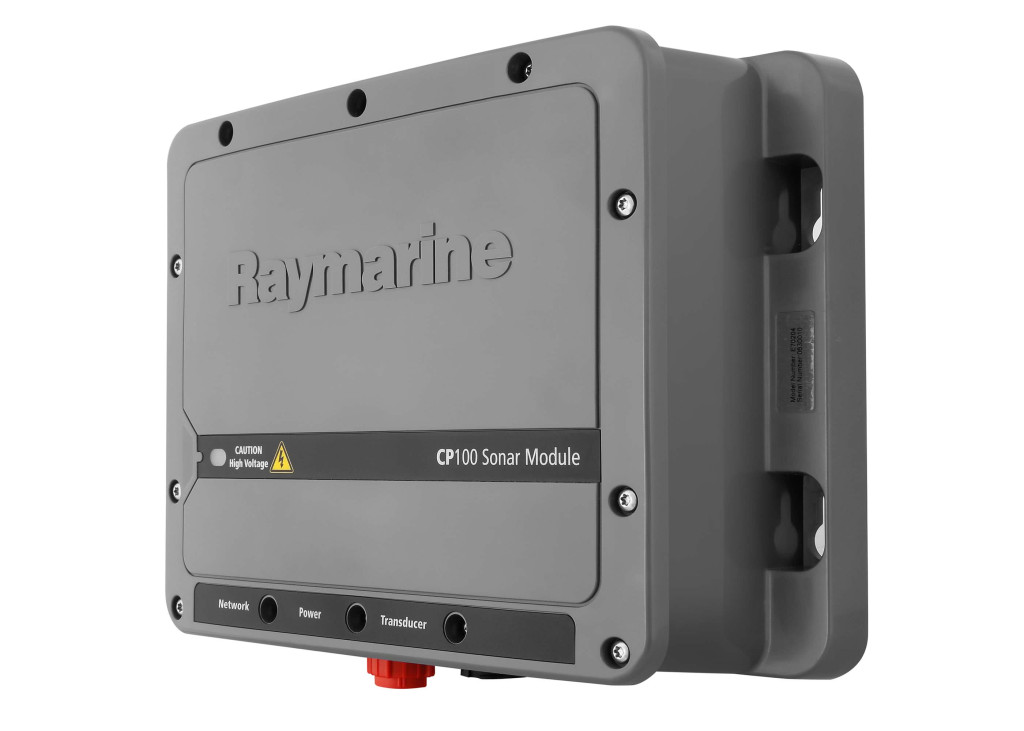

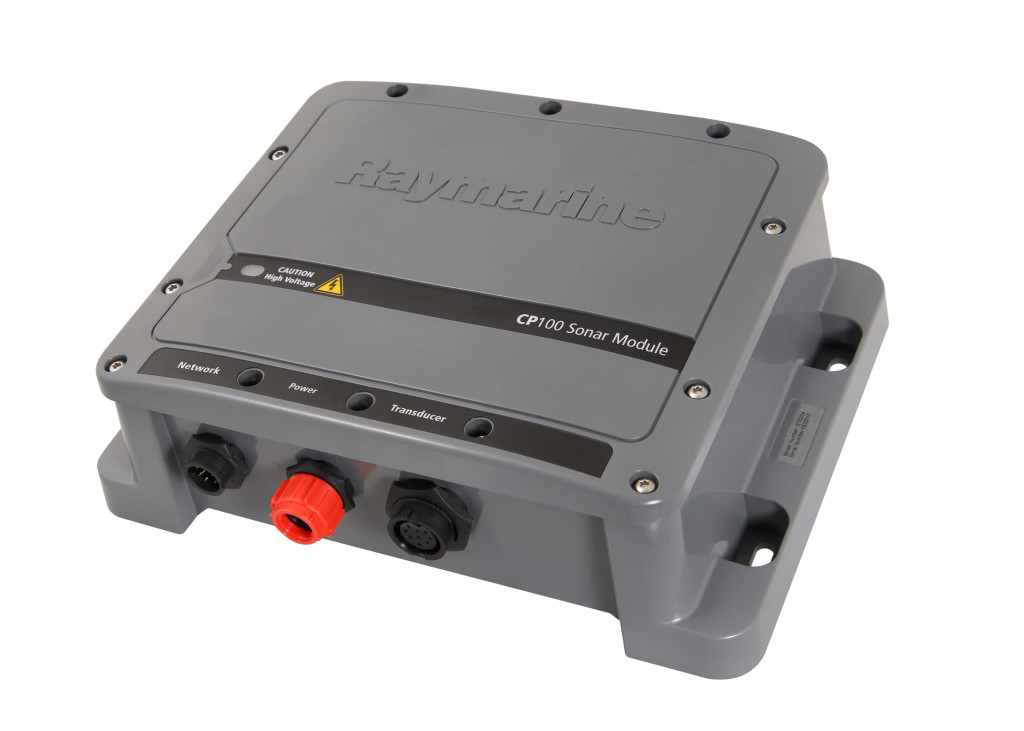

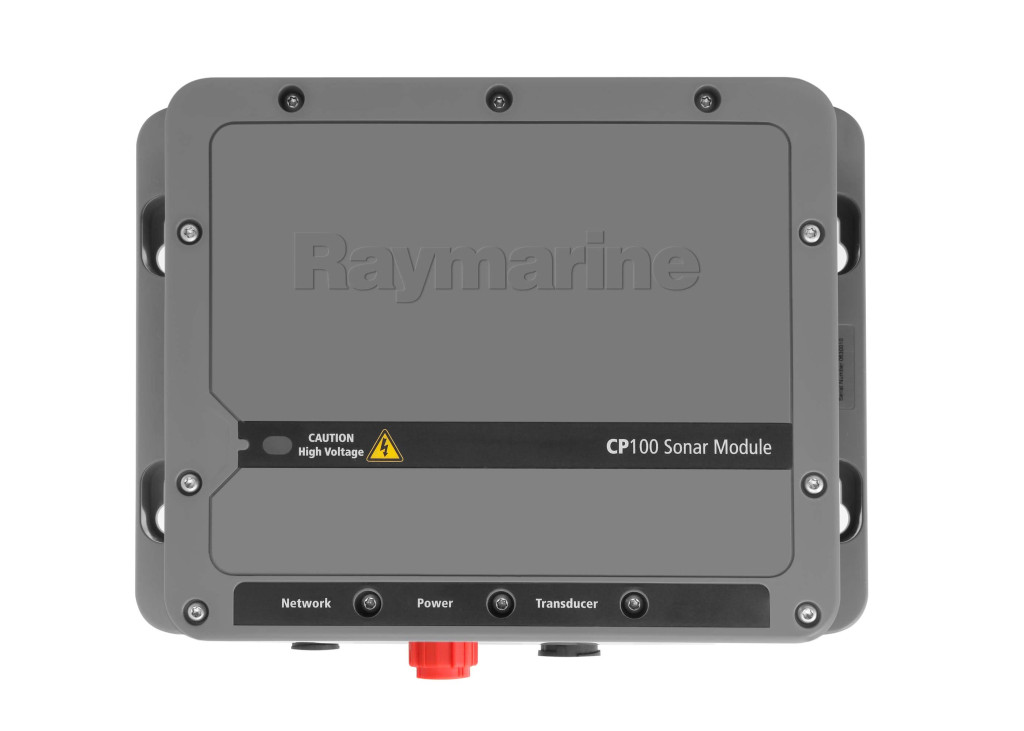

The CP100 network sonar module brings CHIRP DownVision technology to Raymarine's chartplotter displays. CP100's CHIRP DownVision delivers a photo-like view of the world beneath your boat, allowing you to image the bottom structure with amazing detail and target fish simultaneously.

Unlike conventional imaging sonars that transmit a single frequency with each pulse, the CP100 uses CHIRP technology to transmit across a wide spectrum of sonar frequencies with each pulse - the result is much higher resolution, photo-like sonar images.

Key Features

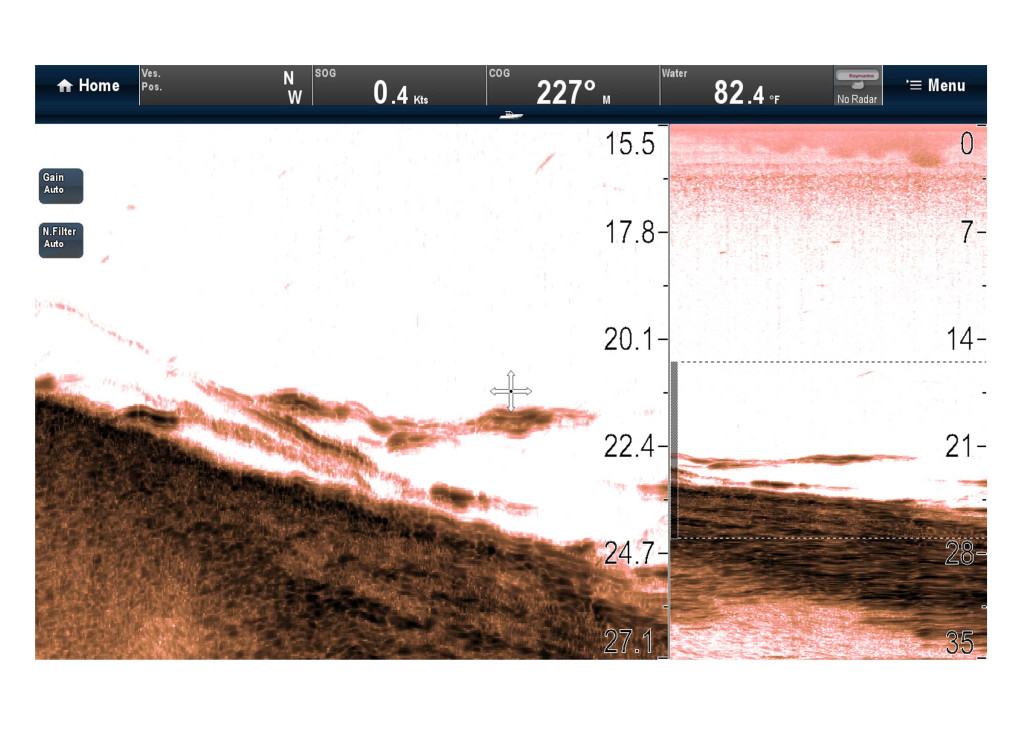

• Photo-like imagery of bottom structure using Raymarine's CHIRP DownVision technology
• DownVision™ depth performance to 900ft

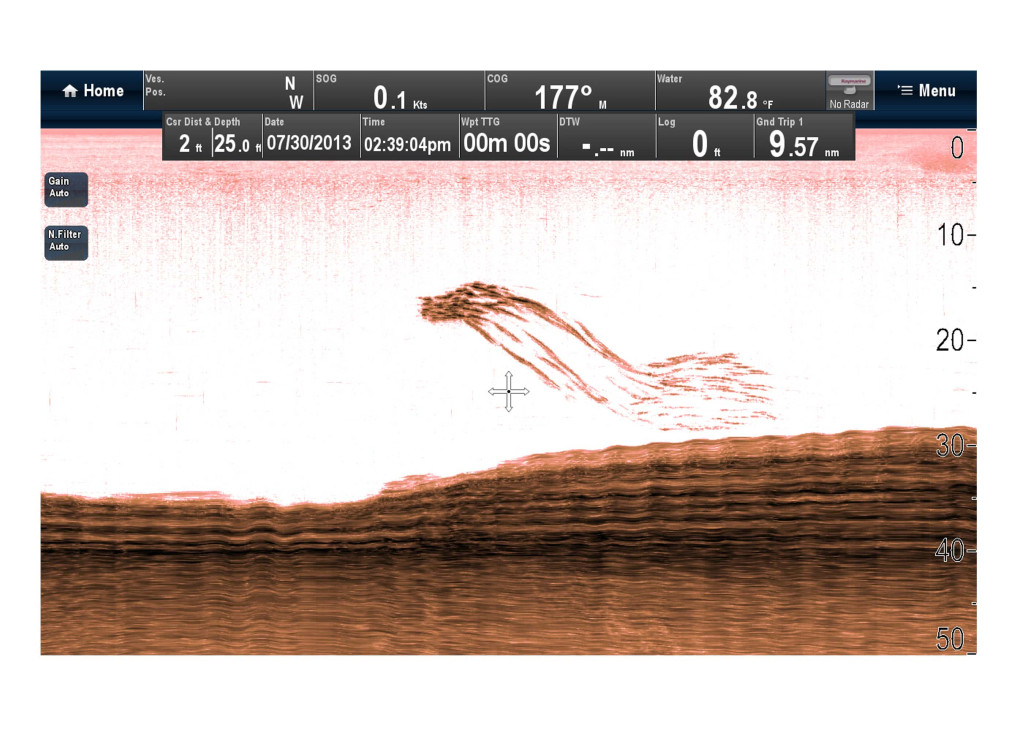

• Dual Channel CHIRP sonar; view high-resolution CHIRP DownVision structure imagery and target fish with CHIRP sonar simultaneously
• Network the CP100 with Raymarine's latest generation chartplotter displays

Submarine Wreck

Turtles seen swimming off Australia

CP100 Applications

Freshwater Fishing

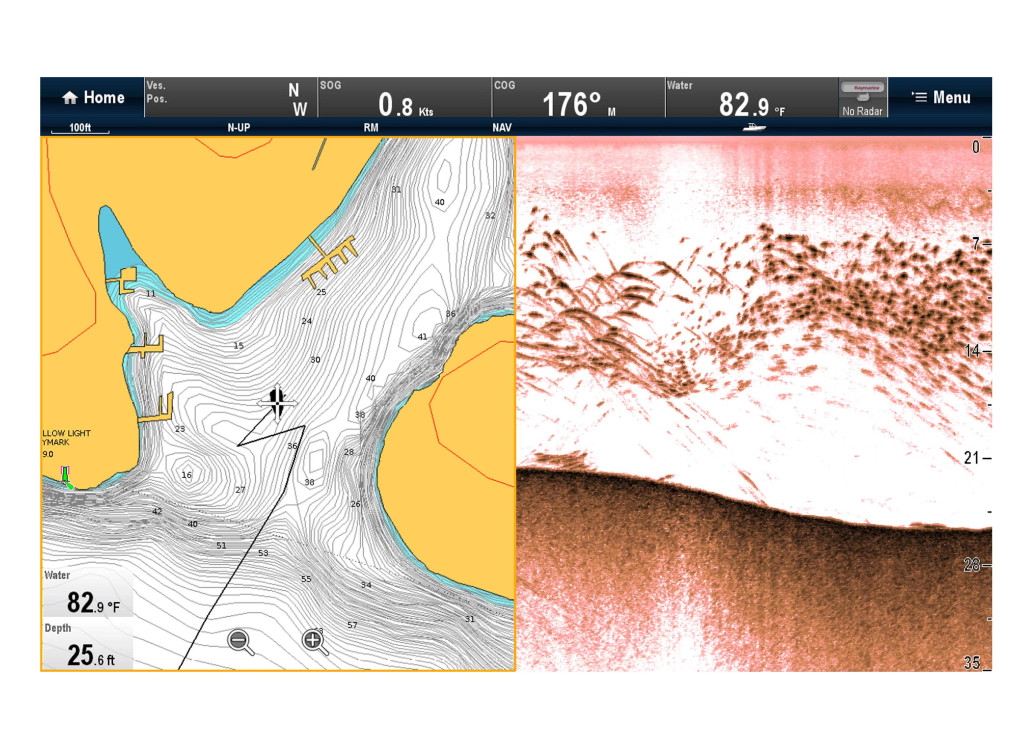

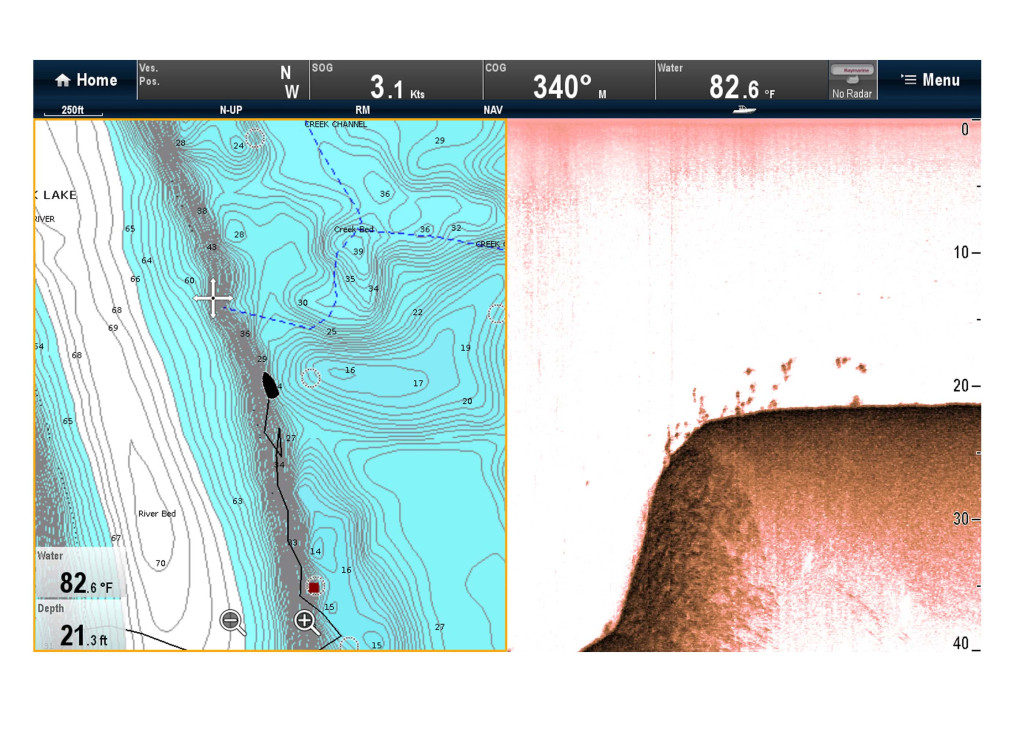

The CP100 is the ideal sonar solution for freshwater anglers. Photo realistic CHIRP DownVision easily identifies the habitat of bass and other fresh water species.

Coastal Fishing

With depth performance up to 900ft, the CP100 is the perfect choice for coastal and bay fishing. Image wrecks with unmatched fidelity and use the second CHIRP channel to target bait and predators.

What's in the box?



1	Sonar module
2	Documentation
3	Fixing screws x 4
4	Power cable 1.5 m (5 ft)

Info

Article number:

RM-E70204

Water resistance rating:

IPX6 & 7

Website:

https://www.raymarine.com/en-gb/our-products/fishf...

Weight:

600 g/pcs

Technical specification

Sonar
Beam coverage	CHIRP sonar: conical beam, DownVision: wide (port / starboard) and thin (fore / aft)
Channels	CHIRP conical sonar, DownVision
Depth range	0.6 m (2 ft) to 183 m (600 ft) Depending on water conditions

Environmental
Relative humidity	Up to 95%
Waterproof rating	IPx6, IPx7
Storage temperature	-30°C to +70°C (-22°F to 158°F)
Operating temperature	0°C to 55°C (32°F to 131°F)

Physical
Dimensions	Height: 162 mm (6.4 in), Width: 225 mm (8.9 in), Depth: 72 mm (2.8 in)
Weight	0.6 kg (1.32 lbs)

Conformance
Standards	EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Power consumption	5.6 W (maximum)
Fuse rating	5 A
Nominal supply voltage	12 V dc / 24 V dc
Operating voltage range	10.8 V dc to 31.2 V dc
Current	1 A peak
