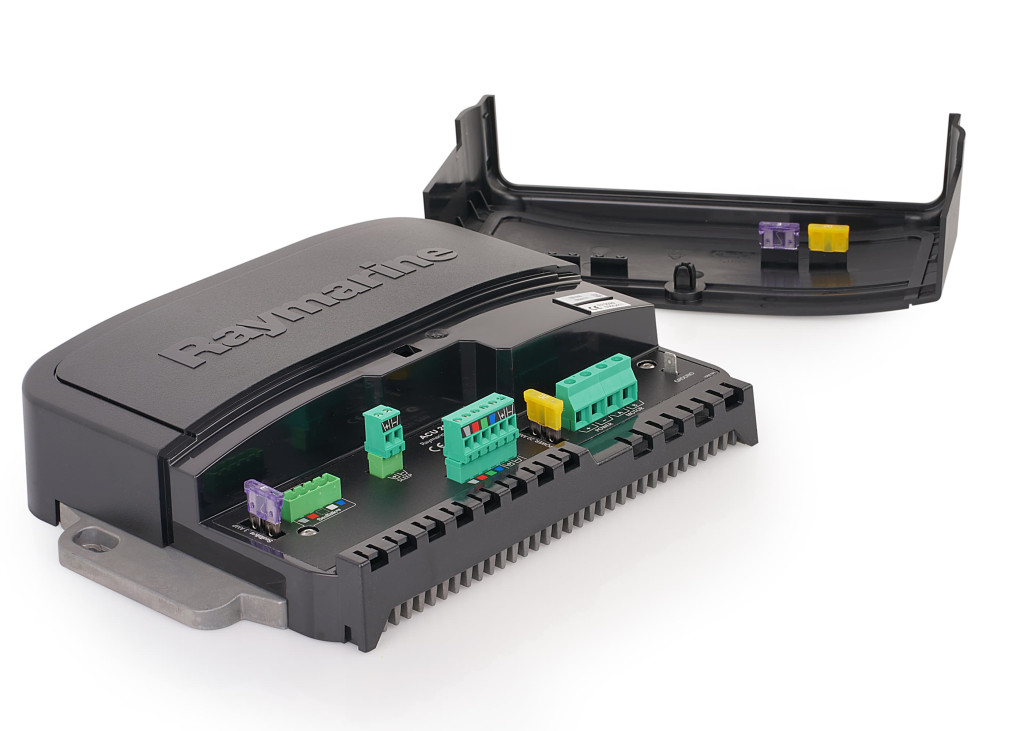

Raymarine ACU-400 Actuator Control Unit

Manufacturer:

RAYMARINE

Manufacturer Article number:

E70100

Main warehouse

Out of stock

External warehouse

Out of stock

Delivery time approx: 1-2 Weeks!

ACU-400 Evolution autopilot actuator control unit

Details

Raymarine ACU-400 Actuator Control Unit

ACU-400 Overview

The ACU-400 (Actuator Control Unit) is a key component for Evolution autopilot systems. The ACU-400 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12-volt DC electrical source. Combine with an EV-1 sensor, autopilot control head, and Type 2 and Type 3 hydraulic, mechanical linear, hydraulic linear, or mechanical rotary drive a complete autopilot system.

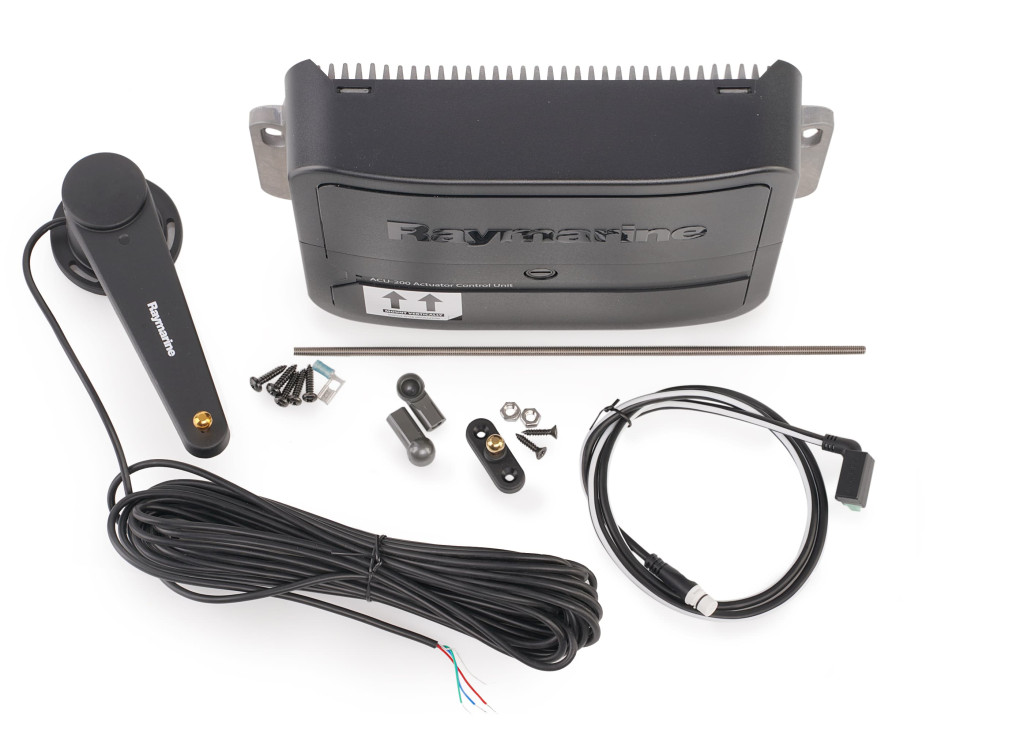

What's in the box?

1	ACU unit
2	Rudder angle reference sensor / transducer (supplied with specific system packs only)
3	Cable ties
4	Mounting screws
5	Documentation

Info

Article number:

RM-E70100

Website:

https://www.raymarine.com/en-gb/our-products/boat-...

Technical specification

Output
Drive clutch output	Up to 4 A continuous at 12 V on 12 V systems Up to 4 A continuous at 24 V on 24 V systems Up to 4 A continuous at 12 V on 24 V systems
Drive current output	Maximum continuous 30 A at supply voltage

Output

Drive clutch output

Up to 4 A continuous at 12 V on 12 V systems

Up to 4 A continuous at 24 V on 24 V systems

Up to 4 A continuous at 12 V on 24 V systems

Drive current output

Maximum continuous 30 A at supply voltage

Physical
Dimensions	Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in)
Weight	2.2 kg (4.84 lbs)

Environmental
Relative humidity	Max. 93%
Waterproof rating	Drip resistant
Storage temperature	-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature	-20 °C to +55 °C (-4 °F to 131 °F)

Conformance
Standards	Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Power consumption (standby) - main power supply	300 mA (12 / 24 V)
Power output to SeaTalkng bus	3 A @ 12 V (fuse protected at 3 A)
Power consumption (standby) - SeaTalkng bus	20 mA (12 V)
Nominal supply voltage	12 / 24 V dc
Operating voltage range	10.8 V dc to 31.2 V dc
LEN (NMEA 2000 Load Equivalency Number)	1
