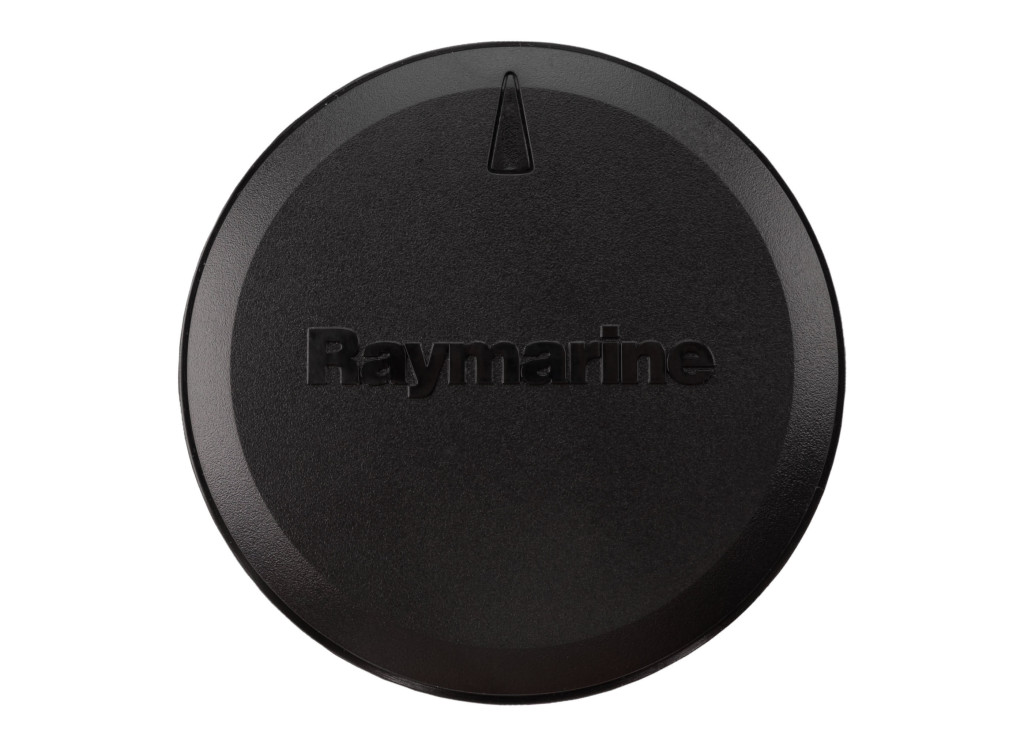

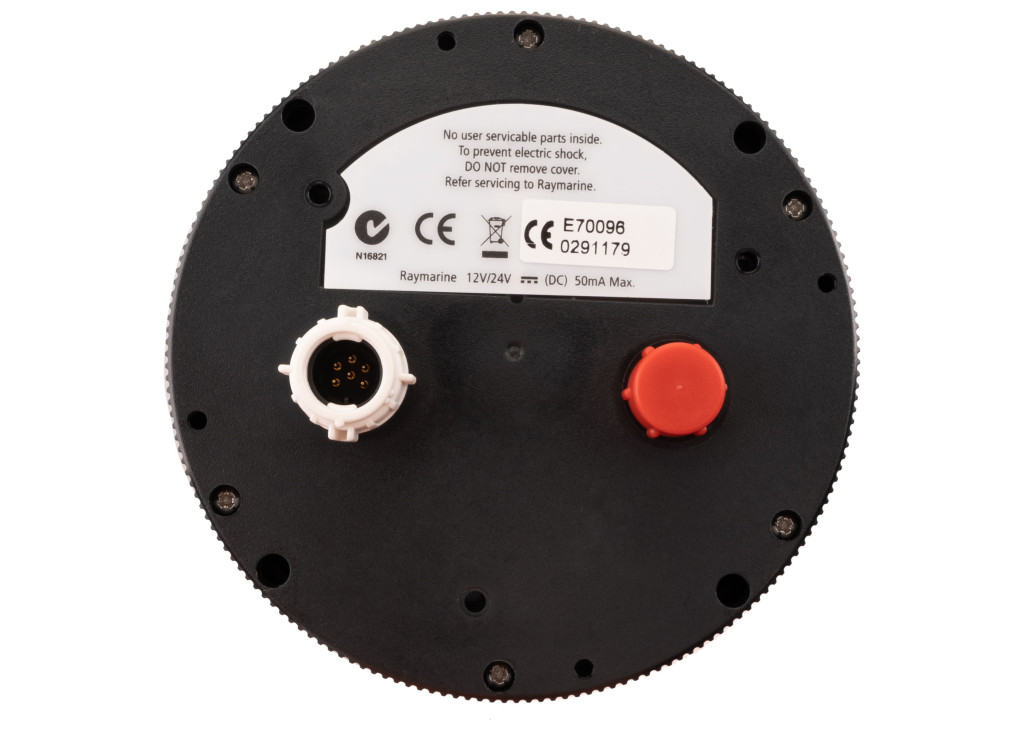

Raymarine Evolution EV1 Sensor Core

Article No.:
RM-E70096
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Raymarine Evolution EV1 Sensor Core
Manufacturer:
RAYMARINE
Manufacturer Article number:
E70096
Main warehouse
Out of stock
External warehouse
Out of stock
Delivery time approx: 1-2 Weeks!

Evolution autopilot sensor core for traditional steering systems

Csomagajánlatok
  • Details
  • Info
  • Technical specification
Details

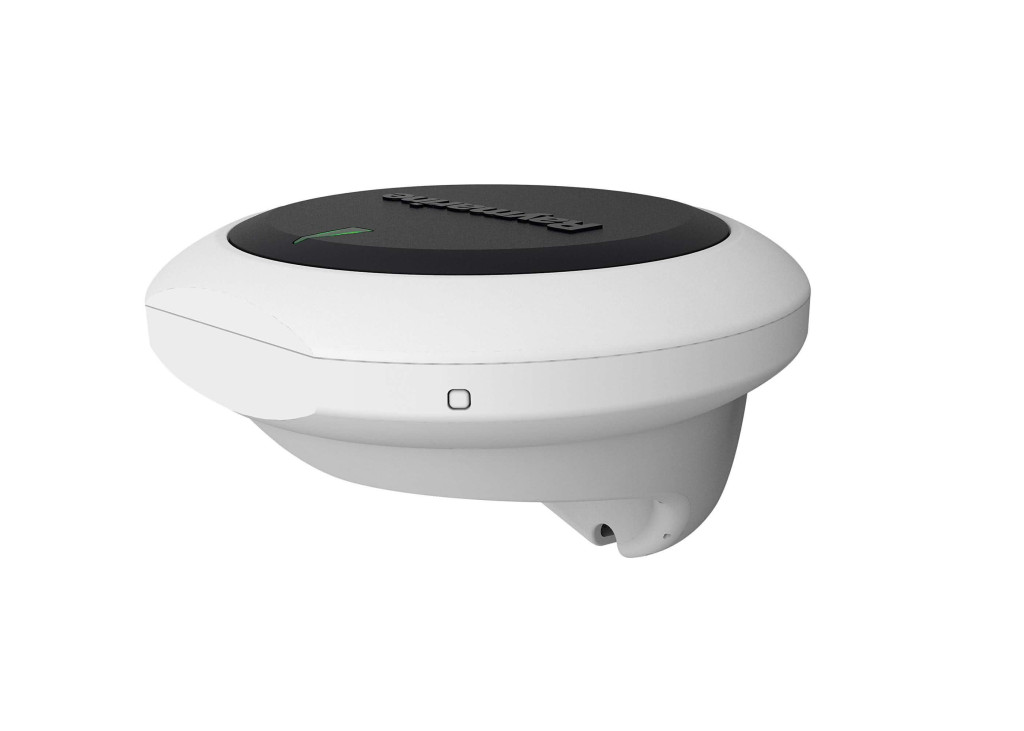

EV-1 Sensor Core

Designed for Traditional Steering Systems

The EV-1 Sensor Core is at the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions. Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes. Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.

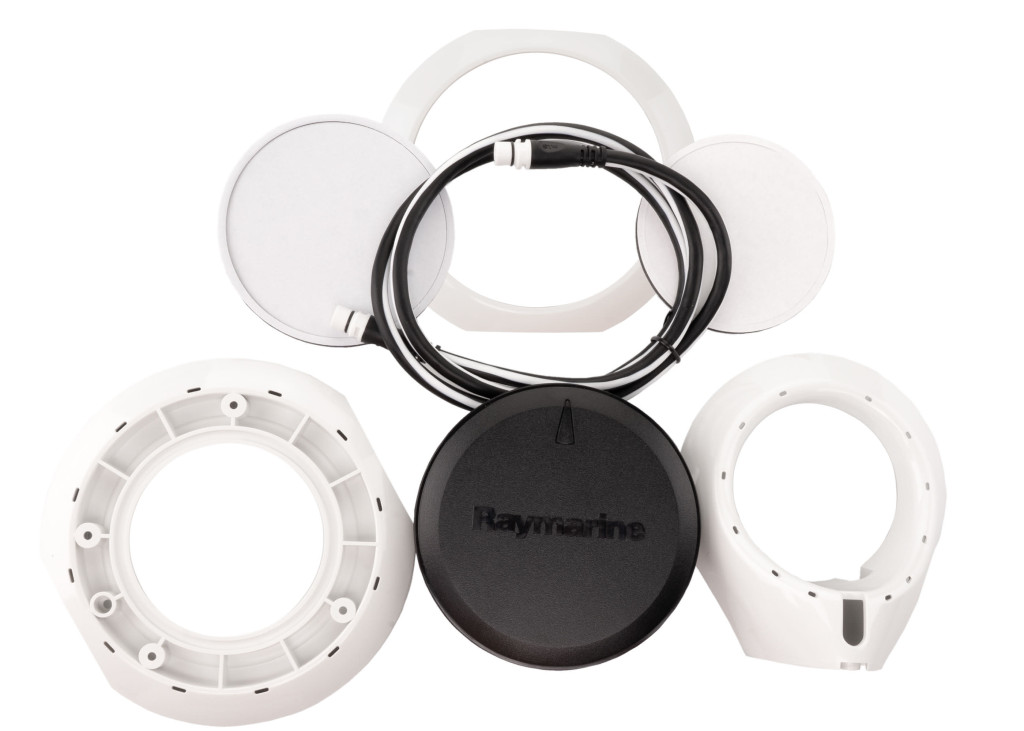

What's in the box?



1

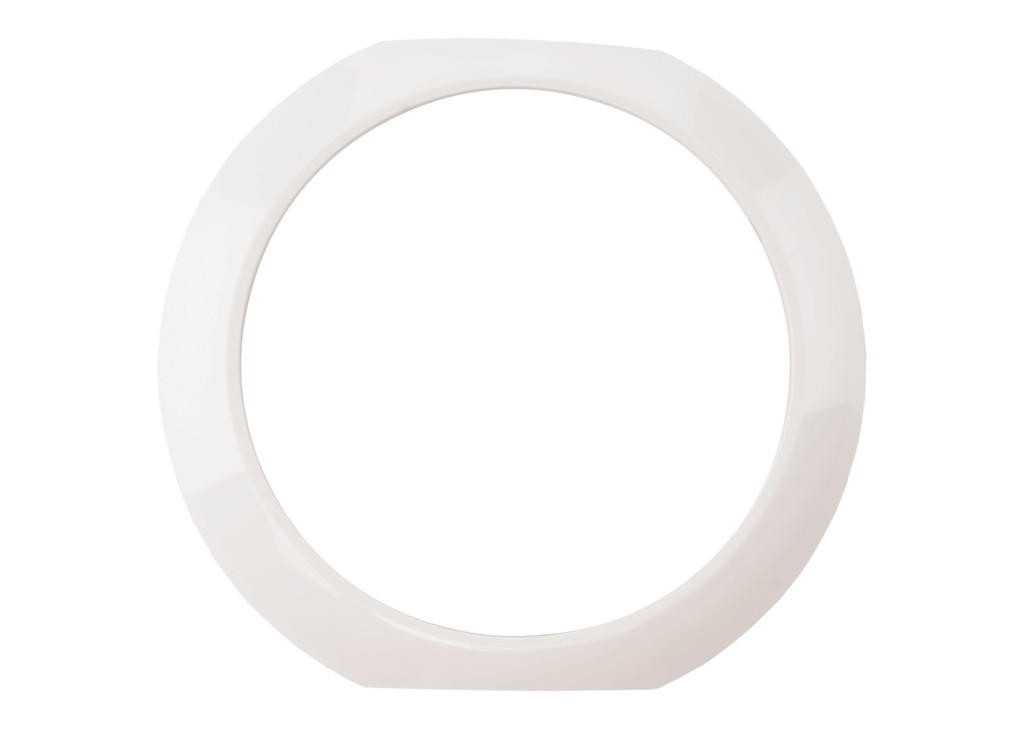

Mounting trim

2

EV unit

3

Sealing ring

4

Mounting tray

5

Sealing ring

6

Wall mounting bracket

7

Screws for deck or bracket mounting

8

Screws for wall bracket

9

Documentation

10

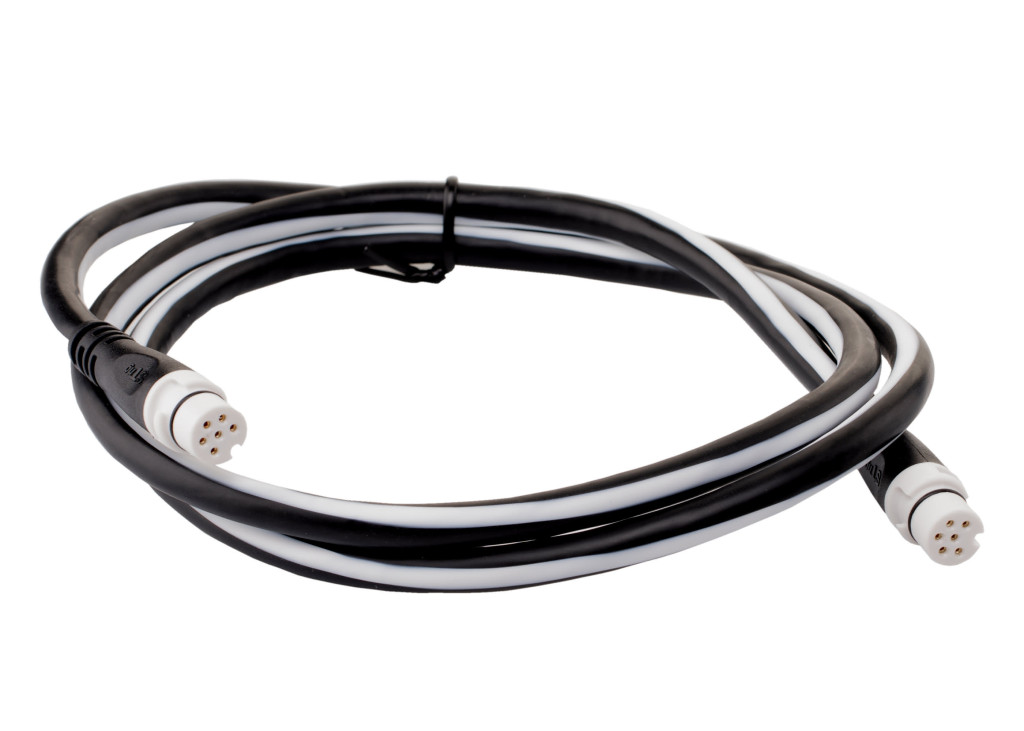

SeaTalkng spur cable 1 m (33 ft)

Info
Article number:
RM-E70096
Website:
https://www.raymarine.com/en-gb/our-products/boat-...
Technical specification
Environmental
Relative humidity

Max. 93%

Waterproof rating

IPx6

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-25 °C to +55 °C (-13 °F to 131 °F)

Conformance
Standards

Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Physical
Dimensions

Diameter: 140 mm (5.5 in), Depth (including mounting enclosure): 35 mm (1.4 in), Depth (including wall bracket): 95 mm (3.8 in)

Sensors

3-axis digital accelerometer, 3-axis digital compass, 3-axis gyro digital angular rate sensor

Weight

0.29 kg (0.64 lbs)

Power
Nominal supply voltage

12 V dc

Operating voltage range

10.8 V dc to 15.6 V dc

Power consumption

30 mA

LEN (NMEA 2000 Load Equivalency Number)

1
